ADLINK Technology IMB-M45H Bedienungsanleitung

Leading EDGE COMPUTING

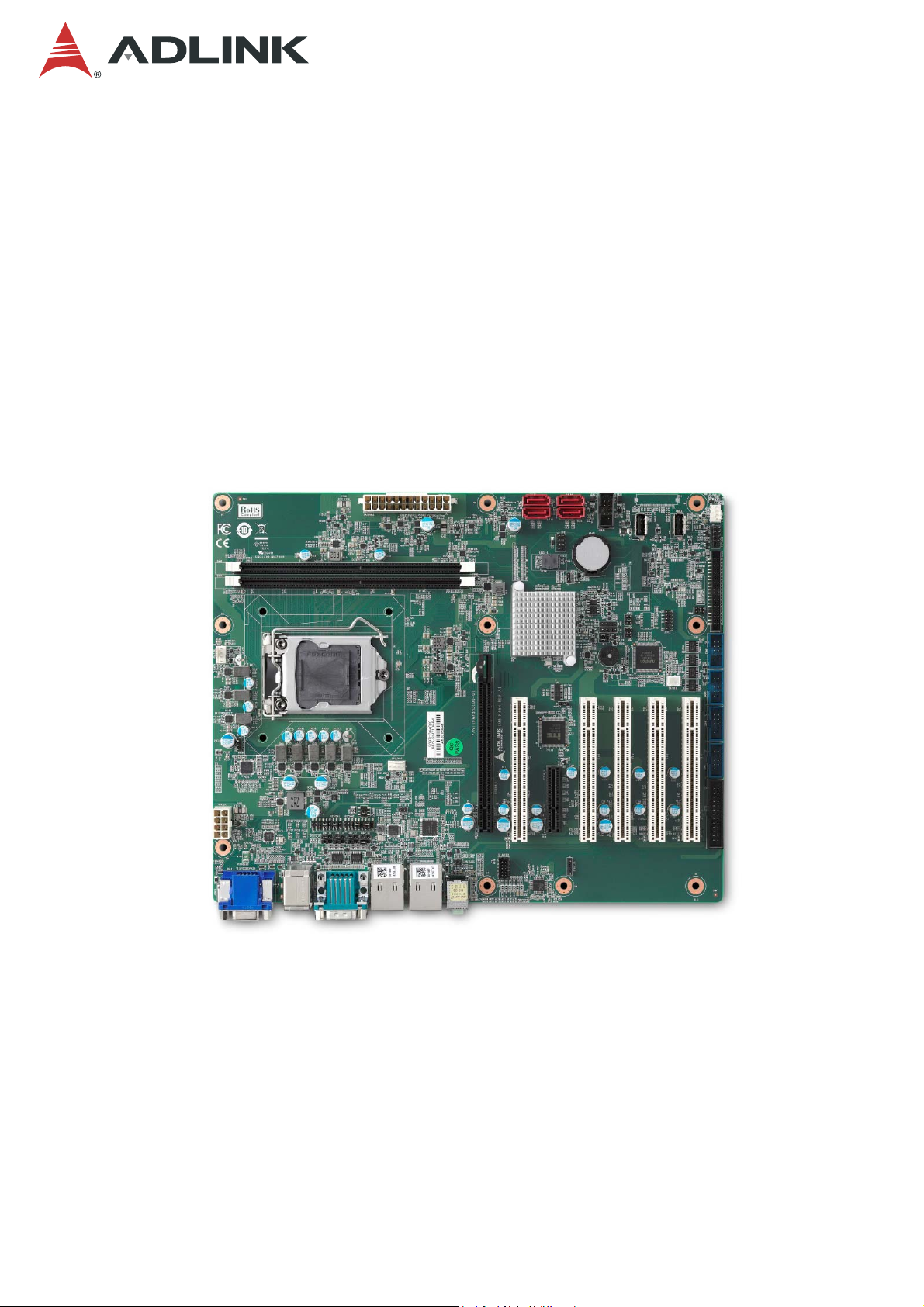

IMB-M45H

User’s Manual

ATX Motherboard with 8th/9th Gen Intel®Core™ i7/i5/i3 Processors

and Intel®H310 Chipset

Manual Rev.: 1.0

Revision Date: January 24, 2021

Part Number: 50-1Z353-1000

ii Preface

Preface

All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in

any form without prior written permission of the manufacturer.

Disclaimer

The information in this document is subject to change without prior notice in order to improve reliability, design, and

function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer

be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use

the product or documentation, even if advised of the possibility of such damages.

Environmental Responsibility

ADLINK is committed to fulfill its social responsibility to global environmental preservation

through compliance with the European Union's Restriction of Hazardous Substances (RoHS)

directive and Waste Electrical and Electronic Equipment (WEEE) directive. Environmental

protection is a top priority for ADLINK. We have enforced measures to ensure that our products,

manufacturing processes, components, and raw materials have as little impact on the

environment as possible. When products are at their end of life, our customers are encouraged

to dispose of them in accordance with the product disposal and/or recovery programs

prescribed by their nation or company.

Battery Labels (for products with battery)

廢電池請回收

California Proposition 65 Warning

WARNING: This product can expose you to chemicals including acrylamide, arsenic, benzene,

cadmium, Tris(1,3-dichloro-2-propyl)phosphate (TDCPP), 1,4-Dioxane, formaldehyde, lead, DEHP,

styrene, DINP, BBP, PVC, and vinyl materials, which are known to the State of California to cause

cancer, and acrylamide, benzene, cadmium, lead, mercury, phthalates, toluene, DEHP, DIDP, DnHP,

DBP, BBP, PVC, and vinyl materials, which are known to the State of California to cause birth defects or other

reproductive harm. For more information go to www.P65Warnings.ca.gov.

Trademarks

Product names mentioned herein are used for identification purposes only and may be trademarks and/or

registered trademarks of their respective companies.

IMB-M45H

Preface iii

Revision History

Revision Description Date By

1.0 Initial release 2021-01-24

iv Preface

Table of Contents

Preface................................................................................................................................ii

List of Figures ...................................................................................................................vi

List of Tables....................................................................................................................vii

1Introduction................................................................................................................1

1.1 Packing List ................................................................................................................1

1.2 Optional Accessories ..................................................................................................1

2Specifications............................................................................................................3

2.1 Core System ...............................................................................................................3

2.2 I/O Interface ................................................................................................................3

2.3 Video...........................................................................................................................3

2.4 Audio...........................................................................................................................4

2.5 Temperatures .............................................................................................................4

2.6 Humidity......................................................................................................................4

2.7 Certificate (EMC) ........................................................................................................4

2.8 Form Factor ................................................................................................................4

2.9 Operating Systems .....................................................................................................4

2.10 Functional Block Diagram...........................................................................................5

3Mechanical Layout ....................................................................................................7

3.1 Connector Locations...................................................................................................7

3.2 Mechanical Dimensions............................................................................................10

4Connector Pinouts ..................................................................................................11

4.1 Rear IO Connectors..................................................................................................11

4.2 Internal Connectors ..................................................................................................14

4.3 Jumper and Switch Settings .....................................................................................20

5Driver Installation....................................................................................................25

6System Resources ..................................................................................................27

6.1 System Memory Map................................................................................................27

6.2 I/O Map .....................................................................................................................27

6.3 Interrupt Request (IRQ) Lines...................................................................................29

6.4 PCI Features.............................................................................................................30

6.5 SMBus Slave Addresses ..........................................................................................31

IMB-M45H

Preface v

7BIOS Setup...............................................................................................................33

7.1 Menu Structure .........................................................................................................33

7.2 Main Menu ................................................................................................................34

7.3 Advanced Menu........................................................................................................35

7.4 Chipset Menu............................................................................................................43

7.5 Security Menu...........................................................................................................48

7.6 Boot Menu ................................................................................................................49

7.7 Save & Exit Menu .....................................................................................................50

Safety Instructions...........................................................................................................51

Getting Service.................................................................................................................52

vi Preface

List of Figures

Figure 1: Functional Block Diagram .........................................................................................................5

Figure 2: IO Panel Connector Locations ..................................................................................................7

Figure 3: Onboard Connector Locations ..................................................................................................8

Figure 4: Mechanical Dimensions ......................................................................................................... 10

Figure 5: Mechanical Dimensions - IO Panel........................................................................................ 10

IMB-M45H

Preface vii

List of Tables

Table 1: IO Panel Connector Definitions ..................................................................................................7

Table 2: Onboard Connector Definitions ..................................................................................................8

Table 3: Jumper and Switch Definitions ................................................................................................ 20

Table 4: System Memory Map .............................................................................................................. 27

Table 5: IO Map..................................................................................................................................... 27

Table 6: IRQ Lines PIC Mode................................................................................................................ 29

Table 7 IRQ Lines APIC Mode .............................................................................................................. 29

Table 8 PCI Configuration Space Map.................................................................................................. 30

Table 9 PCI Interrupt Routing Map........................................................................................................ 31

Table 10 SMBus Slave Addresses........................................................................................................ 31

viii Preface

This page intentionally left blank.

IMB-M45H

Introduction 1

1 Introduction

The IMB-M45H is an ATX motherboard supporting 8th and 9th Generation Intel® Core™ i7/i5/i3 processors, an

Intel® H310 chipset, and 5 PCI expansion slots to provide a cost-competitive embedded computing solution. With

high-speed data transfer interfaces such as PCIe 3.0/2.0, USB 3.0, and SATA 6 Gb/s, dual-channel DDR4 memory

up to 64 GB in two DIMM slots for industrial automation applications, the IMB-M45H offers a significant competitive

advantage for embedded computing applications. The rugged I/O design enhances system flexibility with robust

device compatibility, durable connectivity, and extreme environment readiness.

1.1 Packing List

•IMB-M45H ATX motherboard

•Rear I/O shield

1.2 Optional Accessories

•2-port USB 2.0 cable with bracket (Part Number: 30-25010-3010)

•1-port LPT cable with bracket (Part Number: 30-25019-2000)

•2-port COM cable with bracket (Part Number: 30-25003-3000)

•1-port PS/2 cable for keyboard/mouse (Part Number: 30-01016-0000)

•1-port SATA cable (Part Number: 30-10057-7000)

•CPU cooler for <=65W and 35W CPU (Part Number: 32-20113-2000, including CPU cooler backplane)

•CPU cooler for >65W CPU (Part Number: 32-20831-0000-A0, CPU cooler backplane Part Number: 32-

50031-0000-A0)

2 Introduction

This page intentionally left blank.
