ADS-tec MCR5000 Bedienungsanleitung

User Manual

Industrial PCs

MCR5000

Version 2.0

Industrial PCs MCR5000

Product Portfolio

ads-tec GmbH

Heinrich-Hertz-Str. 1

D-72622 Nürtingen

Germany

Industrial PCs MCR5000

INDEX

About us......................................................................................................................................5

1Remarks.....................................................................................................................6

1.1 Relevant device documentation...............................................................................................6

1.2 Description of the warning symbols used in this guide........................................................6

1.3 Data, Images, Amendments and Variations............................................................................6

1.4 Trademarks.................................................................................................................................7

1.5 Copyright....................................................................................................................................7

1.6 Environmental conditions.........................................................................................................8

1.7 Standards ...................................................................................................................................8

1.8 Scope of delivery.......................................................................................................................9

2Operating instructions............................................................................................10

2.1 Operating location...................................................................................................................10

2.2 Damages due to Improper Use...............................................................................................10

2.3 Warranty / Repairs...................................................................................................................11

2.4 Treatment and disposal of lithium batteries.........................................................................11

2.5 Safety Instructions ..................................................................................................................11

3Assembly.................................................................................................................12

3.1 Overall Device Dimensions.....................................................................................................12

3.2 Order of installation.................................................................................................................13

4Commissioning .......................................................................................................23

4.1 Available interfaces.................................................................................................................23

4.2 Cable installation.....................................................................................................................24

4.3 Readiness for Operation Checks...........................................................................................24

4.4 Status displays.........................................................................................................................24

5Interfaces.................................................................................................................25

5.1 230 V AC power supply...........................................................................................................25

5.2 USB connections.....................................................................................................................26

5.3 Sim Card Reader according to ISO 7816...............................................................................26

5.4 IEEE1394 Firewire 4-pin connection (without power).........................................................27

5.5 Network connection (RJ45) ....................................................................................................27

5.6 COM (RS232) Serial Interface.................................................................................................28

5.7 Optional radio network card...................................................................................................28

5.8 DVI interface.............................................................................................................................29

5.9 AUDIO L / R..............................................................................................................................30

Industrial PCs MCR5000

6Drives.......................................................................................................................32

6.1 Hard drives / compact flash drive (IDE interface)................................................................ 32

6.2 DVD drive / integrated model (notebook) ............................................................................. 32

6.3 External drives ........................................................................................................................ 33

7Technical details.....................................................................................................34

7.1 Computer data......................................................................................................................... 34

7.2 General data............................................................................................................................. 35

8Service and Support...............................................................................................36

8.1 ads-tec Support....................................................................................................................... 36

8.2 Company Address .................................................................................................................. 36

9Battery replacement................................................................................................37

10 Fuse replacement ...................................................................................................41

Industrial PCs MCR5000

ABOUT US

ads-tec GmbH

Heinrich-Hertz-Str. 1

D-72622 Nürtingen

Germany

Phone: +49 (0) 7022 2522-0

Fax: +49 (0) 7022 2522-400

E-Mail: mailbox@ads-tec.de

Home: www.ads-tec.com

ads-tec GmbH provides large enterprises and globally active corporations with cutting edge

technology, up-to-date know-how and comprehensive services in the area of automation

technology, data processing technology and systems engineering.

ads-tec GmbH implements full automation solutions from planning to commissioning and is

specialized in handling and material handling technologies.

The data systems division develops and produces PC based solutions and offers a broad

range of industrial PCs, thin clients and embedded systems.

ads-tec is specialized in modifying and optimizing embedded operating systems and

develops software tools to complement its hardware platforms.

Industrial PCs MCR5000

1REMARKS

1.1 RELEVANT DEVICE DOCUMENTATION

Consult the following documentation for information pertaining to device setup and

operation:

USER MANUAL ON THE SERVICE CD (THIS DOCUMENTATION):

Contains information pertaining to device mounting, startup and operation as well as the

technical data for the device hardware.

SERVICE CD:

Contains drivers, user manual and installation instructions for installing drivers, calibration

and using the touch screen.

1.2 DESCRIPTION OF THE WARNING SYMBOLS USED IN THIS GUIDE

Warning:

The “Warning” symbol precedes warnings on uses or operations that might either

lead to personal injury and/or hazards, or to any hardware and software damages.

Note:

This Symbol indicates special notes, terms and/or conditions that strictly need to be

observed to ensure optimised and/or zero-defect operations. It also precedes tips

and suggestions for efficient unit implementation and software optimisation.

1.3 DATA,IMAGES,AMENDMENTS AND VARIATIONS

The texts, data and images herein are not binding. The right to any subsequent

amendment and/or variation due to any technical and engineering progresses in the art

whatsoever is hereby reserved.

Industrial PCs MCR5000

1.4 TRADEMARKS

It is hereby notified that any software and/or hardware trademarks further to any company

brand names as mentioned in this User’s Guide are all strictly subject to the various

trademark, brand name and patent protection rights.

WINDOWS®, WINDOWS®CE and WINDOWS®CE.net™ are registered trademarks of

Microsoft Corp.

Citrix®and ICA®are registered trademarks of Citrix Systems Inc.

Intel®and Pentium®are registered trademarks of Intel Corp.

IBM®, PS/2®and VGA®are registered trademarks of IBM Corp.

CompactFlash™ and CF™ are registered trademarks of SanDisk Corp.

Any further additional trademarks and/or brand names herein, be they domestic or

international, are hereby duly acknowledged.

1.5 COPYRIGHT

This User’s Guide inclusive of all the images it contains is entirely proprietary and subject

to copyright. Any irregular use of this Guide by third parties infringing copyright terms is

thus strictly forbidden. Reproduction, translation, as well as electronic and photographic

image storage and/or amendment processes, are subject to prior written authorisation

directly by M/s. ads-tec GmbH.

Any violation and infringement thereto will be held liable for compensation of all damages.

Industrial PCs MCR5000

1.6 ENVIRONMENTAL CONDITIONS

The device may be operated under the following conditions. Failure to observe these

specifications will terminate any warranty for this device. Ads-tec cannot be held liable for

any damages arising due to improper use and handling.

Temperature for devices including a HDD

In operation 0 … 40°C

For storage -20 … 60°C

(Because of the integrated maximum temperature memory)

Temperature for devices including a compact flash memory

In operation 0 … 40°C

For storage -20 … 60°C

(Because of the integrated maximum temperature memory)

Humidity

In operation 10 … 85% without any condensate

For storage 10 … 85% without any condensate

Vibrations

In operation 1 G, 10 … 150 Hz

(DIN EN 60068-2-6)

Shock resistance

In operation 15 G, with a half-wave of 11 ms duration

(DIN EN 60068-2-27)

1.7 STANDARDS

This device complies with the requirements and protective aims of the following EC

regulations:

This device meets the test requirements for granting the CE sign and according to

the European test standards EN 61000-6-3: 2001+ A11:2004 and EN 61000-6-2:

2005

This device complies with the test requirements in accordance with DIN EN 60950-

1:2001 (VDE0805, IEC950) "Safety of Information Technology Equipment"

The device meets the DIN EN 60068-2-6 test requirements (sinus excitation).

The device meets the DIN EN 60068-2-27 test requirements (shock resistance

test).

Note:

A respective conformity declaration for the authority in charge is available on

request from the manufacturer.

All connected components, as well as cable connections must also meet these

requirements for compliance with the EMC legislation. For this reason, screened

bus and LAN cables including screened connectors must be used and installed

according to the instructions in this user manual.

Industrial PCs MCR5000

1.8 SCOPE OF DELIVERY

Please check that all of the following components are contained in the packaging:

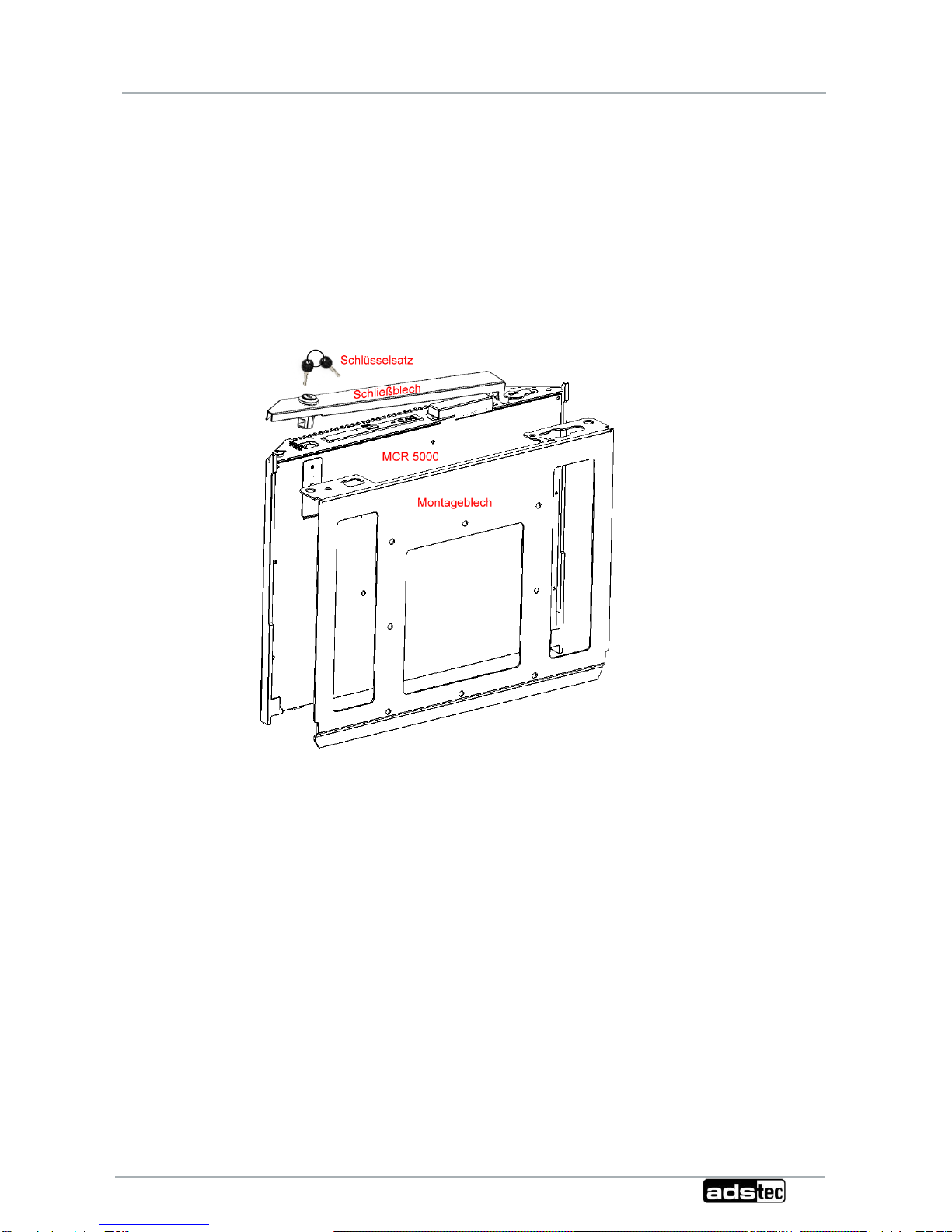

1 x MCR 5000

1 x Installation bracket (pre-installed)

1 x Locking plate (pre-installed)

1 x Set of keys for locking-plate lock

The optional cable set might include the following individual cables:

1 x Rubber power lead

1 x Rubber power lead extension for monitor / display

1 x DVI cable

1 x Serial null-modem cable

Industrial PCs MCR5000

2OPERATING INSTRUCTIONS

This device contains electrical voltages and extremely sensitive components. The

manufacturer or a service partner authorised by the manufacturer should be consulted if

you plan to make any modifications. For this type of work, the device must be switched off

at the mains and the power lead must be disconnected. Suitable measures for avoiding

electrostatic discharge towards parts of the components when touching the equipment

must be taken. If the device is opened by an unauthorised person, hazards for the user

might arise and any warranty claim will cease.

GENERAL INSTRUCTIONS:

All users must read this manual and have access to it at all times.

Installation, commissioning and operation may only be carried out by trained and

qualified staff.

The security instructions and the manual itself must be observed by all persons

who work with this device.

At the location of use the valid guidelines and regulations for accident prevention

must be observed.

The accident prevention regulations according to the "BGV C1" Accident

Prevention & Insurance regulation must be observed, in particular.

The manual contains the most important instructions on how to use this device in a

safe way.

Appropriate storage, proper transport, installation and commissioning, as well as

careful operation are prerequisites for ensuring safe and proper operation of the

device.

2.1 OPERATING LOCATION

The MCR 5000 model is designed for use with a monitor. You have to take care that the

environmental conditions specified in the "Technical data" chapter are met. Using the

device in non-specified environments, like e.g. onboard of ships, in areas that might

contain explosive gases or in extreme heights is prohibited.

Warning:

This device may only be switched on after the required ambient temperature is

reached in order to avoid condensate accumulation. The same applies if the device

has previously been exposed to extreme temperature variations.

To avoid overheating: The device must not be exposed to direct radiation by

sunlight or any other light or heat source.

2.2 DAMAGES DUE TO IMPROPER USE

Should the service system have evident signs of damages incurred e.g. due to wrong

operation or storage conditions or due to improper unit use, the unit must be

decommissioned or scrapped. Ensure that it is safe from accidental re-implementation.

Warning:

Any leads (e.g. power leads, interface cables) may only be connected if the device

is switched off in order to avoid damaging the device.

Andere Handbücher für MCR5000

Inhaltsverzeichnis

Andere ADS-tec Desktop Handbücher

ADS-tec

ADS-tec VMT5017 Bedienungsanleitung

ADS-tec

ADS-tec IPC1300 Bedienungsanleitung

ADS-tec

ADS-tec MCR5000 Bedienungsanleitung

Beliebte Desktop Handbücher anderer Marken

HP m9060n - Pavilion - Elite Technisches Datenblatt

Asus

Asus E210 Series Bedienungsanleitung

Dell

Dell Inspiron 600m Bedienungsanleitung

Dell

Dell Inspiron 3662 Bedienungsanleitung

TotalFlow

TotalFlow uFLO Bedienungsanleitung

HP Presario SV7000 - Desktop PC Bedienungsanleitung

HP ProDesk 400 G5 Handbuch

Logitech

Logitech MK320 Bedienungsanleitung

Dell

Dell XPS 730 H2C Bedienungsanleitung

Sony

Sony Vaio Series Bedienungsanleitung

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Bedienungsanleitung

Alto

Alto MD 250 Bedienungsanleitung

Lenovo

Lenovo ThinkCentre Edge 72 Handbuch

Lenovo

Lenovo ThinkStation D20 Handbuch

Arbor Technology

Arbor Technology FPC-7800 Series Bedienungsanleitung

Sony

Sony VAIO VGX-TP1 Series Bedienungsanleitung

Asus

Asus Eee Box B204 Bedienungsanleitung

Dell

Dell Optiplex 9010 All In One Bedienungsanleitung
