ADS-tec OPC5012 Bedienungsanleitung

User Manual

Industrial PCs

OPC5012

Version 2.4

Industrial PCs OPC5012

2 © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen

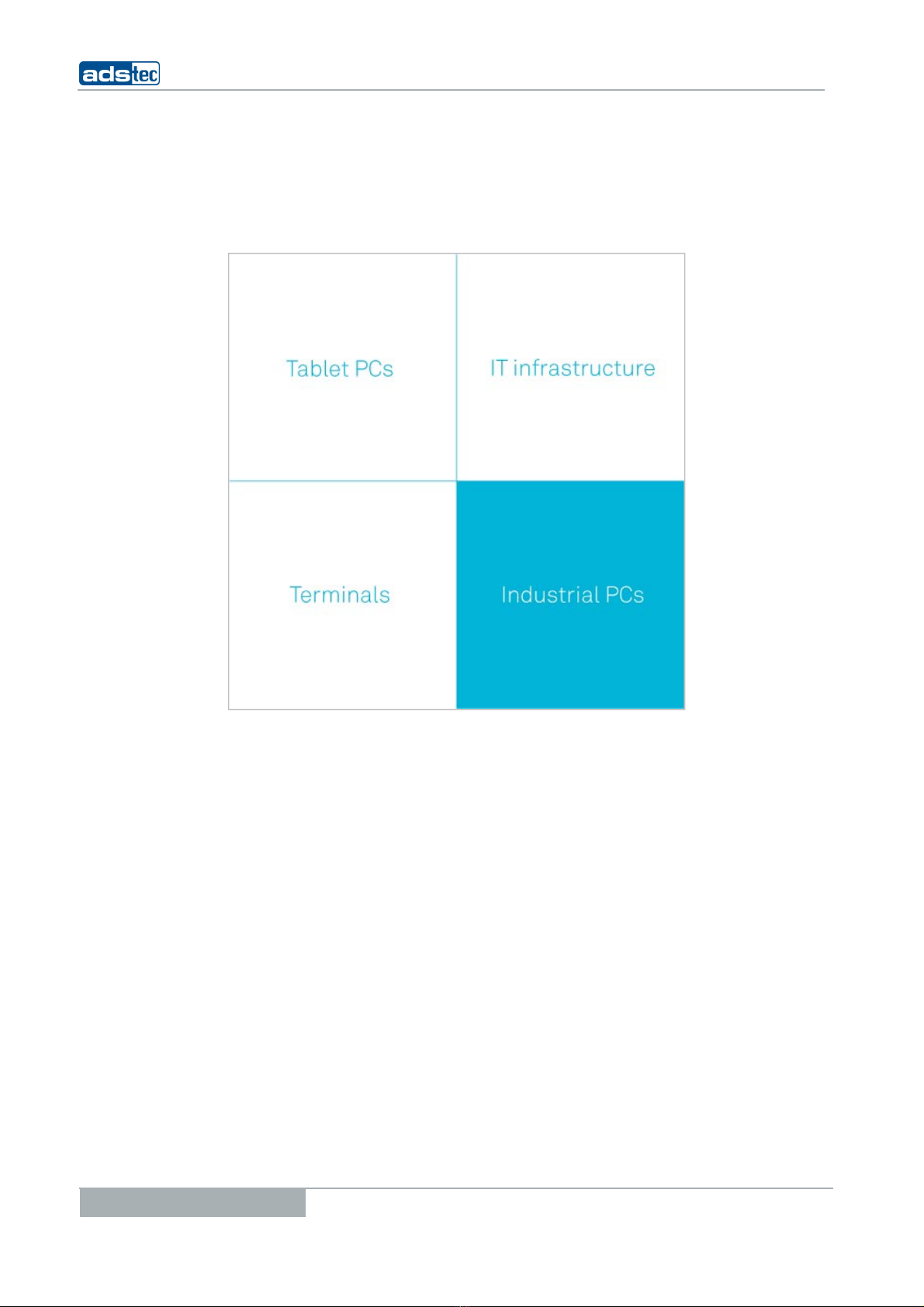

Product Portfolio

©ads-tec GmbH

Raiffeisenstr.14

D-70771 Leinfelden-Echterdingen

Germany

Industrial PCs OPC5012

INDEX

1REMARKS ...............................................................................................................................5

1.1 RELEVANT DEVICE DOCUMENTATION.................................................................................................5

1.2 EXPLANATION OF THE SYMBOLS USED IN THIS DOCUMENT .......................................................................5

1.3 DATA,ILLUSTRATIONS,MODIFICATIONS.............................................................................................5

1.4 TRADEMARKS ..............................................................................................................................5

1.5 COPYRIGHT ................................................................................................................................6

1.6 AMBIENT CONDITIONS ...................................................................................................................6

1.7 STANDARDS................................................................................................................................7

1.8 MODELS ....................................................................................................................................7

1.9 SCOPE OF DELIVERY......................................................................................................................7

2SAFETY INFORMATION ..........................................................................................................8

2.1 PLACE OF INSTALLATION ................................................................................................................8

2.2 DAMAGE DUE TO IMPROPER USAGE....................................................................................................9

2.3 WARRANTY AND REPAIRS ...............................................................................................................9

2.4 COMPLAINTS SUBSEQUENT TO DELIVERY.............................................................................................9

2.5 HANDLING AND PROPER DISPOSAL OF LITHIUM BATTERIES.......................................................................9

3MOUNTING...........................................................................................................................10

3.1 MOUNTING OPTIONS ................................................................................................................... 10

3.2 DEVICE MOUNTING ILLUSTRATION ..................................................................................................10

3.3 MOUNTING PROCEDURE ...............................................................................................................11

4STARTUP ..............................................................................................................................12

4.1 AVAILABLE INTERFACES................................................................................................................12

4.2 CABLE INSTALLATION ..................................................................................................................13

4.3 STARTUP PROCEDURE ..................................................................................................................13

4.4 OPERATIONAL READINESS CHECK.................................................................................................... 13

5OPERATION..........................................................................................................................14

5.1 FRONT CONTROL BUTTONS ...........................................................................................................14

5.2 SOFTWARE KEYBOARD .................................................................................................................15

5.3 EXTERNAL KEYBOARD ..................................................................................................................16

5.4 MOUSE....................................................................................................................................16

5.5 TOUCH SCREEN.......................................................................................................................... 16

6STATUS INDICATORS...........................................................................................................17

6.1 SYS LED (TWO COLORS)............................................................................................................. 17

7INTERFACES.........................................................................................................................18

7.1 INTERFACE CONFIGURATION..........................................................................................................18

7.2 INTERFACE ASSIGNMENT ..............................................................................................................18

7.3 24 VDC POWER SUPPLY.............................................................................................................. 18

7.4 USB CONNECTIONS ....................................................................................................................18

7.5 NETWORK CONNECTION (RJ45) ....................................................................................................19

7.6 SERIAL COM INTERFACE (RS232) .................................................................................................19

7.7 OPTIONAL USB CONNECTION ON THE FACEPLATE ...............................................................................19

7.8 EXTERNAL DRIVES ......................................................................................................................19

7.9 DVI INTERFACE.........................................................................................................................20

7.10 HARD DRIVE /COMPACTFLASH (IDE INTERFACE)............................................................................ 21

7.11 PS/2 CONNECTION ..................................................................................................................21

8SOFTWARE/DRIVER INSTALLATION ...................................................................................22

Industrial PCs OPC5012

4 © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen

8.1 INSTALLING THE OPERATING SYSTEM............................................................................................... 22

8.2 TOUCH SCREEN DRIVER INSTALLATION (WINDOWS 2000/XP) ...............................................................23

8.3 SOFTWARE KEYBOARD .................................................................................................................23

9TECHNICAL DETAILS............................................................................................................24

9.1 DISPLAY DATEN.........................................................................................................................24

9.2 COMPUTER TECHNICAL DATA ......................................................................................................... 24

9.3 GENERAL DATA ..........................................................................................................................24

10 SERVICE AND SUPPORT....................................................................................................25

10.1 ADS-TEC SUPPORT...................................................................................................................25

10.2 COMPANY ADDRESS: ................................................................................................................ 25

Industrial PCs OPC5012

1REMARKS

1.1 RELEVANT DEVICE DOCUMENTATION

Consult the following documentation for information pertaining to device setup and

operation:

User manual on the service CD (this documentation):

Contains information pertaining to device mounting, startup and operation as well as the

technical data for the device hardware.

Service CD:

Contains drivers, user manual and installation instructions for installing drivers, calibration

and using the touch screen.

1.2 EXPLANATION OF THE SYMBOLS USED IN THIS DOCUMENT

Warning:

The "Caution" symbol indicates actions that could cause damage to hardware, software

or persons!

Note:

This symbol conveys conditions that must be adhered to in order to ensure error-free

operation. It also indicates tips and suggestions for using the device efficiently and

optimizing software use.

1.3 DATA,ILLUSTRATIONS,MODIFICATIONS

All text, data and illustrations in this document are of non-binding nature. We reserve the

right to make any modifications required for technical progress.

1.4 TRADEMARKS

All software and hardware names as well as all company brand names included in this

documentation are subject to trademark and patent laws.

WINDOWS NT™ is a trademark of Microsoft Corp.

WINDOWS®, WINDOWS®CE and WINDOWS®CE.net™ are registered trademarks of Microsoft Corp.

Citrix®and ICA®are registered trademarks of Citrix Systems Inc.

Intel®and Pentium®are registered trademarks of Intel Corp.

VIA C3™ is a trademark of VIA Technologies, Inc.

IBM®, PS/2®and VGA®are registered trademarks of IBM Corp.

SanDisk®is a registered trademark of SanDisk Corp.

CompactFlash™ and CF™ are trademarks of SanDisk Corp.

We hereby recognize all other locally and internationally known trademarks and product

names.

Industrial PCs OPC5012

6 © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen

1.5 COPYRIGHT

This manual and any illustrations contained therein are copyrighted. Any use of this

manual which deviates from the copyright stipulations is prohibited. Reproduction,

translation and/or electronic and photographic archiving and modification require written

permission from ads-tec GmbH.

The violation of these rights will be prosecuted.

1.6 AMBIENT CONDITIONS

The device can be operated in the following ambient conditions. The device warranty will

be rendered invalid upon noncompliance with these specifications. ads-tec shall not be

held responsible for damages resulting from improper handling.

•Temperature for devices with hard disk drives

during use 0 … 40 C

in storage -10 … 60 C

(due to temperature peak value memory inside)

•Temperature for devices with CompactFlash

during use 0 … 40 C

in storage -10 … 60 C

(due to temperature peak value memory inside)

•Humidity

during use 10 … 85% without condensation

in storage 10 … 85% without condensation

•Vibration

during use 1 G, 10 … 500 Hz

(DIN EN 60068-2-6)

•Bump

during use 5 G, at alternation of 30 ms

(DIN EN 60068-2-29)

Industrial PCs OPC5012

1.7 STANDARDS

The device meets the requirements and objectives of the following EC directives:

•The device complies with the test specifications for the CE label according to the

European test standards EN 55022 and EN 50082-2.

•The device complies with the test specifications DIN EN 60950 (VDE 0805, IEC

950) "Safety of Information Technology Equipment".

•The device complies with the DIN EN 60068-2-6 (sinusoidal vibration) test

specifications.

•The device complies with the DIN EN 60068-2-29 (bump) test specifications.

Note:

The manufacturer keeps a corresponding declaration of conformity for the responsible

authorities and can present that document upon request.

In order for the device to comply with the legal requirements pertaining to

electromagnetic compatibility, all connected components and cable connections have to

meet these requirements as well. Therefore shielded bus and LAN cables with shielded

plugs should be used and installed as specified in this manual.

1.8 MODELS

Two models of the system are provided:

Platform with CompactFlash:

This platform has no rotating mass storage media (e.g. hard drives) and incorporates an

embedded operating system (Windows CE.net / XP embedded) for stationary use.

Platform with hard drive:

This model includes a hard drive for stationary use in production environments and

incorporates standard operating systems.

1.9 SCOPE OF DELIVERY

Shipment includes the following:

•1 device

•Power plug: 3 pin Phoenix Contact COMBICON MC 1.5/3-GF-3.81 feed-

through header (already mounted in the device socket)

•Fastener set for control cabinet

•Service CD

Optional components

•Operating system

Industrial PCs OPC5012

8 © ads-tec GmbH • Raiffeisenstr.14 • 70771 Leinfelden-Echterdingen

2SAFETY INFORMATION

The device is electrically charged and contains highly sensitive components. Permissible

modification by the user is limited to installing add-on cards. The manufacturer or a service

provider authorized by the manufacturer should be consulted if any other modifications are

to be carried out. Whenever such modifications are carried out the device must first be

switched off and the power cable must be disconnected. The appropriate measures should

be implemented to avoid electrostatic shock to the components upon contact. Opening of

the device by a non-authorized person could result in hazards to the user and renders any

warranty claims invalid.

General notice:

•The manual should be read by all users and should be kept readily accessible at all

times.

•Mounting, startup and operation should only be carried out by trained personnel.

•All persons using the device should observe the safety information and the

manual.

•The rules and regulations pertaining to accident prevention should be observed in

the place of device installation.

•The manual contains the most important information required for safe operation of

the device.

•Proper storage, transport, installation and startup are required to ensure correct

and safe device operation.

Warning:

The device should be switched off prior to connecting any cables (power supply,

peripherals) to prevent damage to the device.

2.1 PLACE OF INSTALLATION

The control system is intended for installation in the control cabinet. The specified ambient

conditions should always be adhered to. Use in non-specified environments (e.g. on boats,

in explosive hazard areas or at extreme altitudes) is prohibited.

Warning:

In order to avoid formation of condensation, the device should only be switched on once

it has acclimated to the room temperature. The same applies if the device has been

exposed to extreme variations in temperature.

Preventing overheating during operation: The device should not be exposed to direct

sunlight or other sources of light.

Measures to prevent heat accumulation should be implemented if the device is installed

in a console, casing or similar enclosing structure. The maximum permissible ambient

temperature should not be exceeded.

Industrial PCs OPC5012

2.2 DAMAGE DUE TO IMPROPER USAGE

If the control system shows obvious damage caused by incorrect operational and/or

storage conditions or improper handling, then the device is to be shut down immediately

and protected against unintentional startup.

2.3 WARRANTY AND REPAIRS

During the warranty period, repairs may only be carried out by the manufacturer or

persons authorized by the manufacturer.

2.4 COMPLAINTS SUBSEQUENT TO DELIVERY

If the control system shows obvious damage subsequent to transport, then the device is to

be protected against unintentional startup immediately. The supplier and forwarder are to

be notified immediately of any obvious damages in transit. Notification of any hidden

damages in transit is to be filed with the supplier within 5 days after delivery. Damages of

this type can no longer be recognized once this period has expired.

2.5 HANDLING AND PROPER DISPOSAL OF LITHIUM BATTERIES

Warning:

Danger of explosion and the release of toxic substances

Lithium batteries should not be exposed to fire, soldered, recharged, opened, short-

circuited, reversed or heated above 100 °C and they should be disposed of properly as well

as protected against sunlight, moisture and condensation.

The lithium battery can only be replaced by the same type or a type recommended by the

manufacturer.

The used lithium battery should be disposed of in accordance with local legal regulations.

Industrial PCs OPC5012

3MOUNTING

3.1 MOUNTING OPTIONS

The device is intended for installation in control panels and cabinet doors. The control

panels and consoles should be accessible from the back for mounting and operation (plug

connectors). The device can be installed in control cabinets with wall thicknesses of 2...7

mm. We recommend at least 3 mm for proper mounting with front IP65 protection.

Warning:

Preventing overheating during operation: The device should not be exposed to direct

sunlight or other sources of light.

Measures to prevent heat accumulation should be implemented if the device is installed

in a console, casing or similar enclosing structure. The maximum permissible ambient

temperature should not be exceeded.

Devices with drives should only be installed in an upright position. Any deviations from

this should be agreed upon with ads-tec GmbH.

The front is only IP65 protected if mounted correctly.

If the device is delivered with a CD/DVD-ROM drive, then there should be sufficient

space provided (approx. 130 mm) on the left side (as seen from the front) to open the

drive.

3.2 DEVICE MOUNTING ILLUSTRATION

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Beliebte Touchscreen Handbücher anderer Marken

FlowLine

FlowLine Data loop Bedienungsanleitung

ALPEX

ALPEX AEx-8 P Series Bedienungsanleitung

Ltech

Ltech E5S Bedienungsanleitung

Harman

Harman AMX MODERO S MSD-701-L2 Bedienungsanleitung

Acnodes

Acnodes PC 1150 Bedienungsanleitung

AIS

AIS IP10IA99 series Bedienungsanleitung

IBASE Technology

IBASE Technology ASTUT-152-RE1S Bedienungsanleitung

YASKAWA

YASKAWA TP 610C Bedienungsanleitung

B&R

B&R Power Panel C Series Bedienungsanleitung

Beijer Electronics

Beijer Electronics X2 control Bedienungsanleitung

AXIOMTEK

AXIOMTEK GOT321W-521 Bedienungsanleitung

TRIDONIC.ATCO

TRIDONIC.ATCO x-touchBOX Bedienungsanleitung

Qomo

Qomo QIT1386 Bedienungsanleitung

DFI

DFI KS104-CD Bedienungsanleitung

AMX

AMX AXP-PPC Leitfaden

Sartorius

Sartorius X3 PR 5410 Bedienungsanleitung

AMX

AMX Modero X Series Bedienungsanleitung

Advantech

Advantech TPC-30 Series Bedienungsanleitung
