ADS PYRO A/V Link Bedienungsanleitung

PYRO A/V Link

www.adstech.com

Technical Support: 562.926.4338

Technical Support Hours: M-F

8am-5pm, PST

High Quality Analog to DV Video Converter

User's Guide : First Edition

PYRO A/V Link

PYRO A/V LINK 1

Table of Content

Product Overview ...........................................................................................................

The missing link in DV Video ..............................................................................

Capture, Edit, Export ..........................................................................................

Features .............................................................................................................

What’s Included ........................................................................................................

Connection Congurations ............................................................................................

Analog Video Capture connected to PC or Mac .......................................................

Export DV from computer to Analog monitor or video tape recorder ........................

Capture from a DV Camcorder .................................................................................

Export DV to your Digital Camcorder .......................................................................

Dub video from an Analog device to a Digital recorder or from a Digital

deck or camcorder to an Analog video tape machine ..........................................

PYRO A/V Link Hardware Description ...........................................................................

Front Panel ...............................................................................................................

Rear Panel ................................................................................................................

4 Position Dip Switch .........................................................................................

6 Pin 1394 / FireWire Connection ......................................................................

Right and Left RCA Audio Outputs ....................................................................

Video Out (RCA) ................................................................................................

S-VHS Out (Y/C 4 Pin Din) ................................................................................

Component Video ..............................................................................................

On / Off ..............................................................................................................

Power Jack - 5VDC Input ..................................................................................

Getting Started - WIndows ............................................................................................

Hardware Installation ................................................................................................

Windows - Quick Start ..............................................................................................

Windows Software .............................................................................................

Getting Started - Mac .....................................................................................................

Hardware Installation 2 .............................................................................................

MAC - Quick Start .....................................................................................................

Software .............................................................................................................

Computer Connected Congurations ............................................................................

Ready to Capture Video ...........................................................................................

Connecting an Analog Video Source ........................................................................

Capturing Video with your Video Capture / Edit Software ........................................

PYRO A/V LINK 2

PYRO A/V LINK 3

Connecting an External TV for Simultaneous Video Preview ......................................

Connecting for Analog Record and Preview at the same time .....................................

Connecting for Capture from DV Camcorder ...............................................................

Exporting Video from a Video Editor to an Analog Device ...........................................

Exporting to a Digital Camcorder .................................................................................

Non-Computer Congurations ..........................................................................................

Connecting to Analog Video through Digital Conversion .............................................

Add a Preview Monitor to this Conguration .........................................................

Connecting for Digital to Analog Conversion ...............................................................

Add a Preview Monitor to this Conguration .........................................................

Capturing and Editing Video .............................................................................................

Video Capture and Editing Program fro Mac Users ..........................................................

iMovie 3.0 ....................................................................................................................

Final Cut Express .........................................................................................................

Final Cut 3.0 ................................................................................................................

Video Capture and Editing Program for Windows Users ..................................................

Movie Maker 2 .............................................................................................................

Adobe Premiere 6.5 .....................................................................................................

Avid Xpress DV v. 3.5 ...................................................................................................

VideoStudio from Ulead ...............................................................................................

Using Video Studio Software ............................................................................................

Hardware check-up before using VideoStudio ...........................................................

Installing and running VideoStudio ..............................................................................

Conguring VideoStudio ..............................................................................................

Getting around VideoStudio .........................................................................................

Library ..........................................................................................................................

Steps to Create your Movie .........................................................................................

Start .............................................................................................................................

Selecting a Template ...................................................................................................

Capture ........................................................................................................................

Direct Capturing Mpeg Video ......................................................................................

Capturing still Images ..................................................................................................

Video Studio Manual and other Help sources ...................................................................

Adobe Premiere ...........................................................................................................

AVID Xpress DV 3.5 .....................................................................................................

Final Cut Pro ................................................................................................................

Detailed Product Specications ........................................................................................

Trouble Shooting ...............................................................................................................

Warranty Information .........................................................................................................

Contacting Technical Support ...........................................................................................

Notes .................................................................................................................................

PYRO A/V LINK 2

PYRO A/V LINK 3

Product Overview

PYRO A/V Link

High Quality Analog to DV Video Converter

The ultimate tool for capturing and converting video into professional

quality DV format and an extraordinary tool for exporting edited DV

content to analog video tape recorders..

The missing link in DV Video

Capturing DV from a Digital camcorder is fantastic, but what about all of the

video content you have in other formats (8mm, beta, VHS, DVD), how do you

get that content into the DV format? PYRO A/V link solves the problem by

converting any analog video source into DV.

DV video looks great but when you want to send it to tape your options are

limited. You can export back to your miniDV camcorder, but it’s hard to share

a miniDV tape with Grandma. PYRO A/V link bridges the gap by allowing you

to export DV video to any analog video recorder. Capture and edit your video,

then output to VHS and share tapes that anyone can watch!

Capture, Edit, Export

With PYRO A/V link you can capture from any video source, including DV

camcorders. Mix and match your video content to create a truly unique video

production. Capture the video with Video Studio 6 DVD, then add video lters,

transition effects, video overlays, narration, background music and more. When

your video production is a wrap, export to any VCR or VTR, save as MPEG-2

and burn a DVD (Windows only) or publish to the Internet.

PYRO A/V LINK 4

PYRO A/V LINK 5

Features:

- External FireWire/1394 device

- Converts analog (RCA, S-VHS or Component Video) to DV video format

- Export DV Video to analog video tape recorders (RCA, S-VHS)

- Convert between devices (from DV to Analog or Analog to DV) without

using a computer

- Capture from DV camcorder with full device control

- Compatible with a wide range of video DV editing software

- Capture as MPEG-2 video and Create VCD, SVCD, DVD disks (Windows

only using Video Studio)

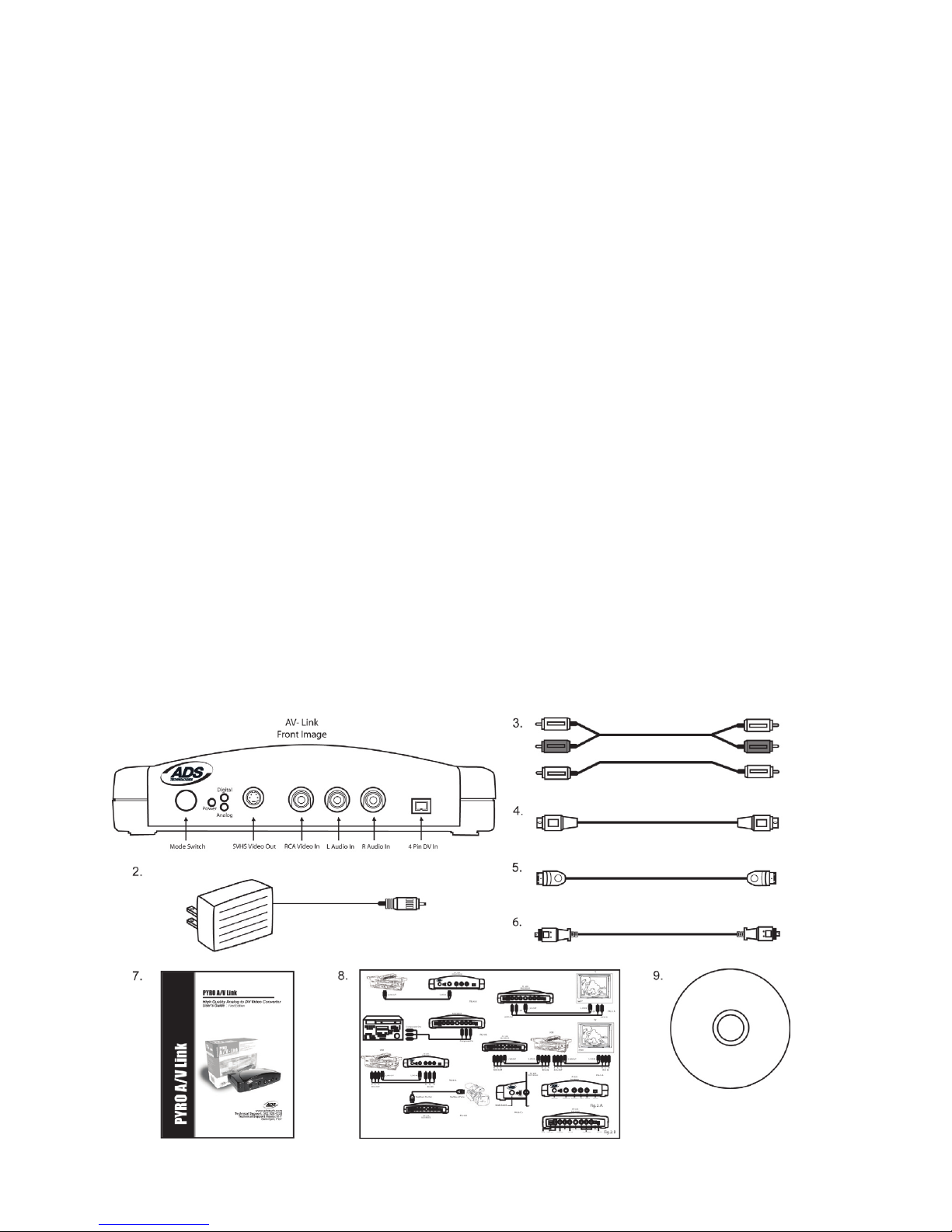

What’s Included:

1.) PYRO A/V Link device

2.) 5 VDC Power Supply

3.) 6 ft. RCA to RCA cable ( Yellow, Red, White - Yellow, Red, White)

4.) 6 ft. S-VHS Cable

5.) 6 ft. 6 pin to 6 pin 1394 cable

6.) 6 ft. 4 pin to 4 pin 1394 cable

7.) User Guide

8.) Quick Guide

9.) Software CD (Windows users)

PYRO A/V LINK 4

PYRO A/V LINK 5

Connection Congurations:

PYRO A/V Link can be used in several ways depending upon your video

conversion needs.

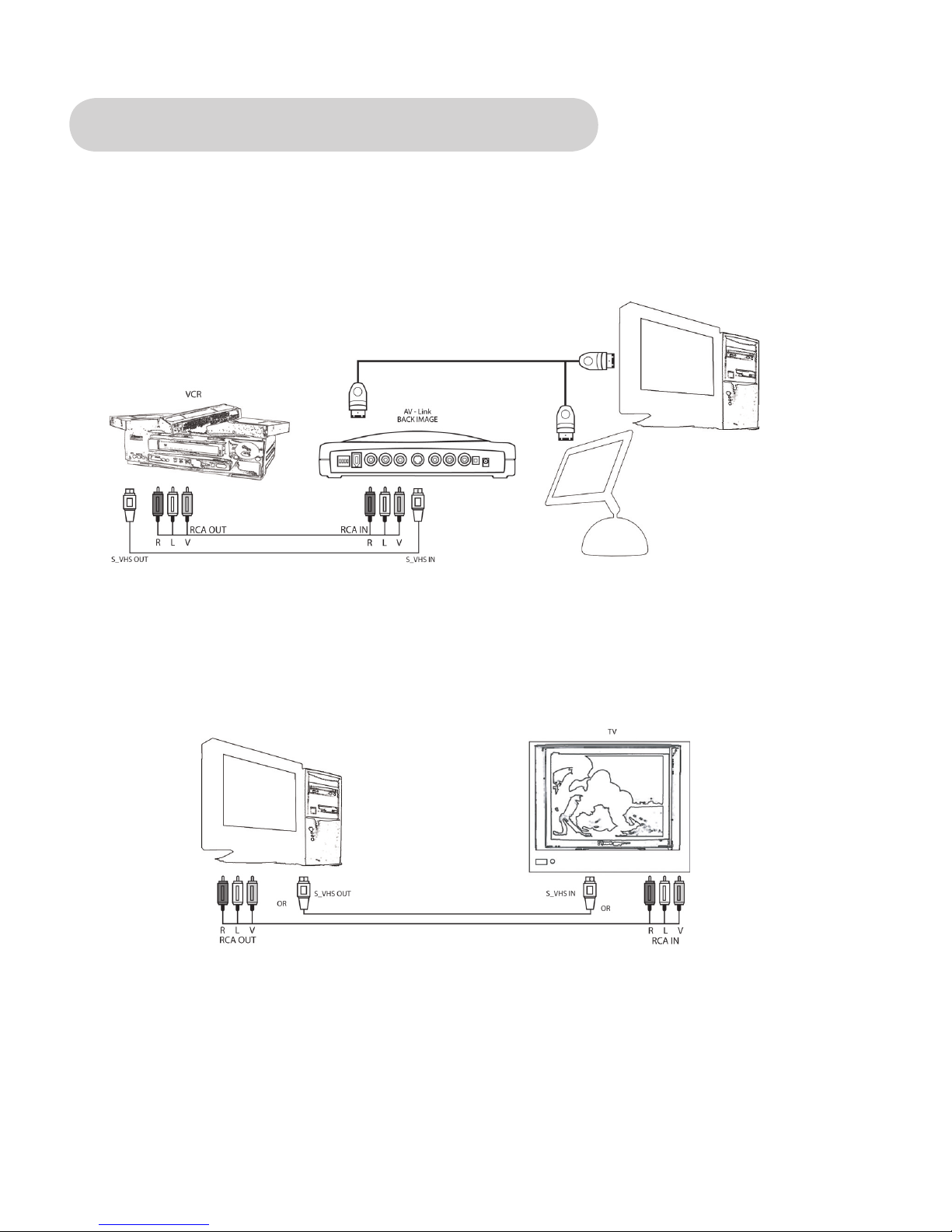

Analog Video Capture connected to PC or Mac

Export DV from computer to Analog monitor or video tape

recorder

* Capture any Analog Video source to PC or Mac via the A/V link and a

FireWire connection.

Publish to Tape: Export your video production from the video editors timeline

out to a TV or Video Tape recorder.

PYRO A/V LINK 6

PYRO A/V LINK 7

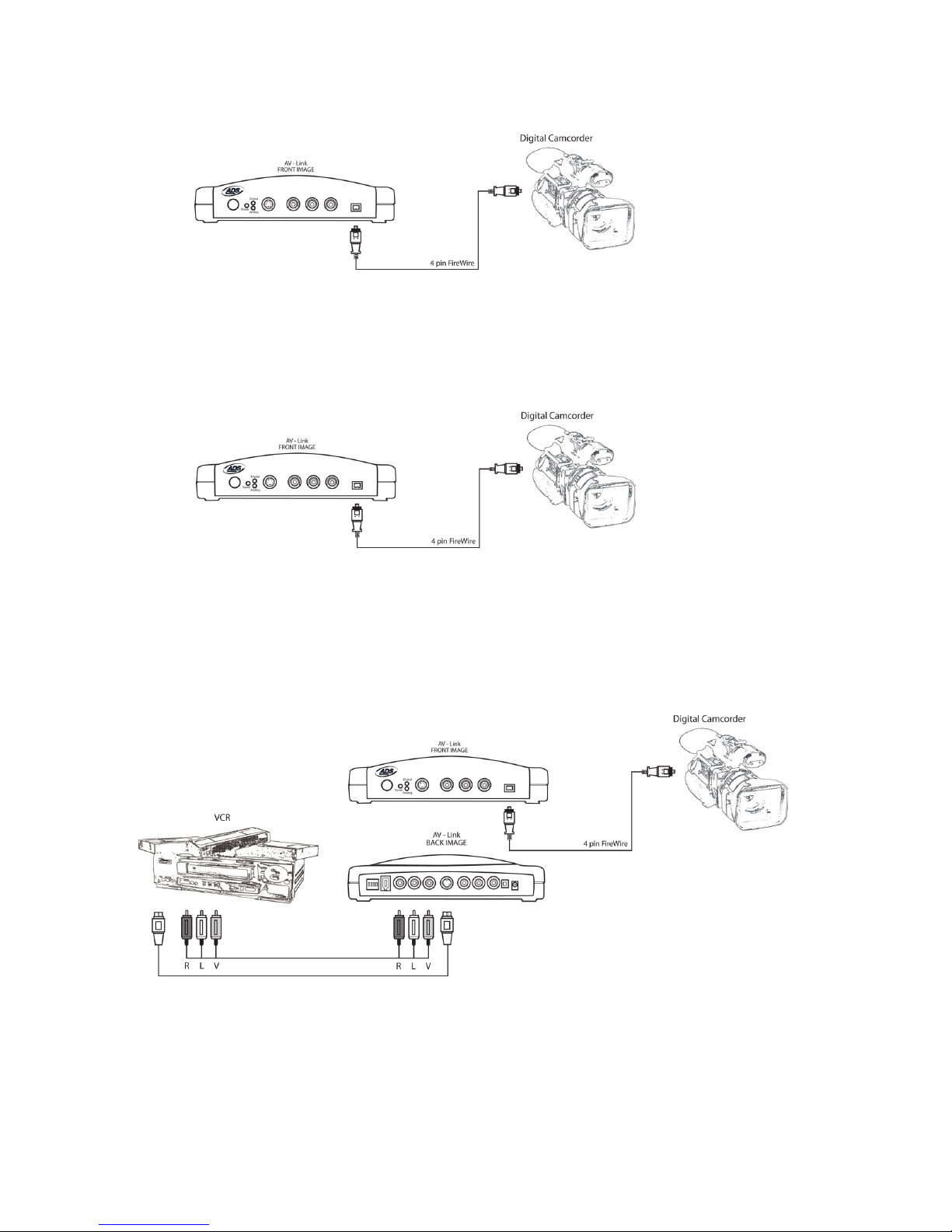

Capture from a DV Camcorder

Easy desktop connection for your Digital camcorder. Complete device control,

just as if you were directly connected to your 1394/FireWire host card.

Export DV to your Digital Camcorder

Publish to your Digital camcorder. Use A/V Link as an easy way to send edited

video back to your DV camcorder.

Dub video from an analog device to a Digital recorder or from a

Digital deck or camcorder to an analog video tape machine

Use A/V Link without a computer to convert video content from digital to

analog. A/V link can operate as a stand alone media converter. No computer

required!

PYRO A/V LINK 6

PYRO A/V LINK 7

PYRO A/V Link Hardware Description

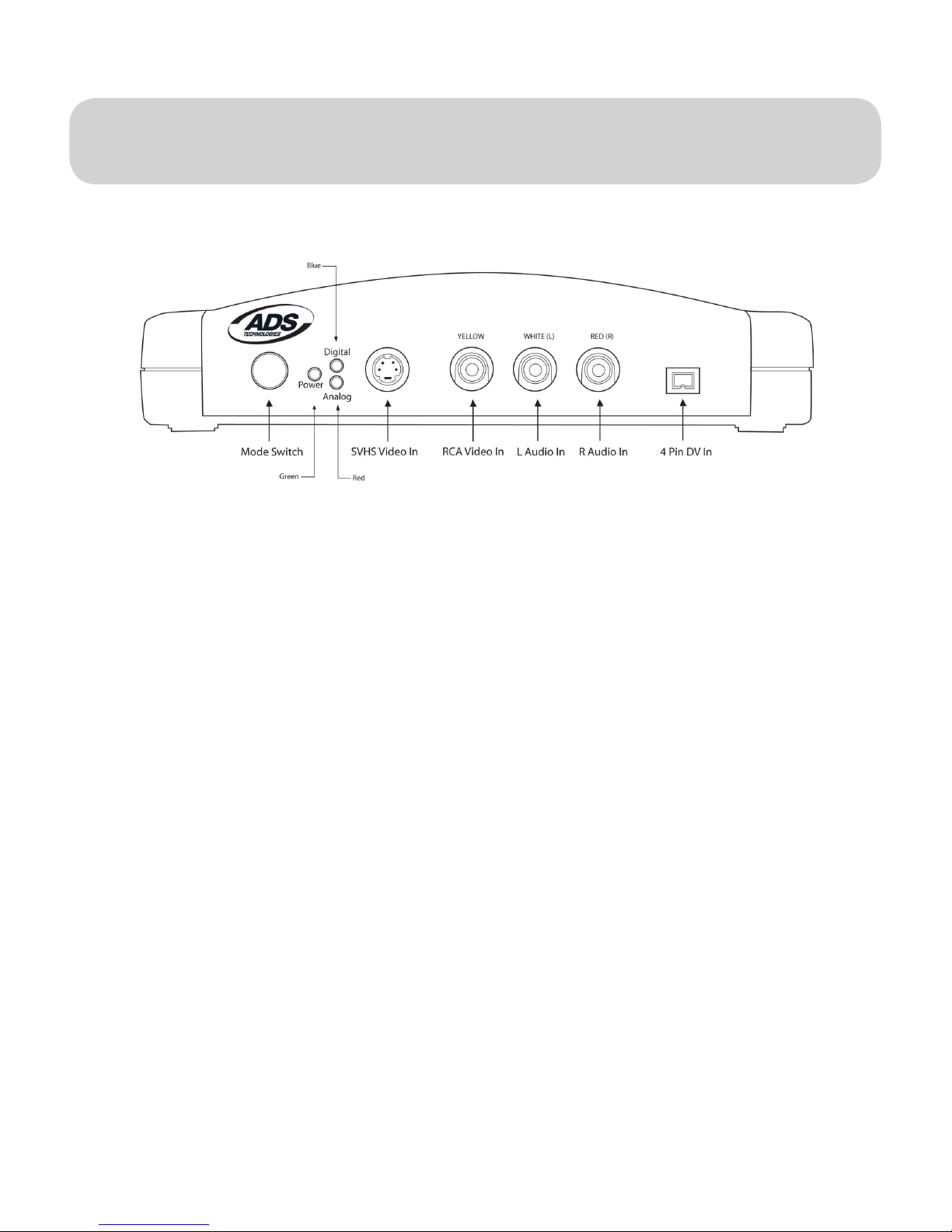

Front Panel:

The front of the PYRO A/V Link is for all of the audio and video INPUT

Connectors, LED displays and Mode Switch.

PYRO A/V Link

Front Image

Mode Button – Switches from DV capture or Analog Output.

The Blue LED will be on whenever video is being captured as DV whether the

source is an analog video tape or your DV camcorder. The RED Analog LED will

turn on when you are exporting DV to a VCR or other analog device.

LED:

Green: Power

Blue: DV Capture

Red: Analog Export

Connectors:

S-VHS Input

Composite(RCA) Input

Right and Left Audio(RCA) Input

4 Pin DV Input

PYRO A/V LINK 8

PYRO A/V LINK 9

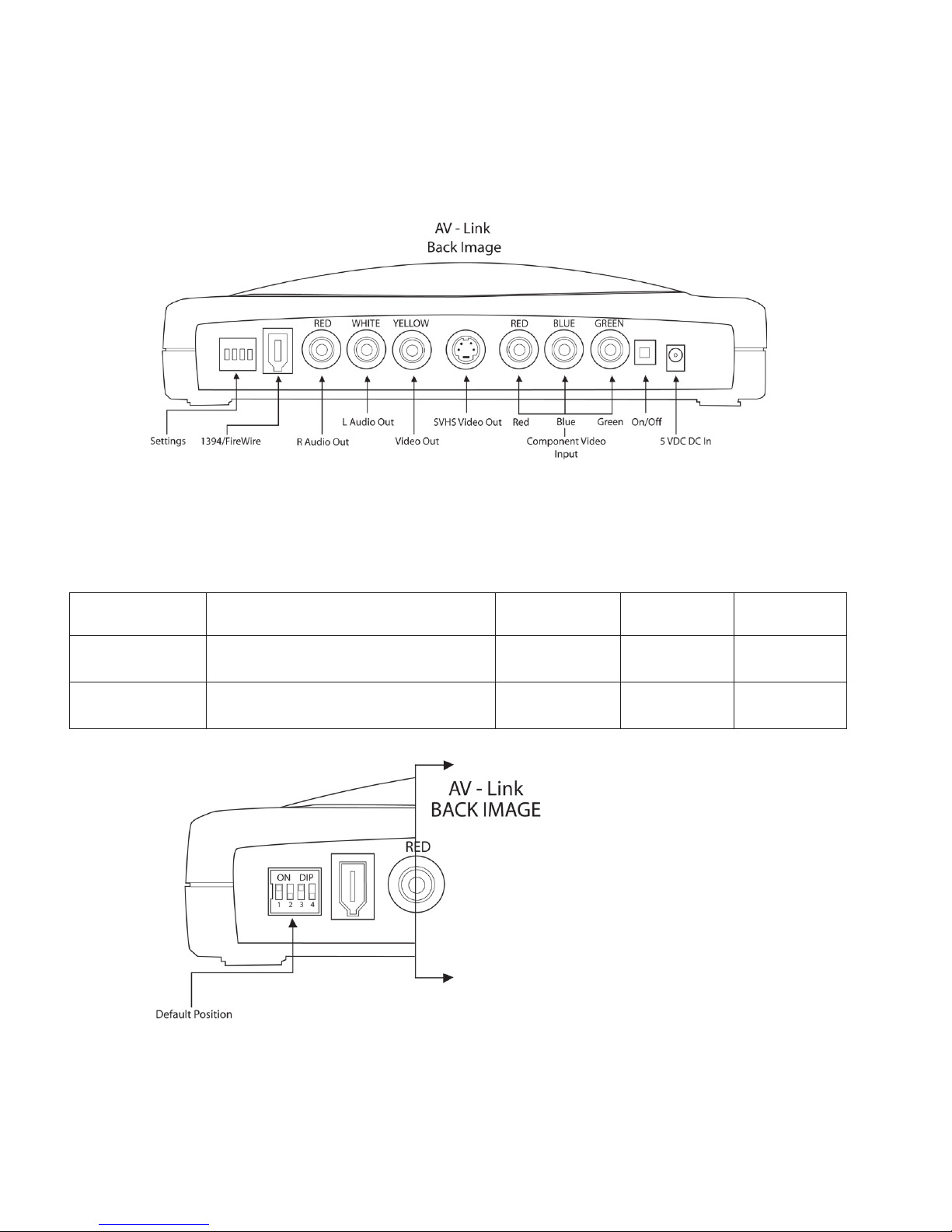

Rear Panel:

The back of the PYRO A/V Link is for all of the audio and Video Outputs with the

exception of the Component Video inputs.

4 Position Dip Switch

POSITION

DOWN

1 2 3 4

48 KHz/16 bit Audio Win 2000 DV PAL

32 KHz/12 bit Audio Win ME/XP PC/Mac NTSC
