ADTRAN Type 400 Bedienungsanleitung

Section 61212007L1-5, Issue 2

61212007L1-5B

CONTENTS

1. GENERAL..........................................................1

2. INSTALLATION ...............................................1

3. CONNECTIONS ................................................2

4. MAINTENANCE...............................................3

5. WARRANTY AND CUSTOMER SERVICE...3

FIGURES

Figure 1. T400 LP Housing ......................................1

Figure 2. T400 LP Housing with Cover Open .........2

Figure 3. T400 LP Housing Rear Panel....................2

TABLES

Table 1. Cable Pairs ................................................2

Table 2. Barrier Strip Interface Connection to Card

Edge Connector ......................................... 2

Type 400 Single Mount Housing

For Loop Powered Network Termination Units

Installation and Maintenance

• Span Powered

• Network connection via terminal barrier strip

• Customer connects to RJ-48 or barrier strip

• Durable metal enclosure

2. INSTALLATION

A ter unpacking the unit, inspect it or damage. I

damage is discovered, ile a claim with the carrier and

then contact ADTRAN. See Warranty and Customer

Service.

The ADTRAN T400 LP housing may be mounted

using the mounting holes shown in Figure 2.

Open the cover and insert the circuit card through the

ront o the housing until it snaps into the card edge

connector (J1), shown in Figure 2. A ter making the

inter ace connections and lowering and securing the

cover, the unit is ready or normal operation. Some

circuit cards may require a rame ground connection

to pin 11 or 27 o the gold inger connector. A ground

lug (L1), as illustrated in Figure 2, is provided to

connect an external rame ground wire to the unit.

Section 61212007L1-5B

Issue 2, May 2001

CLEI Code # NCM5MPSD_ _

Trademarks: Any brand names and product names included in this document are

trademarks, registered trademarks, or trade names of their respective holders.

Figure 1. T400 LP Housing

1. GENERAL

This section provides installation and maintenance

in ormation or the ADTRAN® Type 400 (T400)

Single Mount Housing, illustrated in Figure 1.

Description

The ADTRAN T400 housing is used with a Loop

Powered (LP) Type 400 network termination unit and

is located at the customers premises. Functioning as a

point-o -demarcation, the combination housing and

circuit pack provide diagnostic and provisioning

in ormation use ul in installation and trouble isolation

procedures.

Connections are made to the unit by a screw terminal

block and an RJ-48 jack.

Document Revision History

This document has been revised to include additional

grounding in ormation.

Features

The ADTRAN T400 LP Housing, P/N 1212007L1,

eatures include:

• Standalone Type-400 housing

C A U T I O N !

SUBJECT TO ELECTROSTATIC DAMAGE

OR DECREASE IN RELIABILITY.

HANDLING PRECAUTIONS REQUIRED.

All manuals and user guides at all-guides.com

all-guides.com

Section 61212007L1-5, Issue 2

261212007L1-5B

Table 2. Barrier Strip Interface Connection to

Card Edge Connector

Terminal Barrier

Strip (P1)

DRT

DRR

DTR

DTT

Circuit Card Gold Finger

Connector

Table 1. Cable Pairs

* The conductors of each pair are not polarity sensitive.

Pair* Description

From Network

To Network

To Customer

From Customer

RT, RR

TT, TR

DRT, DRR

DTT, DTR

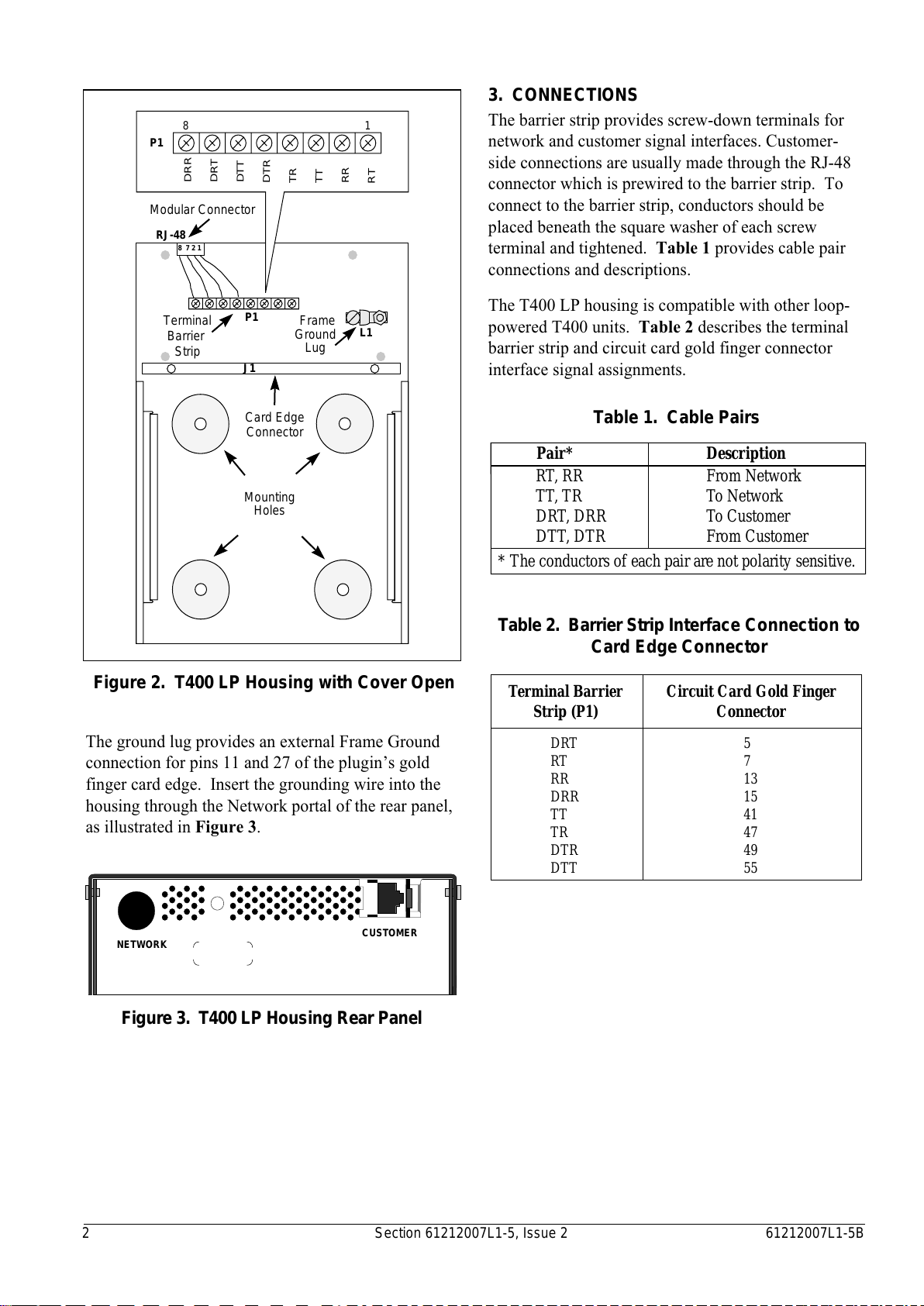

Figure 2. T400 LP Housing with Cover Open

Ground

Lug

Frame

Modular Connector

Terminal

Barrier

Strip

Mounting

Holes

Card Edge

Connector

DRR

DRT

DTT

DTR

RJ-48

8 7 2 1

The ground lug provides an external Frame Ground

connection or pins 11 and 27 o the plugin’s gold

inger card edge. Insert the grounding wire into the

housing through the Network portal o the rear panel,

as illustrated in Figure 3.

3. CONNECTIONS

The barrier strip provides screw-down terminals or

network and customer signal inter aces. Customer-

side connections are usually made through the RJ-48

connector which is prewired to the barrier strip. To

connect to the barrier strip, conductors should be

placed beneath the square washer o each screw

terminal and tightened. Table 1 provides cable pair

connections and descriptions.

The T400 LP housing is compatible with other loop-

powered T400 units. Table 2 describes the terminal

barrier strip and circuit card gold inger connector

inter ace signal assignments.

NETWORK CUSTOMER

Figure 3. T400 LP Housing Rear Panel

All manuals and user guides at all-guides.com

Section 61212007L1-5, Issue 2

61212007L1-5B

4. MAINTENANCE

The Model T400 LP housing does not require

maintenance to operate properly. In case o

equipment ailure, remove the unit and replace it with

another unit.

ADTRAN recommends that repairs on the unit not be

per ormed in the ield. Repair services may be

obtained by returning damaged units to ADTRAN.

5. WARRANTY AND CUSTOMER SERVICE

ADTRAN will replace or repair this product within

ten years rom the date o shipment i it does not meet

its published speci ications or ails while in service

(see ADTRAN Carrier Networks Equipment

Warranty, Repair, and Return Policy and Procedure,

document 60000087-10).

Return Material Authorization (RMA) is required

prior to returning equipment to ADTRAN.

For service, RMA requests, or urther in ormation,

contact one o the ollowing numbers:

ADTRAN Sales

Pricing and availability

(800) 827-0807

ADTRAN Technical Support

Pre-sales Applications/Post-sales Technical Assistance

(800) 726-8663

Standard hours: Monday - Friday, 7 a.m. - 7 p.m. CST

Emergency hours: 7 days/week, 24 hours/day

ADTRAN Repair/CAPS

Return or repair / upgrade

(256) 963-8722

Repair and Return Address:

ADTRAN, Inc.

CAPS

901 Explorer Boulevard

Huntsville, Alabama 35806-2807

All manuals and user guides at all-guides.com

Section 61212007L1-5, Issue 2

461212007L1-5B
