IPC-602
Industrial e-Server Chassis
Copyright Notice
This document is copyrighted, May 2000, by Advantech Co., Ltd. All rights are reserved. Advantech
Co., Ltd. reserves the right to make improvements to the products described in this manual at any time
withoutnotice.
No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any
means without the prior written permission of Advantech Co., Ltd. Information provided in this
manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibili-
ty for its use, nor for any infringements of the right of third parties which may result from such use.
Acknowledgments
IPC-602 and PCA-6106P3V are trademarks of Advantech Co., Ltd.
Note: The information in this document is provided for reference only. Advantech does
not assume any liability arising out of the direct or indirect use of the information
or products described herein.This manual is subject to change without notice.
Part No. 2002060210
2nd Edition Printed in Taiwan May 2000
Contents
Chapter 1 General Information ..................................................... 1
1.1 Introduction............................................................................................................... 1
1.2 Specifications .......................................................................................................... 1
1.3 Dimensions.............................................................................................................. 3
Chapter 2 System Setup ............................................................... 5
2.1 Removing theCover ................................................................................................. 5
2.2 Adding Disk Drives .................................................................................................. 6
2.3 InstallingPlug-inCards ............................................................................................. 7
2.4 ReplacingtheFan .................................................................................................... 7
2.5 ReplacingtheFilter................................................................................................... 8
Appendix A Passive Backplane ................................................................................... 9
Appendix B Parts Ordering Guide .............................................................................. 11
Appendix C Safety Instructions.................................................................................. 13
C.1 English........................................................................................................................... 13
C 2 German - Wichtige Sicherheishinweise ........................................................................ 14
IPC-602 User's Manual
1
Chapter 1 General Information
1.1 Introduction
The IPC-602 is a compact rugged 19" 2U-height rackmount chassis designed for space-limited applica-
tion. With its rugged, sturdy and well-cooled steel chassis specially designed to withstand heavy
shocks and thick dust, the IPC-602 can be used in the harshest of environments. It is ideal for Computer
Telephony or network system configurations that require high availability within a limited space, such as
computer telephony and networking systems.
1.2 Specifications
•Construction: Heavy-duty steel
•Disk drive capacity: One 5.25" and two 3.5" drive bays
•Indicators: LEDs for power On/Off, HDD and 3.3 V
•Controls: Power On and Reset switches on front panel
•Cooling fan: Two 42 CFM fans on front panel, with air filters
•Weight: 9.8 kg (21.8 lbs)
•Dimensions (W x D x H): 481.2 x 449.5 x 88 mm (19" x 17.7" x 4")
•Interior paint color: Black 2U, 2X; Fabric Texture
Passive backplane (PCA-6106P3V)
•Slots: 2 ISA / 3 PCI / 1 PICMG
•PC board: 6-layer PCB with ground and power planes for reduced noise and low power-supply
impedance
•Indicators: LEDs for +5 V, +12 V, -5 V, -12 V, +3.3 V
Power supply (PS-300ATX)
•Output rating: 300 watts max.
•Input rating: 90 ~ 130 Vac or 180 ~ 265 Vac @ 47 ~ 63 Hz, switchable
•Output voltage: +5 V @ 30 A, +12 V @ 13 A, -5 V @ 0.5 A, -12 V @ 0.8 A, +3.3 V @ 26 A,
+5 VSB @ 2 A
•Minimum load: +5 V @ 1 A, +12 V @ 0.2 A
•MTBF: 100,000 hours @ 25° C, full load
•Safety: UL/CSA/CE/NOROIC CENELEC/CB approved
•EMI: Meets FCC/VDC CISPR 22
2
IPC-602 User's Manual
Power supply (PS-30XDC48-BPS)
•Output rating: 300 watts max.
•Input rating: -40 ~ 56 Vdc @ 47 ~ 63 Hz
•Output voltage: +5 V @ 30 A, +12 V @ 12 A, -5 V @ 0.5 A, -12 V @ 1 A, +3.3 V @ 20 A,
+5 VSB @ 1.5 A
•Minimum load: +5 V @ 3 A, +12 V @ 1 A
•MTBF: 119,122 hours @ 75% load
•Safety: UL/TUV
•EMI: Meets FCC/VDC Class A
Environmental specifications
•Operating temperature: 0 ~ 45° C (32 ~ 113° F)
•Relative humidity: 10 ~ 95% @ 40° C, non-condensing
•Safety: UL / CE approved
•CE compliant
IPC-602 User's Manual
3

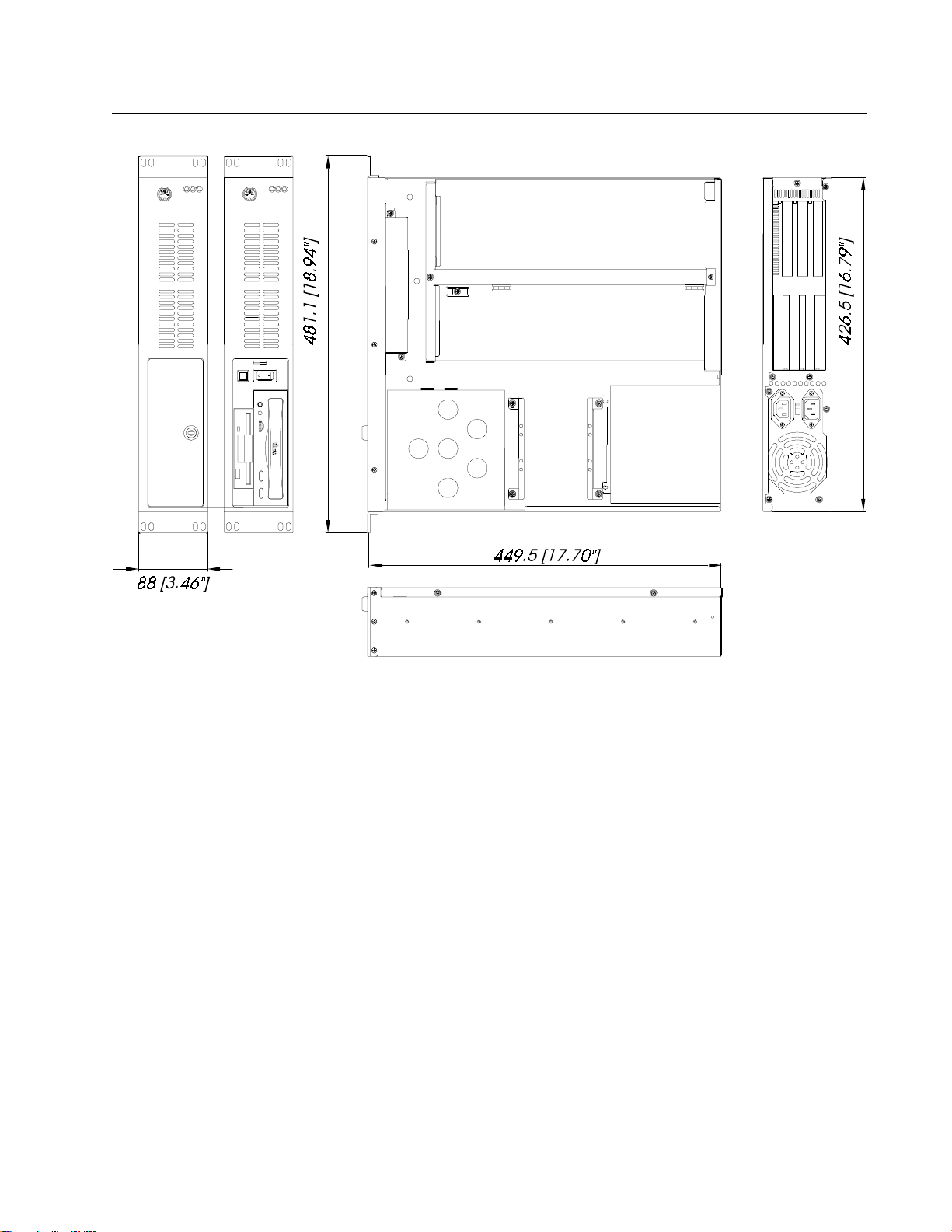

1.3 Dimensions
COMPACT
110V
RESET
POW ER
POW ER
3.3V
HDD
HDD
3.3V
POW ER
Unit: mm (inches)
4
IPC-602 User's Manual
IPC-602 User's Manual
5
Chapter 2 System Setup
The following procedures are provided to assist you in installing drives and plug-in cards into the
IPC-602.
2.1 Removing the Cover
Unscrew the six screws on the front and rear panels , and then slide the cover toward the rear chassis.
See Figure 2-1 below:
Figure 2-1: Removing the cover
Step 1
Step 3
Step 2
6
IPC-602 User's Manual
2.2 Adding Disk Drives
After removing the cover, you can easily install disk drives. Refer to Figure 2-2 below and do the
following:
1. Remove the four outer screws which mount the drive bay to the chassis.
2. Slide the drive bay about 1 cm. toward the rear, to a location where it is not obstructed by the upper
rim. Lift it free of the chassis.
3. Remove the cover of the front drive bay, and insert the drives into their proper locations in the drive
bay.
Figure 2-2: Adding disk drives
IPC-602 User's Manual
7
2.3 Installing Plug-in Cards
After removing the cover, you can easily install plug-in cards. See Figure 2-3 below:
Figure 2-3: Installing plug-in cards
2.4 Replacing the Fan
Unscrew the two screws on the fan, and slide the cover toward the rear chassis. See Figure 2-4 below:
Figure 2-4: Replacing the fan
Step 1 Step 2
