IPC-613

2U e-Server Chassis

This document is copyrighted, June 2000, by Advantech Co., Ltd. All rights are reserved. Advantech

Co., Ltd. reserves the right to make improvements to the products described in this manual at any time

withoutnotice.

No part of this manual may be reproduced, copied, translated, or transmitted in any form or by any

means without the prior written permission of Advantech Co., Ltd. Information provided in this

manual is intended to be accurate and reliable. However, Advantech Co., Ltd. assumes no responsibili-

ty for its use, nor for any infringements of the right of third parties which may result from such use.

Acknowledgments

IPC-613 is trademarks of Advantech Co., Ltd.

Note: The information in this document is provided for reference only. Advantech does

not assume any liability arising out of the direct or indirect use of the information

or products described herein.This manual is subject to change without notice.

Part No. 2002061300

1st Edition Printed in Taiwan June 2000

Contents

Chapter 1 General Information ................................................. 1

1.1 Introduction ..................................................................................... 1

1.2 Specifications ................................................................................. 1

1.3 Dimensions ..................................................................................... 2

Chapter 2 System Setup ........................................................... 3

2.1 Removing the Cover ........................................................................ 3

2.2 Drive Bay ........................................................................................ 4

2.3 Installing A Motherboard .................................................................. 5

2.4 Installing the Riser Card .................................................................. 6

2.5 Temperature Setting ........................................................................ 7

Appendix A Riser Card ................................................................. 9

Appendix B Safety Instructions ..................................................11

B.1 English .......................................................................................... 11

B.2 German - Wichtige Sicherheishinweise ......................................... 12

Figures

Figure 1-1: IPC-613 dimensions ....................................................................................................................... 2

Figure 2-1: Upper cover removing ..................................................................................................................... 3

Figure 2-2: Hot-swap hard disk drive bay ......................................................................................................... 4

Figure 2-3: IPC-613 with server motherboard .................................................................................................... 5

Figure 2-4: Riser card on the motherboard ....................................................................................................... 6

Figure 2-5: Temperature Setting ....................................................................................................................... 7

Figure 2-6: System monitoring alarm board ..................................................................................................... 7

IPC-613 User's Manual

Chapter 1 General Information

1.1 Introduction

The IPC-613 is a 2U high, rack-mount e-Server chassis for high-density internet services. Engineered

for service providers and enterprises, the IPC-613's rack-mount 2U form factor is best for stacking

servers as services grow. The IPC-613 is designed to accommodate ATX motherboards. With various

configuration possibilities, the IPC-613 provides the flexibility and high performance at the same time.

1.2 Specifications

•Construction: Heavy-duty steel

•Disk drive capacity: Four optional hot-swap 3.5" hard disk drive space, one 5.25" CD-ROM drive

and one 3.5" floppy disk drive

•Expansion slots: Two PCI expansion slots on the PCI riser card

•Indicators: LEDs for power, fan, and temperature

•Controls: Momentary power switch and alarm reset switch on front panel

•Cooling fan: Three 38.6 CFM cooling fans, 115.8 CFM in total

•Weight: 10 kg (22 lbs)

•Dimensions (W x D x H): 482 x 595 x 88 mm (19" x 23.4" x 3.5")

•Interior paint color: Black 4C 2X; brushed finish, Ni

Power supply

•Output rating: 300 W

•Input rating: 100/200 VAC

•Output voltage: +3.3 V @ 16 A, +5 V @ 26 A, +12 V @ 10 A, -5 V @ 0.25 A, -12 V @ 1 A, +5

VSB @ 1.5 A

•Minimum load: +5 V @ 1 A, +12 V @ 0.5 A

•MTBF: 50,000 @ 50° C

•Safety: CE / UL / CUL

Environmental specifications

•Operating temperature: 0 ~ 45° C (32 ~ 113° F)

•Relative humidity: 10 ~ 95% @ 40° C, non-condensing

•Safety: UL / CE approved

•CE compliant

IPC-613 User's Manual

1.3 Dimensions

Unit: mm (inches)

Figure 1-1: IPC-613 dimensions

IPC-613 User's Manual

Chapter 2 System Setup

The following procedures are provided to assist you in installing drives and plug-in cards into the

IPC-613.

2.1 Removing the Cover

1. Unscrew the screws at the rear side of the chassis.

2. Slide the upper cover backwards.

3. Lift up the upper cover to open the chassis.

Figure 2-1: Upper cover removing

IPC-613 User's Manual

2.2 Drive Bay

The IPC-613 supports four hard disk drives, one CD-ROM drive and one floppy disk drive. There are

two types of the IPC-613 available: IPC-613 and IPC-613-SCA. The IPC-613-SCA provides a SCA-2

backplanes and therefore support four hot-swap hard disk drives.

Please notice that the IPC-613 support two 3.5", 1" height SCSI hard disk drives with 80-pin SCA-2

connecotrs and two 3.5" 1.6" height SCSI hard disk drives with 80-pin SCA-2 connectors.

In order to install the hard disk drives in the chassis, please follow the following procedures.

1. Unscrew the screws on the hard disk trays and pull them out.

2. Put hard disk drives in the hard disk racks and fasten them with screws.

3. Slide the hard disk racks into the drive bay.

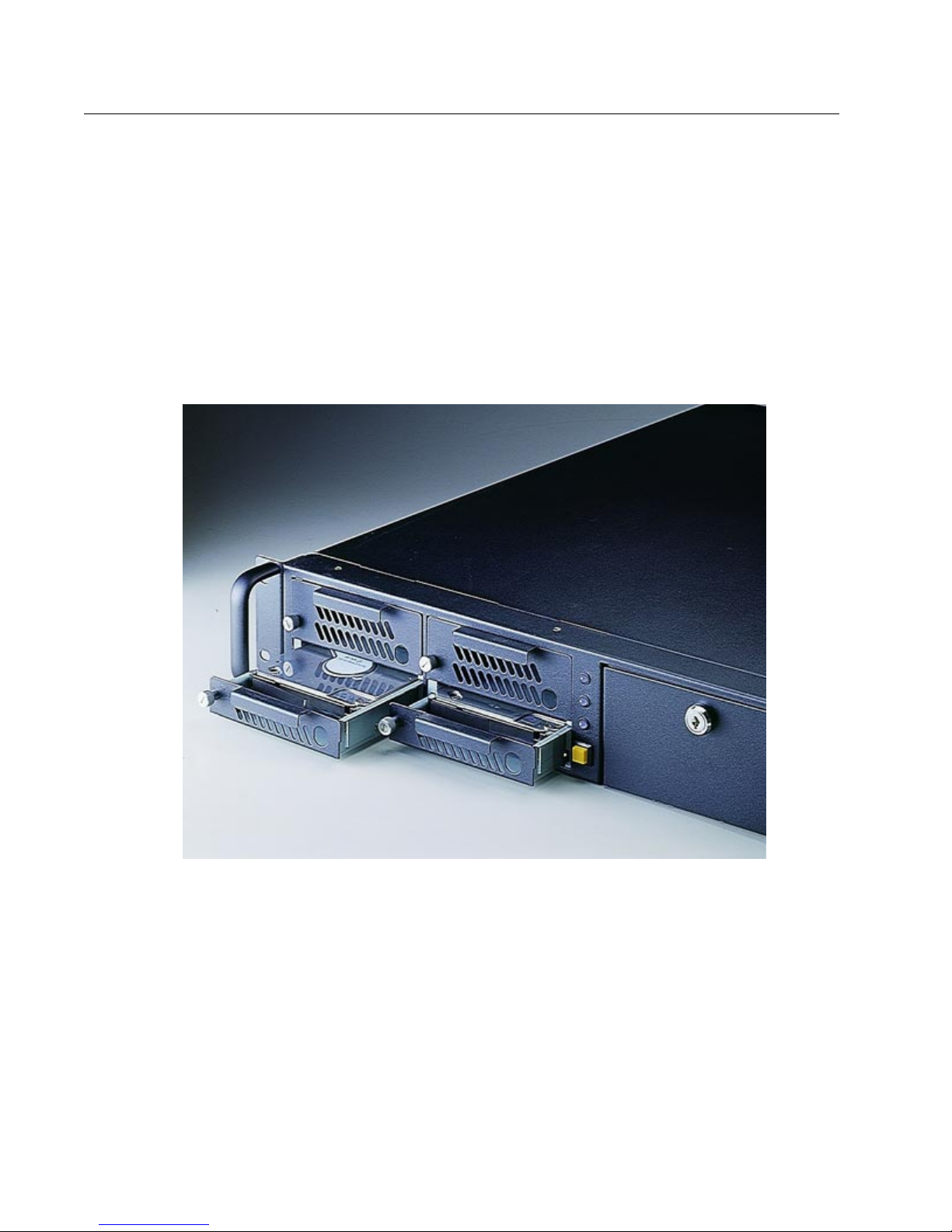

Figure 2-2: Hot-swap hard disk drive bay

IPC-613 User's Manual

2.3 Installing A Motherboard

The IPC-613 support ATX motherboards. Please contact Advantech for recommended motherboard

solutions.

Figure 2-3: IPC-613 with server motherboard

IPC-613 User's Manual

2.4 Installing the Riser Card

One riser card is shipped with the IPC-613. This riser card can support two PCI expansion slots.

Please refer to Figure 2-4 to install the riser card.

Figure 2-4: Riser card on the motherboard
