Advantech DLT-M8110 Bedienungsanleitung

User Manual

DLT-M8110

Computer

PWS-870 User Manual

The documentation and the software included with this product are copyrighted 2016

by AdvantechDLoG Co., Ltd. All rights are reserved. AdvantechDLoG Co., Ltd.

reserves the right to make improvements in the products described in this manual at

any time without notice. No part of this manual may be reproduced, copied, translated

or transmitted

in any form or by any means without the prior written permission of AdvantechDLoG

Co.,Ltd. Information provided in this manual is intended to be accurate and reliable.

However, AdvantechDLoG Co., Ltd. assumes no responsibility for its use, nor for any

infringements of the rights of third parties, which may result from its use.

Acknowledgements

All other product names or trademarks are properties of their respective owners.

Declaration of Conformity

CE Conformity Statement

Radio products with the CE alert marking comply with the R&TTE Directive (1999/5/

EC) issued by the Commission of the European Community. Compliance with this

directive implies conformity to the following European Norms (in brackets are the

equivalent international standards)

 EN 60950-1 (IEC60950-1) - Product Safety

Products that contain the radio transmitter are labeled with CE alert marking and may

also carry the CE logo.

FCC Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the

following

two conditions:

1. This device may not cause harmful interference;

2. This device must accept any interference received, including interference that may

cause undesired operation.

Caution! Exposure to Radio Frequency Radiation.

The radiated output of this device is far below the FCC radio frequency

exposure limits. Nevertheless, the device shall be used in such a manner

that the potential for human contact during normal operation is minimized.

When connecting an external antenna to the device, the antenna

shall be placed in such a manner to minimize the potential for human

contact during normal operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy. If this

equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try

and correct the interference by one or more of the following measures:

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna

 Increase the separation between the equipment and receiver Connect the

equipment into an outlet on a circuit different from that to which the receiver is

connected

 Consult the dealer or an experienced computer technician for help

FCC RF Radiation Exposure Statement:

 This Transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

 This equipment complies with FCC RF radiation exposure limits set forth for an

uncontrolled environment.

 This equipment should be installed and operated with a minimum distance

of 0mm between the radiator and your body.

 Caution!

 Any changes or modifications not expressly approved by the party responsible for

compliance could void the user's authority to operate the equipment.

 Antennas

 Only use the supplied antenna. Unauthorized antennas, modifications or change to the

antennas could violate FCC regulations and void the user’s authority to operate the

equipment.

 For operation within 5.15 ~5.25GHz /5.25 ~5.35GHz/5.47 ~5.725GHz frequency range, it

is restricted to indoor operations to reduce any potential for harmful interference to

co-channel Mobile Satellite System (MSS) operations. The band from 5600-5650MHz

will be disabled by the software during the manufacturing and cannot be changed by the

end user. This device meets all the other requirements specified in Part 15E, Section

15.407 of the FCC Rules.

 The availability of some specific channels and/or operational frequency bands are

country dependent and are firmware programmed at the factory to match the intended

destination. The firmware setting is not accessible by the end user.

FCC ID : M82-DLM8110WL

Technical Support and Assistance

1. Visit the AdvantechDLoG website at http://support.advantech.com where you

can find the latest information about the product.

2. Contact your distributor, sales representative, or Advantech's customer service

center for technical support if you need additional assistance. Please have the

following information ready before you call:

– Product name and serial number

– Description of your peripheral attachments

– Description of your software (operating system, version, application software,

etc.)

– A complete description of the problem

– The exact wording of any error messages

Safety Instructions

Use the following safety guidelines to help protect yourself and DLT-M8110

 Do not attempt to service the DLT-M8110 yourself. Always follow installation

instructions closely.

 Be sure that nothing rests on the AC adapter's power cable and that the cable is

not located where it can be tripped over or stepped on.

 Do not cover the AC adaptor with papers or other items that will reduce cooling;

also, do not use the AC adapter while it is inside a carrying case.

 Use only the AC adapter, power cord, and batteries that are approved for use

with this DLT-M8110. Use of another type of battery or AC adapter may cause

risk of fire or explosion.

 If you use an extension cable with the AC adapter, ensure that the total ampere

rating of the products plugged in to the extension cable does not exceed the

ampere rating of the extension cable.

 When you move the DLT-M8110 between environments with very different

temperature and/ore humidity ranges, condensation may form on or within the

DLT-M8110. To avoid damaging the device, allow sufficient time for the moisture

to evaporate before using the DLT-M8110.

 When you disconnect a cable, pull on its connector or on its strain relief loop, not

on the cable itself. As you pull out the connector, keep it evenly aligned to avoid

bending any connector pins. Also, before you connect a cable make sure both

connectors are correctly oriented and aligned.

Battery Safety

RTC Battery Caution

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

 Do not place the battery incorrectly as this may cause danger of explosion.

 Dispose of used batteries according to the manufacturer's instructions.

 Do not dispose of batteries in a fire. They may explode. Check with local

authorities for disposal instructions.

Battery Pack Caution

 The battery used in this device may present a risk of fire or chemical burn if

mistreated. Do not disassemble, heat above 60°C, or incinerate. Replace

battery with Li-ion 7.2V 3800mAh and Cell SANYO only. Use of another battery

may present a risk of fire or explosion.

 Dispose of used batteries according to local disposal regulations. Keep away

from children. Do not disassemble and do not dispose of in a fire.

Battery Charge Notice

It is important to consider the environment temperature whenever you are charging

the Lithium-Ion battery pack. The process is more efficient at normal room

temperature or slightly cooler. It is essential that you charge batteries within the stated

range of 0°C to 45°C. Charging batteries outside of the specified range could damage

the batteries and shorten their charging life cycle.

Storage and Safety Notice

Although charge Lithium-Ion batteries may be left unused for several months, their

capacity may be depleted due to the build up of internal resistance. If this happens

they will require recharging prior to use. Lithium-Ion batteries may be stored at

temperatures between -20°C to 60°C, however they may be depleted more rapidly at

the high end of this range. It is recommended to store batteries within normal room

temperature ranges.

Chapter 1

Rugged and Ready to Go

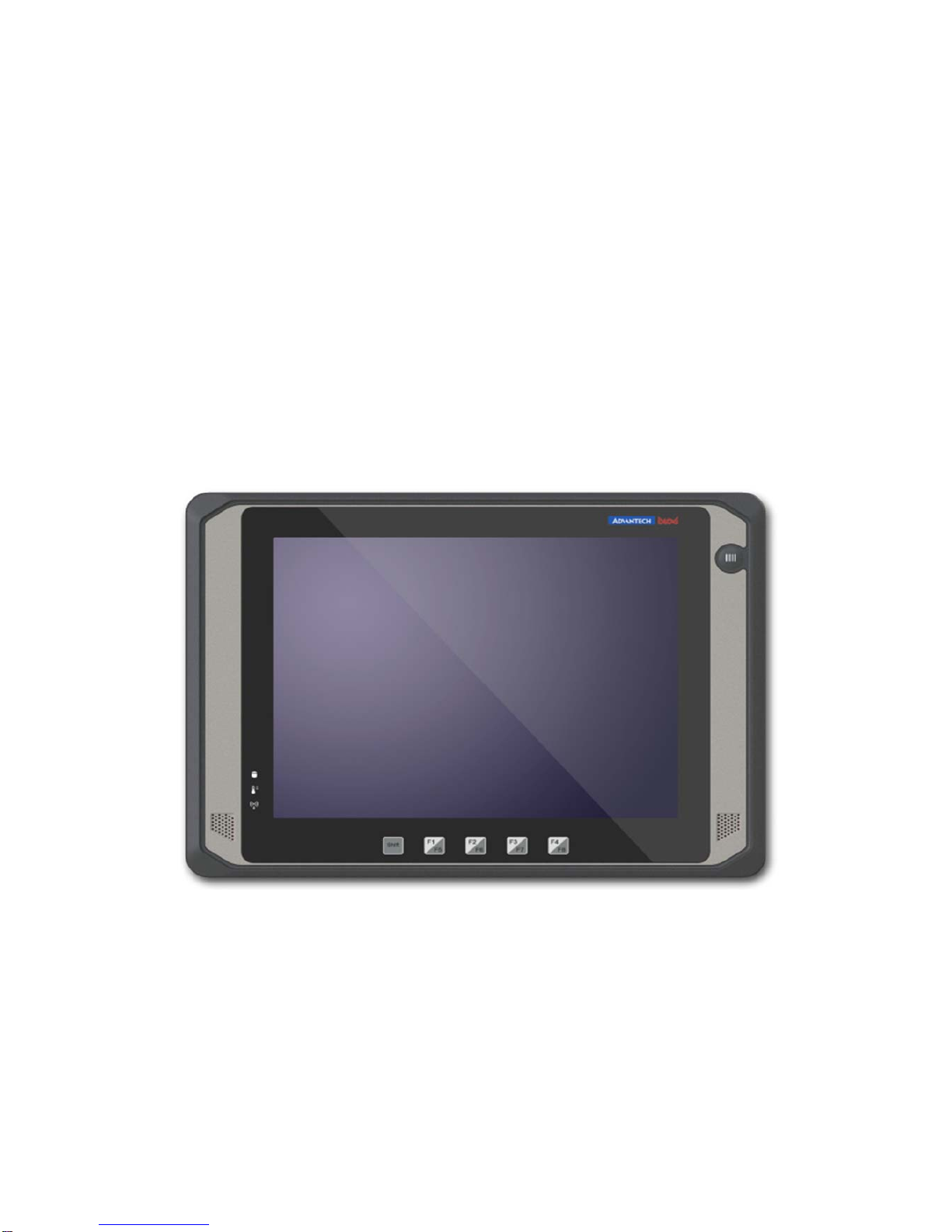

Congratulations on your purchase of the DLT-M8110 Vehicle Mounted Terminal. This

product combines rugged design with reliable performance and powerful

functionality to best suit all your needs, in a wide range of working conditions. This

user manual outlines all you need to know to set up and use your DLT-M8110. If you

have any further questions or queries, contact our technical support team via our

website:

http://www.advantechdlog.com/

Symbols Used in this Manual

Denotes information that must be observed.

Failure to do so may result in personal harm or damage to

the product.

Denotes information that must be observed.

Failure to do so may result in personal harm or damage to

the product.

Product Features

•Powered by Intel® Haswell Bay Trial-I series E3827 CPU inside

•10.4” XGA display with P-CAP and Resistive touch as optional

• 8 user programmable function keys

• Hot-swappable battery provides up to 8 hours operation.

•Built-in camera, 2D barcode scanner and WiFi

• Fully rugged design with MIL-STD-810F and IP65 certified.

Package Contents

Ensure all the following items are present when you receive your DLT-M8110. If any

of these items are missing, contact your vendor immediately.

Screens used in this manual are for illustrative purposes

only. Actual screens may vary depending on your product

version.

• DLT-M8110 Vehicle mounted terminal

• AC power adaptor

• 2x slim Batteries

• Safety notes

• Quick start guide

Optional Accessories

• Desk docking station

• Vehicle docking station

• Big battery

• Battery charger

Exploring the DLT-M8110

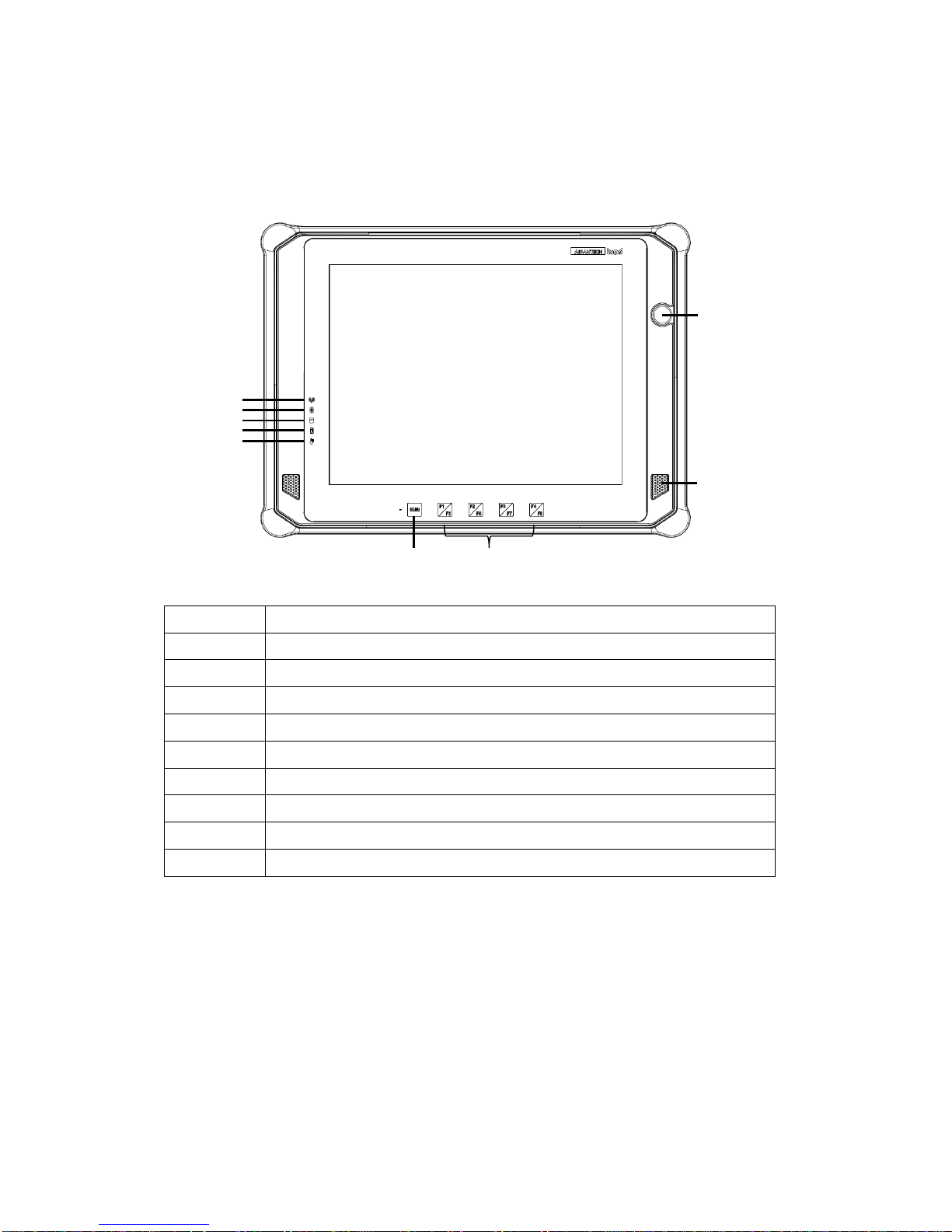

Front View

No. Component

1 Barcode/camera trigger button

2 Speaker

3 8 programmable function keys

4 Shift LED

5 WiFi LED

6 Bluetooth LED

7 Storage LED

8 Power LED

9 Temperature LED

1

2

3

4

5

6

7

8

9
