Advantech MIO-2261 Installations- und Betriebshandbuch

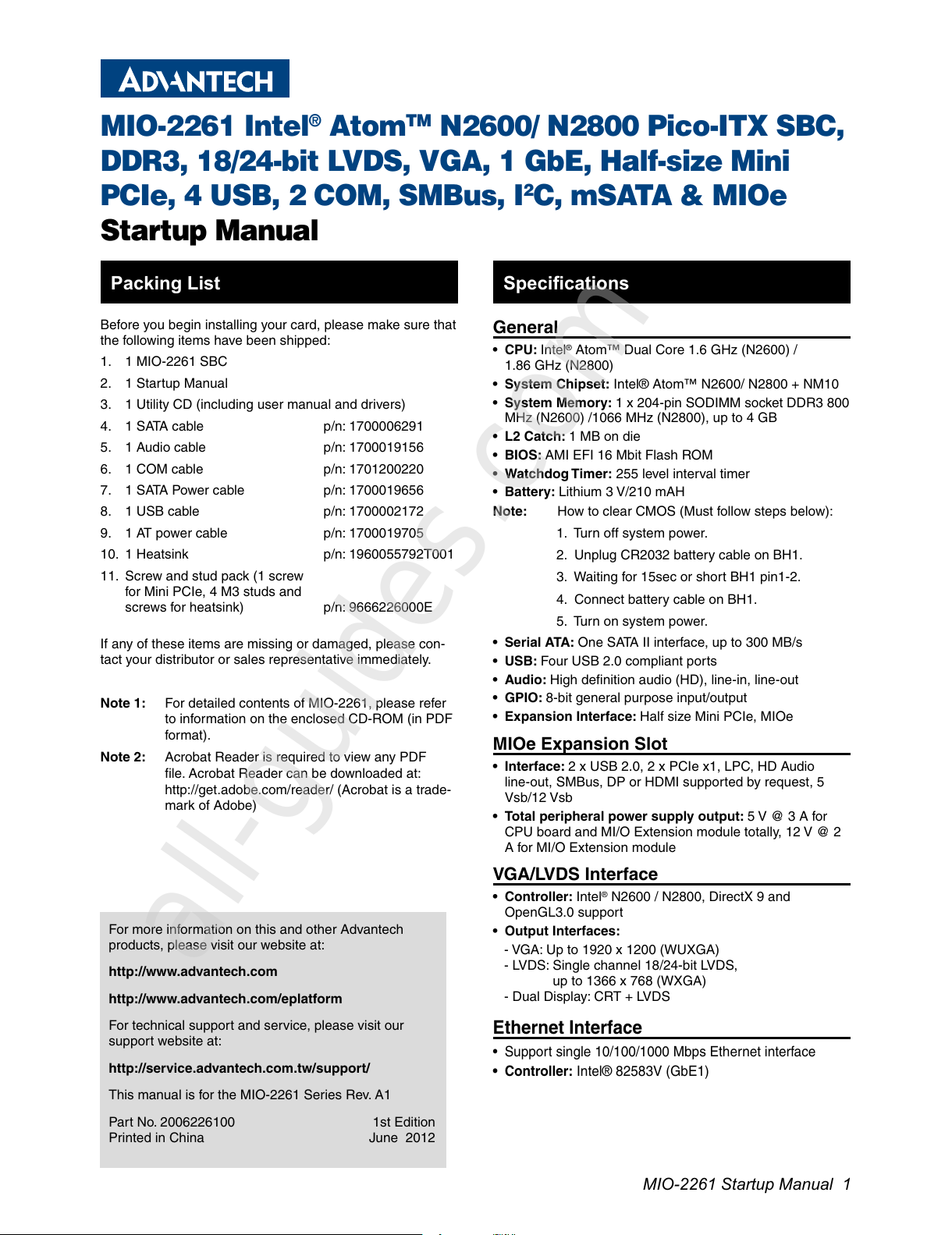

MIO-2261 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. 1 MIO-2261 SBC

2. 1 Startup Manual

3. 1 Utility CD (including user manual and drivers)

4. 1 SATA cable p/n: 1700006291

5. 1 Audio cable p/n: 1700019156

6. 1 COM cable p/n: 1701200220

7. 1 SATA Power cable p/n: 1700019656

8. 1 USB cable p/n: 1700002172

9. 1 AT power cable p/n: 1700019705

10. 1 Heatsink p/n: 1960055792T001

11. Screw and stud pack (1 screw

for Mini PCIe, 4 M3 studs and

screws for heatsink) p/n: 9666226000E

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of MIO-2261, please refer

to information on the enclosed CD-ROM (in PDF

format).

Note 2: Acrobat Reader is required to view any PDF

ﬁle. Acrobat Reader can be downloaded at:

http://get.adobe.com/reader/ (Acrobat is a trade-

mark of Adobe)

MIO-2261 Intel®AtomTM N2600/ N2800 Pico-ITX SBC,

DDR3, 18/24-bit LVDS, VGA, 1 GbE, Half-size Mini

PCIe, 4 USB, 2 COM, SMBus, I2C, mSATA & MIOe

Startup Manual

General

• CPU: Intel®Atom™ Dual Core 1.6 GHz (N2600) /

1.86 GHz (N2800)

• System Chipset: Intel® Atom™ N2600/ N2800 + NM10

• System Memory: 1 x 204-pin SODIMM socket DDR3 800

MHz (N2600) /1066 MHz (N2800), up to 4 GB

• L2 Catch: 1 MB on die

• BIOS: AMI EFI 16 Mbit Flash ROM

• Watchdog Timer: 255 level interval timer

• Battery: Lithium 3 V/210 mAH

Note: How to clear CMOS (Must follow steps below):

1. Turn off system power.

2. Unplug CR2032 battery cable on BH1.

3. Waiting for 15sec or short BH1 pin1-2.

4. Connect battery cable on BH1.

5. Turn on system power.

• Serial ATA: One SATA II interface, up to 300 MB/s

• USB: Four USB 2.0 compliant ports

• Audio: High deﬁnition audio (HD), line-in, line-out

• GPIO: 8-bit general purpose input/output

• Expansion Interface: Half size Mini PCIe, MIOe

MIOe Expansion Slot

• Interface: 2 x USB 2.0, 2 x PCIe x1, LPC, HD Audio

line-out, SMBus, DP or HDMI supported by request, 5

Vsb/12 Vsb

• Total peripheral power supply output: 5 V @ 3 A for

CPU board and MI/O Extension module totally, 12 V @ 2

A for MI/O Extension module

VGA/LVDS Interface

• Controller: Intel®N2600 / N2800, DirectX 9 and

OpenGL3.0 support

• Output Interfaces:

- VGA: Up to 1920 x 1200 (WUXGA)

- LVDS: Single channel 18/24-bit LVDS,

up to 1366 x 768 (WXGA)

- Dual Display: CRT + LVDS

Ethernet Interface

• Support single 10/100/1000 Mbps Ethernet interface

• Controller: Intel® 82583V (GbE1)

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://service.advantech.com.tw/support/

This manual is for the MIO-2261 Series Rev. A1

Part No. 2006226100

Printed in China

1st Edition

June 2012

All manuals and user guides at all-guides.com

all-guides.com

2 MIO-2261 Startup Manual

Jumper Settings

LCD Power / Auto Power On

Part Number 1653003260

Footprint

HD_3x2P_79

Description PIN HEADER 3*2P 180D(M) 2.0 mm

SMD 21N22050

Setting

Function

(1-2) +5 V

(3-4)* +3.3 V

(5-6)* Auto Power On

* default

Mechanical and Environmental

• Dimensions: 100 x 72 mm (3.9” x 2.8”)

Mechanical Drawings are on page 4 - 6.

• Power Requirement: Single 12 V DC power input

• Power Consumption (with 1 GB memory):

- Typical in XP mode:

N2600: 0.35 A @ 12 V (4.2 W)

N2800: 0.46 A@ 12 V (5.52 W)

- Max in HCT:

N2600: 0.76 A @ 12 V (9.12 W)

N2800: 0.80 A @ 12 V (9.6 W)

• Operating Temperature: 0 ~ 60° C (32 ~ 140° F)

• Weight: 0.42 kg (0.93 lb) (reference total weight)

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Jumpers

Label Function

LCD Power / Auto Power on

Connectors

Label Function

CN1 12V Power Input

CN2 DC JACK (support by request)

CN3 DDR3 SO-DIMM

CN4 GPIO

CN5 VGA

CN6 mSATA

CN7 S ATA

CN8 Mini PCIe

CN9 External USB

CN10 Internal USB

CN11 COM1/ COM2

CN12 SMBus (or I2C, support by request)

CN13 Front Panel

CN14 Gigabit Ethernet

CN15 HD Audio

CN16 MIOe

CN17 Inverter Power Output

CN18 24 bits LVDS Panel

BH1 Battery

Jumpers and Connectors

Caution! The computer is provided with a battery-powered

real-time clock circuit. There is a danger of explo-

sion if battery is incorrectly replaced. Replace

only with same or equivalent type recommended

by the manufacturer. Discard used batteries ac-

cording to manufacturer’s instructions.

Specications Cont.

All manuals and user guides at all-guides.com

MIO-2261 Startup Manual 3

MIO-2261 Connector Locations

Figure 1: MIO-2261 Connect Location (Top Side)

Figure 2: MIO-2261 Connect Location (Bottom Side)

CN18

CN15

CN11

CN8CN4CN10CN12CN17

CN6

CN5 CN9 CN14

CN1

BH1

CN5

CNCN

CN18

CN13CN

CN13

CN3

CN7

CN16

All manuals and user guides at all-guides.com

4 MIO-2261 Startup Manual

Figure 3: MIO-2261 Mechanical Drawing (Top Side)

Figure 4: MIO-2261 Mechanical Drawing (Bottom Side)

MIO-2261

Mechanical Drawing

Unit: mm

All manuals and user guides at all-guides.com

MIO-2261 Startup Manual 5

Figure 5: MIO-2261 Mechanical Drawing (Side View)

Figure 6: MIO-2261 Mechanical Drawing (Side View with Optional DC/Jack)

MIO-2261

Mechanical Drawing

Unit: mm

All manuals and user guides at all-guides.com

6 MIO-2261 Startup Manual

Figure 7: MIO-2261 Mechanical Drawing (Side vew with Heatsink)

Figure 8: MIO-2261 Mechanical Drawing (Side View wih Optional Heatspreader)

MIO-2261

Mechanical Drawing

Unit: mm

All manuals and user guides at all-guides.com
