Advantech MIX-Q670A1 Bedienungsanleitung

Industrial Motherboard

MIX-Q670A1

E21877

Revised Edition V2

March 2023

This document is copyrighted, 2023. All rights are reserved. The original

manufacturer reserves the right to make improvements to the products described

in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or transmitted

in any form or by any means without the prior written permission of the original

manufacturer. Information provided in this manual is intended to be accurate and

reliable. However, the original manufacturer assumes no responsibility for its use,

or for any infringements upon the rights of third parties that may result from its use.

The material in this document is for product information only and is subject to

change without notice. While reasonable efforts have been made in the preparation

of this document to assure its accuracy, the original manufacturer assumes no

liabilities resulting from errors or omissions in this document, or from the use of the

information contained herein.

The original manufacturer reserves the right to make changes in the product

design without notice to its users.

Acknowledgments

All other products’ name or trademarks are properties of their respective owners.

• AMI is a trademark of American Megatrends Inc.

• Intel®, Core™ are trademarks of Intel®Corporation.

• Microsoft Windows®is a registered trademark of Microsoft Corp.

• IBM, PC/AT, PS/2, and VGA are trademarks of International Business

Machines Corporation.

The original manufacturer reserves the right to make changes in the product

design without notice to its users.

All other product names or trademarks are properties of their respective owners.

iii

Contents

Chapter 1 Product overview

1.1 Package contents......................................................................... 1-1

1.2 Features ........................................................................................ 1-1

1.3 Specications............................................................................... 1-2

Chapter 2 Motherboard informatio

2.1 Before you proceed ..................................................................... 2-1

2.2 Motherboard layout...................................................................... 2-2

2.3 Screw size..................................................................................... 2-4

2.3.1 Component side.............................................................. 2-4

2.3.2 Solder side ...................................................................... 2-5

2.4 Central Processing Unit (CPU) ................................................... 2-6

2.4.1 Installing the CPU ........................................................... 2-7

2.4.2 CPU heatsink and fan assembly installation................... 2-9

2.5 System memory ......................................................................... 2-11

2.5.1 Installing a DIMM .......................................................... 2-12

2.6 Jumpers ...................................................................................... 2-13

2.7 Connectors ................................................................................. 2-17

2.7.1 Rear panel connectors.................................................. 2-17

2.7.2 Internal connectors ....................................................... 2-18

Chapter 3 BIOS setup

3.1 BIOS setup program .................................................................... 3-1

3.1.1 BIOS menu screen.......................................................... 3-2

3.1.2 Menu bar......................................................................... 3-2

3.2 Main menu .................................................................................... 3-2

3.2.1 System Date [Day MM/DD/YYYY] .................................. 3-2

3.2.2 System Time [HH:MM:SS] .............................................. 3-2

3.3 Advanced menu ........................................................................... 3-3

3.3.1 CPUConguration .......................................................... 3-3

3.3.2 Trusted Computing ......................................................... 3-3

3.3.3 PTTConguration........................................................... 3-5

3.3.4 SATAConguration ........................................................ 3-5

3.3.5 USBConguration .......................................................... 3-6

3.3.6 Hardware Monitor ........................................................... 3-6

3.3.7 SIOConguration ........................................................... 3-8

3.3.8 AMTConguration .......................................................... 3-9

3.3.9 PCH-FWConguration ................................................... 3-9

3.3.10 NVMeConguration........................................................ 3-9

3.3.11 Power Management...................................................... 3-10

3.3.12 DigitalIOPortConguration ......................................... 3-10

3.4 Chipset menu ............................................................................. 3-10

3.4.1 SystemAgent(SA)Conguration ................................. 3-11

3.4.2 PCH-IOConguration ................................................... 3-11

3.5 Security menu ............................................................................ 3-11

3.5.1 Administrator Password ................................................ 3-12

3.5.2 User Password.............................................................. 3-12

3.5.3 Secure Boot .................................................................. 3-13

3.6 Boot menu .................................................................................. 3-14

3.6.1 BootConguration ........................................................ 3-14

3.6.2 FIXED BOOT ORDER Priorities .................................. 3-14

3.7 Save & Exit menu....................................................................... 3-14

3.8 MEBx menu................................................................................. 3-14

Appendix

Notices.......................................................................................................A-1

Contents

1-1

Chapter 1: General information

1.1 Package contents

Check your industrial motherboard package for the following items.

1 x Industrial Motherboard

1 x SATA Cable

1 x I/O Shield

NOTE: If any of the above items is damaged or missing, contact your

distributor or sales representative immediately.

1.2 Features

• Supports Intel®Alder Lake – S (ADL-S) Processors 8+8 cores, 65W & Intel®

Raptor Lake – S (RPL-S) Processors, RPL-S 8+16 cores, 65W

• Two DDR5 (max. 64GB) SODIMM

• SATA 6.0 Gb/s port x 2, M.2 2280 M-key x 1, [PCIex4/NVMe; Gen3]

• PCI-Express slot [x16] x 1 [Gen5], M.2 B-key (3042/3052; default: 3052) x 1,

[PCIex1/NVMe; Gen3]

• HDMI™, DisplayPort, LVDS, and eDP support

Chapter 1

Product overview

MIX-Q670A1

1-2

1.3 Specications

SYSTEM

Form factor

Mini ITX Form Factor, 6.7” x 6.7” (170 mm x 170 mm)

CPU

Intel®Alder Lake – S (ADL-S) Processors 8+8 cores, 65W & Intel®

Raptor Lake – S (RPL-S) Processors, RPL-S 8+16 cores, 65W

Memory

2 x SODIMM, DDR5 (4800MHz, Max. 64GB) memory

Dual-channel memory architecture

I/O Chipset

NCT6126D

Ethernet

1 x Intel®PCIe Gb LAN i219LM for vPro

1 x Intel®PCIe Gb LAN i210AT

BIOS

256Mbit Flash ROM, AMI BIOS

Wake on LAN/PXE

Yes (WOL/PXE)

Watchdog Timer

1~255 steps by software program

H/W Monitor

Temperature Monitor on CPU/System

Voltage Monitor on Vcore/5V/3.3V/12V

Fan Monitor on CPU/Chassis

Smart Fan Control

CPU Fan/Chassis Fan

Power State

S3, S4, S5

Expansion slot 1 x PCIe [x16] slot (Gen 5.0)

1 x M.2 (3042/3052; default: 3052) B-key (PCIex1 / NVMe; Gen3)

TPM

InneonSLB9670TPM2.0onboard

Battery

Lithium battery

Power requirement ATX

Board size

6.7” x 6.7” (170 mm x 170 mm)

Weight

1.1 lb (0.5 Kg)

Operating

temperature

32°F~131°F (0°C~60°C)

Storage temperature

-40°F ~185°F (-40°C ~85°C)

Operating humidity

0%~90% relative humidity, non-condensing

Power compliance

N/A

Certicate

CE/FCC Class A

GRAPHICS

Graphics chipset

Intel®UHD Graphics

Graphics

mutlti-display

Quad independent display

HDMI™

HDMI™ 2.0; Up to 4096 x 2160 @ 60 Hz / 2560 x 1600 @ 60 Hz,

with Digital Audio

DisplayPort

Up to 4096 x 2160 @ 60 Hz

LVDS

Up to 1920 x 1080 @60 Hz, Daul Channel 18/24 bit

co-layout with eDP

eDP

Up to 1920 x 1080 @ 60 Hz

co-layout with LVDS

Backlight control

PWM

(continued on the next page)

1-3

Chapter 1: General information

Internal I/O

Storage

2 x SATA (6.0Gb/s) ports

1 x M.2 M key (2280), [PCIex4/NVMe; Gen3]

Serial port

1 x RS-232/422/485 (supports 5V/12V/RI option)

1 x RS-232

USB

1 x USB 3.2 Gen 1 header (supports additional 2 USB3.2 Gen1

ports)

Display I/O 40-pin LVDS/eDP connector x 1 with Inverter (Default LVDS)

Fan

1 x CPU Fan header (4-pin)

1 x Chassis Fan header (4-pin)

Power 1 x 24-pin EATX Power connector

1 x 8-pin EATX 12V Power connector

DIO

1 x 8-bit Digital I/O interface (In/Out programmable)

Others 1 x Clear CMOS jumper

1xSpeakerheaderfor2W/4Ω

1 x Micro SIM card socket

1 x Front Panel header

1 x Chassis Intrusion header

1 x Buzzer on board

1 x AT/ATX mode selection jumper

1 x ME disable jumper

1 x eDP/LVDS Tcon IC voltage selection jumper

1 x Backlight voltage selection jumper

Audio 1 x AAFP follow ASUS pin out

Rear I/O

USB 8 x USB 3.2 Gen 2 ports

4 x USB 2.0 ports

Display

2 x HDMI™ 2.0 ports

2 x DisplayPorts (V1.2)

Ethernet

2 x RJ45 ports

Audio

1 x Line-out jack

1 x Mic-in jack

Others

OS Support Windows

11 64 bit, Windows

10 64 bit

NOTE:Specicationsaresubjecttochangewithoutnotice.

MIX-Q670A1

1-4

2-1

Chapter 2: Motherboard information

Chapter 2

Motherboard information

2.1 Before you proceed

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

CAUTION!

• Unplug the power cord from the wall socket before touching any

component.

• Before handling components, use a grounded wrist strap or touch a safely

grounded object or a metal object, such as the power supply case, to avoid

damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic

pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power

supply is switched off or the power cord is detached from the power

supply. Failure to do so may cause severe damage to the motherboard,

peripherals, or components.

MIX-Q670A1

2-2

EATX_PWR1

USB31_78910

LAN1_USB31_12

LAN2_USB31_34

USB2_78914

DP1_DP2

HDMI1_HDMI2

CLRTC

ATX_AT

DIS_ME

17.0cm(6.7in)

INV BKL_PWR

EATX_PWR2

EDP/LVDS

17.0cm(6.7in)

SATA6G_0SATA6G_1

CHASSIS

CPU_FAN

SYS_FAN

F_PANEL

DDR4 SO-DIMM_A1 (64bit, 288-pin module)

DDR4 SO-DIMM_B1 (64bit, 288-pin module)

USB3_56

DIO

BATTERY_H

COM1

COM1_V1

PNL_PWR

COM2

M2_TYPE_B

LGA1700

BZ1

ALC

897

Intel®

Q670E

Intel®

219LM

SPI

AMP_CON

AAFP

3042 3052 2280

LED_+5V

LED_+5VSB

PCIEX16

AUDIO

M2_TYPE_M

DEBUG 256Mb

BIOS

2 3 4 5

17 1416 15

1819

61 7

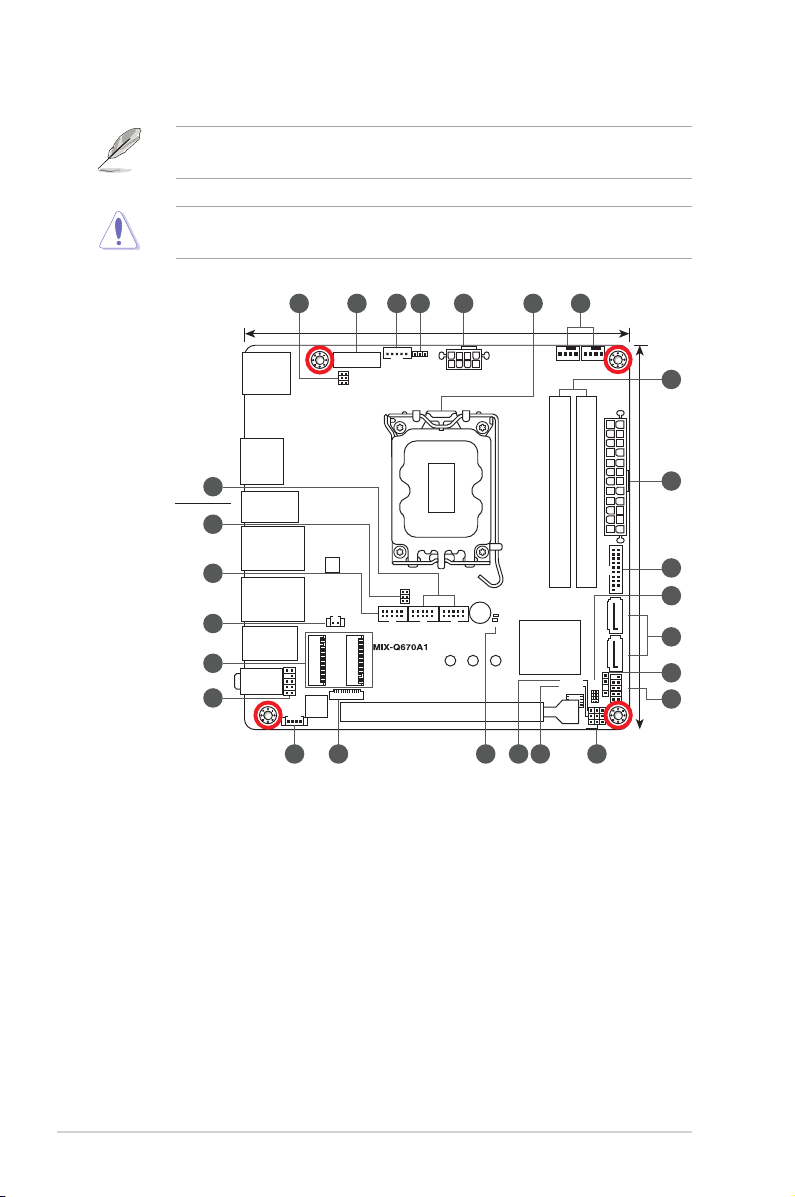

2.2 Motherboard layout

Place this side

towards the rear

of the chassis

NOTE: Place four screws into the holes indicated by circles to secure the

motherboard to the chassis.

CAUTION! Do not overtighten the screws! Doing so can damage the

motherboard.

Inhaltsverzeichnis

Andere Advantech Hauptplatine Handbücher

Advantech

Advantech SOM-6882 Bedienungsanleitung

Advantech

Advantech SIMB-M02 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-224 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-740-B Bedienungsanleitung

Advantech

Advantech AIMB-567 Bedienungsanleitung

Advantech

Advantech MIO-2261 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-785 Bedienungsanleitung

Advantech

Advantech ASMB-922I Installations- und Betriebshandbuch

Advantech

Advantech PCM-9376 Bedienungsanleitung

Advantech

Advantech PCM-9374 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-281 Bedienungsanleitung

Advantech

Advantech SIMB-M01 Installations- und Betriebshandbuch

Advantech

Advantech HPC-7485 Bedienungsanleitung

Advantech

Advantech Mini-ITX AIMB-250 Series Bedienungsanleitung

Advantech

Advantech PCM-3864 Bedienungsanleitung

Advantech

Advantech AIMB-270 Installations- und Betriebshandbuch

Advantech

Advantech MIO-5250 Bedienungsanleitung

Advantech

Advantech PCM-9579 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-701 LGA1155 Bedienungsanleitung

Advantech

Advantech SIMB-U01 Bedienungsanleitung

Advantech

Advantech SOM-5787 Bedienungsanleitung

Advantech

Advantech MIO-2261 Installations- und Betriebshandbuch

Advantech

Advantech AIMB-769 Installations- und Betriebshandbuch

Advantech

Advantech ASMB-622 Installations- und Betriebshandbuch

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
