Contents

Operating Instructions 3

Safety instructions 3

Description of the Appliance 4

Cooking surface layout 4

Control panel layout 5

Operating the appliance 7

Switching the appliance on and off 7

Setting the heat setting 7

Locking/unlocking the control panel 7

Turning the STOP+GO function on and off 7

Using the automatic warm-up function 8

Using the child safety device 9

Switching the power function on and off 9

Using the timer 10

Automatic switch off 12

Tips on Cooking and Frying 13

Cookware for induction cooking zones 13

Tips on energy saving 14

Examples of cooking applications 14

Cleaning and Care 15

What to do if … 16

Disposal 19

Installation Instructions 19

Service 21

Assembly 64

Rating Plate 67

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruc-

tion manual carefully. It will enable you to navigate all processes perfectly and most ef-

ficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe

place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user information:

Warning! This must be read! Important advice for the safety of persons and information

on avoiding damage to the appliance

3General information and advice

2Information on environmental protection

zDangerous voltage

3Operating Instructions

Operating Instructions

1Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not cove-

red by the warranty.

Correct use

•This appliance is not intended for use by children or other persons whose physical,

sensory or mental capabilities or lack of experience and knowledge prevents them

from using the appliance safely without supervision or instruction by a responsible

person to ensure that they can use the appliance safely.

•Do not leave the appliance unattended during operation.

•This appliance should be used only for normal domestic cooking and frying of food.

•The appliance must not be used as a work surface or as a storage surface.

•Additions or modifications to the appliance are not permitted.

•Do not place or store flammable liquids, highly inflammable materials or fusible ob-

jects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children’s safety

•Small children must be kept away from the appliance.

•Only let bigger children work on the appliance under supervision.

•To avoid small children and pets unintentionally switching the appliance on, we re-

commend activation of the child safety device.

General safety

•The appliance may only be installed and connected by trained, registered service en-

gineers.

•Built-in appliances may only be used after they have built in to suitable built-in units

and work surfaces that meet standards.

•In the event of faults with the appliance or damage to the glass ceramic (cracks, scrat-

ches or splits), the appliance must be switched off and disconnected from the electri-

cal supply, to prevent the possibility of an electric shock.

•Repairs to the appliance must only be carried out by trained registered service engi-

neers.

Safety during use

•Remove stickers and film from the glass ceramic.

•There is the risk of burns from the appliance if used carelessly.

•Cables from electrical appliances must not touch the hot surface of the appliance or

hot cookware.

•Overheated fats and oils can ignite very quickly. Warning! Fire hazard!

•Switch the cooking zones off after each use.

•Users with implanted pacemakers should keep their upper body at least 30 cm from

induction cooking zones that are switched on.

Description of the Appliance4

•Risk of burns! Do not place objects made of metal, such as knives, forks, spoons and

saucepan lids on the cooking surface, as they can get hot.

Safety when cleaning

•For cleaning, the appliance must be switched off and cooled down.

•For safety reasons, the cleaning of the appliance with steam jet or high-pressure clea-

ning equipment is not permitted.

How to avoid damage to the appliance

•The glass ceramic can be damaged by objects falling onto it.

•The edge of the glass ceramic can be damaged by being knocked by the cookware.

•Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch

the glass ceramic if pushed across the surface.

•Objects that melt and things that boil over can burn onto the glass ceramic and

should be removed straightaway.

•Do not use the cooking zones with empty cookware or without cookware.

•To avoid damaging cookware and glass ceramics, do not allow saucepans or frying

pans to boil dry.

•The ventilation gap of 5mm between the worktop and front of the unit underneath it

must not be covered.

Description of the Appliance

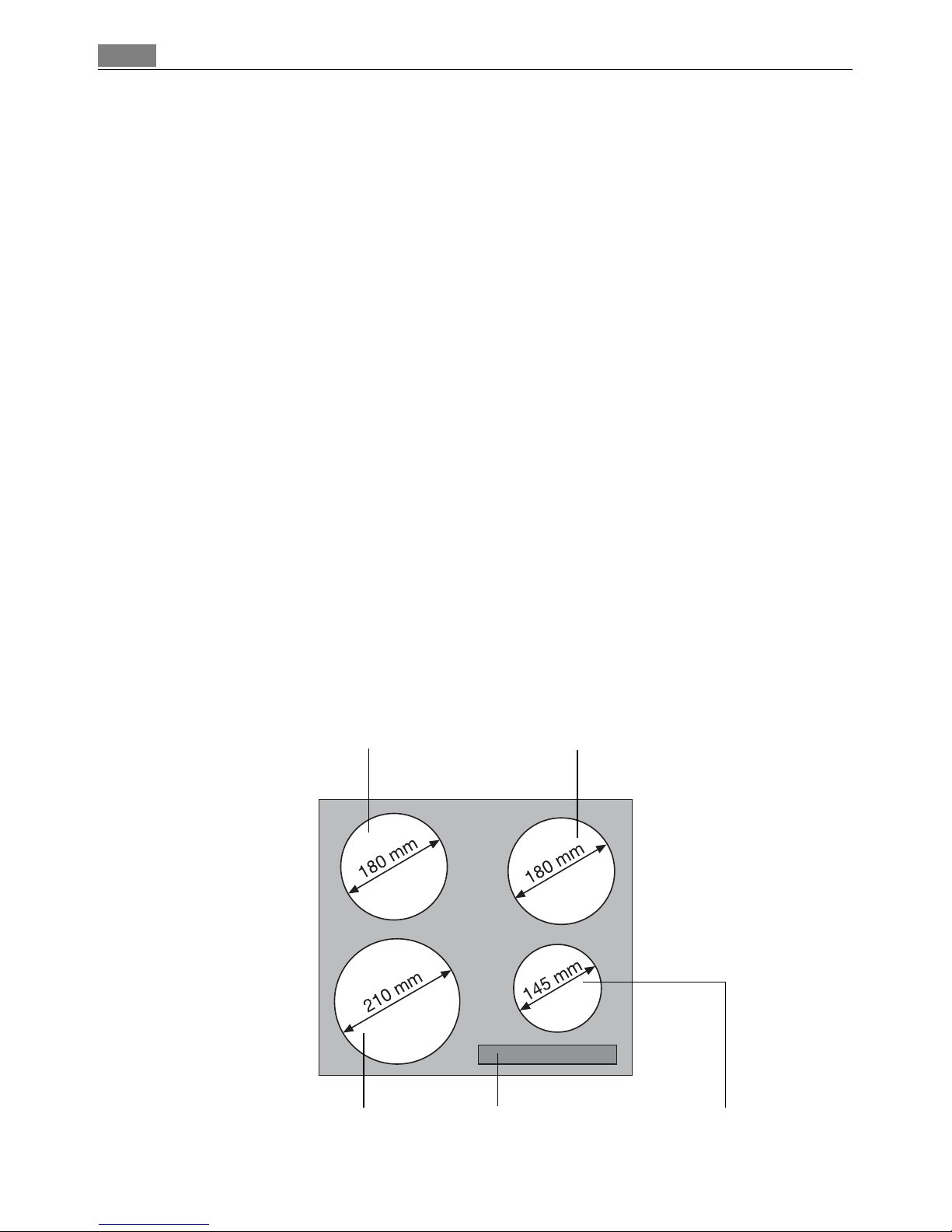

Cooking surface layout

Induction cooking zone 2300 W

with power function 3700 W

Induction cooking zone 1800 W

with power function 2800 W

Induction cooking zone 1800 W

with power function 2800 W

Control panel Induction cooking zone 1400 W

with power function 1800 W

5Description of the Appliance

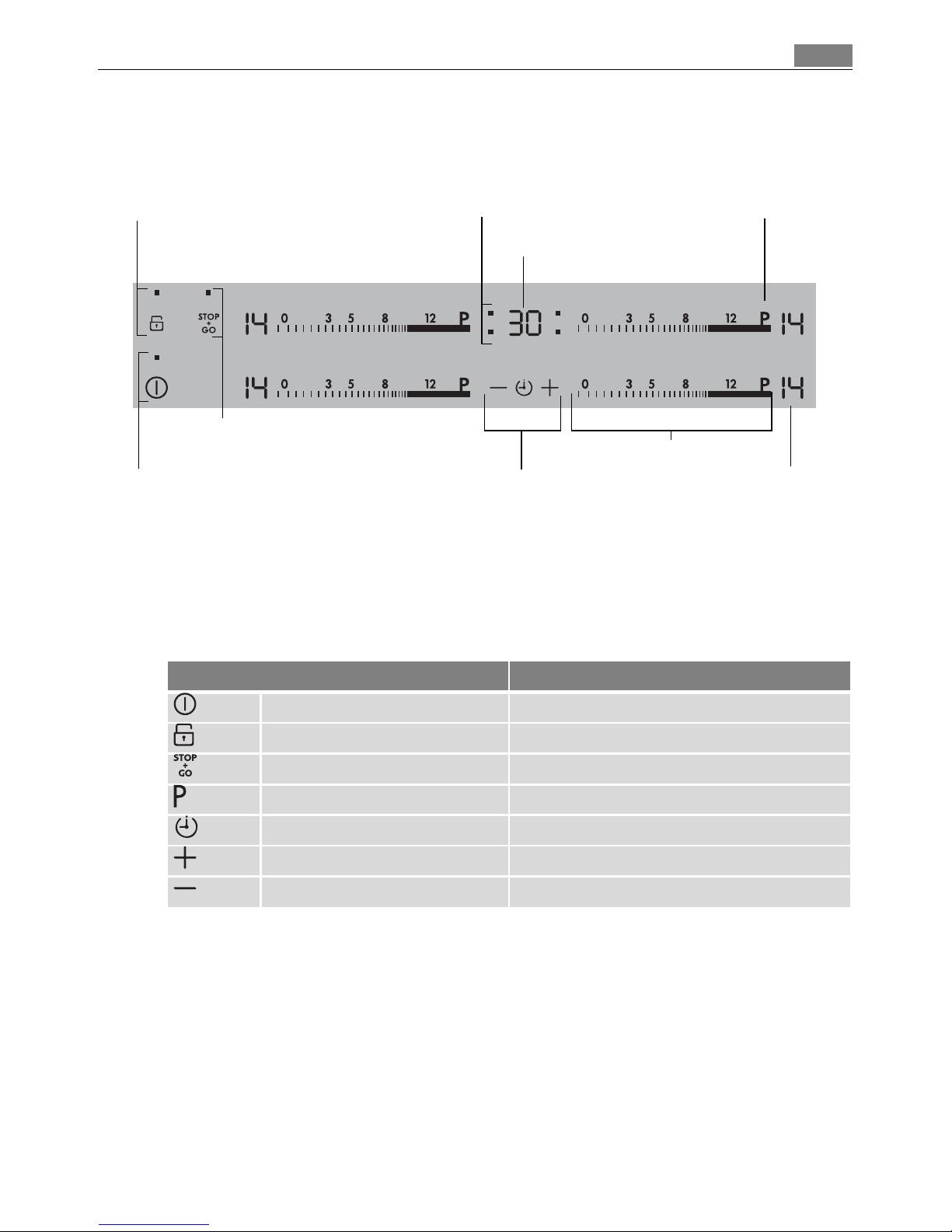

Control panel layout

Touch Control sensor fields

The appliance is operated using Touch Control sensor fields. Functions are controlled by

touching sensor fields and confirmed by displays and acoustic signals.

Touch the sensor fields from above, without covering other sensor fields.

Sensor field Function

On / Off To switch the appliance on and off

Child lock Locking control panel for children

Stop+Go To switch the Keep Warm setting on/off

Power Switching the power function on and off

Timer Timer selection

Increase settings To increase Timer time

Reduce settings To reduce Timer time

On/Off

with indicator

Timer display

Cooking zone indicators

Timer function

Child lock with display

Timer

STOP+GO

with indicator Heat setting selection

Heat setting indicator

Power function

Description of the Appliance6

Displays

Residual heat indicator

1Warning! Risk of burns from residual heat. After being switched off, the cooking zones

need some time to cool down. Look at the residual heat indicator .

3Residual heat can be used for melting and keeping food warm.

Control bar

The control bar is a special Touch Control field.

The control bar is touched where the desired

heat setting is positioned. The heat setting is

shown in the display. Correct to the left or the

right, if necessary.

Do not release before the desired heat setting is

reached.

3If the control bar is touched for longer than 6

seconds, a signal sounds and the appliance

switches itself off.

The induction cooking zones create the heat required for cooking directly in the base

of the cookware. The glass ceramic is merely heated by the residual heat of the cookwa-

re.

The cooling fan switches itself on and off depending upon the temperature of the elec-

tronics.

Display Description

Keep Warm setting STOP+GO function is set

-Heat settings To set heat settings

Power Power function is switched on

Fault Malfunction has occurred

Residual heat Cooking zone is still hot

Child safety device Lock/child safety device is engaged

Automatic switch off Switch off is active.

7Operating the appliance

Operating the appliance

3Use the induction cooking zones with suitable cookware.

Switching the appliance on and off

3After switching on, within approx. 10 seconds a heat setting or a function must be set,

otherwise the appliance automatically switches itself off.

Setting the heat setting

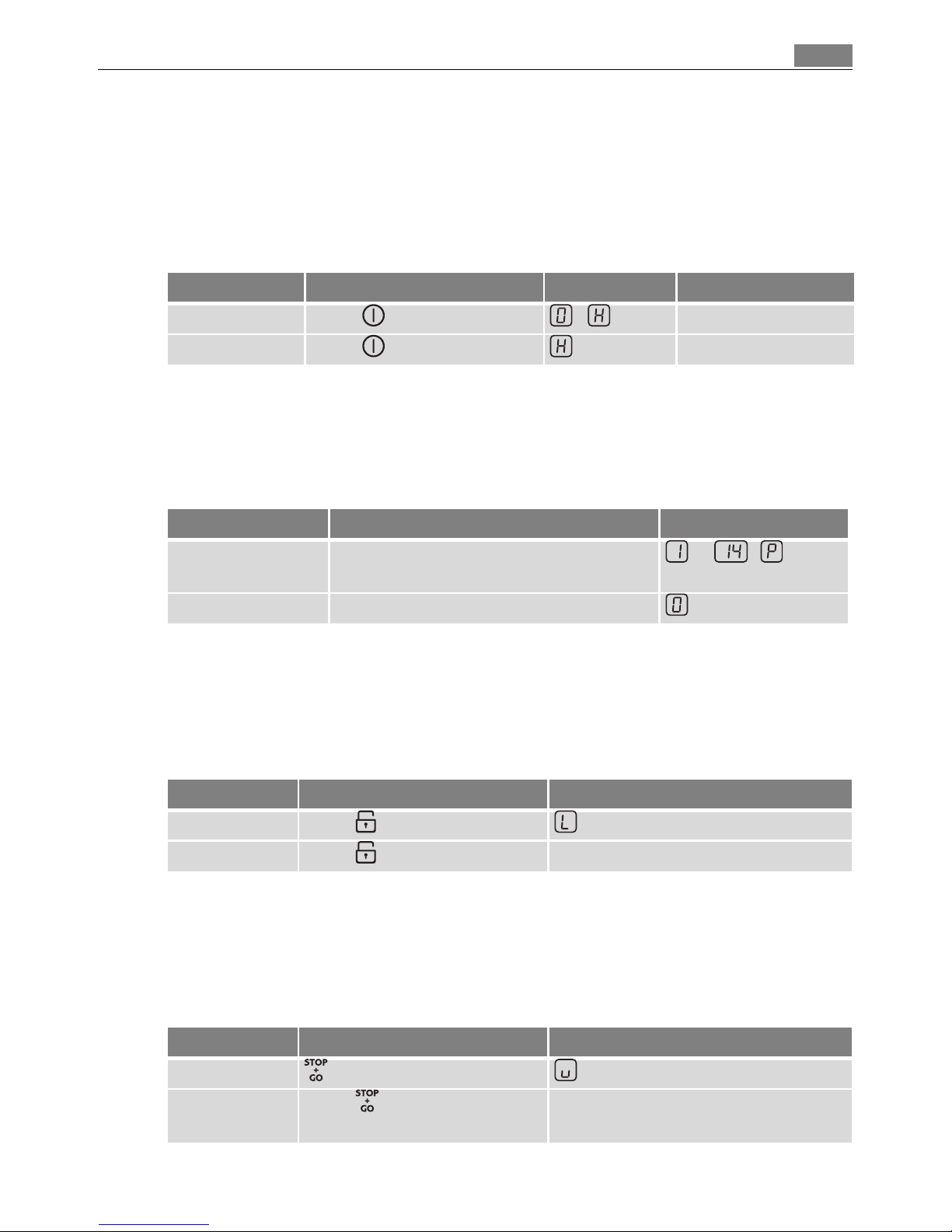

Locking/unlocking the control panel

The control panel, with the exception of the “On/Off” sensor field, can be locked at any

time in order to prevent the settings being changed e.g. by wiping over the panel with a

cloth.

3When you switch the appliance off, the locking function is automatically switched off.

Turning the STOP+GO function on and off

The STOP+GO function simultaneously toggles all active cooking zones to keep-warm

mode then back to the heat setting they were at before.

Control panel Display Pilot light

Switch on Touch for 1 second / lights up

Switch off Touch for 1 second / none goes out

Control bar Display

To set the heat set-

ting

Touch the desired heat setting, if neces-

sary, correct to the left or the right

to /

To switch off Touch 0

Control panel Display

Switch on Touch (for 4 seconds)

Switch off Touch previously set heat setting

Control panel Display

To switch on Touch

To switch off Touch Previous heat setting (not automatic

warm-up or power function)

Operating the appliance8

3STOP+GO does not stop timer functions.

3STOP+GO controls the entire control panel apart from the sensor field .

Using the automatic warm-up function

All cooking zones are equipped with an automatic warm-up function. When setting a

heat setting using the automatic warm-up function, the cooking zone switches to full

power for a certain amount of time and then automatically switches back to the heat

setting set.

The length of time that the automatic warm up function operates depends on the heat

setting selected.

Step Control panel Display

1. Touch

2. Move your finger down from to select

the desired heat setting between and

/ ,

after 5 seconds .

As long as is displayed, the

appliance works at full power.

After the automatic warm up

is completed, the heat set-

ting / is displayed

again.

Heat setting Length of the automatic warm up

[min:sec]

v0:12

10:12

20:12

31:21

43:07

54:24

65:51

78:12

810:12

910:36

10 2:01

11 2:01

12 2:28

13 2:52

14 ---

9Operating the appliance

Using the child safety device

The child safety device prevents unintentional use of the appliance.

Switching on the child safety device

Switching off the child safety device

3The child safety device can only be switched on and off, if no heat setting is set.

Overriding the child safety device

The child safety device can be switched off in this way for a single cooking session; it re-

mains activated afterwards.

3After overriding the child safety device, a heat setting or a function must be set within

approx. 10 seconds, otherwise the appliance automatically switches itself off.

Switching the power function on and off

The power function makes more power available to the induction cooking zones, e.g.

to bring a large quantity of water to the boil quickly.

The power function is activated for 10 minutes at most. After that the induction cooking

zone automatically switches back to heat setting 14.

Step Control panel Display/Signal

1. Switch on appliance. (Do not set a

heat setting.)

2. Touch for 4 seconds

The child safety device is switched on.

Step Control panel Display/Signal

1. Switch on appliance. (Do not set a

heat setting.)

2. Touch for 4 seconds lights up

3. Switch appliance off.

The child safety device is switched off.

Step Control panel Display/Signal

1. Switch appliance on

2. Touch for 4 seconds lights up

Until the appliance is next switched off, it can used as normal. After switching off the

appliance, the child safety device is active again.

Control panel Display

To switch on Touch

To switch off Touch a heat setting /

Operating the appliance10

3If the power function has ended, the cooking zones automatically switch back to the

heat setting set previously.

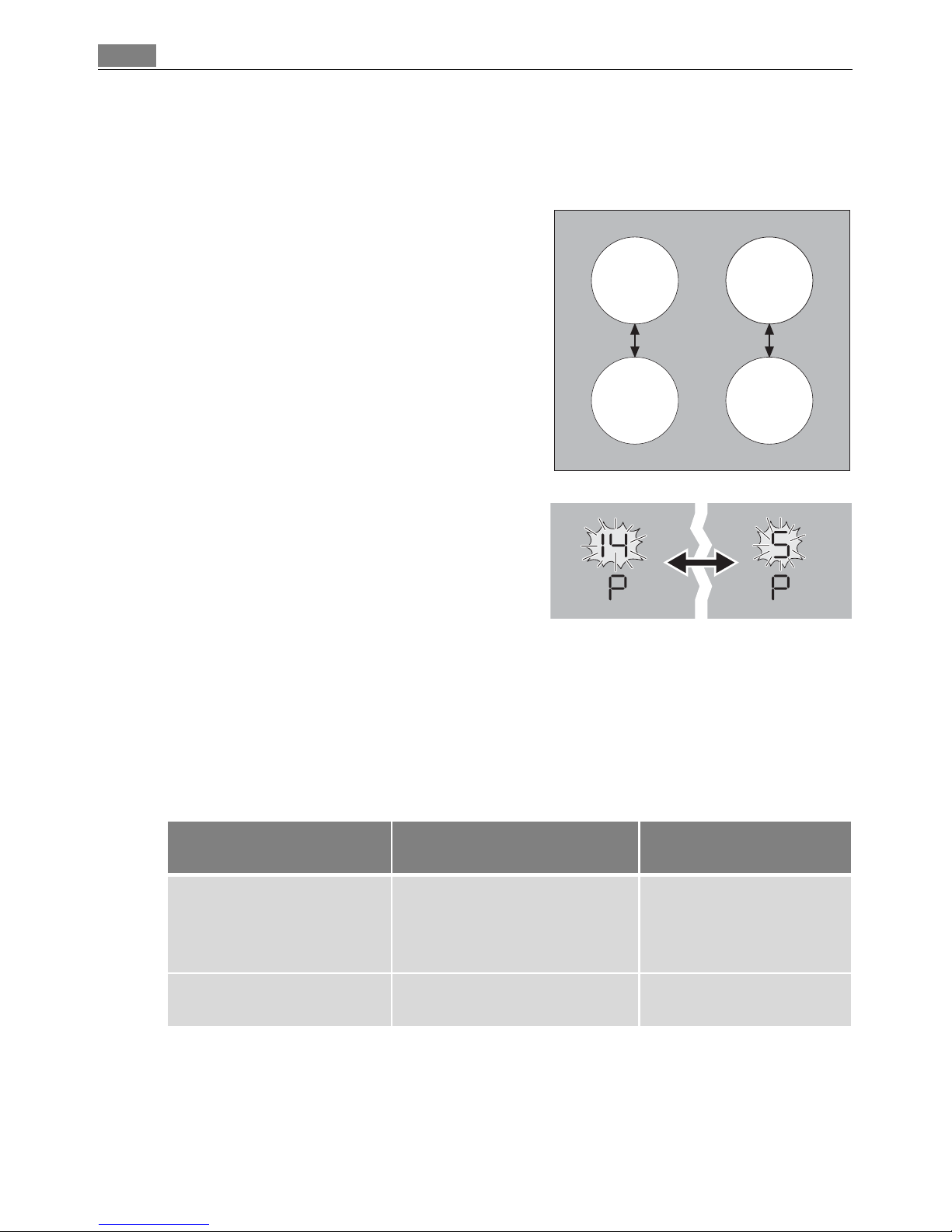

Power Management

The cooking zones of the cooking surface have

a maximum power.

The maximum power is reached when the heat

setting 14 has been set for all cooking zones.

Two cooking zones generate a pair (see figure)

and therefore, the power management shares

the maximum available power between these

cooking zones.

When the power function is selected for one

cooking zone, the power management makes

the additional power for this cooking zone

available by reducing the power of the other

cooking zone.

Example: the heat setting 14 is selected on one

cooking zone. The power function is switched

on for the corresponding cooking zone. The po-

wer function is carried out but the heat setting

14 of one of the cooking zones and the power

function for the other cooking zone of the pair

exceed the maximum power for both at the same time. For this purpose, the power ma-

nagement reduces the power of the cooking zone that switched on first from 14 to ex-

ample 5 and the display of this cooking zone changes between 14 and 5 and then stays

at the current possible maximum 5. (If the display changes between 14 and 5 or 14 and

3 or another value depends on the type of appliance and the size of the cooking zone.).

Using the timer

3If just one countdown value is set you can change it only when the appliance is swit-

ched on.

3If a heat setting is set on this cooking zone in addition to a countdown timer, the

cooking zone is switched off after the time set has elapsed.

Function Condition Outcome after the time

has elapsed

Automatic cut-out a heat setting is set acoustic signal

00 flashes

Cooking zone switches

off

Countdown timer cooking zones not in use acoustic signal

00 flashes

Andere Handbücher für 68031K-MN

Inhaltsverzeichnis

Sprachen:

Andere AEG Electrolux Kochfeld Handbücher

AEG Electrolux

AEG Electrolux 34942 G Bedienungsanleitung

AEG Electrolux

AEG Electrolux HK624000XB Bedienungsanleitung

AEG Electrolux

AEG Electrolux 75553G-M Bedienungsanleitung

AEG Electrolux

AEG Electrolux 76301KFE-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux EGG 676 Bedienungsanleitung

AEG Electrolux

AEG Electrolux 79301 KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 75580G-M Bedienungsanleitung

AEG Electrolux

AEG Electrolux 78031KF-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux 111 K Bedienungsanleitung

AEG Electrolux

AEG Electrolux 96901KFE-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 78001KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 68031K-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux HK654070FB Bedienungsanleitung

AEG Electrolux

AEG Electrolux 79903G Bedienungsanleitung

AEG Electrolux

AEG Electrolux 96931KFE-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux 36001 KF Bedienungsanleitung

AEG Electrolux

AEG Electrolux 96931K-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux Gas Hob Bedienungsanleitung

AEG Electrolux

AEG Electrolux 86700 K Bedienungsanleitung

AEG Electrolux

AEG Electrolux 64100 KF-N Bedienungsanleitung

AEG Electrolux

AEG Electrolux FM 6520K-an Bedienungsanleitung

AEG Electrolux

AEG Electrolux 6000K Technisches Datenblatt

AEG Electrolux

AEG Electrolux 68002K-MN Bedienungsanleitung

AEG Electrolux

AEG Electrolux 24" HK654070XB Bedienungsanleitung

Beliebte Kochfeld Handbücher anderer Marken

Siemens

Siemens EX875KYV1E Technisches Datenblatt

AEG

AEG CERAMIC HOB 6010 K Bedienungsanleitung

VALERA

VALERA CT 70A Bedienungsanleitung

Zanussi

Zanussi ZGF 6420 Bedienungsanleitung

Gaggenau

Gaggenau CI 273 Bedienungsanleitung

G3 Ferrari

G3 Ferrari Energy Bedienungsanleitung

Pkm

Pkm IN4B Bedienungsanleitung

Award

Award H903BG Bedienungsanleitung

Zanussi

Zanussi VCH 5005 RZ Bedienungsanleitung

Miele

Miele KM 523 Bedienungsanleitung

Hotpoint

Hotpoint IS67V8CCXT/E Bedienungsanleitung

AEG

AEG HK854870XB Bedienungsanleitung

Cookology

Cookology SEP600BK Bedienungsanleitung

Bauknecht

Bauknecht Hob Bedienungsanleitung

Zanussi

Zanussi ZGM 782 Bedienungsanleitung

dipo INDUCTION

dipo INDUCTION DIBK218S Bedienungsanleitung

Miele

Miele KM 5987 Bedienungsanleitung

Miele

Miele KM 360 G Bedienungsanleitung
