INSTALLATION & MAINTENANCE INSTRUCTIONS
115 & 315 SERIES HORIZONTAL LUMINAIRES
(TWO BOLT LOCKING AND LEVELING)
American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA
DRAWING NO. B64877 REV E (FRONT)
©2003 ACUITY LIGHTING GROUP, INC. PART NUMBER 058-71-64877
WARNING
DISCONNECT POWER BEFORE RELAMPING OR WIRING THE FIXTURE.
READ ALL INSTRUCTIONS COMPLETELY BEFORE STARTING INSTALLATION
TO AVOID THE RISK OF FIRE OR SHOCK, FIXTURE MUST BE INSTALLED IN COMPLIANCE WITH ALL APPLICABLE NATIONAL
AND LOCAL ELECTRICAL/BUILDING CODES. FOR CODE INTERPRETATION, CONSULT LOCAL CODE AUTHORITY
RISK OF FIRE. PRODUCT FOR OUTDOOR INSTALLATION AND USE ONLY.
WARNING
CAUTION
!
!
!
WARNING
ENSURE THAT ALL POWER IS
DISCONNECTED PRIOR TO WIRING
!
REMOVE LOWER HOUSING:
FIXTURES WITH ONE-PIECE LOWER:
Lift lower housing hinge pins out of the hinges in the upper housing.
Slide lower housing off of hinge bar.
FIXTURES WITH POWER-PAD:
Unfasten the power-pad latch screw. NOTE: The power-pad is
HEAVY, and it should not be allowed to drop free and swing.
Disconnect the two sets of electrical connectors, and then unhook
the power-pad from the hinge bar and remove it.
MOUNTING / LEVELING:
Determine the size of the mast arm. This luminaire is designed to
accommodate a mast arm from 1/1/4" to 2" dia. The luminaire is
factory set to mount to the 1-1/4" arm. To mount to a 2" arm, two
modifications must be made.
1. The rear opening must be enlarged. Knockouts are cast-in
around the rear opening for this purpose. To remove this excess
material, strike with a hammer or grasp with pliers and break off.
2. The fitter bracket must be flipped over.
(This will require the complete removal of the fitter bolts.)
STANDARD MOUNTING:
Loosen (DO NOT REMOVE) the fitter bolts. Lift the luminaire into
position in front of the mast arm such that the mast arm enters
through the opening at the rear of the luminaire and between the
fitter bracket and the luminaire housing. The mast arm should rest
against one of the cast-in steps located in this area. Using these
cast-in steps, adjust luminaire to desired mounting angle. Tighten
fitter bolts to 10-12 FT/LBS.
CAUTION
OVER-TORQUING OF FITTER CLAMP BOLTS CAN
CREATE CRACKS IN THE HOUSING CAUSING
THE FIXTURE TO FALL TO THE GROUND.
!
INPUT VOLTAGE:
If the voltage available is different from that shown on the terminal block,
consult the wiring diagram for directions.
WIRING:
Feed the supply wires through the mast arm, dress them so they do not
interfere with any components, and connect them to the proper terminals
on the terminal block. Verify that supply voltage is correct as noted on
the terminal block label. Refer to the wiring diagram and the data on the
ballast for connection information and ratings.
INSTALLING LOWER HOUSING:
FIXTURES WITH ONE-PIECE LOWER:
Insert lower housing hinge pins into the hinge cradles of the upper
housing. Swing the lower housing into position and press firmly upward
until latch snaps into position. NOTE: IT IS NEVER NECESSARY OR
ADVISABLE TO SLAM THE HOUSING CLOSED!
FIXTURES WITH POWER-PAD:
To install the ballastry power-pad, engage the hinge hook with the hinge
bar on the upper housing. Connect the two sets of electrical connectors
firmly together. (These connectors are "polarized" so they will only fit
together one way.) Swing the power-pad closed. Fasten the latch screw
until it is firmly seated, but DO NOT OVERTIGHTEN IT.
MOUNTING / LEVELING (cont.):
CSA SPECIAL REQUIREMENTS:
Slide the weather guard onto the mast arm first. Carefully fold back the
insulating barrier along the score line to expose the fitter bolts. Install
the fixture as directed in the standard mounting instructions. Once
fixture has been installed, slide the weather guard along the mast arm
until it is firmly seated against the rear of the luminaire housing. Apply
RTV sealant between the weather guard and the housing creating a
water-tight seal. Once wiring has been completed, fold the insulating
barrier back into place.
APPLY RTV BETWEEN
GUARD AND HOUSING
MAST ARM
FITTER BOLTS
LEVELING STEPS
KNOCKOUT
American Electric Lighting a division of Acuity Lighting Group, Inc. Conyers, GA
DRAWING NO. B64877 REV E (BACK) ©2003 ACUITY LIGHTING GROUP, INC. PART NUMBER 058-71-64877

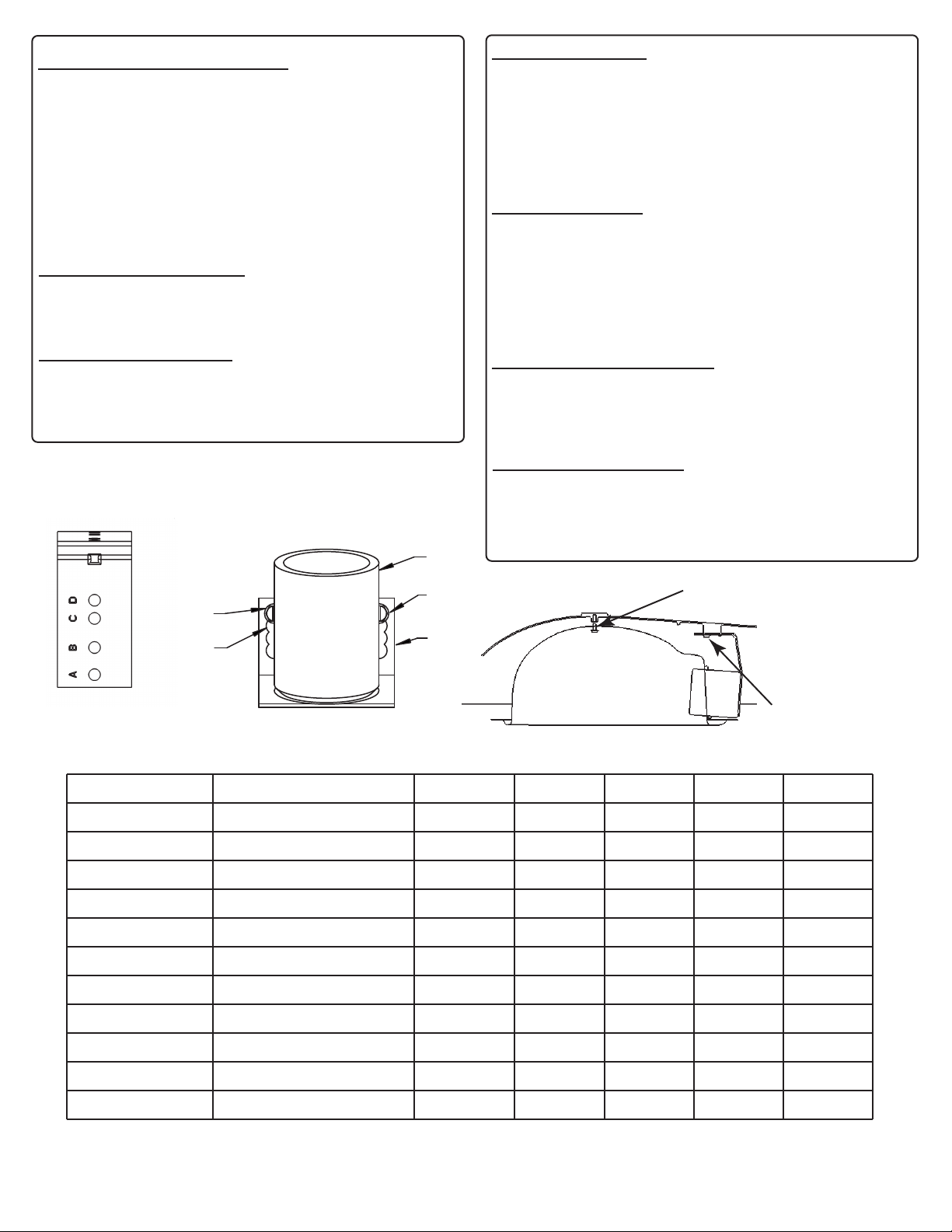

LAMP INSTALLATION AND SERVICING:
Open the door to the lamp compartment by pulling forward on the latch
located at the front of the luminaire. Lower the door slowly and let it
hang from its hinges. It should not be allowed to drop free and swing.
Install a lamp of the proper type and wattage.
To close the door swing it up into position and press firmly upward until
latch snaps into position. NOTE: IT IS NEVER NECESSARY OR
ADVISABLE TO SLAM THE HOUSING CLOSED!
MAINTENANCE AND CLEANING:
The optical assembly should be cleaned with a mild detergent and rinsed
with clean water to maintain efficiency of the luminaire.
REFRACTOR REPLACEMENT:
Open the lower door. Rotate the refractor clip enough to allow the
release of the refractor or the lens being careful to support the refractor
at all times. The front end can easily be slipped out of the cast-in
retainers. Remove refractor and clean or replace as desired.
REFLECTOR REMOVAL:
FIXTURES WITH POWER-PAD: Disconnect the electrical connector in
the socket leads.
Remove the mounting screw in the top center of the reflector and slide
the reflector forward and down off of the socket. Reverse this procedure
to replace the reflector.
SOCKET ADJUSTMENT:
Refer to the chart in these instructions for the required socket positions.
Remove the reflector. To adjust the horizontal position, remove the
screw holding the socket bracket. Move the bracket forward or back to
line up A, B, C, or D with the mounting hole for the desired position.
Replace the screw and tighten it securely. The vertical position is factory
set and is not field adjustable.
REMOVAL OF REFRACTOR DOOR:
FIXTURES WITH POWER PAD: To remove the refractor door, the
power-pad door must be opened first. It is not necessary to remove the
power-pad door to remove the refractor door.
OPTIONAL PHOTOCONTROL:
Loosen the receptacle clamping screw. Rotate the receptacle so that
the arrow on the top points North. Tighten the clamping screw. Plug the
photocontrol into the receptacle and twist it clockwise until it locks into
position
UNLESS SPECIFIED OTHERWISE, SOCKET SETTINGS AT THE FACTORY ARE ADJUSTED FOR CLEAR LAMPS.
S = Short M = Medium SC - Semi-Cutoff C = Cutoff NC = Non-Cutoff
I = Type I II = Type II III = Type III *Vertical Socket Setting is pre-set at the factory and is not field adjustable.
**Painted Reflector Only.
LENS LIGHT SOURCE PATTERN* D C B A
ACRYLIC
(POLYCARBONATE)
100-250W CLEAR MERCURY
METAL HALIDE
UP (1)
DOWN (2)
----
II-M-SC
ACRYLIC
ACRYLIC
(POLYCARBONATE)
----
II-M-SC
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
UP (1)
DOWN (2)
POLYCARBONATE
GLASS (PRISMATIC)
GLASS (FLAT)
GLASS (PRISMATIC)
GLASS (PRISMATIC)
GLASS II-2-4 WAY
GLASS (FLAT)
GLASS II-2-4 WAY
100-175W DELUXE MERCURY
METAL HALIDE
100-250W CLEAR MERCURY
METAL HALIDE
50-150W HPS
100-250W CLEAR MERCURY
50-150W HPS
50-150W CLEAR HPS
50-150W CLEAR HPS
200-250W CLEAR HPS
200-250W CLEAR HPS
200-250W HPS
200-250W HPS
----
II-M-SC
----
II-M-C
----
II-M-SC
II-S-C
II-S-SC
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
----
II-M-SC
----
II-M-SC
----
II-M-C
----
----
----
----
----
----
----
II-4 WAY SC
----
III-M-SC
II-S-C
III-M-C
----
II-S-C
----
----
----
III-M-C **
----
III-S-SC
----
----
II-S-SC
III-M-SC
----
----
----
----
III-S-C
III-M-SC
----
III-M-SC
II-S-SC
III-M-SC
----
III-S-SC
SOCKET
BRACKET
REFLECTOR
MOUNTING
SCREW
SOCKET
BRACKET
SCREW
LIGHT DISTRIBUTION TABLE
A. LOOSEN SCREWS ON SOCKET BRACKET.
B. MOVE BRACKET TO DESIRED POSITION.
C. TIGHTEN SCREWS.
SOCKET
SCREW
SOCKET
BRACKET
TYPE II
MEDIUM CUTOFF
TYPE III
MEDIUM CUTOFF
SOCKET ADJUSTING OPTION
(FOR AJ FLAT LENS)
*NOTE: VERTICAL SOCKET SETTING IS SET AT
THE FACTORY AND IS NOT FIELD ADJUSTABLE.
