Agilent Technologies E4438C Installations- und Betriebshandbuch

Installation Note

Part Number E4400-90551

Printed in USA October 2015

Supersedes March 2009

ESG Vector Signal Generator

E4438C Add Option 005 (Internal Hard Drive)

Kit Part Number E4400-60599

NOTICE: In August 2014, Agilent Technologies’ former Test and Measurement

business became Keysight Technologies. This document is provided as a courtesy

but is no longer kept current and thus will contain historical references to Agilent.

For more information, go to www.keysight.com.

Notice

The information contained in this document is subject to change without notice.

Agilent Technologies makes no warranty of any kind with regard to this material, including but not limited to, the

implied warranties of merchantability and fitness for a particular purpose. Agilent Technologies shall not be liable

for errors contained herein or for incidental or consequential damages in connection with the furnishing,

performance, or use of this material.

ESG Vector Signal Generator E4438C

Add Option 005(Internal Hard Drive)

Kit Part Number E4400-60599

Introduction

This upgrade kit adds Option 005, Internal Hard Drive, to the E4438C.

NOTE This upgrade kit requires that Option 001, 002, 601, or 602 be already installed in the signal generator.

Installation includes the following major steps:

1. Check signal generator operation.

2. Remove the instrument covers.

3. Remove the front panel. (For instruments with serial prefix numbers <US4426/MY4426.)

4. Install the Internal Hard Drive, Option 005.

5. Obtain Option 005 license key (For instruments with serial prefix numbers >US4426/MY4426.)

6. Re-install the front panel. (For instruments with serial prefix numbers <US4426/MY4426.)

7. Verify installation of Option 005.

8. Re-assemble the signal generator.

9. Perform a functionality test on the signal generator.

Product Affected: . . . . . . . . . . . . . . . . . . . . . . . . . E4438C

Serial Numbers: . . . . . . . . . . . . . . . . . . . . . . . . . . All

Options: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

To Be Performed By: . . . . . . . . . . . . . . . . . . . . . . (X) Agilent Technologies Service Center

(X) Personnel Qualified by Agilent Technologies

(X) Customer

Estimated Installation Time: . . . . . . . . . . . . . . . 1.0 hours

Estimated Verification Time: . . . . . . . . . . . . . . . 0.1 hours

Installation Kit Parts List

IMPORTANT If the Agilent Service Center orders the Option 005 hard drive m kit using the 5x5 part number, then they

must contact Agilent and order the entitlement certificate.

Tools Required

•TORXT-10driver

•TORXT-15driver

•TORXT-20driver

• Long-nose pliers

• Scissors

Item Quantity Description Part Number

Installation Notea

a. This item cannot be ordered separately.

E4400-90551

2 8 Insulated Bushing 0340-1525

3 4 Screw SMM 3.0 12 CWPNTX 0515-0664

Screw SMM 3.0 14 PNTXa0515-0681

5 1 Hard Drive Mount (serial prefix numbers < US4426/MY4426) E4400-00526

6 1 Tested Hard Drive E4400-60253

7 1 Ribbon Cable (installed on hard drive) 8121-0685

8 1 Label 7120-1232

The following items are required for signal generators with serial prefix numbers ≥ US4426/MY4426

9 1 Hard Drive Mount E4400-00547

10 1 Entitlement Certificate 5964-5143

11 1 Entitlement Certificateb

b. Must be ordered separately if installed by the Agilent Service Center.

5964-5143

Safety Considerations

WARNING Before you disassemble the instrument, turn the power switch off and unplug the signal

generator. Failure to unplug the signal generator can result in personal injury.

CAUTION Electrostatic discharge (ESD) can damage or destroy electronic components. All work on

electronic assemblies should be performed at a static-safe workstation.

Check Signal Generator Operation

Use the following procedure to confirm that the signal generator powers up and that the internal diagnostic check identifies

no errors. The internal check evaluates the operation of the signal generator and returns an error message if it detects a

problem.

1. Turn on the signal generator and let it warm up for at least five minutes.

NOTE When signal generators with Option 1E5 are first turned on, the reference oven will be cold and an error

message ERROR 514, Reference Oven Cold appears on the front-panel display. In addition, both the

OVEN COLD annunciator and the ERR annunciator appear on the front-panel display.

After approximately five minutes, the OVEN COLD annunciator automatically clears, but the ERR

annunciator remains on until all errors are cleared from the error queue.

2. Run the instrument self test. Press Utility > Instrument Info/Help Mode > Self Test > Run Complete Self Test. Upon

completion of the self test, a summary is displayed. Use the service guide to troubleshoot any failures detected by the

self test.

NOTE Some circuits may require up to 50 minutes to warm up before passing the self-test. If self-tests continue to

fail after 50 minutes of warm up, troubleshoot the instrument.

3. Check to see if the ERR annunciator is on.

•IftheERR annunciator is on, review the error messages in the error queue by pressing

Utility > Error Info >View Next Error Message. The first error message in the error queue appears in the display

text area. (Refer to the signal generator error messages document for information about each error message.)

After resolving all problems causing errors, press Clear Error Queue(s).

•IftheERR annunciator is off, the signal generator operation check passed.

Make a backup copy of the Internal Waveform(s) from non-volatile memory

Perform the following steps to make a backup copy of the waveform(s) stored in the internal non-volatile memory

prior to installing the hard drive.

CAUTION Without performing this step, once the hard drive is installed, the waveform(s) will no longer be

accessible and removal of the hard drive by unplugging the W26 ribbon cable would have to be done

to re-access the waveform(s).

Using the Command Window (PC or UNIX)

Extracting Unencrypted I/Q Data

get /user/waveform/<file_name>

get /user/markers/<file_name>

get /user/header/<file_name>

Extracting Encrypted Waveform Data

get /user/securewave/<file_name>

Using Microsoft’s Internet Explorer thru FTP

1. Enter the signal generator’s hostname or IP address as part of the FTP URL.

ftp://<host name> or

ftp://<IP address>

2. Press Enter on the keyboard or Go from the Internet Explorer window. The signal generator files appear in the Internet

Explorer window.

3. Drag and drop files between the Internet Explorer window and the PC using the folder names below.

Extracting Unencrypted I/Q Data

get /user/waveform/<file_name>

get /user/markers/<file_name>

get /user/header/<file_name>

Extracting Encrypted Waveform Data

get /user/securewave/<file_name>

Remove the Instrument Covers

Tools Required

• T-10 driver

• T-15 driver

• T-20 driver

• Long-nose pliers

Remove the Outer Cover

Refer to Figure 1.

1. Disconnect the power cord.

2. Using a T-20 driver, remove the two strap handles (1) by loosening the screws.

3. Using a T-15 driver, remove the center screws (2) on the four rear-panel feet (3).

4. Remove the four bottom feet (4) and (5) from the cover by pushing and pulling the tab.

5. Slide the outer cover (6) off the frame.

Remove the Top Inner Cover

Refer to Figure 1.

1. Using a T-10 driver, remove the ten screws (8) from the inner cover (7).

2. Remove the inner cover.

Figure 1 Outer and Top Inner Instrument Cover Removal

Remove the Front Panel

(For Instruments with Serial Prefix Numbers < US4426/MY4426)

Refer to Figure 2 for this procedure.

1. Remove the side trims that cover the four screws (2).

2. Using a T-15 driver, remove the four screws (1) from the sides of the frame.

CAUTION Before removing the front panel from the signal generator, lift and support the front of the signal generators

frame.

3. Slide the front panel over the RF output connector.

4. Disconnect the W35 A3 Front Panel Auxilary Board cable from J30 of the A23 Motherboard.

5. Disconnect the W36 A1 Keyboard cable from J32 of the A23 Motherboard.

6. Using long-nose pliers, disconnect the following cables:

• W1 (I INPUT) from J7 of the A10 I/Q Multiplexer

• W2 (Q INPUT) from J8 of the A10 I/Q Multiplexer

• W3 (DATA INPUT) from J24 of the A23 Motherboard

• W4 (DATA CLOCK) from J21 of the A23 Motherboard

• W5 (SYMBOL SYNC) from J23 of the A23 Motherboard

• W6 (EXT 1 INPUT) from the A19 Daughterboard

(refer to the connector diagram located on the A19 Daughterboard cover)

• W7 (EXT 2 INPUT) from the A19 Daughterboard

(refer to the connector diagram located on the A19 Daughterboard cover)

• W8 (LF OUTPUT) from the A19 Daughterboard

(refer to the connector diagram located on the A19 Daughterboard cover)

7. Remove the front panel and lay it upside down on the table.

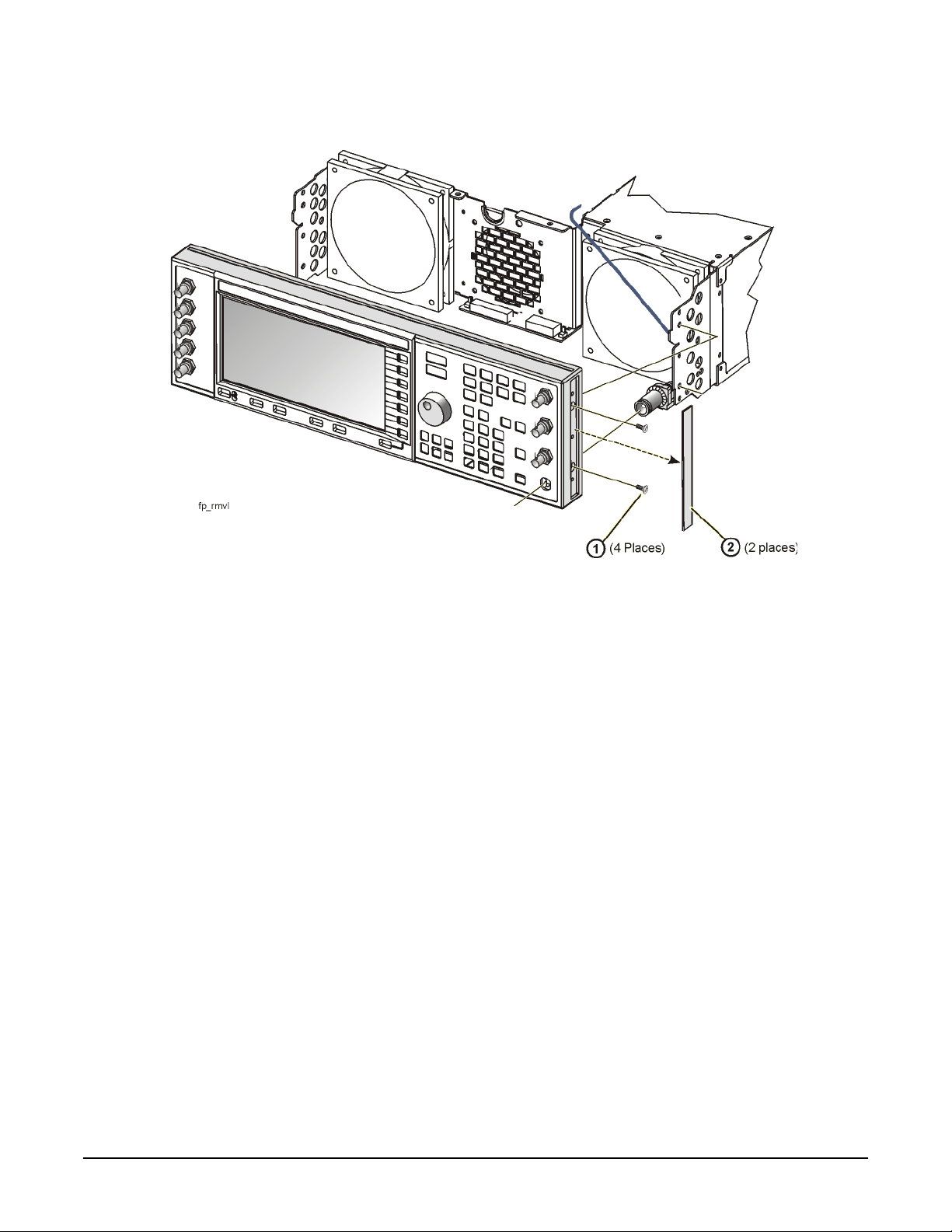

Figure 2 Front Panel Removal
