Agilent Technologies U8001A Bedienungsanleitung

Product Fact Sheet

Key features

The power supplies provide solid and reliable performance

with the following features:

• Excellent load and line regulation

• (CV < 0.01% +2 mV; CC: < 0.02% +2 mA) ensure stable

output even when load changes

• Fast 50 µsec transient response reduces test times and

manufacturing cost

• Low output noise of 1 mVrms, 3 mArms from 20 Hz to

20 MHz provides clean output, minimizing interference

into the DUT

LCD display

With backlight

on/off option

Important Security Features

Fully integrated Over-Voltage,

Over-Current protection, keypad

lock, and physical lock mechanism

Output ON/OFF key

Enables or disables power output,

providing extra protection to the DUT

Efficient setup capability

Save/recall up to 3

memory states

Agilent U8000 Series Single Output, Non-programmable

DC Power Supplies

More protection, more convenience — for less

The Agilent U8000 Series extends the functionality of non-programmable power supplies with features typically found only in programmable

models. With power performance of 90 W to 150 W, this series is suitable for a variety of electronics manufacturing applications. With their

affordable pricing, the power supplies are also well suited for usage in educational labs.

Technical data, availability, and pricing subject to change without notice.

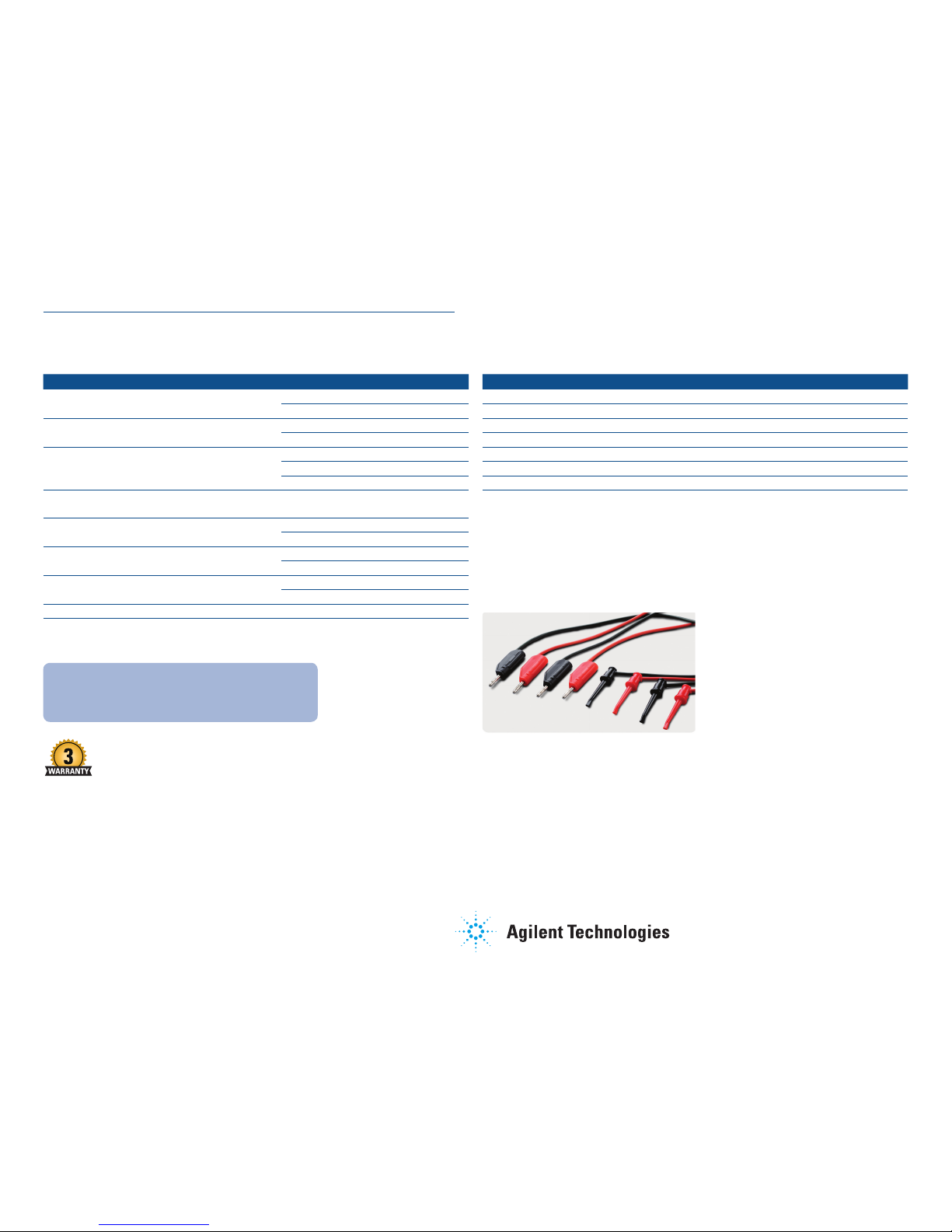

Product Fact Sheet

Recommended service options

Additional two years of Return-to-Agilent warranty

Additional two years of Return-to-Agilent calibrations

For more information go to www.agilent.com/find/removealldoubt

Agilent U8000 Series Single Output, Non-programmable DC Power Supplies

Optional test lead kit

Power supplies come with:

• Power cord; product reference CD-ROM; Certificate of calibration

Also available for purchase:

• Users guide, service guide

(Versions: English, Traditional Chinese, Simplified Chinese, and Japanese)

Three-Year Warranty

www.agilent.com/find/ThreeYearWarranty

Agilent’s combination of product reliability and three-year warranty coverage is another way we help you achieve your

business goals: increased confidence in uptime, reduced cost of ownership and greater convenience.

5989-8623EN

Options

Part # Description

U8001A-UK6 U8001A commercial calibration with test result data

U8001A-1CM U8001A rack mount kit

U8002A-UK6 U8002A commercial calibration with test result data

U8002A-1CM U8002A rack mount kit

E3600A-100 Test lead kit

U8001A-ABA Users guide, service guide: English

U8002A-ABA Users guide, service guide: English

Specifications

Parameter U8001A U8002A

Output ratings (at 0 °C to 40 °C) 0 to +30 V 0 to +30 V

0 to 3 A 0 to 5 A

Line and load regulation CV: < 0.01% +2 mV

CC: < 0.02% +2 mA

Ripple and noise (25 °C ±5 °C) CV: 12 mVp-p

< 1 mVrms

CC: 3 mArms

Load transient response time (within 15 mV from full

load to half load and from half load to full load)

< 50 µs

Programming accuracy (25 °C ±5 °C) < 0.35% +20 mV

< 0.35% +20 mA

Readback accuracy (25 °C ±5 °C) < 0.35% +20 mV

< 0.35% +20 mA

Meter resolution Voltage: 10 mV

Current: 10 mA

Dimension (W x H x L) 88.1 mm x 212.3 mm x 394.3 mm
