Agora Models Pack 07 Handbuch

STAGE 49: INSTALLING THE SILENCER

STAGE 50: LEFT FRONT WHEEL

STAGE 51: LEFT FRONT WHEEL

STAGE 52: LEFT FRONT WHEEL

STAGE 53: LEFT FRONT WHEEL

STAGE 54: RIGHT REAR WHEEL

STAGE 55: RIGHT REAR WHEEL

STAGE 56: RIGHT REAR WHEEL

Pack 07

BUILD INSTRUCTIONS

AGORAMODELS JAGUAR E-TYPE

Spare screws are included with each part. Occasionally, you may be instructed to keep spare or

unused screws for a later stage. Keep these spares in a safe place and label them correctly.

Please make sure you don’t mix up the screws. They look quite similar, but the threads do vary

slightly. Using the wrong screws may damage the parts.

When securing parts together using multiple screws, ﬁt each screw loosely to ensure all the

parts are correctly aligned before gently tightening them ﬁrmly, but not overtight, in the order

in which you placed them.

The screwdriver can be magnetized by stroking it with a magnet (fridge magnet, etc.) enabling

it to hold the screws and make assembly easier.

If a screw is tight going into a metal part, do not force it as you may shear the head off. Remove

it and put a tiny smear of Vaseline, soap or light oil on the thread. That will lubricate it and make

it easier to drive home.

During the course of this build, you will receive many pieces that you will assemble immediately

– following the instructions in the corresponding stage – and other pieces that you should store

safely to one side, for use in future assembly stages.

Left and Right! When building your Jaguar, the left or right hand side refers to each side as you

are sitting in the car.

WARNING: Some parts are assembled using magnets. These magnets can cause serious injury

if they are swallowed. Keep away from children. If you suspect a magnet has been swallowed,

seek medical help straight away.

Advice from the experts

AGORAMODELS JAGUAR E-TYPE

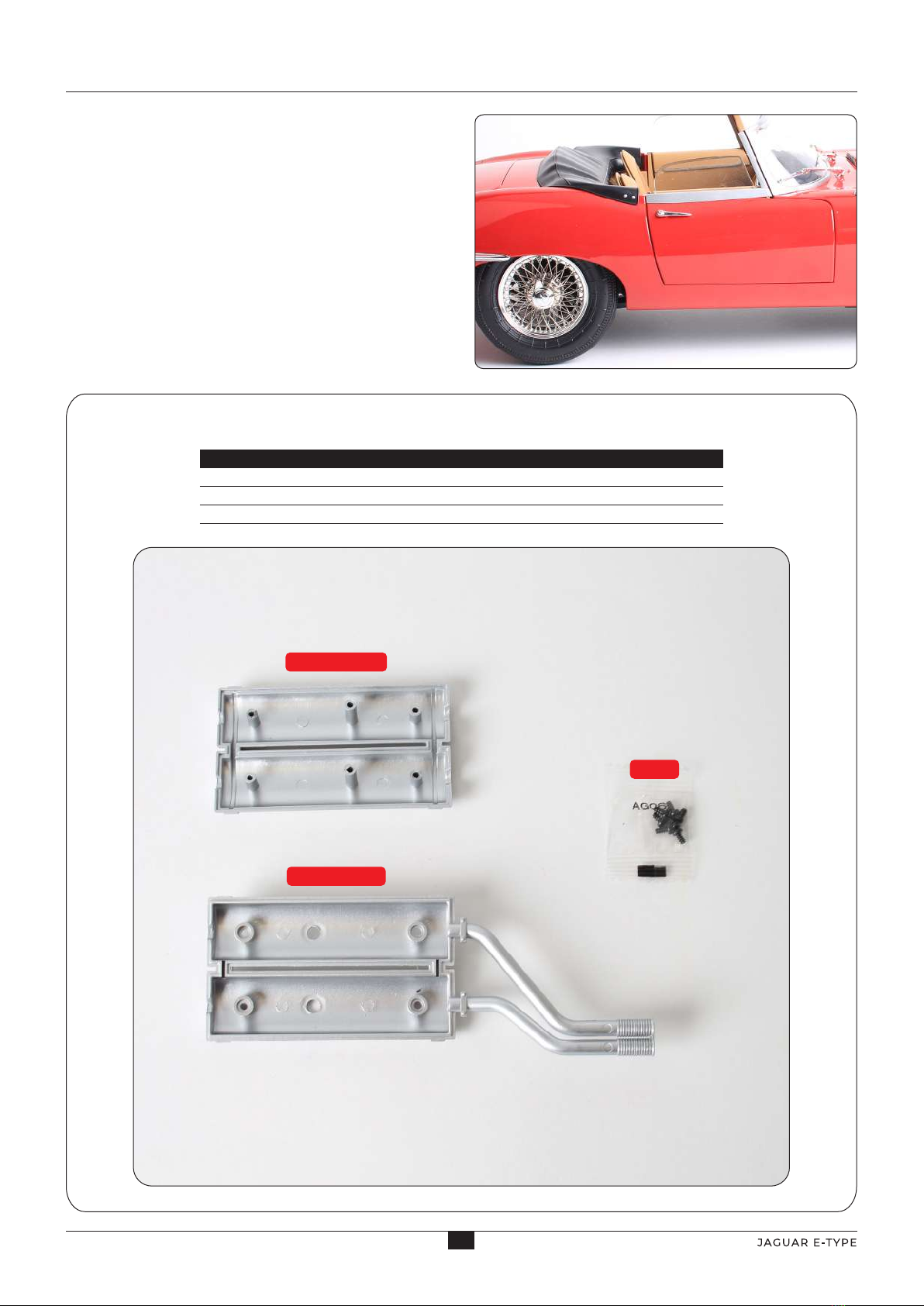

Name

Silencer upper half

Silencer lower half

Screws type AG06 x7

STAGE 49 PARTS LIST

In this stage you’ll assemble and

attach the silencer that forms the

middle part of the exhaust system.

Silencer lower half

AG06 x7

Stage 49: Installing the silencer

Silencer upper half

AGORAMODELS JAGUAR E-TYPE

STEP 1

Take the upper and lower half of the silencer and align them as shown,

noting that the holes and longer posts (circled) are closer to one end.

Secure the two halves of the silencer together using 4 x AG06 screws.

Place the upper half onto the lower half of the silencer, so that the

long posts ﬁt through the holes (circled).

Take the ﬂoor panel assembly from Stage 48. Locate the two holes

on the ﬂoor panel assembly and align the two pegs on the silencer

assembly with them (arrows). Note the direction the exhaust pipes

(circled) are facing on the silencer assembly.

Stage 49: Installing the silencer

AG06 AG06

AGORAMODELS JAGUAR E-TYPE

5 6

Push the pegs on the silencer assembly into the holes on the ﬂoor

panel assembly.

Flip over the ﬂoor panel assembly and secure the silencer assembly in

place using 2 x AG06 screws as shown.

Stage 49: Installing the silencer

STAGE COMPLETE

AG06

AGORAMODELS JAGUAR E-TYPE

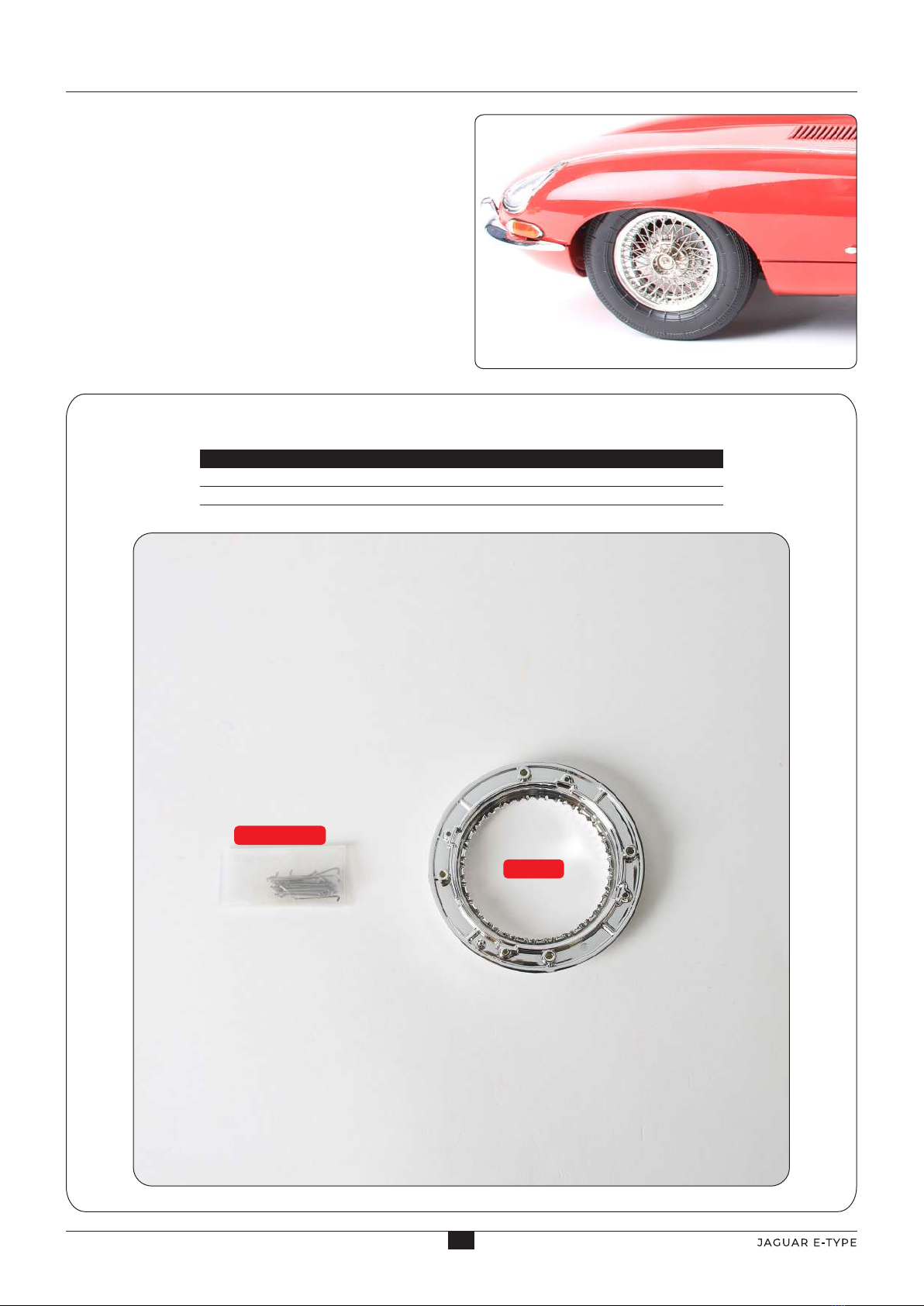

Name

Inner spokes x24

Wheel rim (outer)

STAGE 50 PARTS LIST

There is no assembly in this stage,

unpack the wheel components and

move straight to Stage 51.

Wheel rim

Stage 50: Left Front Wheel

Inner spokes x24

AGORAMODELS JAGUAR E-TYPE

Name

Spoke retainer ring

Wheel centre

Inner spokes x24

Screws type AG02 x5

STAGE 51 PARTS LIST

The process for assembling this wheel

is exactly the same as for your ﬁrst and

second wheel. Don’t forget, the trick is to

adjust the tension on the spokes by

gently pressing and twisting the wheel

centre. Also check you have the spokes

hooked around the wide tooth on the

spoke retainer when instructed.

Wheel centre

Inner spokes x24

Stage 51: Left Front Wheel

AG02 x5

Spoke retainer ring

AGORAMODELS JAGUAR E-TYPE

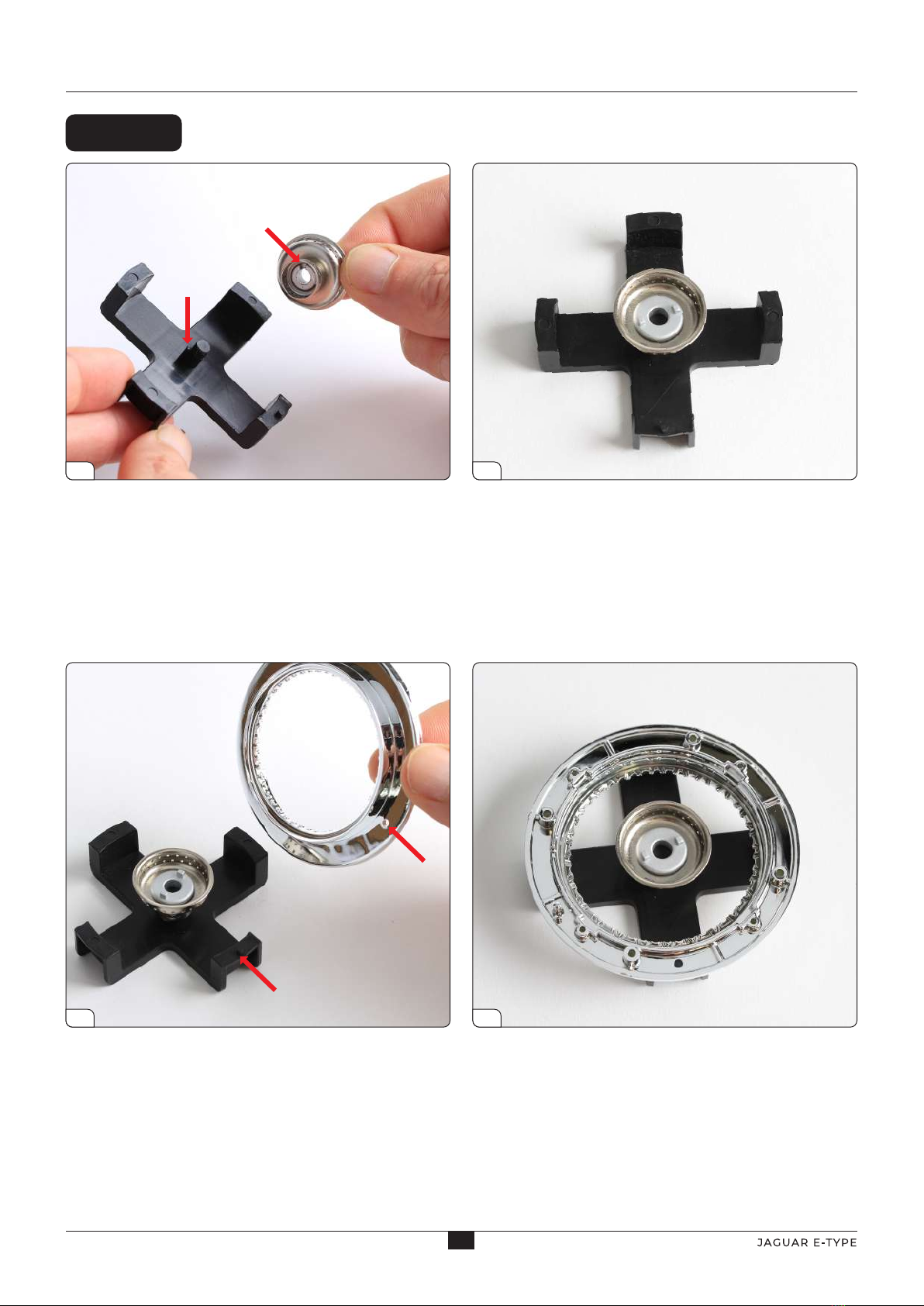

STEP 1

Take the wheel centre and note that there is a small notch that aligns

with a corresponding tab on the jig (arrows). The jig is used here to

assist with building the wheel and will be removed towards the end of

the wheel-build.

Take the wheel rim from Stage 50 and align the hole on the outer

edge with the pin on the jig (arrows).

Fit the wheel centre onto the jig.

Fit the wheel rim onto the jig, pressing ﬁrmly to lock the rim

into position.

Stage 51: Left Front Wheel

AGORAMODELS JAGUAR E-TYPE

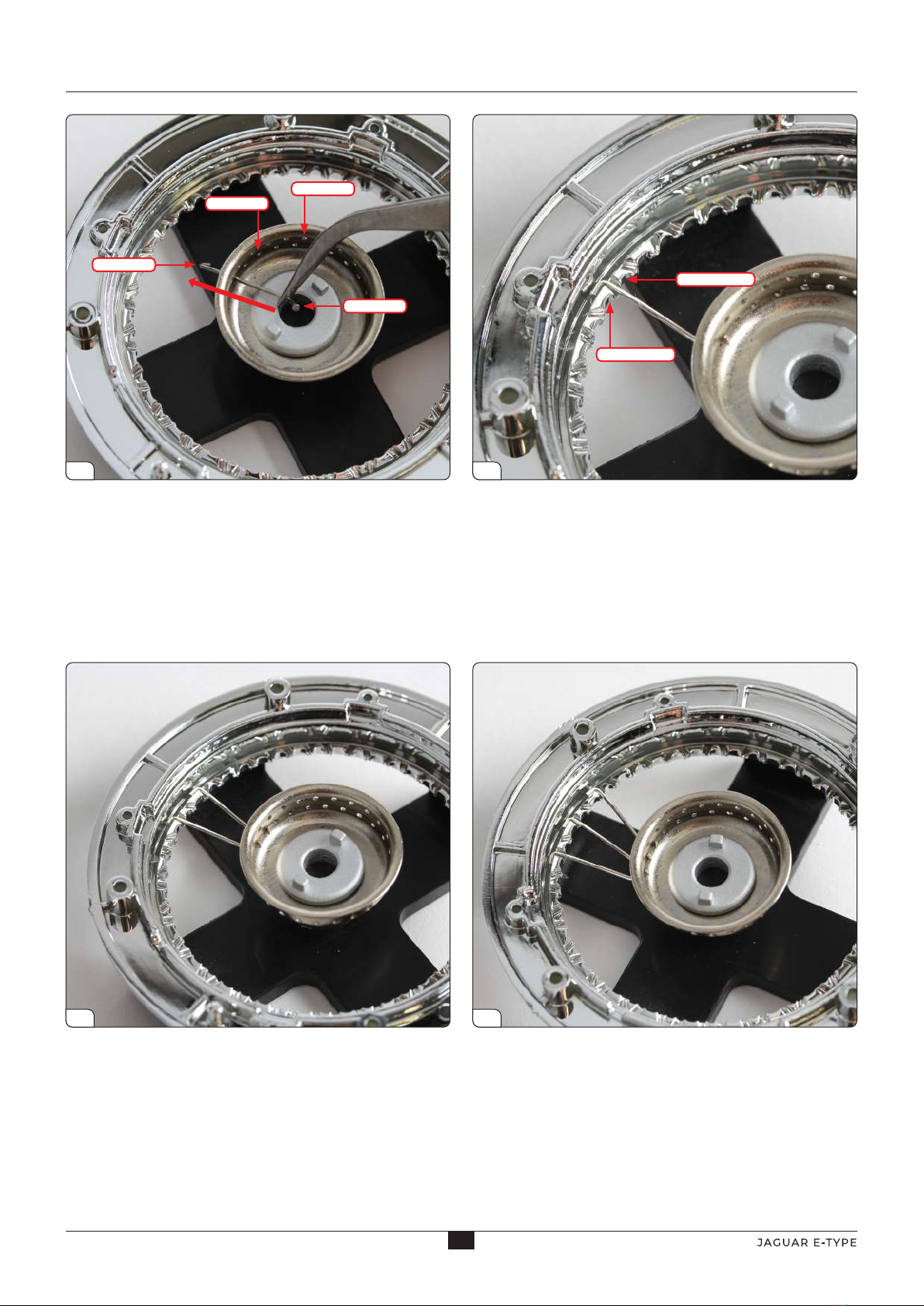

Before you begin, note that the inner edge of the spoke retainer

ring has a series of ‘teeth’, alternating in size (see picture 6). Each

spoke has a right-angled tip, and a ﬂat head on the opposite end.

Use your tweezers to thread the spokes and hook them into place.

Start by threading a spoke, leading with the tip, through a hole in

the innermost row of holes in the wheel centre. (Note: The spokes in

Stages 50 & 51 are the same.)

Then take another spoke and thread it through the next hole in the

innermost row of the wheel centre. Pull the spoke through the hole

and hook the tip around the next ‘wide’ tooth.

Pull the spoke through the hole and hook the tip around the nearest

‘wide’ tooth that gives the spoke a comfortable ﬁt.

NOTE: The key to ﬁtting the spokes correctly is to adjust the tension on

each spoke as you ﬁt it by gently pushing and/or twisting the wheel

centre with your thumb.

Fit the third spoke in the same way, and continue all the way around

the wheel until you have ﬁlled all the holes on the inner row of the

wheel centre. Check that they are hooked around the wide teeth. If

they are not hooked around wide teeth, the spokes will not ﬁt and the

wheel parts will not ﬁt together at the end of the build.

Stage 51: Left Front Wheel

Flat head

Angled tip

Inner row

Wide tooth

Narrow tooth

AGORAMODELS JAGUAR E-TYPE

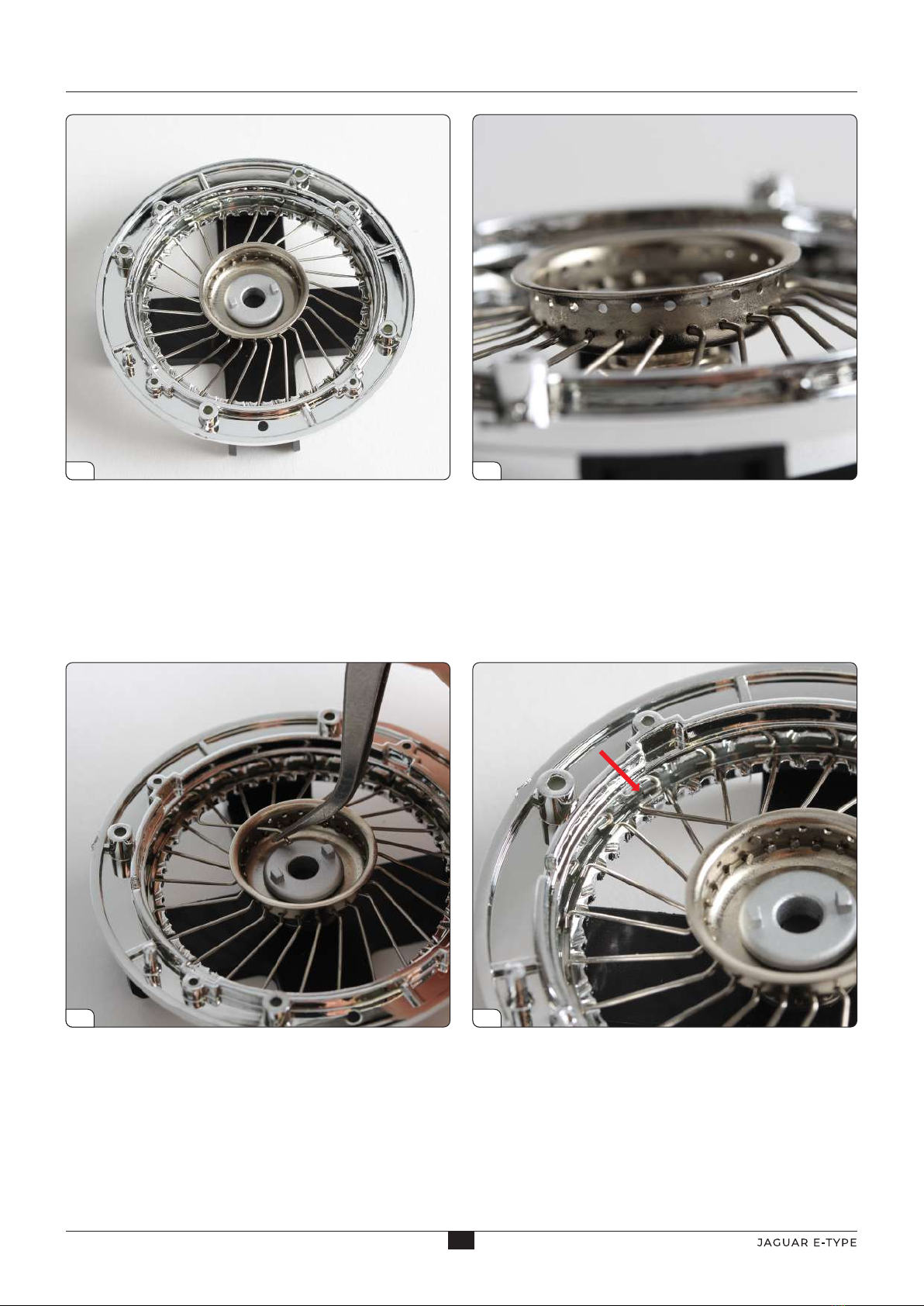

This is how your wheel should look after ﬁtting the ﬁrst row of spokes.

Start in the same way, threading the tip of a spoke through a hole in

the uppermost row.

Check that all the spokes have been ﬁtted to the innermost row of the

wheel centre. Next, you will ﬁt spokes to the uppermost row.

The spoke tips will now face in the opposite direction to those ﬁtted

on the bottom row. Make sure that they are hooked around a ‘wide’

tooth otherwise they cannot be secured in place in a later step.

Stage 51: Left Front Wheel
