Agri-Fab 45-03052 Bedienungsanleitung

OWNERS

MANUAL

Model No.

45-03052

63" FINISH CUT

TRAILMOWER

PRINTED IN U.S.A. FORM NO. 40104 (8/21/07)

CAUTION:

Read Rules for

Safe Operation

and Instructions

Carefully

• Assembly

• Operation

• Maintenance

• Parts

the fastest way to purchase parts

www.speedepart.com

™

IMPORTANT:BATTERYREQUIRED!!ThebatteryisNOTincluded

withthedeckbutmustbepurchasedseparately.A12voltlawntractor

batterywith260/300coldcrankingampsanddimensionsof6-1/8"Hx

7-5/8"Lx5-1/8"Wisrecommendedtooperatethemachine.

2

SAFETY RULES.............................................3-4

SAFETY AND OPERATION DECALS............5-6

PARTS BAG CONTENTS..................................7

ASSEMBLY...................................................8-11

OPERATION ...............................................12-17

CUSTOMER RESPONSIBILITIES..............18-21

STORAGE........................................................22

WIRING DIAGRAM..........................................23

REPAIR PARTS...........................................24-30

PARTS ORDERING ........................ BACK PAGE

TABLE OF CONTENTS

3

4

5

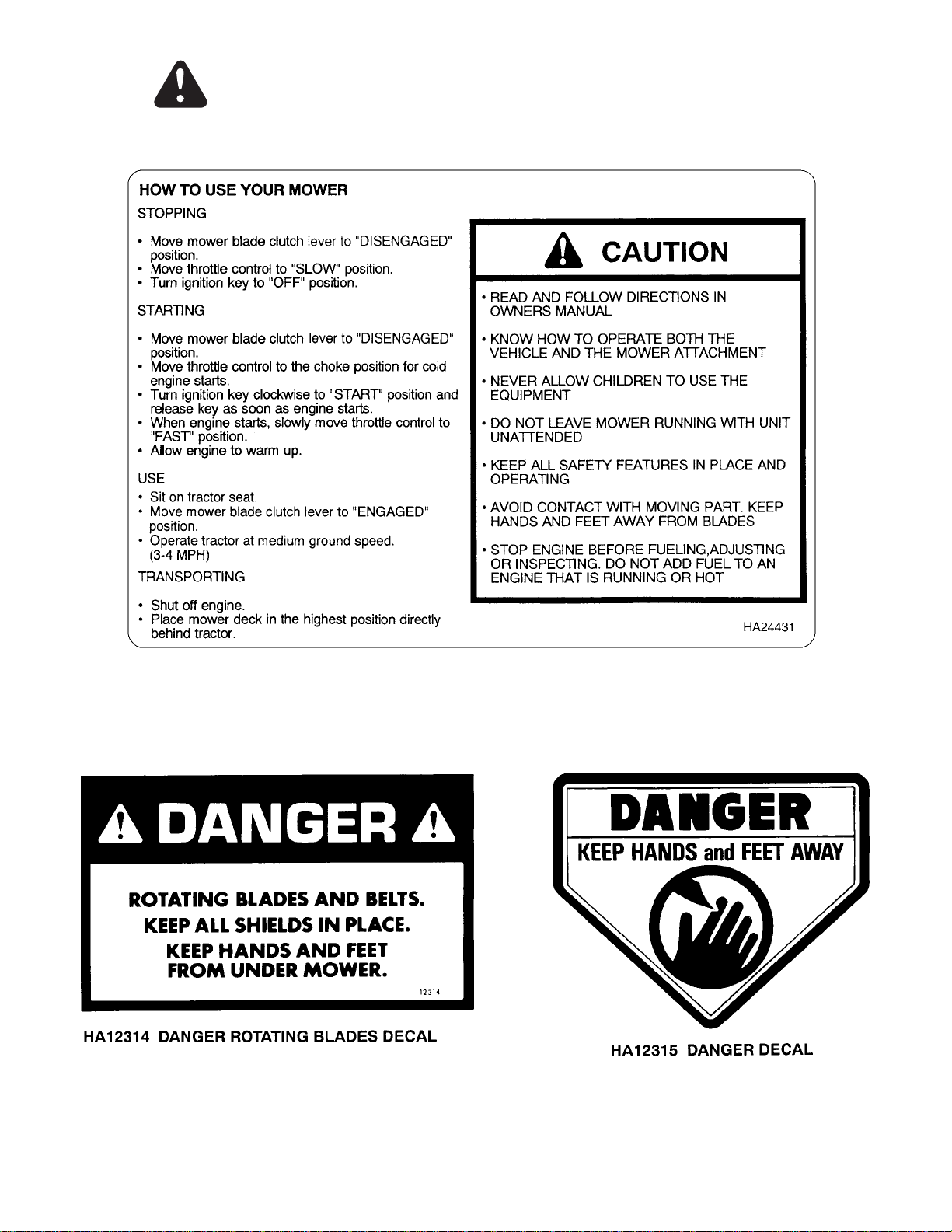

SAFETY AND OPERATIONAL DECALS

Replacedecalimmediatelyifdamaged.Orderbypartnumber.Seebackcover.

6

SAFETY AND OPERATIONAL DECALS

Replacedecalimmediatelyifdamaged.Orderbypartnumber.Seebackcover.

7

KEY QTY. DESCRIPTION

 H 2 "S"Hook

 I 6 CableClip

J 1 Key

 K 1 SwitchCover

 L 1 SwitchNut

M 1 Switch

 N 1 ThrottleControlKnob

KEY QTY. DESCRIPTION

 A 2 Bolt,Hex1/4"x3/4"

 B 2 Screw,PanHead#10-24x1/2"

 C 3 Screw,SelfTapping#10-16x1/2"

 D 2 Nut,HexwithWasher,1/4"

 E 2 Nut,Hex#10-24

 F 2 LockWasher,#10

 G 1 BatteryHoldDownStrap

CONTENTS OF PARTS BAG

SHOWN FULL SIZE

NOT SHOWN FULL SIZE

A CB

D E F

G

H I J

K L M N

8

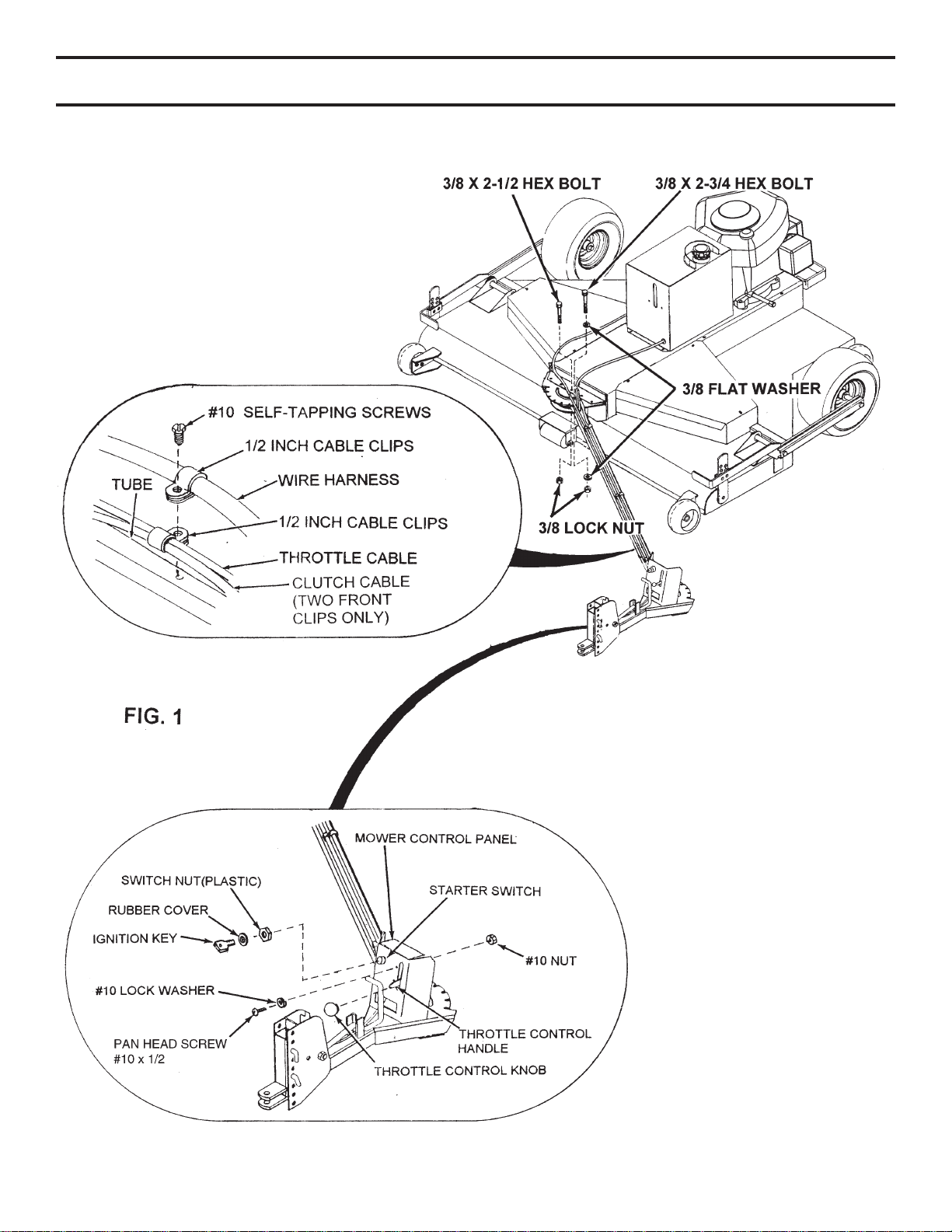

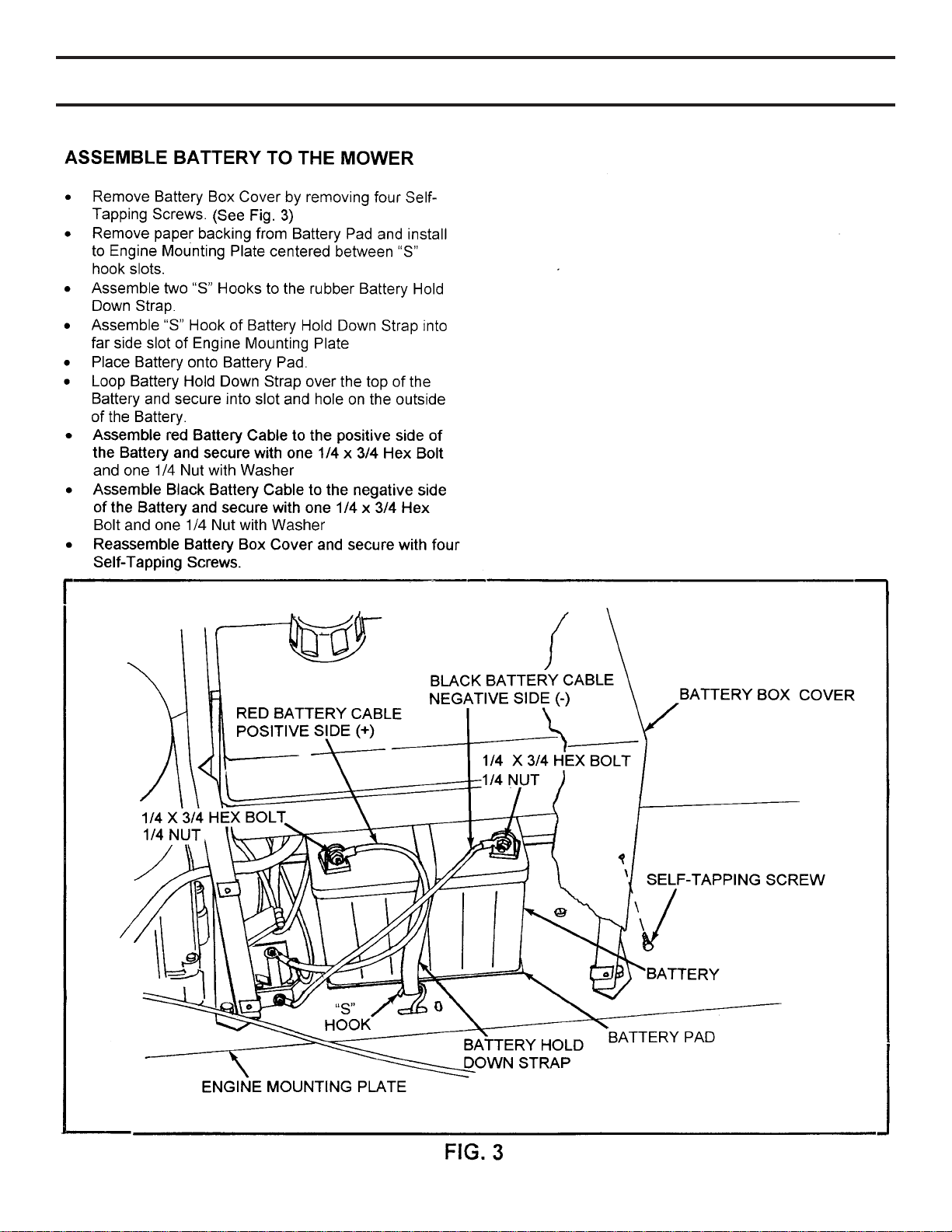

ASSEMBLY

9

ASSEMBLY

10

ASSEMBLY
