Agri-Fab ®

OWNERS

MANUAL

Model No.

45-0355

CAUTION

Read Rules for

Safe Operation

and Instructions

Carefully

3 PT. HITCH

TANG CULTIVATOR

•Safety

• Assembly

• Operation

• Maintenance

• Parts

SpeedEPartthe fastest way topurchase parts www.speedepart.com

FORM NO. 48973

PRINTED IN USA (REV. 4/04)

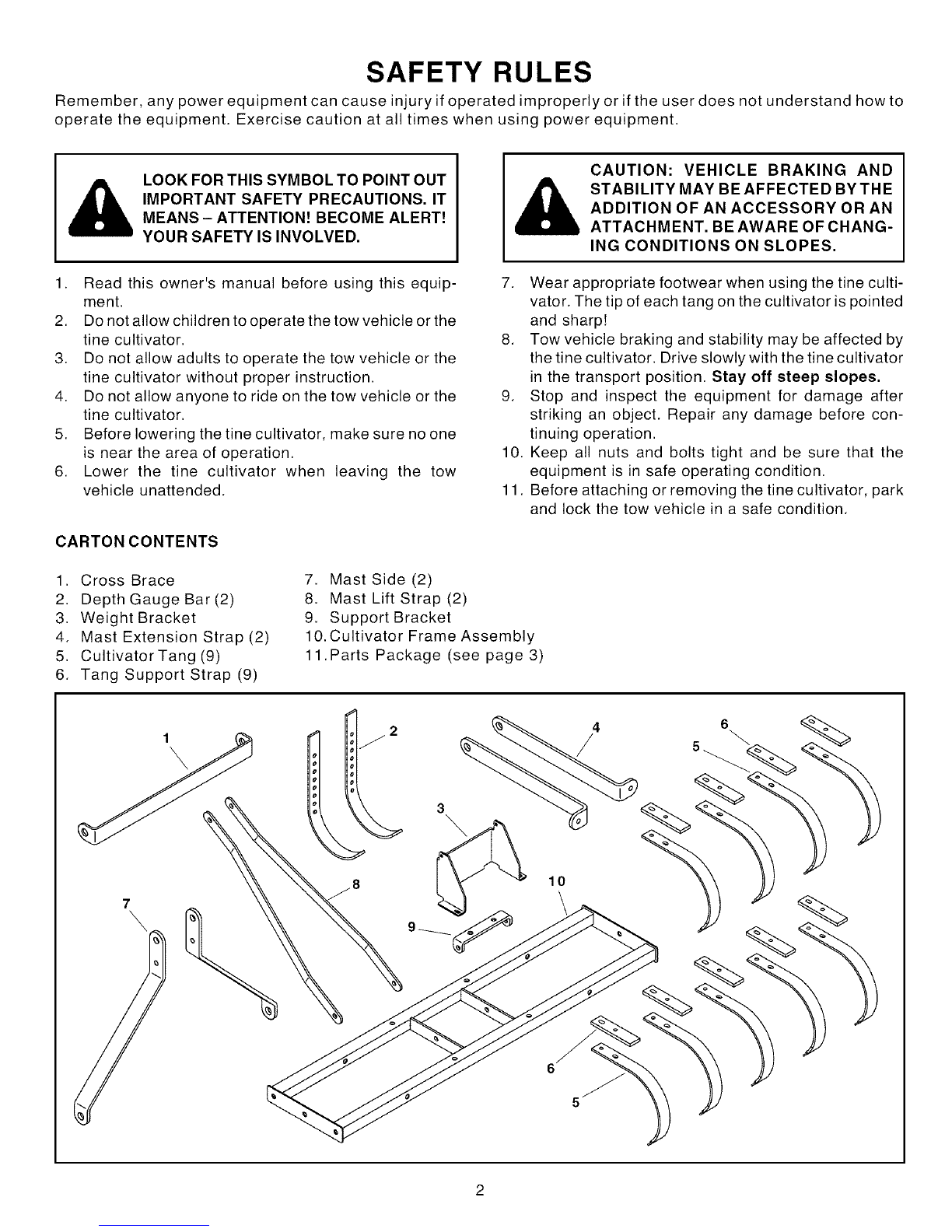

SAFETY RULES

Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to

operate the equipment. Exercise caution at all times when using power equipment.

,_ LOOK FOR THIS SYMBOL TO POINT OUT

IMPORTANT SAFETY PRECAUTIONS. IT

MEANS - ATTENTION! BECOME ALERT!

YOUR SAFETY IS INVOLVED.

CAUTION: VEHICLE BRAKING AND

_STABILITY MAY BE AFFECTED BY TH E

ADDITION OF AN ACCESSORY OR AN

ATTACHMENT. BE AWARE OF CHANG-

ING CONDITIONS ON SLOPES.

1. Read this owner's manual before using this equip-

ment.

2. Do not allow children to operate the tow vehicle or the

tine cultivator.

3. Do not allow adults to operate the tow vehicle or the

tine cultivator without proper instruction.

4. Do not allow anyone to ride on the tow vehicle or the

tine cultivator.

5. Before lowering the tine cultivator, make sure no one

is near the area of operation.

6. Lower the tine cultivator when leaving the tow

vehicle unattended.

CARTONCONTENTS

7. Wear appropriate footwear when using the tine culti-

vator. The tip of each tang on the cultivator is pointed

and sharp!

8. Tow vehicle braking and stability may be affected by

the tine cultivator. Drive slowly with the tine cultivator

in the transport position. Stay off steep slopes.

9. Stop and inspect the equipment for damage after

striking an object. Repair any damage before con-

tinuing operation.

10. Keep all nuts and bolts tight and be sure that the

equipment is in safe operating condition.

11. Before attaching or removing the tine cultivator, park

and lock the tow vehicle in a safe condition.

1. Cross Brace

2. Depth Gauge Bar (2)

3. Weight Bracket

4. Mast Extension Strap (2)

5. CultivatorTang (9)

6. Tang Support Strap (9)

7. Mast Side (2)

8. Mast Lift Strap (2)

9. Support Bracket

10. Cultivator Frame Assembly

11.Parts Package (see page 3)

H\B

I 1

PARTS PACKAGE CONTENTS - PARTS SHOWN ACTUAL SIZE

KEY QTY. DESCRIPTION KEY

A 2 Category 1 Pin H

B 1 Pivot Pin I

C 1 Haircotter Pin, 1/8" J

D 2 Hex Bolt, 3/8" x 2-1/4" Lg. K

E 2 Hex Bolt, 1/2" x 1-1/2" Lg. L

F 2 Hex Bolt, 1/2" x 2-3/4" Lg. M

G 1 Hex Bolt, 1/2" x 3-1/2" Lg. N

QTY.

DESCRIPTION

Hex Bolt, 3/8" x 1" Lg.

Hex Nut, Nylock, 3/8"

U-Bolt, 3/8"

Hex Nut, Nylock, 1/2"

Spacer

Lock Washer, 7/8"

Hex Nut, 7/8"

ASSEMBLY

TOOLS REQUIRED FOR ASSEMBLY

(2) 3/4" Wrenches

(2) 9/1 6" Wrenches

(2) 1-1/8" Wrenches or Adjustable Wrenches

(1) 1-5/16" Wrench or 12" Adjustable Wrench

_CAUTION: THE CULTIVATOR TANGS

HAVE SHARP POINTS. USE CARE

WHEN HANDLING AND ASSEMBLING

THE TANGS. WEAR GLOVES FOR

EXTRA PROTECTION AGAINST CUTS.

Remove all loose parts and the hardware package

from the shipping carton. Lay out and identify each

part and the hardware as shown on pages 2 and 3. Be

sure the carton is empty before it is discarded.

1,Attach nine cultivator tangs and tang support straps

to the cultivator frame assembly using one 3/8" U-

bolt and two 3/8" Nylock hex nuts for each tang. Be

sure to install a tang support strap between each

tang and the frame assembly. See figure 1.

For even spacing, install five tangs on the rear of

the frame and four tangs on the front of the frame.

For the rear tangs, put a tang at each end of the

frame assembly and a tang in the center. Then put

the other two rear tangs midway between the

middle and end tangs as shown in figure 1. When

attaching the front tangs, center them between

the rear tangs as shown. Once the tangs are

positioned, tighten all hex nuts.

CULTIVATOR

TANG

318"NYLOCK

HEX NUT 6

TANG

SUPPORT

STRAP I

FRONT

(FOUR TANGS)

CULTIVATOR

FRAME ASSEMBLY

BACK

(FIVE TANGS)

FIGURE 1

2, Turn the frame assembly upright. Attach two depth

gauge bars to the frame using a 3/8" U-bolt and

two 3/8" Nylock hex nuts for each bar. Put each

depth gauge bar next to each outside tang on the

rear of the frame as shown in figure 2. Use the

holes in each bar that will give the desired working

depth, if known at this time. Use matching holes in

both depth gauge bars to keep the cultivator level.

NOTE: For effective depth control a depth gauge bar

must not be located directly behind a front tang.

DEPTH

_GAUGE

BAR

WORKING

DEPTH

3/8"

U-BOLT I

\ i

3/8" NYLOCK

_ _] HEX NUT

GAUGE BAR

FIGURE 2

,Attach two mast extension straps to the front of

the frame using two 1/2" x 2-3/4" hex bolts and two

1/2" Nylock hex nuts. Point the bent end of each

strap toward the outside of the frame. Do not

tighten yet. See figure 3.

MAST EXTENSION

STRAP (RIGHT

SIDE)

FIGURE 3

4. Attach the cross brace and the two mast sides to

the ends of the mast extension straps. The cross

brace is between the extension straps while the

mast sides are on the outside. The cross brace

and mast sides are connected to the extension

straps using two category 1 pins, two 7/8" lock

washers, and two 7/8" hex nuts. Do not tighten

yet. See figure 4.

7/8" LOCK WASHER

7/8"HUTHEX\

CROSS STRAP

BRACE

CATEGORY

1PIN MAST

SIDE

6. Install the pivot pin through the upper hole at the

end of the mast sides. Secure the pivot pin with a

1/8" hair cotter pin. See figure 6.

PIVOT PIN

FIGURE 6

FIGURE4

5. Arrange the mast lift straps as shown in figure 5.

Place the straps and the spacer between the mast

sides, fastening them to the lower hole in the mast

sides using a 1/2" x 3-1/2" hex bolt and 1/2" Nylock

hex nut. Do not tighten yet.

I/2"NYLOCK

HEX NUT

MAST LIFT

STRAP

FIGURE5

7. Attach the lower end of each mast lift strap to the

outside of the welded frame braces and attach the

support bracket to the inside of the frame braces.

Use two 1/2" x 1-1/2" hex bolts and two 1/2"

Nylock hex nuts. Do not tighten yet. See figure 7.

SUPPORT

BRACKET

1/2" NYLOCK

HEX NUT_

MAST LIFT

STRAP

112" x 1-112"

j,_ HEX BOLT

FRAME

BRACES

FIGURE 7

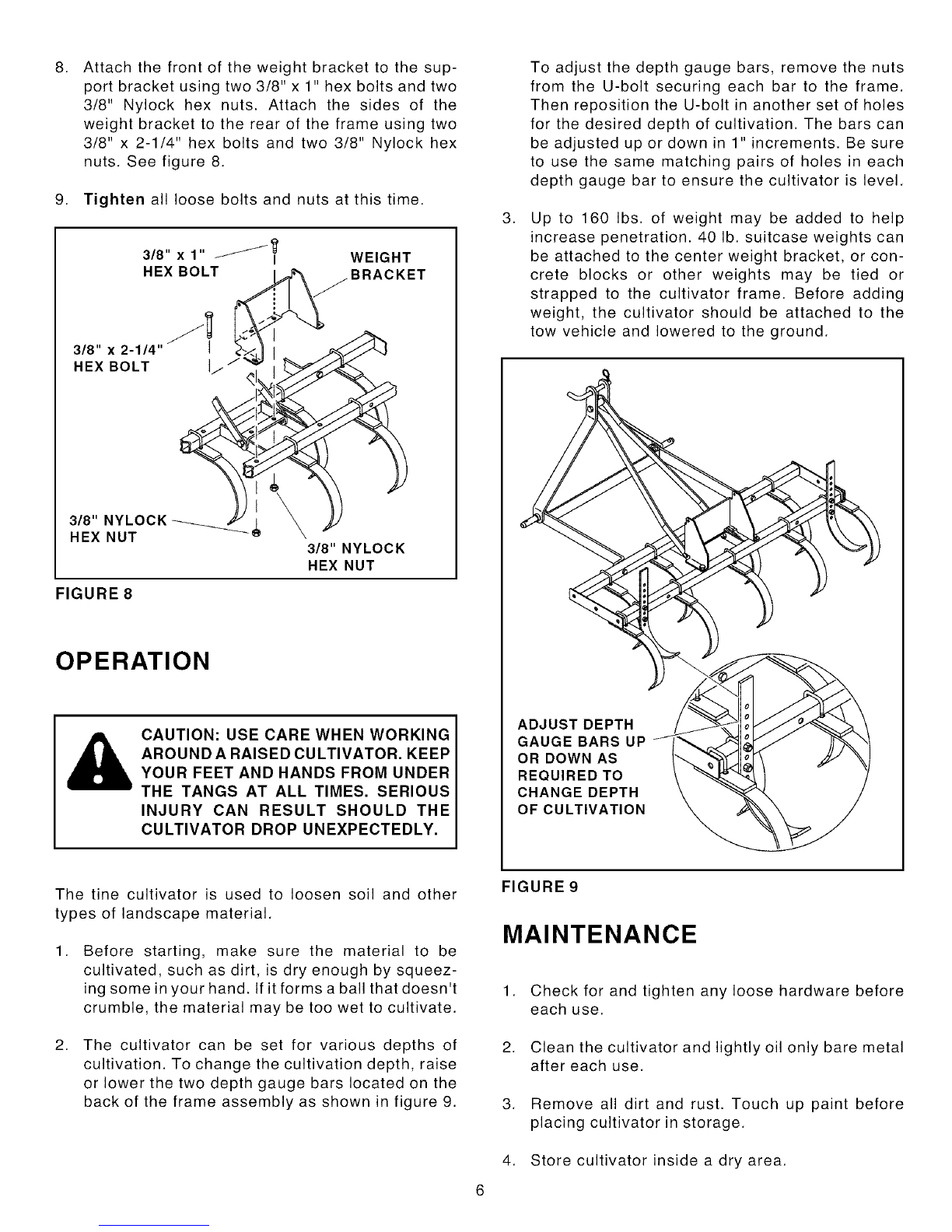

,Attach the front of the weight bracket to the sup-

port bracket using two 3/8" x 1" hex bolts and two

3/8" Nylock hex nuts. Attach the sides of the

weight bracket to the rear of the frame using two

3/8" x 2-1/4" hex bolts and two 3/8" Nylock hex

nuts. See figure 8.

9. Tighten all loose bolts and nuts at this time.

318" x 1" _'_

HEX BOLT WEIGHT

318" x 2-114"

HEX BOLT Ij

3/8" NYLOCK

HEX NUT 3/8" NYLOCK

HEX NUT

FIGURE 8

OPERATION

&CAUTION: USE CARE WHEN WORKING

AROUND A RAISED CULTIVATOR. KEEP

YOUR FEET AND HANDS FROM UNDER

THE TANGS AT ALL TIMES. SERIOUS

INJURY CAN RESULT SHOULD THE

CULTIVATOR DROP UNEXPECTEDLY.

To adjust the depth gauge bars, remove the nuts

from the U-bolt securing each bar to the frame.

Then reposition the U-bolt in another set of holes

for the desired depth of cultivation. The bars can

be adjusted up or down in 1" increments. Be sure

to use the same matching pairs of holes in each

depth gauge bar to ensure the cultivator is level.

Up to 160 Ibs. of weight may be added to help

increase penetration. 40 lb. suitcase weights can

be attached to the center weight bracket, or con-

crete blocks or other weights may be tied or

strapped to the cultivator frame. Before adding

weight, the cultivator should be attached to the

tow vehicle and lowered to the ground.

ADJUST DEPTH

GAUGE BARS UP

OR DOWN AS

REQUIRED TO

CHANGE DEPTH

OF CULTIVATION

The tine cultivator is used to loosen soil and other

types of landscape material.

1,Before starting, make sure the material to be

cultivated, such as dirt, is dry enough by squeez-

ing some in your hand. If it forms a ball that doesn't

crumble, the material may be too wet to cultivate.

2, The cultivator can be set for various depths of

cultivation. To change the cultivation depth, raise

or lower the two depth gauge bars located on the

back of the frame assembly as shown in figure 9.

FIGURE 9

MAINTENANCE

1. Check for and tighten any loose hardware before

each use.

2. Clean the cultivator and lightly oil only bare metal

after each use.

3. Remove all dirt and rust. Touch up paint before

placing cultivator in storage.

4. Store cultivator inside a dry area.

REPAIR PARTS FOR MODEL NO. 45-0355

3 PT. HITCH TANG CULTIVATOR

23 2

REF. PART QTY.

NO. NO.

48982

48970

25154

25167

25180

43343

712-3083

25158

48979

25169

46526

48978

DESCRIPTION REF. PART

NO. NO. QTY. DESCRIPTION

Lock Washer, 7/8"

Hex Nut, 7/8"

Cross Brace

Spacer, Mast Lift Strap

Mast Lift Strap

Haircotter Pin, 1/8" x 2-3/8"

Hex Nut, Nylock, 1/2"

Mast Side

Category 1 Pin

Mast Extension Strap

Hex Bolt, 1/2" x 3-1/2" Lg.

Pivot Pin, 3-3/4" Lg.

13 HA180132

14 43001

15 25191

16 25192

17 43020

18 HA21362

19 43510

20 64772

21 25170

22 43022

23 46853

24 24238

48973

2 Hex Bolt, 3/8" x 2-1/4" Lg.

2 Hex Bolt, 3/8" x 1" Lg.

1 Weight Bracket

1 Support Bracket

2 Hex Bolt, 1/2" x 1-1/2" Lg.

26 Hex Nut, Nylock, 3/8"

2 Hex Bolt, 1/2" x 2-3/4" Lg.

1 Cultivator Frame Assembly

9 Tang Support Strap

9 Cultivator Tang

11 U-Bolt, 3/8"

2 Depth Gauge Bar

1 Owners Manual

Spee#EParttheas,es,topurchasewww.speedepart.com

SpeedEPart_ _ _ to._._e_www.speedepart.com

REPAIR PARTS

Agri-Fab, Inc.

303 West Raymond

Sullivan, IL. 61951

217-728-8388

www.agri-fab.com

Inhaltsverzeichnis

Andere Agri-Fab Pinne Handbücher

Agri-Fab

Agri-Fab 45-0299 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0356 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-04381 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0294 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-0457 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-0343 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-03082 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03081 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0298 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0308 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02661 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0355-131 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0355-131 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-02941 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0381 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0458 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-0406 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-03085 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0356 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0346 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-03084 Bedienungsanleitung

Agri-Fab

Agri-Fab 45-0266 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab Spike Aerator 45-0369 Gebrauchs- und Pflegehandbuch

Agri-Fab

Agri-Fab 45-0383 Gebrauchs- und Pflegehandbuch

Beliebte Pinne Handbücher anderer Marken

MTD

MTD 410R Bedienungsanleitung

Craftsman

Craftsman 247.29931 Bedienungsanleitung

MTD

MTD FRT Series Bedienungsanleitung

Craftsman

Craftsman 917.298353 Bedienungsanleitung

Troy-Bilt

Troy-Bilt Colt FT Bedienungsanleitung

Ryobi

Ryobi 510r Bedienungsanleitung

MTD

MTD OHV Series Bedienungsanleitung

YAT

YAT YT5601-01 Wartungshandbuch

Craftsman

Craftsman 917.296010 Bedienungsanleitung

Troy-Bilt

Troy-Bilt OEM-290-260 Bedienungsanleitung

Scheppach

Scheppach MTP560 Montageanleitung

GARDEN WAY

GARDEN WAY 12194 Bedienungsanleitung

Classen

Classen STAND-AER SA-25 Montage- und Wartungsanleitung

Craftsman

Craftsman 850 Series Bedienungsanleitung

DR PILOT 2 Kurzanleitung

Altrad

Altrad ATIKA BH 1400 N Leitfaden

WIL-RICH

WIL-RICH 2500 Bedienungsanleitung

Viking

Viking HB 685 Bedienungsanleitung
