The JKW-IP software has the following operations:
1. Answering a call from the door station, Door release
and camera controls
2. Option Output from JKW-IP hardware adaptor
3. Computer to JK-1MD/1MED Master communication
4. Door station monitoring
5. Sensor Detection from Connected Equipment
6. Recording and Playback of A/V from a door station.
6.1 Answering a call from the door station
When the call button on a JK door station is pressed, the
following occurs: (See Figure 1 on page 3 “JKW-IP Software
window”).
a. The call tone sounds, unless disabled in [PC Settings] window
(See Figure 12 on page 7 “PC Settings window”).
b. The image from the door station is displayed on the JKW-IP
application main screen (unless another conversation is taking
place). The image will display until it is answered and switched [OFF]
or it will time out after about 45 seconds.
c. The status icon in the Status display will change to a red square and
a message will read “1CALL DOOR” the number indicating the
order of calls if multiple calls are placed within a short time.
(See Figure 9 top right “Status display messages”)
d. A message will appear in the Message display will read:
<Adaptor Name> CALLING FROM DOOR <Door station No.>
(See Figure 10 to the right “Message display list”)
When this occurs, the following operator interactions are available:
o Talk - The master station or any computer can answer the door by
clicking the [Talk] button, the computer operator that does so gets can
speak to the guest hands-free. Holding down [Talk] when answering will
force it into a “push to talk and release to listen” mode. The status light
will change to green, the status will read “COMMUNICATION” but other
operators will see it return to Standby and the video cease, indicating it
has been answered or cancelled.
o Display Adjustments - The Zoom/Wide, Adjust, and Pan and Tilt arrows
become available for use while the image is displayed.
o Manual recording is available, (See page 7 section 6.6 for details).
o Door Release - To release the door, click the (Key) button.
NOTE: If the Encryption Key has not been set or if the door release
button does not turn red when you press it, follow Step 5 on page 5 to
download and match a new Encryption Key.
o Off - When the conversation is complete, click [OFF] to return the door
station back to Standby so it is ready for the next guest.
6.2 Option Output from the JKW-IP adaptor
At any time, select an adaptor from the Adaptor display and press the
[OPTION] button to trigger the option output.
NOTE: If the Encryption Key has not been set or if the [OPTION]
button does not turn green when you press it, follow Step 5 on page 5
to download and match a new Encryption Key.
6OPERATIONS

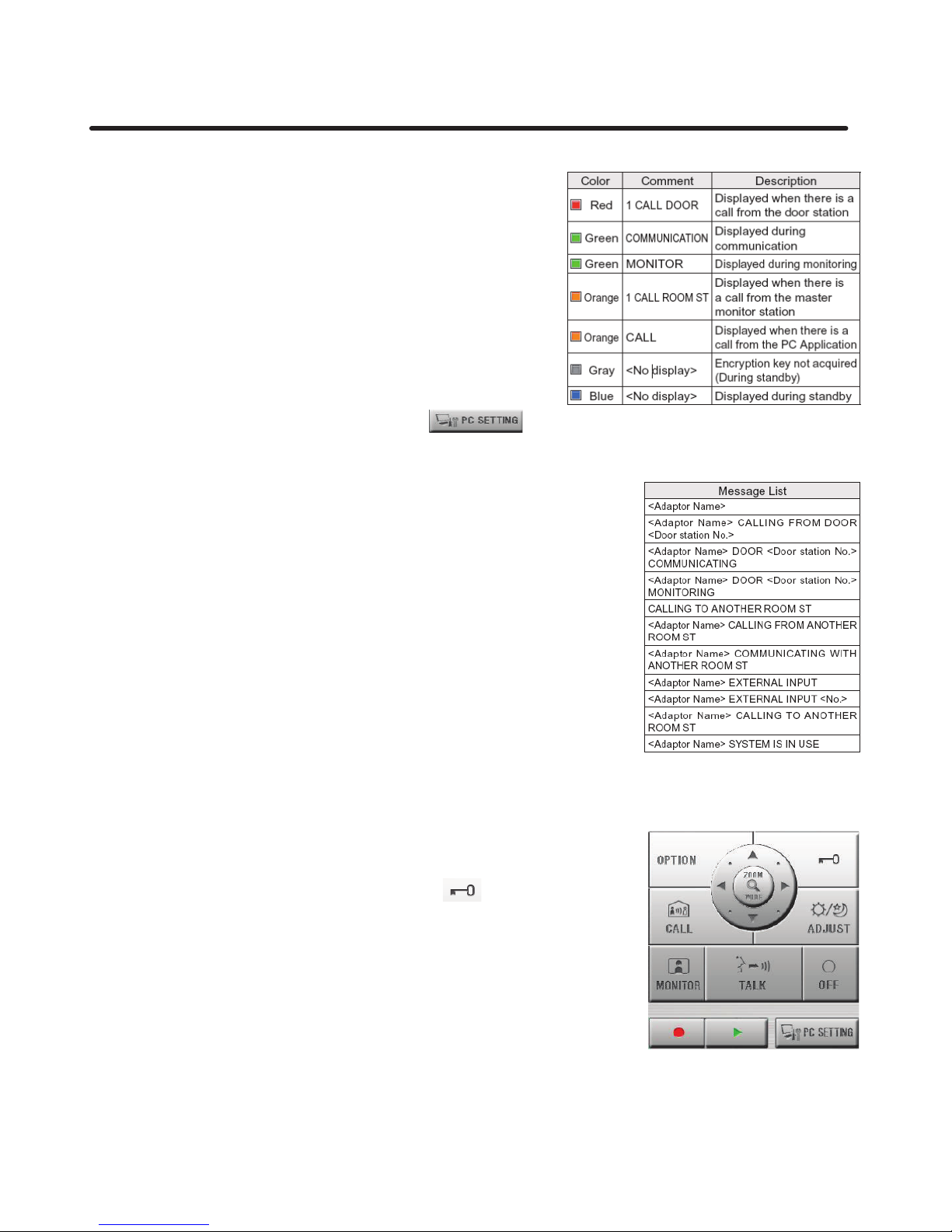

Figure 9: Status display messages
Figure 10: Message display list
Figure 11: User Controls
