air choice BL-FS2-D Bedienungsanleitung
TOWER FAN MANUAL
MODEL NO.：BL-FS2-D
Thank you for choosing Air choice Tower Fan!
This user manual will provide you with valuable information necessary for the
proper care and maintenance of your new product. Please take a few
moments to thoroughly read it and start enjoying your Cool Summer!
Always here to help you
For any questions or help, please email us: Support@airchoiceproducts.com
SAFETY PRECAUTIONS
1. Before using this product, make sure the appliance and the power cord is not
damaged. If you find anything damaged, please contact the customer service via
Support@airchoiceproducts.com for authorized technical support.
2. Do not insert or stuck any item in the vents of the fan in case of any potential
damage to the product that might cause electrical shock or fire.
3. Do not cover the product while it is working as it might cause overheating and
motor damage.
4. The product must be unplugged when you are going to move, assemble,
disassemble and do cleaning.
5. Babies, elder people, and Patients should not be exposed directly to the fan for a
long time.
6. This fan has to work with the voltage and frequency indicated in the rating label.
7. If your hands are wet, do not pull out the plug from the electrical outlet.
8. Children should be supervised by guardians to ensure their safety when the fan is
working.
9. Do not use the product in or around water as it might cause electric shock or fire.
10. Do not pull the plug while the power is on. Make sure the plug is fully inserted
into the electrical outlet before use.
11. Do not place the product under sunlight for a long time.
12. Children beyond eight and the disabled should operate under supervision and
instruction in aware of the risk involved. Children shall not play with the appliance.
Cleaning and maintenance shall not be done by children without supervision.
13.If the supply cord is damaged, it must be replaced by the manufacturer, service
agent or qualified supplier in order to avoid accidents.
WARNING!
After assembly, it is strictly forbidden to remove the guards during use or cleaning.
Structure chart
Technical parameters
Installation instructions
1. Open the package and place the product on a flat surface. Check whether
the goods in the box are in line with the packing list.
2. Assemble two bottom components correctly into a disk as shown below.
Screw two sides of the disk with four screws.
Model
Voltage
Power
Class
remark
BL-FS2-D
120V
50W
Ⅱ
Electronic
3. Pass the power cord through the bottom panel.
4. -Fix the main body of the product on the base with four screws at the
position as shown below.

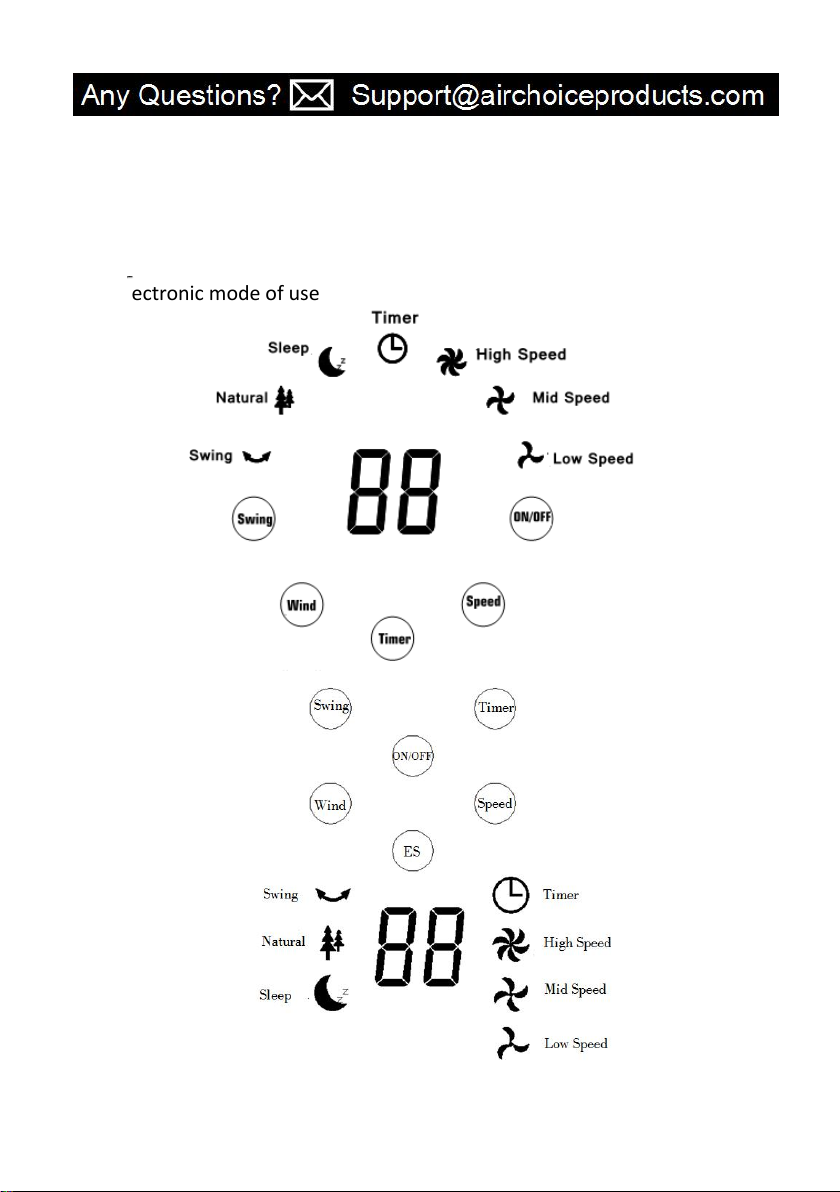

a. Plug it in. The buzzer will make a beep and the digital screen displays the
ambient temperature. The product is standby.
b. ON/OFF : Turn the fan on/off.
c. Speed: Press this button to choose an appropriate wind speed from low,
medium to high.
d. Wind: You can choose a blow mode from these modes:
Sleeping mode: The weakest mode and the wind will come inconsistently.
Nature mode: Stronger than sleeping mode. The fan will work with a circular
‘blow and rest’ in this mode.
Normal: The fan will blow wind consecutively at the power you chose.
e. Timer: Turn the fan off in 0-12 hours by your setting.
f. Swing: The fan will oscillate when it blows wind.
g. Remote control: Please take out the diaphragm before use.
Smart Time Blanking Function
Time blanking means the light will black out in 3 minutes after the last
operation, but the fans will still keep working.
Attention
1. Make sure that the product is disconnected to the power supply before
removing the protective case.
2. Keep it away from fire.
3. It is forbidden to use in dusty places.
4. The product cannot work in an extremely high or low temperature
environment.
5. Do not insert wires and any other external objects into any pore of the
product as it might cause electric shock or damage to the product.
6. It is forbidden to put the product in water or spray water to the fan.
7. If any abnormality occurs during the use of this product, please
immediately turn it off, remove the power cord and contact us via Email:
Support@airchoiceproducts.com.
Cleaning, maintenance and storage
1. Clean the shell
Unplug the power cord and gently wipe with a cloth.
Do not use alcohol, gasoline, banana water and other solvent detergent.
2. Product storage
Clean the product and store it in a carton. Keep it in a cool and dry place.
Keep the fan away from water.
3. To clean, unplug firstly, and wipe with a moist cloth then with a dry cloth.
The fan does not require any lubrication and has no removable elements
except the bottom disc. You do not have to do any maintenance.
When in use, do not place the cord across water or damp areas. When not in
use, store the fan upright on an indoor stable surface in dry conditions. Coil
the cord and place it beside the fan.
The packing list
Name
Number
Baseboard
Mounting screw
Manual
Remote
BL-FS2-D
1
2 set
8pcs
1pcs
1pcs
WARRANTY
AIR CHOICE warrants this product against defects in materials and/or
workmanship under normal use for a period of ONE (1) YEAR from the date of
purchase by the original purchaser (“Warranty Period”). If a defect arises and a
valid claim is received within the Warranty Period, at its option, AIR CHOICE will
either 1) repair the defect at no charge, using new or refurbished replacement
parts, or 2) replace the product with a new product that is at least functionally
equivalent to the original product, or provide a store credit in the amount of the
purchase price of the original product. A replacement product or part, including
a user-installable part installed in accordance with instructions provided by AIR
CHOICE, assumes the remaining warranty of the original product. When a
product or part is exchanged, any replacement item becomes your property and
the replaced item becomes AIR CHOICE’s property. When a store credit is given,
the original product must be returned to AIR CHOICE and becomes AIR CHOICE’s
property. To obtain warranty service, e-mail AIR CHOICE Limited Warranty
Service at Support@airchoiceproducts.com. Please be prepared to describe the
product that needs service and the nature of the problem.
This warranty does not apply to:
a) damage caused by failure to follow instructions relating to product’use or
the installation of components; b) damage caused by accident, abuse, misuse,
fire, floods, earthquake or other external causes; c) damage caused by service
performed by anyone who is not a representative of AIR CHOICE; d) accessories
used in conjunction with a covered product; e) a product or part that has been
modified to alter functionality or capability; f) items intended to be periodically
replaced by the purchaser during the normal life of the product including,
without limitation, batteries or light bulbs; g) any product sold“as is”including,
without limitation, floor demonstration models and refurbished items; or h) a
product that is used commercially or for a commercial purpose
CONTACT US
Thank you for choosing AIR CHOICE product.
For any customer product questions or honor your warranty, please
write to Support@airchoiceproducts.com. Our usual response time is
within 12 hours!
