Quick Setup Guide
1
Dual-Band MESH AP/Bridge
WH-9000MESH
English ●●●
Deutsch ●●●
Polski ●●●
Česky ●●●
Русский ●●●
Português ●●●
Españoll●●●
日本語 ●●●
1
1
Dual-Band MESH AP/Bridge
W
1. Introduction
1.1 Preface
English
1.3.1 Hardware Introduction
1.3 System Overview
Warning: Using a power supply with different voltage rating will damage
this product.
1. Access Point
2. 2 attachable 5dBi omni-directional antennas
3. 1 Power injector with power cord
4. 30 m CAT 5 cable with waterproof RJ45 connector
5. 1 Ground cable
6. 1 Mounting kit set
7. 1.5m low loss antenna cable
8. Documentation as PDF files on CD-ROM
1.2 Package Contents
The WH-9000MESH product is ruggedized and wall-mountable IEEE
802.11 Wireless Access Point (AP) and Bridge device. The AP and Bridge
mode can work simultaneousl
y
b
y
dual radio interfaces.
1
2
7
3
4
5
6
1. AP Antenna (TX+RX)
2. AP Antenna (RX)
3. Bridge Antenna
4. Reset Button
5. Console Port
6. WAN / LAN Port
7. Ground Pin
English
H
-
9000MES
H
2
2
Dual-Band MESH AP/Bridge
W
1.3.2 LED indicator
English
1.3.3 Hardware Installation
To Power Injector
(Cat5 Cable)
To PC
(Initial Configuration only)
English
H
-
9000MES
H
3
3
Dual-Band MESH AP/Bridge
W

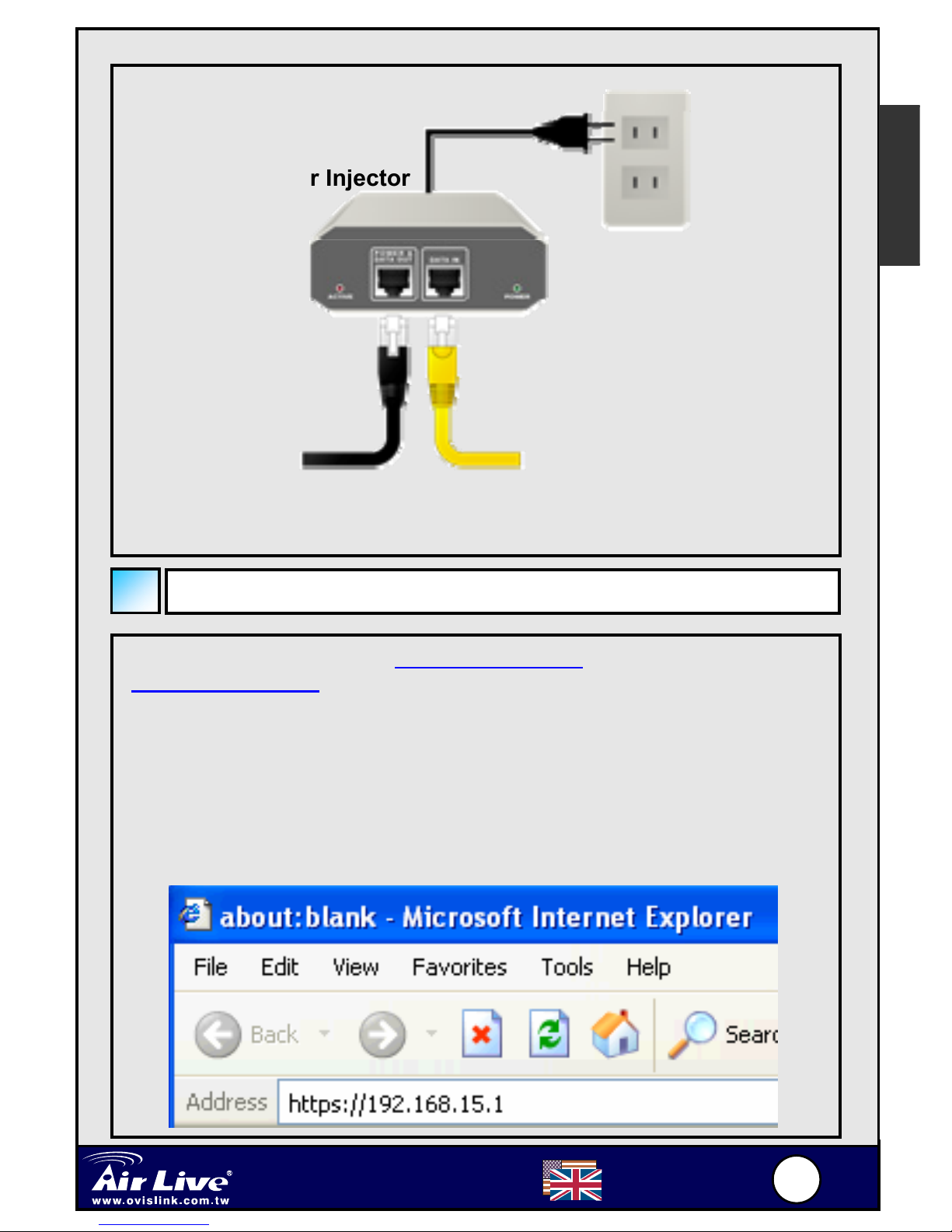

2. Enter Configuration Screen
To Wired LAN
To WAN Port
(Cat5 Cable)
P
ower
I
n
j
ec
t
or
English
The default IP of LAN port is https://192.168.15.1 (AP mode) and
https://192.168.16.1 (Gateway mode).
You can also enter configuration screen from WAN port,
the IP address of the WH-9000MESH from the WAN port or wireless
network is "192.168.254.254". Please make sure your PC is set to the
same subnet as the WH-9000MESH.
(Note1: Please type “https” not “http”.)
(Note2: POE line must connect to the WAN port for power supply.)
English
H
-
9000MES
H
4
4
Dual-Band MESH AP/Bridge
W
You will be asked for your
username and password.
Enter the default username
“airlive”, and the default
password “airlive” to give full
access for setup configuration.
(This password is case-sensitive)
English
3. System Configuration
3.1 WAN Configuration
zIP address -a list of IP
addresses available on the
organization's LAN there
are available to be used for
assignment to the AP(s)
zSubnet mask
zDNS IP address
Click the entry on the left hand navigation panel for System Configuration –
WAN. This directs you to the System Configuration – WAN page.
You can choose “Using DHCP to get an IP address”. By this way, the
9000MESH will get an IP address from DHCP server.
If your network environment is without DHCP function, then you need to
use static IP for WAN port. Then, the 9000MESH network administrator
may need the following information:
English
H
-
9000MES
H
5
5
Dual-Band MESH AP/Bridge
W
3.2 LAN Configuration
Click the entry on the left hand navigation panel for System
Configuration – LAN. This directs you to the System Configuration –
LAN page.
This set up the default numbers for the four octets for a possible
private LAN function for the AP. It also allows changing the default
numbers for the LAN Subnet Mask. The Local LAN port provides
local access for configuration. It is not advisable to change the
private LAN address while doing the initial setup as you are
connected to that LAN. If you do change DHCP IP address as new
one, you need use the IP you key in to enter configure screen again
after clicking Apply button.
English

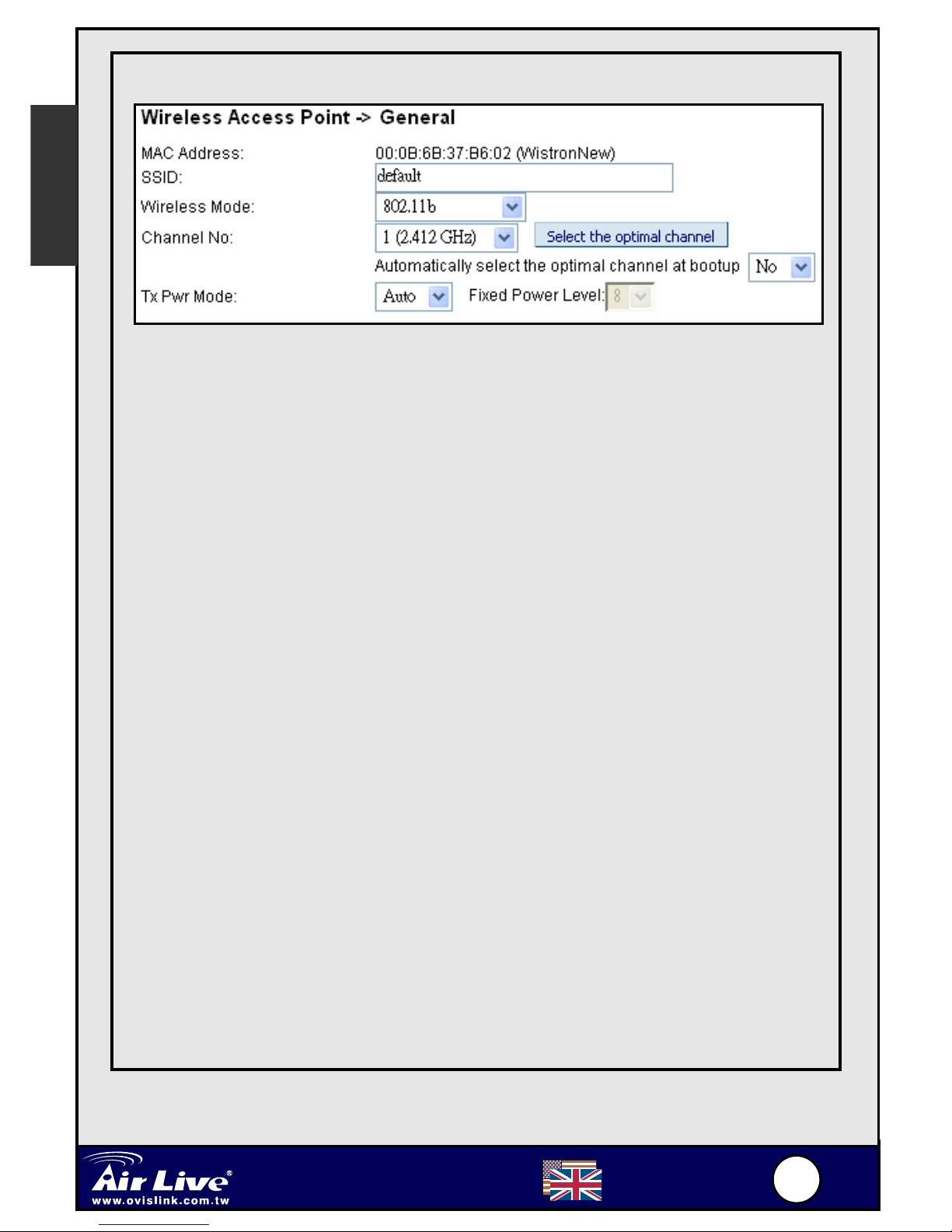

4. Wireless Access Point Configuration
Click the entry on the left hand navigation panel for Wireless
Access Point – General. This directs you to the Wireless Access
Point – General page.
English
H
-
9000MES
H
6
6
Dual-Band MESH AP/Bridge
W
MAC address
The MAC address list here is AP’s wireless interface
SSID
If you will be using an SSID for a wireless LAN, enter it here and in
the setup of each wireless client.
Wireless Mode
The wireless Mode menu allows you to specify whether you want AP
to operate solely in the 802.11a, 802.11b, and 802.11g or in a
combination of 802.11b/g.
Channel Number
The channel number is a means of assigning frequencies to a series
of access points. If you are using the WH-9000MESH as both an AP
and bridge, the channel number set for the AP and the one for
bridge should be sufficiently different to avoid interference. Before
you setting the channel, you had better to use the optimal channel
function to detect the environment’s radio signal and choose the
best one for using.
The AirLive WH-9000MESH product is ruggedized and wall-mountable
IEEE 802.11 Wireless Access Point (AP) and Bridge device.
For more setting and applications please refer to user’s manual.
