AirLive BT-120ADS Bedienungsanleitung

Bluetooth Combo Don

BT-120ADS

QuickSetupGuide

English ●●●

Русский ●●●

Português ●●●

Deutsch ●●●

日本語 ●●●

한국어 ●●●

English

Bluetooth Combo Dongle

120AD

Important Notices

If you use the BT-120ADS only for A2DP (Stereo) Bluetooth, you don’t

need this software because the BT-120ADS is automatically to become

the default sound device without any software required.

This Bluesoleil software is intended to support Bluetooth functions beyond

just A2DP (Stereo) application. Please refer to IVT’s website for detailed

User’s Guide and any support issues at

http://www.ivtcorporation.com .

Package contents

English

Bluetooth Combo Dongle

120AD

Run Bluesoleil for Skype

Install Bluesoleil software on Windows XP or 2000

NOTE: please uninstall other Bluetooth software before install Bluesoleil,

especially from WidComm.

1. DONOT plug your BT-120ADS into your PC/NB before install the

software.

2. Place Bluesoleil CD, or download the software from website and

execute it (It is recommended to uninstall, without BT-120ADS

plugged in, older version before install newer one. There is no

upgrade on installation.)

3. Follow the installation instructions to complete the installation.

(PC/NB will re-start to activate the Bluesoleil.)

RECOMMENDED: Remove the Bluesoleil from Startup list so that it will not

be automatically started when system boots up. Just run or execute the

Bluesoleil when you need it.

1. Execute the Bluesoleil software on Windows XP or 2000

2. Follow the instruction to plug into BT-120ADS.

English

Bluetooth Combo Dongle

120AD

3. Power on your AirLive Bluetooth Stereo headset or Reciver.

4. Click on (A) the bright center of the pictorial Sun to search

Bluetooth devices

5. You should find a stereo headset on the surrounding trail matches

your headset (with MAC or BD address or just a name of “Stereo

headset”) and you may see other Bluetooth devices nearby as

well.

Note: The MAC address of BT-120ADS may be found inside the left

cushion of ear cup. Other models may be found inside battery cover, or

back of the devices.

6. You may click the (A) to stop searching or let it run out of

searching time.

7. Click on the stereo headset to activate a connection and available

services.

English

Bluetooth Combo Dongle

120AD

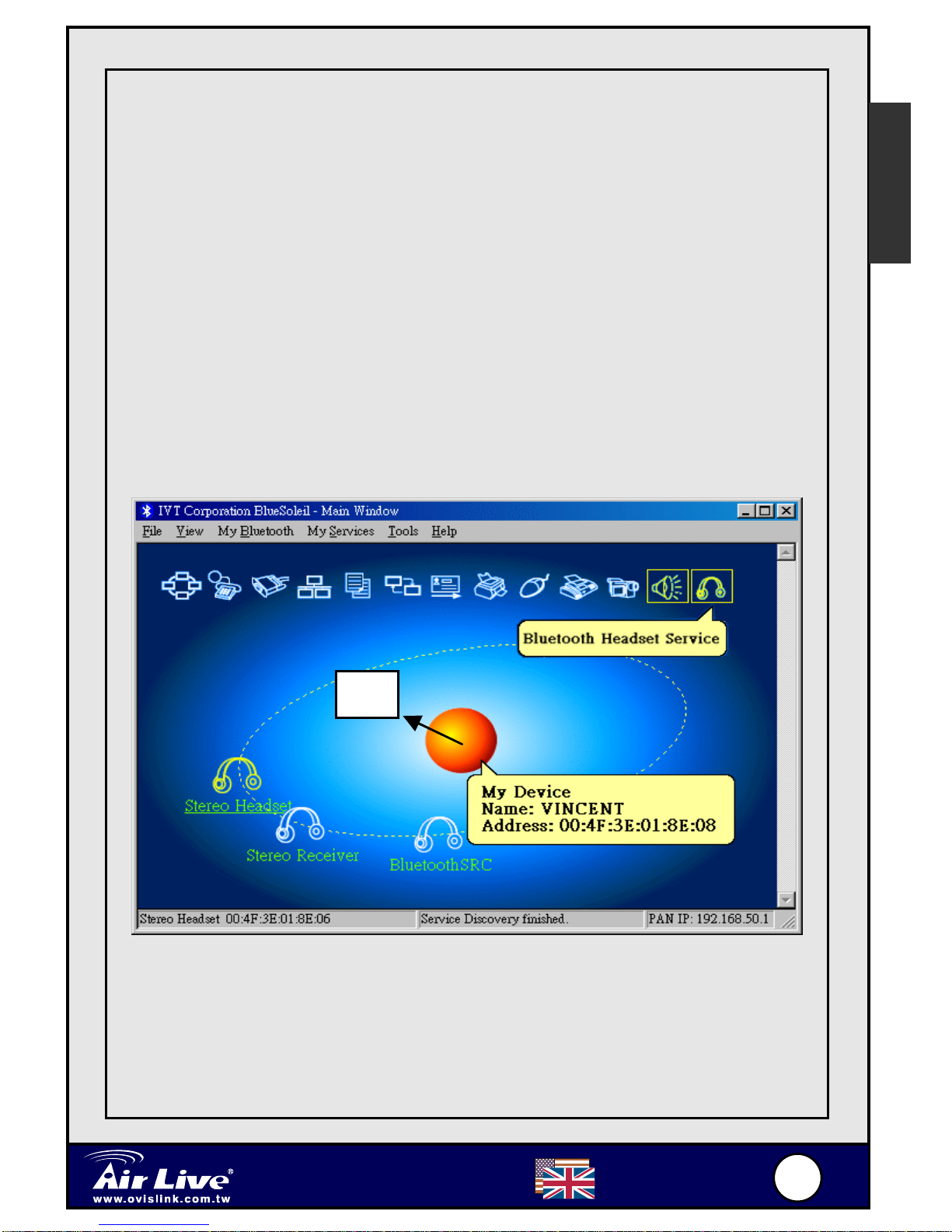

8. You will see the icons of available services are highlighted and

framed.

9. For BT-120HP, you will see Bluetooth AV Service speaker for

stereo music and Bluetooth Headset Service headset for Skype

or Mono Audio-MIC headset application

10. Click Bluetooth Headset Service. The LED will be blinking and

you will hear ring tones on the headset to indicate a connection

established.

11. On the headset, click on the phone pick up bottom (same as power

bottom on BT-120HP.)

12. Go ahead to use Skype as usual. You may listen and talk on the

Bluetooth headset.

NOTE: When using Skype, if you do not hear any voice you may need to

check on “Control Panel”Æ”Sounds and Audio Devices”Æ”Audio” to check

if Windows has switched your Sound device to Bluetooth. If not, you need

to switch to BT-120ADS – “Bluetooth AV/HS”.

English

Bluetooth Combo Dongle

120AD

Run Bluesoleil for A2DP Stereo Bluetooth

1. Follow the step 1-9 in above section Run Bluesoleil for Skype

2. Click Bluetooth AV Service. The LED will be blinking to indicate

a connection established. On BT-120HP, you will hear a short

music played for connection.

3. Go ahead and play your favorite music on PC/NB

Switching Between AV and Headset Mode

The BT-120ADS can function in 2 different Audio Mode:

AV Mode: When the BT-120ADS is in AV mode, you will be able to

hear Hi-Fi Stereo sound. However, the Microphone will not function in

this mode. It is recommended that you use this mode when listening to

music. On the IVT utility, the AV Mode is represented by the Speaker

icon.

Headset Mode: When the BT-120ADS is in Headset Mode, you

will be able to listen and record at the same time. However, the sound

quality is reduced. It is recommended that you use this mode for

applications that require microphone input, such as Skype. On the IVT

utility, the Hi-Quality Mode is represented by the Headset icon.

Please follow the procedure below to switch between 2 modes:

1. Close all music listening programs such as Windows Media Player.

2. Run IVT BlueSoleil program. You can double click on the tray icon

or you can run it from Start -> All Programs -> IVT BlueSoleil->

BlueDoleil.

English

Bluetooth Combo Dongle

120AD

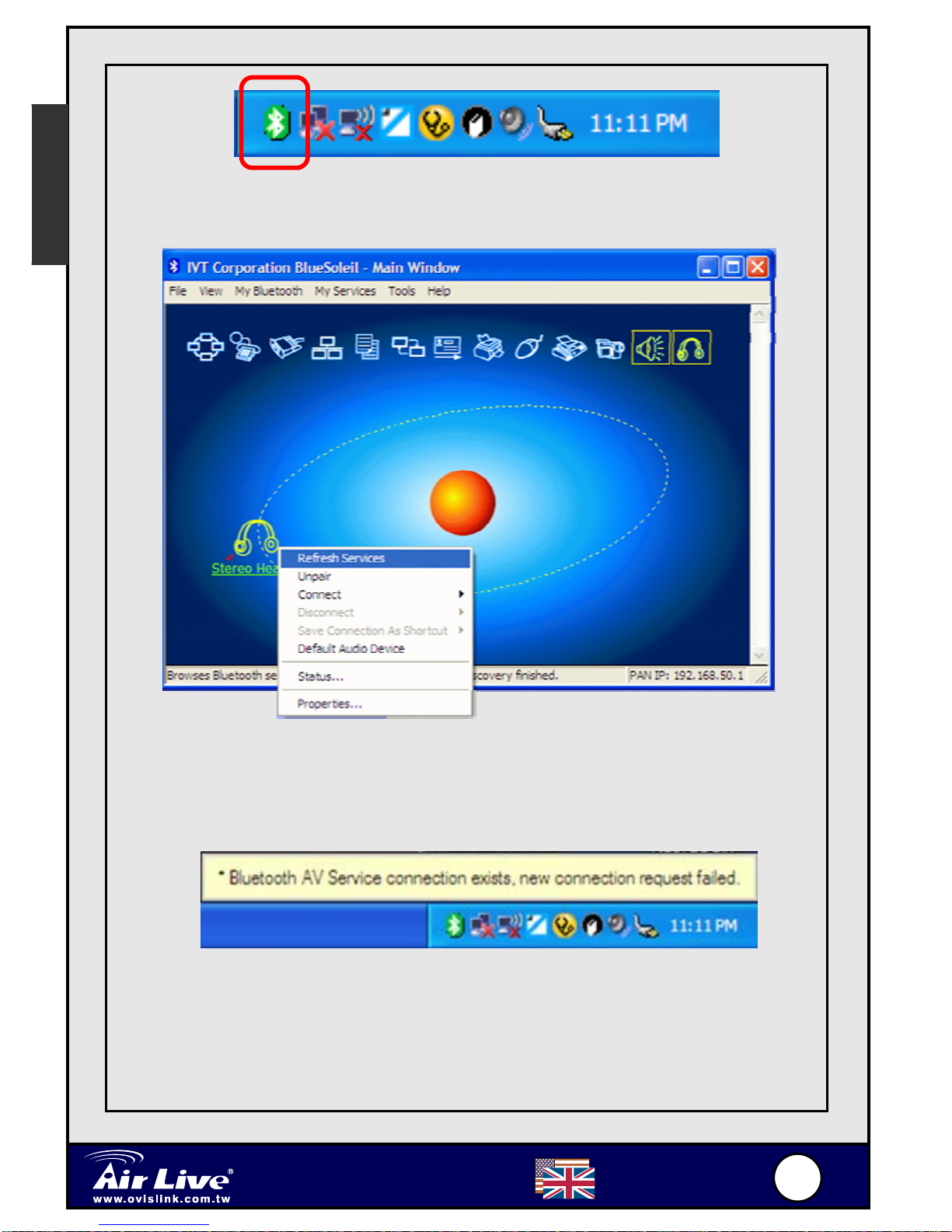

3. You will see the following screen.

4. Please note that you can not just click on the AV or Headset

Icons to change modes. Otherwise, you will get the following

error message.

5. Please Right click on the device icon and click on menu item

Disconnect. Select the menu item Bluetooth AV Service (or

Bluetooth Headset Service)

English

Bluetooth Combo Dongle

120AD

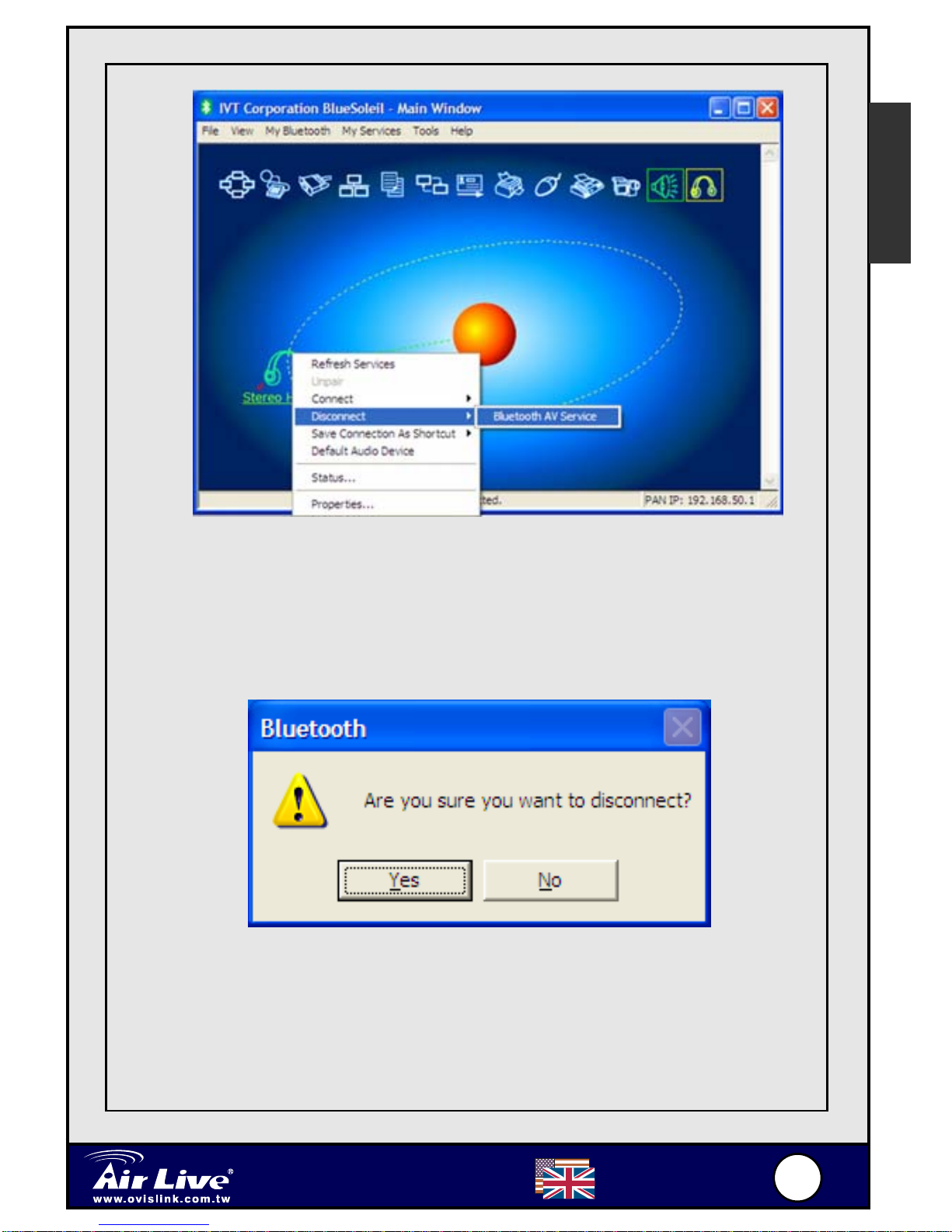

6. A pop-up message asks you to confirm the disconnection. Click on

Yes to continue.

7. Now you can click on the AV or Headset icon to connect. Or, you

can right click on the device and click on menu item connect.

Select either Bluetooth AV Service or Bluetooth Headset

Service.

English

Bluetooth Combo Dongle

120AD

Specification

Standards Bluetooth specification V1.2 compliant

Native Bluetooth A2DP profile

Native Bluetooth AVRCP profile

Support following profile in HCI mode with

software install

- GAP, DUN, OPP, HCRP, HID, PAN, BIP, A2DP,

AVRCP, SYNC, HSP, FAX, LAP, FTP

Frequency Band 2402 ~ 2480 MHz

Tx Power 0.25 ~ 2.5mW (Bluetooth Power Class II)

Rx Sensitivity < -80dBm (PER 1%)

Distance > 10m (open space)

Audio Streaming

Format

SBC 48.000kHz

Audio Frequency

Range

20Hz ~ 22kHz

Physical

Specification:

Dimension: 69.53 x 26.68 x 9.19 mm

(LxWxH)

Weight: 10g

Environmental

Range:

Operating temperature:-10 ~ +50℃

Humidity: Relative humidity 0 ~ 95%

Certifications: FCC, CE, BQB, TELEC
