Safety Rules

Unpacking Your Fan

Installing Your Fan

Operating Your Fan

Care of Your Fan

Troubleshooting

Specications

Table of Contents

1. To reduce the risk of electric shock, ensure electricity

has been turned off at the circuit breaker or fuse box

before beginning.

2. All wiring must be in accordance with the National

Electrical Code ANSI/NFPA 70-1999 and local electrical codes.

Electrical installation should be performed by a

qualied licensed electrician.

3. CAUTION: To reduce the risk of personal injury, use only

the screws provided with the electrical box.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs. (15.9

kg). Use only UL Listed outlet boxes marked “Acceptable

for Fan Support of 35 lbs. (15.9 kg) or less.”

5. The fan must be mounted with a minimum of 7 feet

clearance from the trailing edge of the blades to the oor.

6. Do not operate reversing switch while fan blades are in

motion. Fan must be turned off and blades stopped before

reversing blade direction.

7. Avoid placing objects in path of the blades.

8. To avoid personal injury or damage to the fan and other

items, be cautious when working around or

cleaning the fan.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be

suitable for most cleaning.

10. After making electrical connections, spliced conductors

should be turned upward and pushed carefully up into

electrical box. The wires should be spread apart with the

grounded conductor and the equipment-grounding

conductor on one side of the electrical box and ungrounded

conductor on the other side of the electrical box.

11. Electrical diagrams are for reference only. Light kits that

are not packed with the fan must be UL Listed and marked

suitable for use with the model fan you are installing.

Switches must be UL General Use Switches. Refer to the

instructions packaged with the light kits and switches for

proper assembly.

12. All set screws must be checked and retightened where

necessary before installation.

1. Safety Rules

READ AND SAVE THESE INSTRUCTIONS

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL

INJURY, MOUNT TO OUTLET BOX MARKED “ACCEPTABLE FOR FAN

SUPPORT OF 35LBS. (15.9 KG) OR LESS”, AND USE SCREWS PRO-

VIDED WITH THE OUTLET BOX.

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS (ALSO REFERRED TO AS (“FLANGES”) DURING

ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN

THE PATH OF THE BLADES.

TO REDUCE THE RISK OF SHOCK, THIS FAN MUST BE INSTALLED

WITH AN ISOLATION WALL CONTROL/SWITCH.

a. Mounting hardware

(16 blade attachment screws)

b. Electrical hardware & Balancing

kit (3 plastic wire connectors, blade

balancing kit)

c. Pull chain (2)

d. Extra blade bracket screw

e. Plastic plug

5. Fan Motor Assembly

6. Light Kit

7. Blades (5)

8. Shade

9. Bulbs (2)

1. Mounting Bracket (inside canopy)

2. 4.25” Ball/Downrod Assembly (hanger pin

and locking pin pre-attached)

3. Canopy

4. Blade Arms (5)

2. Unpacking Your Fan

Unpack your fan and check the contents. You should have the following items:

cd e

3. Installing Your Fan

Tools Required

Phillips screw driver or straight slotted screw

driver, adjustable wrench, step ladder, and

wire cutters.

Mounting Options

If there isn’t an existing electrical box, then

read the following instructions. Disconnect

the power by removing fuses or turning off

circuit breakers.

Secure the electrical box directly to the building

structure. Use appropriate fasteners and

building materials. The electrical box and

its support must be able to fully support the

moving weight of the fan (at least 35 lbs.).

Do not use plastic electrical boxes.

Figures 1, 2, and 3 are examples of different

ways to mount the electrical box.

Note: You may need a longer downrod to

maintain proper blade clearance when

installing on a steep, sloped ceiling. The

maximum angle allowable is 30˚. If the

canopy touches downrod, remove the

decorative canopy bottom cover and turn

the canopy 180˚ before attaching the canopy

to the mounting bracket.

To hang your fan where there is an existing

xture but no ceiling joist, you may need an

installation hanger bar as shown in Figure 4.

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35LBS. (15.9 KG) OR

LESS”, AND USE SCREWS PROVIDED WITH

THE OUTLET BOX. ELECTRICAL BOXES

COMMONLY USED FOR THE SUPPORT OF

LIGHTING FIXTURES MAY NOT BE ACCEPT-

ABLE FOR FAN SUPPORT AND MAY NEED TO

BE REPLACED. CONSULT A QUALIFIED ELEC-

TRICIAN IF IN DOUBT.

Figure 1

Figure 2

Figure 4

Figure 3

Hanging the Fan

REMEMBER to turn off the power. Follow

the steps below to hang your fan properly.

NOTE: This fan is recommended for

standard ceiling mount using the downrod

provided with this fan. When using standard

ceiling installation with the 4.25 inch

downrod provided, the distance from the

ceiling to the bottom of the fan blades will be

approximately 10.4 inches.

Standard Ceiling Mounting

1. Remove the mounting bracket from the

canopy by loosening the four screws on

the top of the canopy. Remove the two

non-slotted screws and loosen the slotted

screws. This will enable you to remove the

mounting bracket. (Figure 5)

2. Remove the hanger pin and locking pin from

downrod assembly.

3. Make sure the slot openings are on top.

Route the wires through the canopy and then

through the ball/downrod assembly. (Figure

4. Loosen, but do not remove, the set screws

on the collar on the top of the motor

housing.

Figure 6

5. Align the holes at the bottom of the downrod

with the holes in the collar on top of the

motor housing. (Figure 6)

Carefully insert the hanger pin through the

holes in the collar and downrod. Be careful

not to jam the hanger pin against the wiring

inside the downrod. Insert the locking pin

through the hole near the end of the bolt until

it snaps into its locked position, as noted in

the circle inset of Figure 6.

6. Re-tighten the set screws on the collar on top

of the motor housing.

7. Make sure that the canopy is oriented

correctly.

8. Proceed to “Installing the Fan” section.

FAILURE TO PROPERLY INSTALL SET SCREWS

AS NOTED IN STEP 6 COULD RESULT IN FAN

LOOSENING AND POSSIBLY FALLING.

Slot opening

Motor wires

Locking Pin

Tighten

screws

Hanger Pin

Canopy

Ball/Downrod

assembly

Pin in locked

position

Motor

Collar

Remove

Loosen but Do Not Remove

Figure 5

Standard Mounting

Installing Fan to

the Electrical Box

WHEN MOUNTING THE FAN ON A SLOPED

CEILING, THE STANDARD BALL/DOWNROD

MOUNTING METHOD MUST BE USED. THE

MOUNTING BRACKET MUST BE MOUNTED

SO THAT THE SLOT OPENINGS ARE ON THE

LOWER SIDE BY SLIDING THE MOUNTING

BRACKET FROM THE TOP DOWN.

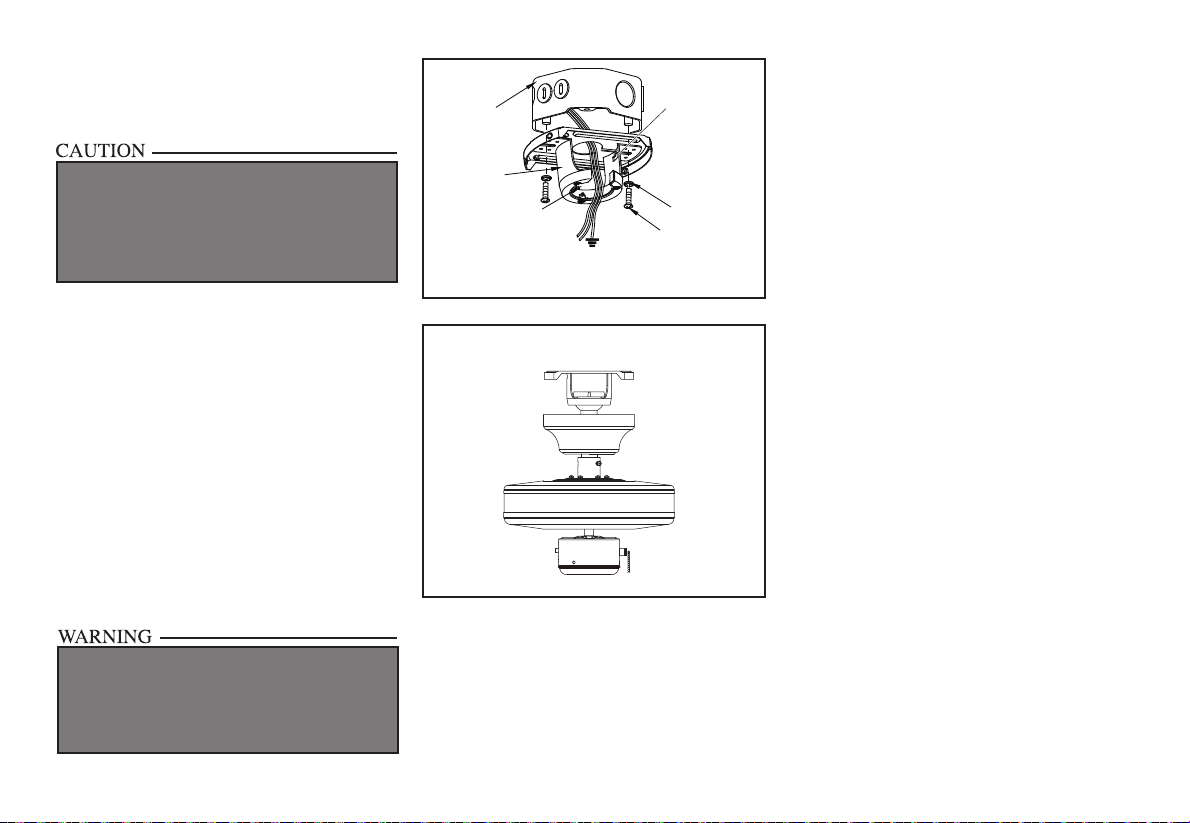

1. Pass the 120-volt supply wires through the

center hole in the ceiling mounting bracket

as shown in Figure 7.

2. Install the ceiling mounting bracket on the

electrical box by using the mounting screws

provided with the electrical box. Note that

the at side of the mounting bracket is

toward the electrical box. (Figure 7)

3. Tighten the two screws on the electrical box

securely.

4. Carefully lift the fan assembly up to the

ceiling mounting bracket. Make sure the tab

on the mounting bracket is properly seated

in the groove in the hanger ball. (Figure 8)

Figure 7

Washers

120V

Wires

UL Listed

Electrical

Box

Ceiling

Mounting

Bracket

Hook

Mounting

Screws

(Supplied with

Electrical Box)

Slot opening

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING BRACKET MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 8

EACH WIRE NUT (WIRE CONNECTOR) SUPPLIED

WITH THIS FAN IS DESIGNED TO ACCEPT UP TO

ONE 12 GAUGE HOUSE WIRE AND TWO WIRES

FROM THIS FAN. IF YOU HAVE LARGER THAN

12 GAUGE HOUSE WIRING OR MORE THAN

ONE HOUSE WIRE TO CONNECT TO THE FAN

WIRING, CONSULT AN ELECTRICIAN FOR THE

PROPER SIZE WIRE NUTS TO USE.

USE THE WIRE CONNECTORS SUPPLIED WITH

YOUR FAN. SECURE THE CONNECTORS WITH

ELECTRICAL TAPE AND ENSURE THERE ARE

NO LOOSE STRANDS OR CONNECTIONS

Figure 9

Making the Electrical

Connections

REMEMBER to disconnect the power. If

you feel you do not have enough electrical

wiring knowledge or experience, have your fan

installed by a licensed electrician.

Follow the steps below to connect the fan to

your household wiring. Use the wire

connecting nuts supplied with your fan. Secure

the connectors with electrical tape. Make sure

there are no loose strands or

connections. (Figure 9)

1. Connect the two green fan ground wires,

located on the downrod and mounting

bracket, to the household ground wire.

2. Connect the neutral fan (white) wire to the

white neutral household wire.

3. Connect the fan supply (black and blue) wire

to the black household supply wire as shown

in gure 9.

4. After connecting the wires, spread them apart

so that the green and white wires are on one

side of the outlet box and the black wire is on

the other side.

5. Turn the wire connecting nuts upward and

push the wiring into the outlet box.

SUPPLY CIRCUIT

BLACK

WHITE

BLUE

BLACK

WHITE

BLACK

WHITE

BLUE

GREEN

Grounding

to Downrod

Outlet

box

Attaching the Fan

Blades

NOTE: Your fan blades are reversible. Select the

blade nish which best accentuates your decor.

1. Attach blade to blade bracket using screws shown

in Figure 10. Repeat for the two remaining screws.

2. Tighten each screw securely.

Figure 11

Finishing the Fan

Installation

STANDARD CEILING MOUNTING

1. Align the locking slots of the ceiling canopy with

the two screws in the mounting bracket. Push up

to engage the slots and turn clockwise to lock

in place. Immediately tighten the two mounting

screws rmly.

2. Install the remaining two mounting screws into

the holes in the canopy and tighten rmly.

3. You may now proceed to attaching the fan blades.

WHEN USING THE STANDARD BALL/DOWNROD

MOUNTING, THE TAB IN THE RING AT THE

BOTTOM OF THE MOUNTING PLATE MUST

REST IN THE GROOVE OF THE HANGER BALL.

FAILURE TO PROPERLY SEAT THE TAB IN THE

GROOVE COULD CAUSE DAMAGE TO WIRING.

Figure 10

Blade Balancing

All blades are grouped by weight. Because natural

woods vary in density, the fan may wobble even

though the blades are weight matched.

The following procedure should correct most fan

wobble. Check after each step.

1. Check that all blade screws are secure.

2. Most fan wobble problems are caused when blade

levels are unequal. Check this level by selecting

a point on the ceiling above the tip of one of the

blades. Measure from a point on the center of

each blade to the point on the ceiling. Measure

this distance as shown in Figure 12. Rotate the fan

until the next blade is positioned for measurement.

Repeat for each blade. Measurements deviation

should be within 1/8”. Run the fan for 10 minutes.

3. Make sure that canopy is tightened securely to

ceiling mounting bracket and that the ceiling

mounting bracket is tightened securely to the

electrical box.

4. Interchanging two adjacent blades can redistribute

the weight and possibly result in the smoother

operation.

5. Use the enclosed Blade Balancing Kit if the blade

wobble is still noticeable.

3. Fasten the blade assembly to the motor by

aligning the screw holes on the bottom of the

fan motor with the holes on the blade arm,and

tightening the motor screws. Please note that

the motor screws are pre-attached into the blade

brackets. (Figure 11)

4. Repeat steps 1,2 & 3 for the remaining blades.

Figure 12

Screws Blade Arm

Blade

Blade Arm

Screws

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere AirPro Lüfter Handbücher

AirPro

AirPro Progress Lighting P2568 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P2594 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250077 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250096 Bedienungsanleitung

AirPro

AirPro Progress Lighting P2572 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250081 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250095 Bedienungsanleitung

AirPro

AirPro P2546 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250074 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250098 Bedienungsanleitung

AirPro

AirPro Progress Lighting P250062 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250104 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P2560 Bedienungsanleitung

AirPro

AirPro Progress Lighting P250111 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250061 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250097 Bedienungsanleitung

AirPro

AirPro Progress Lighting Kaysville P250003 Bedienungsanleitung

AirPro

AirPro Progress Lighting PINEHILL P250031 Bedienungsanleitung

AirPro

AirPro Progress Lighting P250016 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P250103 Bedienungsanleitung

AirPro

AirPro Progress Lighting P2582 Bedienungsanleitung

AirPro

AirPro PROGRESS LIGHTING P2592 Bedienungsanleitung

AirPro

AirPro P2590 Bedienungsanleitung

AirPro

AirPro P250071 Bedienungsanleitung

Beliebte Lüfter Handbücher anderer Marken

ELTA FANS

ELTA FANS H03VV-F Bedienungsanleitung

Hunter

Hunter 20714 Gebrauchsanweisung

Emerson

Emerson CARRERA VERANDA CF542ORB00 Bedienungsanleitung

Hunter

Hunter Caraway Gebrauchsanweisung

Panasonic

Panasonic FV-15NLFS1 Bedienungsanleitung

Kompernass

Kompernass KH 1150 Bedienungsanleitung

VES

VES FALA100/12V/TR Bedienungsanleitung

Vertiv

Vertiv Liebert DCD Bedienungsanleitung

Westinghouse

Westinghouse GFP Series Bedienungsanleitung

Venmar

Venmar KUBIX HRV PLUS Series Bedienungsanleitung

Maico

Maico ECR 31 Bedienungsanleitung

Sonnenkonig

Sonnenkonig Dinky Bedienungsanleitung

S&P

S&P ECOWATT HXBR Bedienungsanleitung

Wider

Wider IMP03369BH Bedienungsanleitung

Panasonic

Panasonic F-60DHN Bedienungsanleitung

Hinkley

Hinkley HIGHLAND Bedienungsanleitung

Broan

Broan 766BN Bedienungsanleitung

Premium

Premium PFS16022 Montageanleitung
