AIRREX DEHUMIDIFIER
ADH-1000
USER’S MANUAL
▶ Thank you for purchasing an AIRREX DEHUMIDIFIER.
BEFORE operation please read this user’s manual carefully.
▶ Keep this manual readily available.
▶ It is ESSENTIAL that you read the ‘NOTES ON SAFETY’ carefully
before use and follow them at all times.
▶ This Dehumidifier is specified for use on a 230V~. 50Hz.
single phase power supply. You must check that the local
electricity supply is the same and have the appropriate plug fitted
by a qualified electrician.
▶ The Warranty form is on Page 15. Please complete it now and keep
in a safe place.
▶ We have a policy of continual improving to our products.
The contents (features and specifications) in this manual are
therefore subject to change without notice.
TABLE OF CONTENTS
■ SAFETY INSTRUCTIONS
■ DESCRIPTION
·Front View
·Back View
·Control Panel
■ OPERATION
·Running & Stop
■ CLEANING AND MAINTENANCE
■ TROUBLE SHOOTING
■
■ SPECIFICATIONS
■ WARRANTY
3
5
5
5
6
7
7
8
9
10
11
12
13
13
2
14
MANUAL PUMPING
·Continuous Running
·Error and Warning Indicators
·How to Set the Off Timer
·Humidity Control Operation
19
The following symbols are for your guidance:
Keep this manual in a visible location near the dehumidifier
for easy reference.
SAFETY INSTRUCTIONS
The following instructions are for ensuring the user’s safety and to prevent any physical injury or
material damage. Please read carefully and follow all instructions.
There are two sections to these instructions: WARNING and CAUTION.
= You must NOT.= You MUST.
WARNING
Use a 230V~. 50Hz. 1 Phase power supply only.
(Wrong supply may cause a fire and / or shock hazard)
Securely plug into an earthed supply.
(Unless earthed, may cause electric shock)
Do not use a damaged power cable, plug or socket.
(Short, fire or shock hazard)
Do not remove plug by pulling cable or with wet hands.
(Risk of fire and electric shock)
Before cleaning, remove plug from socket.
(Otherwise risk of electric shock)
Do not use an extension lead unless of the approved type.
(Risk of fire and / or electric shock)
Ensure mains plug is clean and securely plugged in.
(Otherwise it may short causing smoke and fire)
Do not ‘kink’ or sharply bend the power cable nor put any weight on it.
(The insulation may be damaged causing fire and/ or electric shock)
Do not turn off by removing power plug. Always turn off at control panel first.
(Risk of electric shock and / or malfunction)
Do not use this dehumidifier on unstable or inclined surfaces. Always use on solid
flat floor.
(Risk of falling causing injury, fire or malfunction)
3
SAFETY NOTICE
GENERAL ADVICE BEFORE USE
·Ensure the safety of the location in which
dehumidifier
is to be used.
·Ensure the floor or ground is smooth and sound.
·Ensure you allow at least 1m air space all around the
dehumidifier
.
·When in position LOCK the casters to prevent rolling.
·Never use the
dehumidifier
at more than 2° incline.
FOR MAXIMUM EFFICIENCY
·Ensure correct electricity supply.
·The proper electricity is 230V~. 50Hz. It will be applied and adjusted as
per customer's request.
You must supply power as per it's requirement only once it is adjusted.
·Appliance is not to be used by children or persons with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction (IEC 60335-1/A2)
·Children being supervised not to be play with appliance (IEC 60335-1/A2)
CAUTION
When storing the
dehumidifier
, ensure that it is kept in a dry, cool place.
(To prevent corrosion and malfunction)
If not being used for some time or if lightening is present, always unplug from power.
(To prevent risk of electric shock, short circuit or fire)
Do not spray water on to the
dehumidifier
nor use solvents such as benzene, thinner or
alcohol for cleaning.
(There is a risk of electric shock and / or short circuit)
If the power cable is damaged this must be replaced by a fully qualified electrician.
(To avoid danger of electric shock, short circuit or fire)
Do not place
dehumidifier
on uneven, unstable or inclined surface.
(This could cause malfunction)
4
5
DESCRIPTION
FRONT VIEW
BACK VIEW
AIR INLET
AMBIENT AIR INTAKE.
CASTER (FRONT LOCKABLE)
CASTER (REAR 10'')
BACK HANDLE
EVAPORATOR FILTER
CONDENSER GRILLE
CONDENSER AIR OUTLET
POWER CORD
DIGITAL CONTROLLER
CONDENSED WATER OUTLET
DURING DEHUMIDIFYING
PUMP BUTTON
6
① Power : Use to power On / Off.
② : Raises or lowers setting humidity and sleep (off) time.
③ Fan Intensity : Controls fan speed. high,medium,low ('F3' 'F2' 'F1')
④ Quiet Operation : Set fan speed slower than 'Low'(FL), the LED is on.
⑤ Off Timer : To set the length of time, once turned on, that you wish the
dehumidifier to run for. You can set 0~24 hours. Time intervals are
30mins. up to 10 hours and then 1 hour between 10 and 24 hours.
⑥ Defrost : When the temperature of the evaporator is below -4℃ the defrost valve operate
and 'Defrost' led is on.
⑦ Comp. : When the compressor is operating, the LED is On.
⑧ Error : Error signal ( E1 : High Pressure, E2 : Low Pressure, E3 : Defrost Sensor, HU : Humidity Sensor)
⑨ Water Full : Red light indicates ‘Tank Full’. The compressor will shut off
automatically. Empty tank and check if condensate wafer pump operate well.
⑩ Display : Display current humidity, setting humidity and sleep time in case of
setting them. When the user set the sleep timer, ‘hr’ will be turned on.
⑤
①
②
③ ④
⑦
⑧
⑩
⑨
⑥
④
CONTROL PANEL FUNCTIONS
DESCRIPTION
7
OPERATION

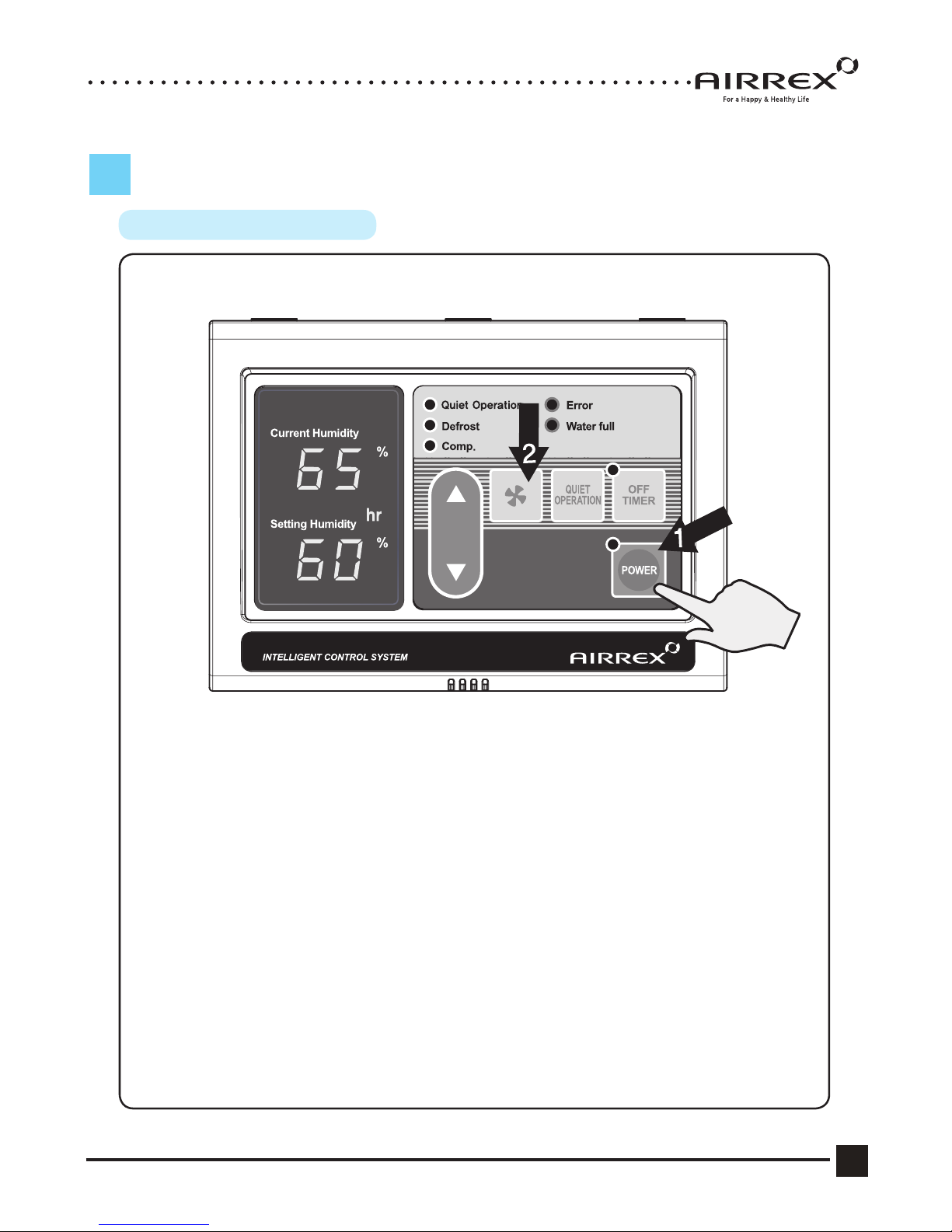

1. START BY PRESSING THE ‘POWER’ BUTTON.
·
Dehumidifier
will start up automatically.
·To STOP the unit, press the ‘POWER’ button once again.
2. To change fan speed, press the ‘Fan’ button.
( 'F3' : High, 'F2' : Medium, 'F1' : Low )
RUNNING & STOP
8
Setting Humidity
%
Current Humidity
Setting Humidity
%
%
Setting Humidity
%
1. When power is ON, the setting humidity
is displayed. Default of setting humidity
is 60%.
2. When you push either ▼ or ▲ button, the
setting humidity is changed.
3. The display showing the setting humidity will
blink 3 times.
4. Limits of Setting humidity.
Current Humidity Setting Humidity
0% - 99% 30% - 80%
Dehumidifier
operates when current humidity is more
than setting humidity.
Dehumidifying
stops when current humidity is
less than setting humidity.
OPERATION
HUMIDITY CONTROL OPERATION
9
1. When
dehumidifier
is operating, press the ‘Off Timer’
button and set the length of time you want by
pressing ▲ or ▼.
Each time you press the button you will increase the
‘time to off’ period by 30mins. up to 10 hours, and 1
hour thereafter up to 24 hours.
The display will show .5 for 30min and 1 for an hour.
e.g. One and a half hours will show 1.5.
2. When you have finished setting the time period, the
‘Off Timer’ lamp will be on which indicates
de
humidifier
is in sleep (Off Timer) mode.
3. If you press the ‘Off Timer’ button during its operation,
the remaining time will be shown.
4. To CANCEL timing, press ‘Off Timer’ button for ONE
second. It will then switch the timer off automatically.
Humidity.
Humidity.
%
%
Humidity.
Humidity. Humidity.
OFF TIMER LAMP IS ON
AFTER 1hr
* This function enables you to set the length of time you want the
dehumidifier
to operate.
You can set the time period from 30min. to 24 hours in 30min. and 1 hour increments.
HOW TO SET THE 'OFF'TIMER
OPERATION
10
Current Humidity
Current Humidity
Current Humidity
Current Humidity
Setting Humidity
Current Humidity
The machine’s safety devices will automatically signal any problems via the display window on the control panel.
The information below shows how to read these signals.

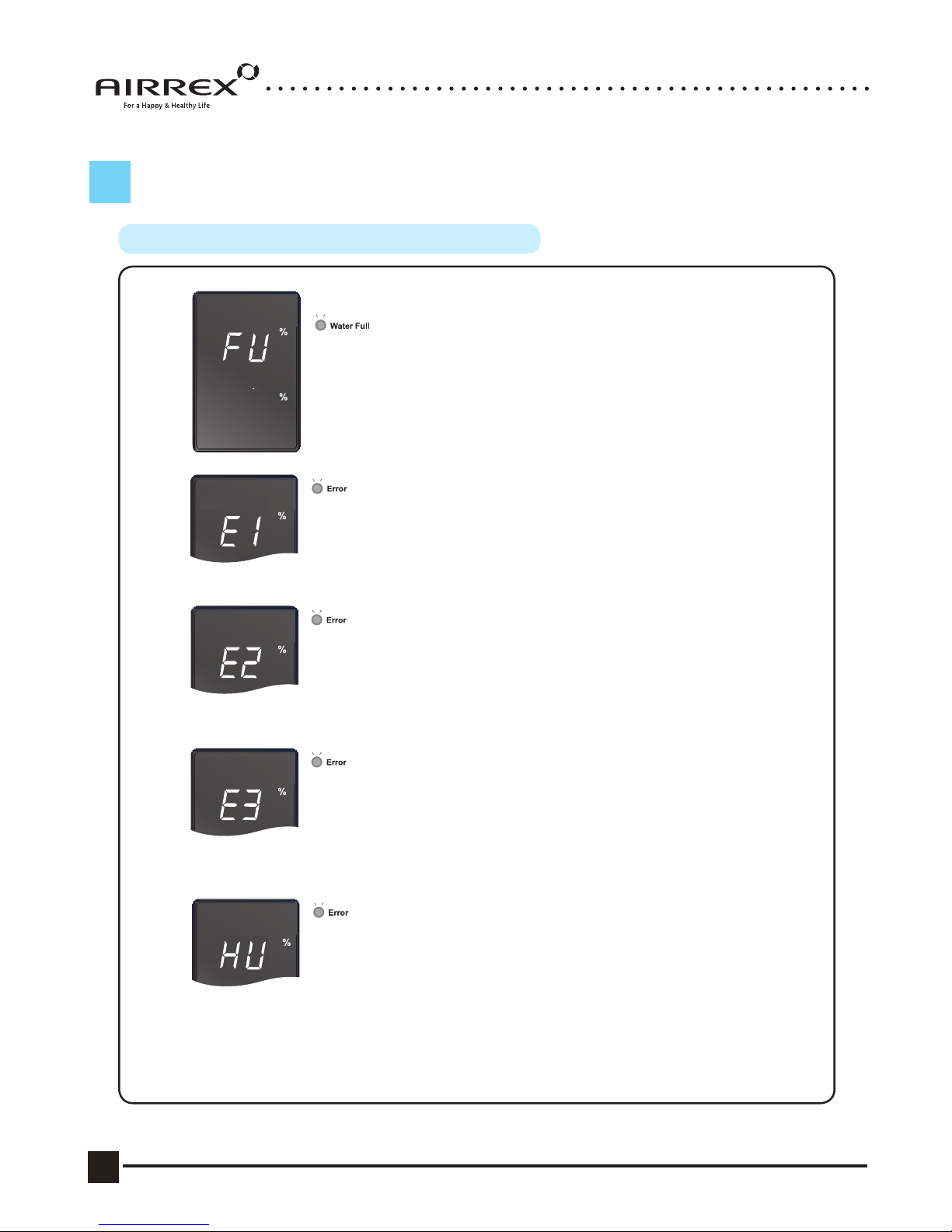

1. WATER FULL- Display shows “FU”
When the water container is full, “FU” is displayed
and the LED “Water Full” light will be on.
2. HIGH PRESSURE
‘E1’ is displayed and the ‘Error’ LED will be on
when the pressure of the compressor is too high
and
the high pressure switch is open.
3. LOW PRESSURE
‘E2’ is displayed and the ‘Error’ LED will be on
when the pressure of the compressor is too low.
4. DEFROST SENSOR PROBLEM
If the thermistor for defrost is short circuited
or cut, 'E3' is displayed and the 'Error' LED
will be on.
5. HUMIDITY SENSOR PROBLEM
If the Humidity Sensor is short circuited or cut, ‘Hu’ is
displayed and the ‘Error’ LED will be on.
Current Humidity
Current Humidity
OPERATION
'ERROR'AND WARNING INDICATORS
