DVD PLAYERDVD PLAYER

DV-P2340

Operator's manual

Operator's manual 1~20

OPEN/CLOSEOPEN/CLOSE

PHONES LEVEL

MIN MAX

DV-P2340

STOPSTOP

PREVPREV NEXTNEXT

DVD / CD / MP3 / CD-R / CD-I PLAYER

Dear customers:

May we take this opportunity to thank you for purchasing this DVD player. We strongly recommend that you carefully study the

operating instructions before operating the unit.

Before using the player, please ensure that the local AC voltage is suitable for this unit.Before using the player, please ensure that the local AC voltage is suitable for this unit.

Getting started

Skipping ahead and skipping back

Multi-speed slow motion playback

3-step zooming playback

3-way repeat playback

Numeric selection

Programmable playback

Time search

Main Features

Features of audio specifications

Playback features

-720 X 480 £¨30Hz£©

-720 X 576 £¨25Hz£©

PAL and NTSC

Features of playback specifications

This product complies the MPEG II standardization law.

DTS (Digital Theater System) digital audio output

Dolby Digital 2ch decoding output

MPEG-II Audio output

Linear PCM audio decoding output

MP3 audio decoding output

Fully compatible with DVD, MP3,CD, CD-R and CD-RW disc.

DTS-compatible digital audio output.

Compatible with full DVD playback functions: multi-angle, multi-language,

multi-story, parental control, etc..

Advanced 10-bit/27MHz video D/A converter with over 500 lines of horizontal

resolution.

Video output: Normal video output, S-video output, 21 pin scart,

24-bit/96kHz audio D/A converter.

3-step zoom/smooth scan.

NTSC/PAL TV system compatible.

Audio output: Dolby Digital 2ch output, MPEG-II Audio output,Coaxial

Linear PCM decoding output.

and optical

digital output

Audio & Video

Audio

Disc size 12cm

Single side, single layer /single side,

double layer

PAL and NTSC DVD disc

Playback time 135min/240min max.

Disc size 12cm/8cm

CD disc

Playback time 74min/20min max

P14

Getting started

Disc types

Disc maintenance

WrongRight

-Before playback, wipe the disc from the center hole toward the outer

edge with a clean cloth.

-Never use benzine, thinner, cleaning fluid, static electricity prevention

liquids or any other solvent.

Dirty disc may cause bad picture.

P1-P6

P7-P8

P11

P13

Getting Started

Table of contents

Features

Safety precautions

System connection

Accessories and remote control unit

Front panel

Starting playback and function buttons

Searching buttons and other buttons

MP3 & JPEG operations

Playback mode

Troubleshooting tips

Definition of terms

Digest and program

Initial settings

Disc types & maintenance

Basic operation

P17

P18

Getting startedGetting started Basic operationBasic operation Playback

mode

Playback

mode

MP3/JPEG

operations

MP3/JPEG

operations

Digest &

program

Digest &

program TermsTerms

TroubleshootingTroubleshooting

Initial

settings

Initial

settings

Safety precautions

WARNING WARNING WARNING

WARNING

To avoid electrical shock, do not

open the cabinet, refer servicing

to qualified personnel only.

ATTENTION

ATTENTION ATTENTIONATTENTION

If smoke, malodor or noises are

emitted from the unit, turn off the

power and disconnect the AC

power cord.

Do not expose this equipment

to rain or moisture.

Keep the unit away from flower

vases, tubs, sinks, etc.. If liquids

are spilled into the unit, serious

damage could occur.

When left unused for a long period

of time, the unit should be unplugged

from the household AC outlet.

Do not block ventilation holes of

the unit so that air can circulate

freely.

Touching the unit is dangerous,

If thunder.

Be sure to turn the unit off and dis-

connect the AC power cord before

cleaning the unit surface .

If the surface is dirty, wipe clean with

a cloth which has been dipped in a

weak soap-and -water solution and

wrung out thoroughly, and then wipe

again with a dry cloth.

The above items are true of not only this unit but also most of the household electronic products.

Notes: This unit is a class 1 laser product and uses a visible laser beam which could cause hazardous radiation exposure if directed. Be

sure to operate it correctly as instructed.

Getting started

Getting Started

Accessories

Remote

control unit

Audio cord

Video cord

Battery installation(remote control unit)

Remove the battery cover.

Insert two batteries(AA, R06, UM-3 type)

making sure the polarity(+/-) matches the marks

inside the unit.

Replace the cover.

Remote control unit

Weak batteries can leak and severely damage the remote control unit.

--Do not attempt to recharge, short-circuit, disassemble, heat or throw

the batteries into the fire.

--Do not mix old and new batteries.

Point remote control unit no more than 8m from the remote

sensor and within about 60 of the front of the unit.

Batteries

(size AA, R06, UM-3)

REP A-B

REPEAT

DIGEST

MUTE

F&G

FUNCTION

PBC

OSD

SYSTEM

ZOOM

STEP

PROGRAM

RANDOM

GO TO

L/R

CLEAR

SLOW

RESUME

P.9

P.1 1

P.13

P.9

P.12

P.14

P.12

P.1 1

P.8

P.13

P.7

P.8

P.12

P.14

POWER

P.12

P.1 1

P.13

P.12

Getting Started

System connection

Turn off the power and keep AC cord pulled out from the outlet when connecting the system.

COAXIAL

DIGITAL AUDIO OUT

()

PCM / BITSTREAM

LEFT

RIGHT

VIDEO

AUDIO OUT

S-VIDEO

SCART OUT

S-video cord

(optional)

Video cord

(optional)

Audio cord

(optional)

LEFT LEFT

AV IN 1

S-VIDEO

AV IN 2

VIDEO RIGHT VIDEO RIGHT

Red White

Yellow

To stereo TV or other

audio equipments

Coaxial audio cable

(optional)

To coaxial digital audio input connector

AC outlet on the wall

SCART connected cable

(optional)

Red White

To TV (Scart Input) connector

Red

White Yellow

Most of the functions can be controlled by remote control unit.Most of the functions can be controlled by remote control unit.

Getting started

Front panel

Vacuum Fluorescent Display (VFD)

POWER BUTTON

NEXT BUTTON

PREV BUTTON

REMOTE SENSOR

DISC TRAY

OPEN/CLOSE BUTTON

ON/STANDBY

LED

STOP BUTTON

PLAY/PAUSE BUTTON

FAST FORWARD

FAST BACKWARD

PHONES LEVEL CONTROL

PHONES JACK

OPEN/CLOSEOPEN/CLOSE

PHONES LEVEL

MIN MAX

STOPSTOP

PREVPREV NEXTNEXT

PLAY and PAUSE button: Press PLAY

button to start playback. Press PAUSE

button to pause playback.

Numeric buttons(0-9):

STOP button: When this button is pres-

sed once, the unit records the stopped

point, from where playback will resume

(resume function) if PLAY is pressed

afterwards. But if STOP button is pressed

again instead of PLAY button, there will

be no resume function.

You can select desired titles(DVD) by pressing

these buttons directly only if the title or track

number is less than 10.

If the title or track number is over 10. For instance,

if "28" is wanted, press "10+" twice, and then

press the 2-digit number "8".

Starting playback Function buttons

Basic operation

DVD discs possess super interactive function. Please normally use " " and " enter” keys in operation of OSD menu.

10F10F

PROGRAM

RESUME

OSD GO TOSYSTEM

REPEAT REP A-B RANDOM

ANGLE

L/R

OPEN/CLOSE

AUDIO SUBTITLE

PBC

TITLE

DIGEST

MUTE

CLEAR

FUNCTION

PAUSE

STEP STOP

ZOOM SETUP SLOW RETURN

REV FF

PREV NEXT

SELECT

PLAY

POWER

10F10F

PROGRAM

RESUME

OSD GO TOSYSTEM

REPEAT REP A-B RANDOM

ANGLE

L/R

OPEN/CLOSE

AUDIO SUBTITLE

PBC

TITLE

DIGEST

MUTE

CLEAR

FUNCTION

PAUSE

STEP STOP

ZOOM SETUP SLOW RETURN

REV FF

PREV NEXT

SELECT

PLAY

POWER

OPEN/CLOSEOPEN/CLOSE

PHONES LEVEL

MIN MAX

STOPSTOP

PREVPREV NEXTNEXT

OPEN/CLOSEOPEN/CLOSE

PHONES LEVEL

MIN MAX

STOPSTOP

PREVPREV NEXTNEXT

Basic operation

Searching function buttons

Numeric buttons(0-9):

These buttons can function with GO TO

button .

When the above items are showed on TV screen,

you can input numbers to locate desired sector and

commence play.

GO TO button:

Press this button to go to desired posi-

tion. The player provides 2 search mode

of DVD disc, and it provides 3 search

mode of CD disc.

[DVD only] [DVD only]

The number you input is invalid if it is beyond

the track's capcity.

Other buttons

TITLE XX/XX CHAPTER [ ]/XXX

DISC GOTO SELECT TRACK

TRACK GOTO XX

[CD only]

PREV button and NEXT button:

Press these buttons to go to the previous/

next chapter(DVD) or track(CD).

SLOW button:

Press this button to select slow-motion

playback in forward and reverse direction

at 1/2, 1/4, 1/8,1/16 normal speed without

sound(DVD).

STEP button: You can enjoy picture

frame by frame by pressing this button.

REV and FF button:

These buttons allow

skipping ahead/back at 4-level speeds.

Press PLAY button to return to normal playback.

10F10F

PROGRAM

RESUME

OSD GO TOSYSTEM

REPEAT REP A-B RANDOM

ANGLE

L/R

OPEN/CLOSE

AUDIO SUBTITLE

PBC

TITLE

DIGEST

MUTE

CLEAR

FUNCTION

PAUSE

STEP STOP

ZOOM SETUP SLOW RETURN

REV FF

PREV NEXT

SELECT

PLAY

POWER

3322

10F10F

PROGRAM

RESUME

OSD GO TOSYSTEM

REPEAT REP A-B RANDOM

ANGLE

L/R

OPEN/CLOSE

AUDIO SUBTITLE

PBC

TITLE

DIGEST

MUTE

CLEAR

FUNCTION

PAUSE

STEP STOP

ZOOM SETUP SLOW RETURN

REV FF

PREV NEXT

SELECT

PLAY

POWER

OPEN/CLOSEOPEN/CLOSE

PHONES LEVEL

MIN MAX

STOPSTOP

PREVPREV NEXTNEXT

Press the OPEN/CLOSE button.

Put in MP3 disc on label side,

now system begins searching

information on disc. Completing

searching, the menu screen

appears, now you can use " "

and PLAY buttons to select song

to play, or you can select desired

song to play by pressing numeric

buttons directly.

Numeric buttons:

Pressing number buttons on

your remote controller, you

can directly select the song

which you want to enjoy to

be played. For example, if

you want to enjoy listening

to the eighteenth song,

please press "1" once,and

then press "8".

STOP button:

Pressing the button will stop

playback.

Prev & Next buttons:

Their functions is to choose the

previous or next song to be played.

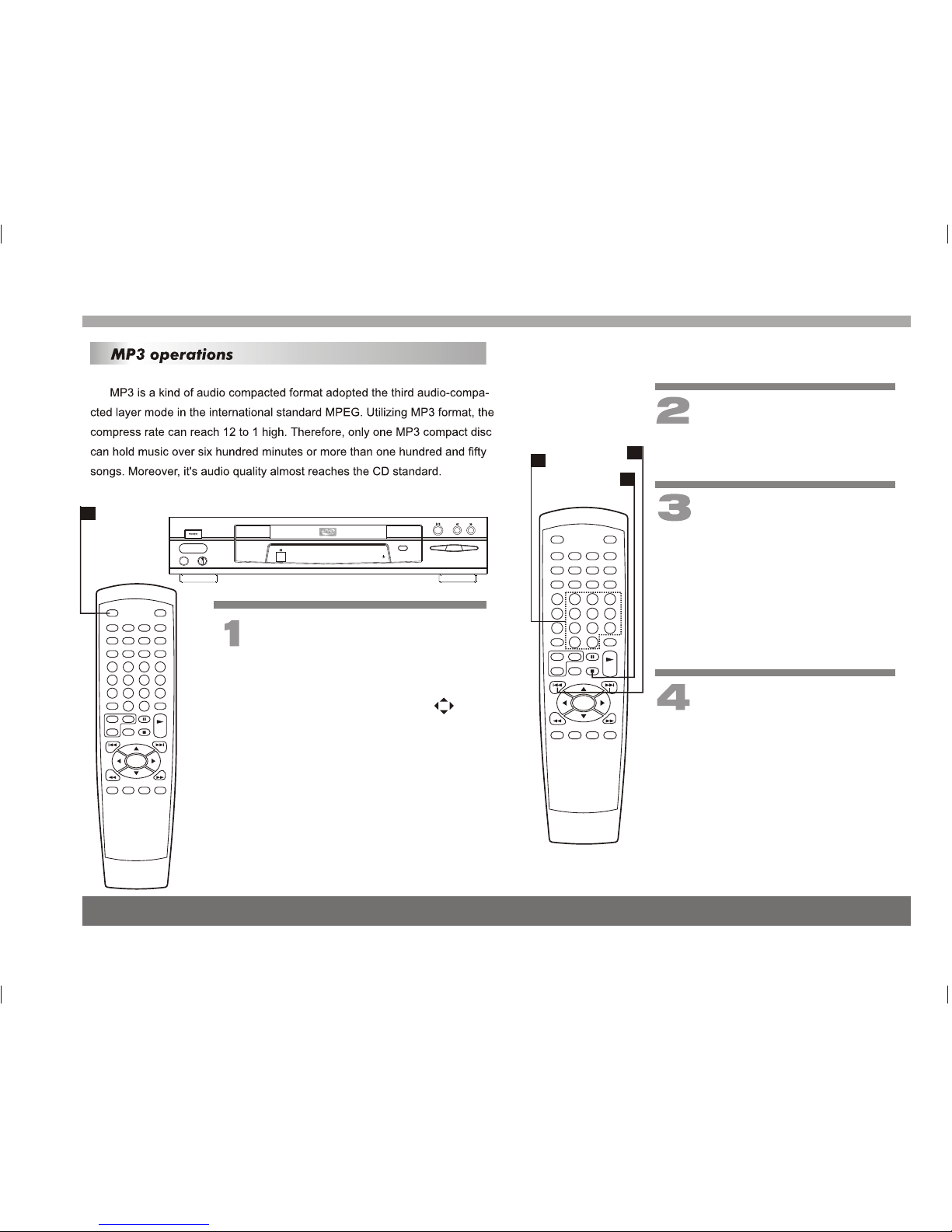

Mp3 /JPEG operations

OPEN/CLOSEOPEN/CLOSE

PHONES LEVEL

MIN MAX

STOPSTOP

PREVPREV NEXTNEXT

10F10F

PROGRAM

RESUME

OSD GO TOSYSTEM

REPEAT REP A-B RANDOM

ANGLE

L/R

OPEN/CLOSE

AUDIO SUBTITLE

PBC

TITLE

DIGEST

MUTE

CLEAR

FUNCTION

PAUSE

STEP STOP

ZOOM SETUP SLOW RETURN

REV FF

PREV NEXT

SELECT

PLAY

POWER

10F10F

PROGRAM

RESUME

OSD GO TOSYSTEM

REPEAT REP A-B RANDOM

ANGLE

L/R

OPEN/CLOSE

AUDIO SUBTITLE

PBC

TITLE

DIGEST

MUTE

CLEAR

FUNCTION

PAUSE

STEP STOP

ZOOM SETUP SLOW RETURN

REV FF

PREV NEXT

SELECT

PLAY

POWER

Inhaltsverzeichnis

Andere Akai DVD-Player Handbücher

Akai

Akai ACVDS727 Bedienungsanleitung

Akai

Akai AD66U Bedienungsanleitung

Akai

Akai DV-P4925KDSM Bedienungsanleitung

Akai

Akai DV-P4330S Bedienungsanleitung

Akai

Akai DV-PX7830 Bedienungsanleitung

Akai

Akai AKDVD9DS Bedienungsanleitung

Akai

Akai DV-R4035VSMC Bedienungsanleitung

Akai

Akai AD 70H Bedienungsanleitung

Akai

Akai AKD-250U Bedienungsanleitung

Akai

Akai DV-R4015VSS Bedienungsanleitung

Akai

Akai AD66U Bedienungsanleitung

Akai

Akai DV-P4799KDMC Bedienungsanleitung

Akai

Akai AKH-800XS Bedienungsanleitung

Akai

Akai ad200h Bedienungsanleitung

Akai

Akai DV-P4930KDSM Bedienungsanleitung

Akai

Akai DV-P4420S Bedienungsanleitung

Akai

Akai AMD315 - Microset Bedienungsanleitung

Akai

Akai STD-2001 Bedienungsanleitung

Akai

Akai AKH-100XS Bedienungsanleitung

Akai

Akai DV-P3470S Bedienungsanleitung

Akai

Akai A-5181 Bedienungsanleitung

Akai

Akai A51002 Bedienungsanleitung

Akai

Akai DVP6333KDM Bedienungsanleitung

Akai

Akai ACVDS735 Bedienungsanleitung

Beliebte DVD-Player Handbücher anderer Marken

Sony

Sony DVP-F11 Bedienungsanleitung

Philips

Philips DVP3560K/F8 Bedienungsanleitung

LENCO

LENCO DVP-740 X2 Bedienungsanleitung

JVC

JVC XV-N650BEU Bedienungsanleitung

Aiwa

Aiwa XD-DV370 Bedienungsanleitung

MedeaWiz

MedeaWiz Sprite 4K DV-S4 Bedienungsanleitung

Denon

Denon DVM-1805 - DVD Changer Bedienungsanleitung

Toshiba

Toshiba SD-3815 Bedienungsanleitung

Tevion

Tevion 44330 Bedienungsanleitung

Samsung

Samsung DVD-HD860 Bedienungsanleitung

Sylvania

Sylvania DP170SL8 Bedienungsanleitung

Toshiba

Toshiba SD-P1200 Bedienungsanleitung

JVC

JVC XV-D9000E Bedienungsanleitung

Dolby Laboratories

Dolby Laboratories CP650 Bedienungsanleitung

Philips

Philips DVD737K/931 Bedienungsanleitung

Denon

Denon DVD-5900 Bedienungsanleitung

Philips

Philips DVD 951 Bedienungsanleitung

Philips

Philips DVDR3460 Bedienungsanleitung
