Akai VirtualDJ 8 Bedienungsanleitung

VirtualDJ 8 –AKAI AMX

Table of Contents

Installation................................................................................................................................3

Firmware & Drivers ................................................................................................................3

VirtualDJ 8 Setup ...................................................................................................................3

Advanced Setup.....................................................................................................................4

Controls ....................................................................................................................................5

DVS Support.............................................................................................................................8

VirtualDJ 8 –AKAI AMX

Installation

Firmware & Drivers

Drivers

Windows: Install the necessary drivers from

http://www.akaipro.com/index.php/product/amx#downloads

Mac OSX: No drivers are required to be installed for Mac computers.

Firmware

No firmware is available at the time this manual is written.

VirtualDJ 8 Setup

Download and install VirtualDJ 8 from

http://www.virtualdj.com/download/index.html

(in case you have not done already)

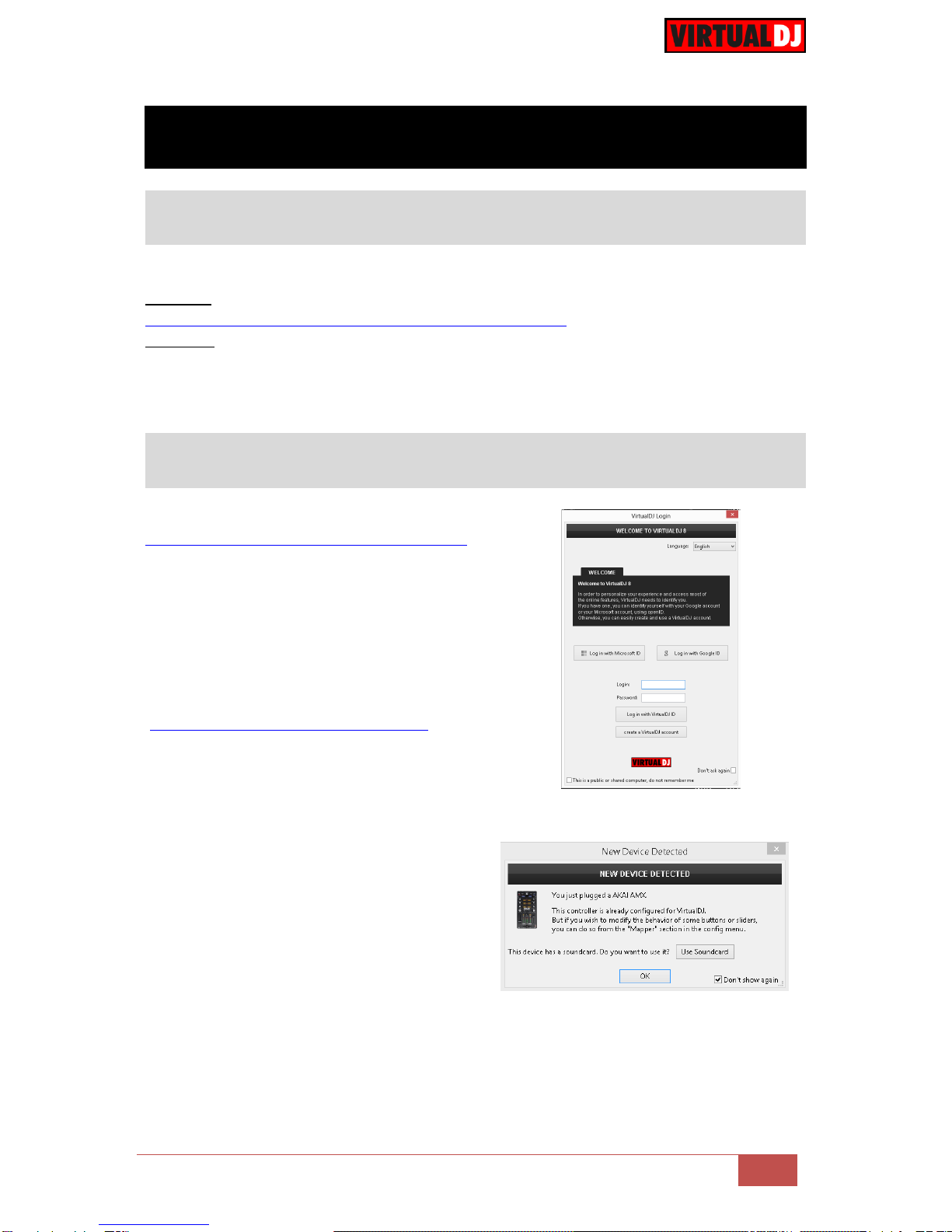

Once VirtualDJ 8 is launched, a Login Window

will appear. Login with your virtualdj.com

account credentials. A Pro Infinity, a PLUS or

aPro Subscription License is required to use

the AKAI AMX. Without any of the above

Licenses, the controller will operate for 10

minutes each time you restart VirtualDJ.

http://www.virtualdj.com/buy/index.html

A detection window will appear next asking

to use or not the pre-defined audio setup

with the built-in sound card of the AMX. You

can still change that from Settings->AUDIO

tab.

The unit is now ready to operate.

VirtualDJ 8 –AKAI AMX

Advanced Setup

MIDI Operation

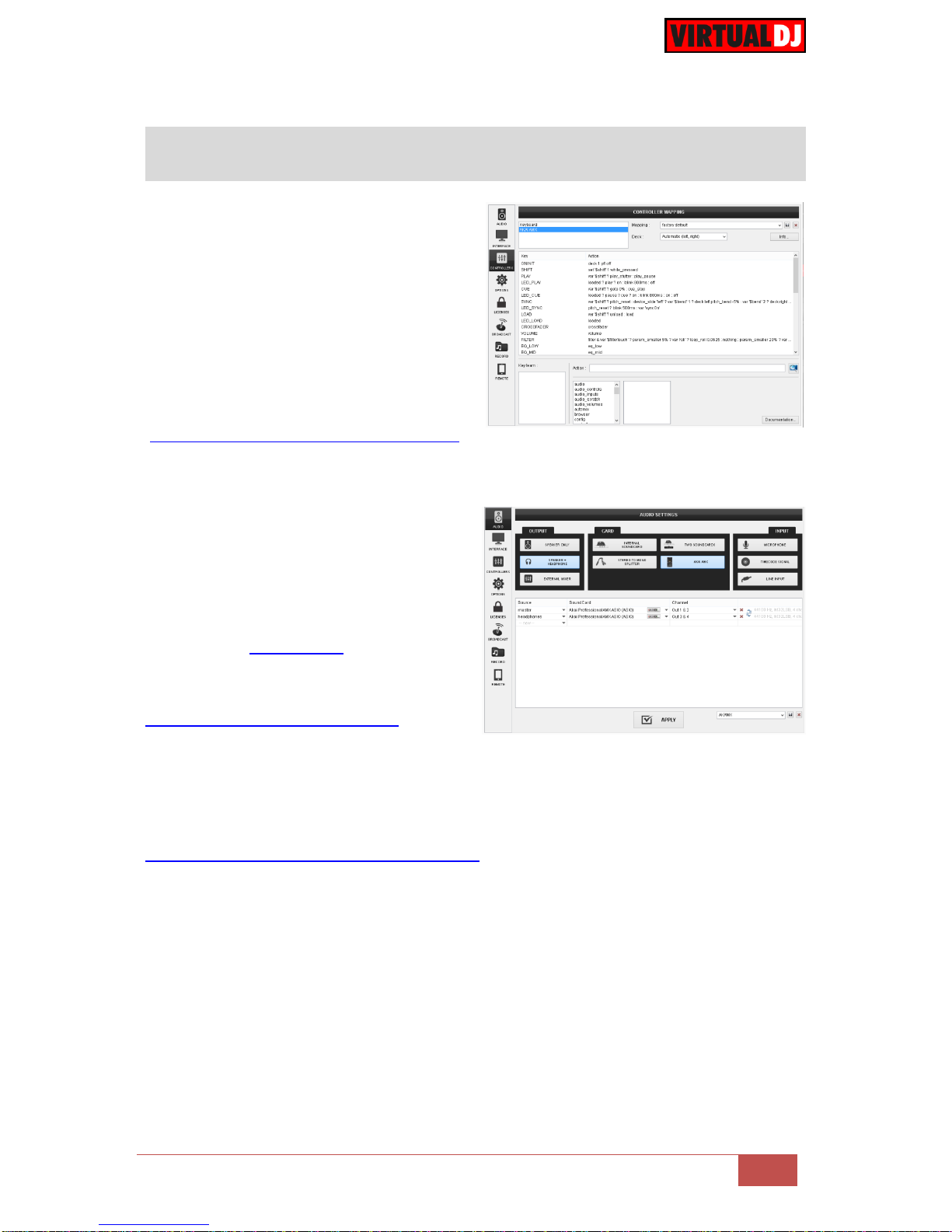

The unit should be visible in the

CONTROLLERS tab of Config and the

“factory default” available/selected from the

Mappings drop-down list.

The factory default Mapping offers the

functions described in this Manual, however

those can be adjusted to your needs via VDJ

Script actions.

Find more details at

http://www.virtualdj.com/wiki/VDJscript.html

AUDIO Setup

The unit has a pre-defined Audio setup and

a special button in the AUDIO tab of Config

to provide that. Alternative Audio setups can

be applied in the same window.

Timecode (DVS)* configuration is also

available (see DVS Support).

*requires Pro Infinity or Timecode License

http://www.virtualdj.com/buy/index.html

For further software settings please refer to the User Guides of VirtualDJ 8.

http://www.virtualdj.com/wiki/PDFManuals.html

VirtualDJ 8 –AKAI AMX

Controls

VirtualDJ 8 –AKAI AMX

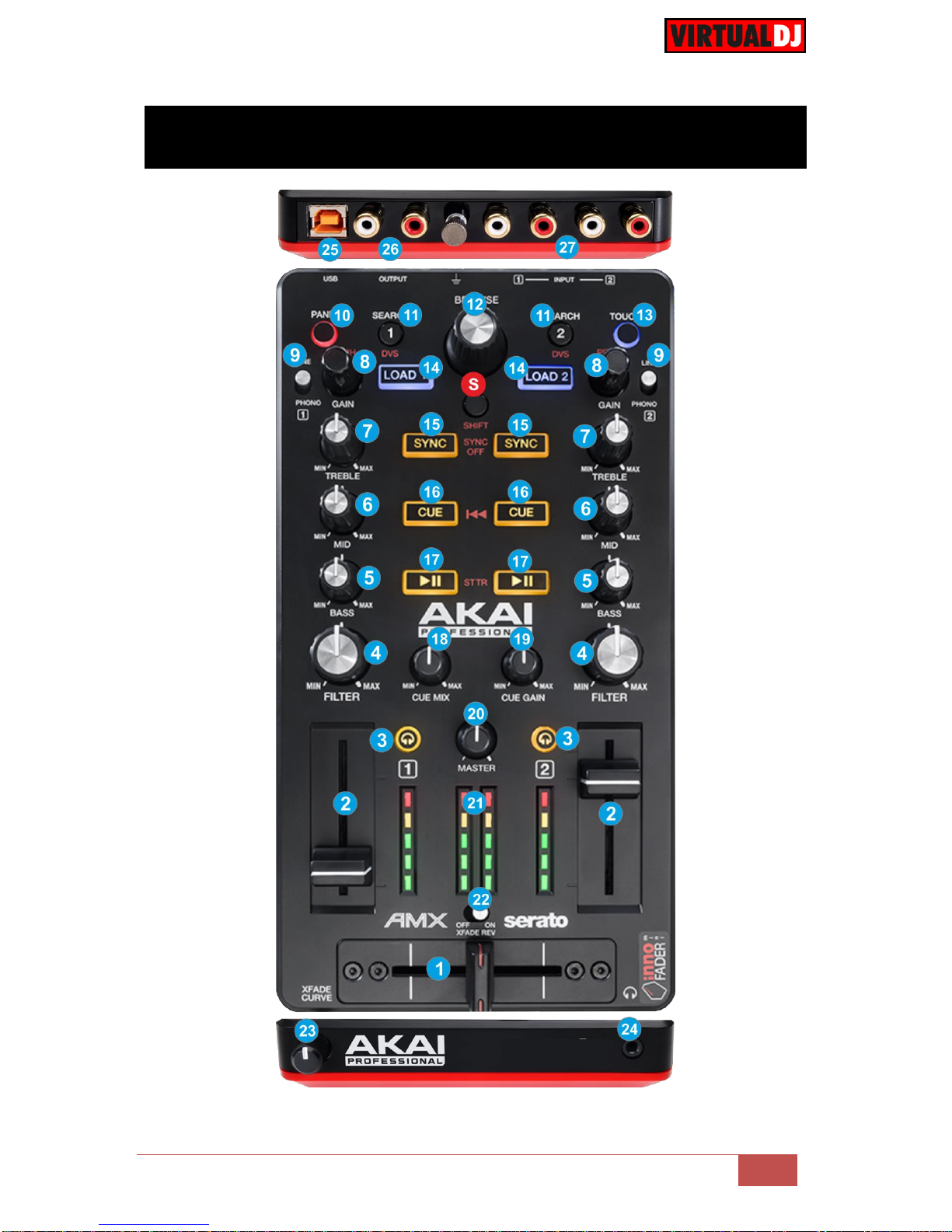

S. SHIFT. Press and hold this button down to access secondary functions (in red

lettering) of other controls on the AMX

1. CROSSFADER. Blends audio between the left and right channels/decks.

2. VOLUME. Use these faders to adjust the Output Volume of each mixer channel.

3. PFL. Press these buttons to send this channel's pre-fader signal to the Cue Channel

for monitoring. When engaged, the button will be lit. By pressing one PFL button at a

time, you will cue that channel alone (and deactivate PFL monitoring for the other

channels). To cue to both channels simultaneously, press both PFL buttons at the

same time.

4. FILTER. Applies a High-Pass / Low-Pass Filter on the software decks.

If the Touch mode is enabled, the knob will apply a Loop Roll along with the Filter.

The size of the loop roll starts from 1/2 beat (center position) and ends to 1/16 beat

(left or right end position)

5. EQ_LOW. Adjusts the low (bass) frequencies of each mixer channel. When Touch

mode is activated and the knob is touched, it will mute the corresponding channel's

low frequencies (aka "EQ kill") *.

6. EQ_MID. Adjusts the middle (mid) frequencies of each mixer channel. When Touch

mode is activated and the knob is touched, it will mute the corresponding channel's

mid frequencies (aka "EQ kill") *.

7. EQ_LOW. Adjusts the low (bass) frequencies of each mixer channel. When Touch

mode is activated and the knob is touched, it will mute the corresponding channel's

low frequencies (aka "EQ kill") *.

*Note. By default the EQ of VirtualDJ 8 is not set to Full Kill Mode. You may change that from

the Options tab of Settings.

8. GAIN. Adjusts the audio level (gain) of the left and right mixer channel.

Hold SHIFT down and then use these encoders to adjust the tempo (pitch) of each

deck.

9. LINE/PHONO. Flip this switch to the appropriate position, depending on the

connected device to the Line/Phono Inputs (27). If you are using phono-level

turntables, set this switch to Phono to provide the additional amplification needed for

phono-level signals. If using a line-level device, such as a CD player or sampler, set

this switch to Line

10. PANEL. Use this button to cycle through the available center panels of the default

skins of VirtualDJ (Mixer, Video, Scratch and Master).

Hold SHIFT down and then use this button to open/close the Sideview window of

Browser.

11. SEARCH. Press and keep this button down and then use the BROWSE encoder to

navigate (seek) through the loaded track of left or right deck respectively.

VirtualDJ 8 –AKAI AMX

Press and keep this button down and then use the SYNC buttons to temporary

slow-down or speed-up the tempo (pitch bend) of the left or right deck

respectively.

12. BROWSE. Scrolls through Folders or Files.

If a SEARCH buttons is held down, the encoder will navigate (seek) through the

loaded track of left or right deck.

BROWSE PUSH.Push the encoder to toggle focus between the Folders and the

Songs List of Browser.

If focus is on the Folders List, hold SHIFT down and then push the encoder to

expand/collapse sub-folders.

If focus is on the Songs List, hold SHIFT down and then push the encoder to add the

selected track to the Automix list of Sideview.

13. TOUCH. Use this button to enable/disable the Touch mode. If Touch mode is

enabled, the Filter knob will apply a Loop Roll and the EQ knobs will offer Kill actions

when touched.

The BROWSE and the GAIN encoders will offer Touch MIDI keys as well (not

assigned to any function by default)

14. LOAD. Press this button to load the selected track from the Browser to the left or

right deck. Hold SHIFT down and then press this button, to unload the same deck.

15. SYNC. Press this button to automatically match the corresponding Deck's tempo

with the opposite Deck's (or the Master Deck’s if using a 4 decks Skin) tempo and

phase.

Hold SHIFT down and press this button to smoothly reset the Pitch (Tempo) of the

track to its original value.

Hold the left or right SEARCH button down and then use these buttons to temporary

slow-down or speed-up the tempo (pitch bend) of the left or right deck

respectively.

16. CUE. When the Deck is paused, you can set a temporary Cue Point at the current

position of the track.

During playback, you can press the Cue Button to return the track to this Cue

Point. (If you did not set a Cue Point, then it will return to the beginning of the track.).

If the Deck is paused at the Cue point, you can press and hold the Cue Button to play

the track from the Temporary Cue Point. Releasing the Cue Button will return the

track to the temporary Cue Point and pause it. To continue playback without

returning to the Temporary Cue Point, press and hold the Cue Button, then press and

hold the Play Button, and then release both buttons.

Press and hold SHIFT and then press this button to return to the beginning of the

track.

17. PLAY. Plays / Pauses the track. Hold SHIFT down and then press this button to

"stutter-play" the track from the last set Cue Point.

VirtualDJ 8 –AKAI AMX

18. CUE MIX: Use this knob to mix between Cue and Program in the Headphone

channel. When all the way to the left, only channels routed to Cue (via the PFL

buttons) will be heard. When all the way to the right, only the Program mix will be

heard.

19. CUE GAIN. Adjusts the volume level of the headphone output.

20. MASTER VOLUME: Adjusts the Master Output Volume.

21. VU METERS. The Bar Leds will indicate the output level of the left, right and Master

Channel.

22. XFADE REV. Use this switcher to reverse the direction of the crossfader.

23. XFADE CURVE. Adjusts the slope of the crossfader curve. Turn the knob to the left

for a smooth fade (mixing) or to the right for a sharp cut (scratching). The center

position is a typical setting for club performances.

24. HEADPHONES SOCKET. Connect your 1/8" headphones to this output for cueing

and mix monitoring.

25. USB. This USB connection sends and receives audio and control information from a

connected computer. The AMX is USB powered.

26. MASTER OUTPUT: Use standard RCA cables to connect this output to a speaker or

amplifier system. The level of this output is controlled by the Master knob on the top

panel.

27. LINE INPUTS. Connect your audio sources to these inputs. Both Inputs can accept

line and phono-level signals.

DVS Support

The AMX is offering DVS (Digital Vinyl System) support with VirtualDJ 8. A timecode Plus or

Pro Infinity license is required.

Up to 2 Timecode Inputs can be assigned and control any software decks via

Timecode CDs or Vinyls. Both Mixer Channels can accept LINE (Timecode CDs) and

PHONO Sources (Timecode Vinyls) depending on the LINE/PHONO switchers at the top

panel of the unit.

Connect your Timecode devices at the rear panel of the AMX, open the AUDIO page of

VirtualDJ Config and click on the TIMECODE button of the INPUT tab. VirtualDJ will

automatically create the following Audio configuration.

VirtualDJ 8 –AKAI AMX

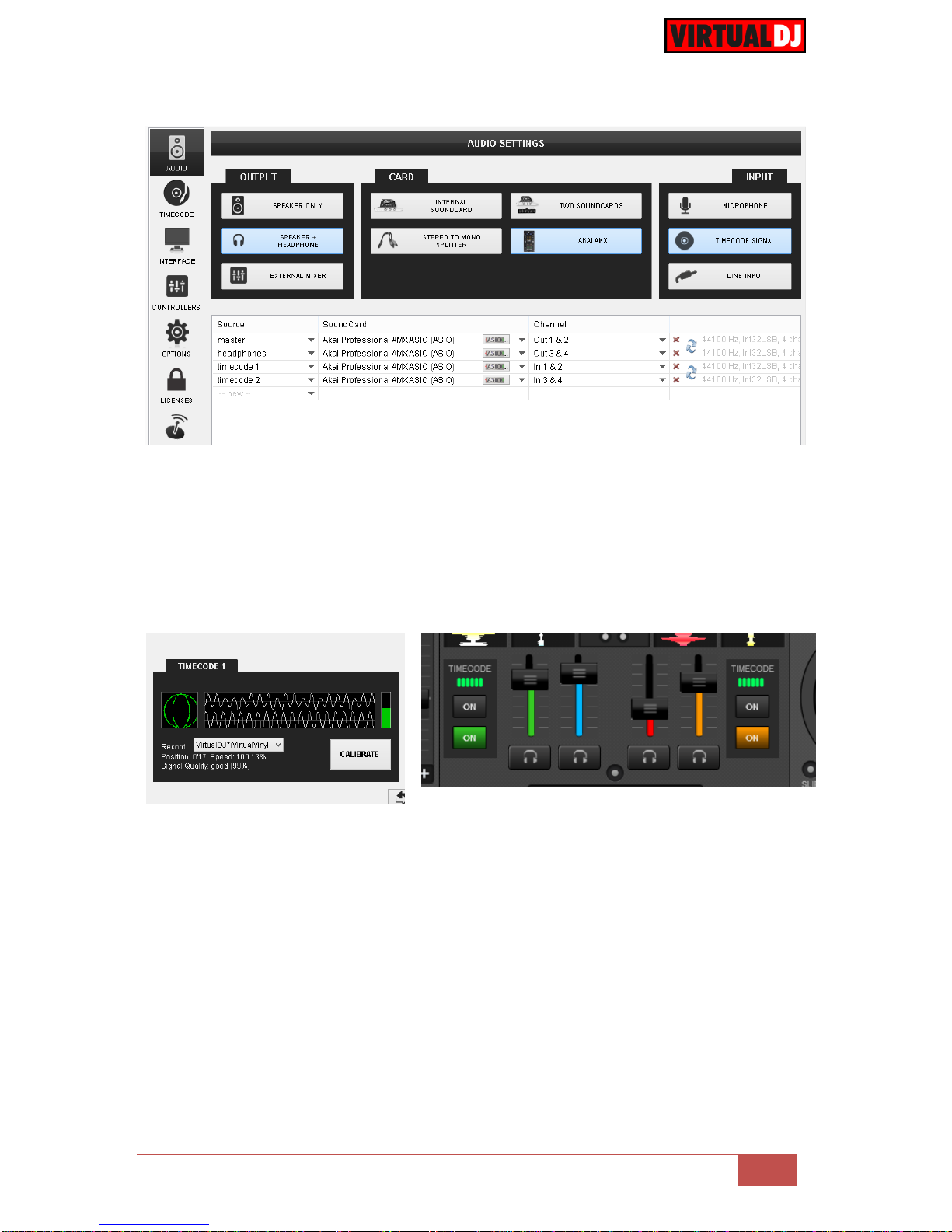

AMX - Timecode Audio Configuration

Click to APPLY and then open the newly appeared TIMECODE tab you will see in the

Config window. Press PLAY on your timecode CD or Vinyl device and VirtualDJ will

automatically detect your Timecode type and make the appropriate adjustments for best

performance. Choose the CALIBRATE button if for any reason the signal is not detected

(possibly due to reversed phase connections).

Timecode Detection

Timecode On/Off buttons - 4 Decks default skin

VirtualDJ 8 –AKAI AMX

Useful links

VirtualDJ web-page: http://www.virtualdj.com

VirtualDJ Support Center: http://www.virtualdj.com/contact/index.html

VirtualDJ 8 Operation Guides: http://www.virtualdj.com/wiki/PDFManuals.html

AKAI Professional web-page: http://www.akaipro.com/

AKAI Professional Support Center: http://www.akaipro.com/support

AKAI Professional AMX product page: http://www.akaipro.com/index.php/product/amx

AKAI Professional AMX User Guide: http://6be54c364949b623a3c0-

4409a68c214f3a9eeca8d0265e9266c0.r0.cf2.rackcdn.com/1245/documents/AMX-User-

Guide-v1.1.pdf

Hardware Integration Department

2014 - ATOMIX PRODUCTIONS

Reproduction of this manual in full or in part without written permission from Atomix

Productions is prohibited.
