Akuvox A092 Series Bedienungsanleitung

A092

Quick Guide

A092 x1

Before you begin using the device, please check the version you got and ensure that the following items are included in the

shipped box:

Unpacking

2x6-PIN terminal block x 1

Wall-mounting template x1

Silicon pad (for power supply) X1

Cable gland x1

Wire fastener x3

M3x5 crosshead screw x3

Silicone pad (for wire) x2

ST4x20 crosshead screw x3

Wire x9

Plastic wall anchor x3

Cable tie x5

2x9-PIN terminal block x 2

A092

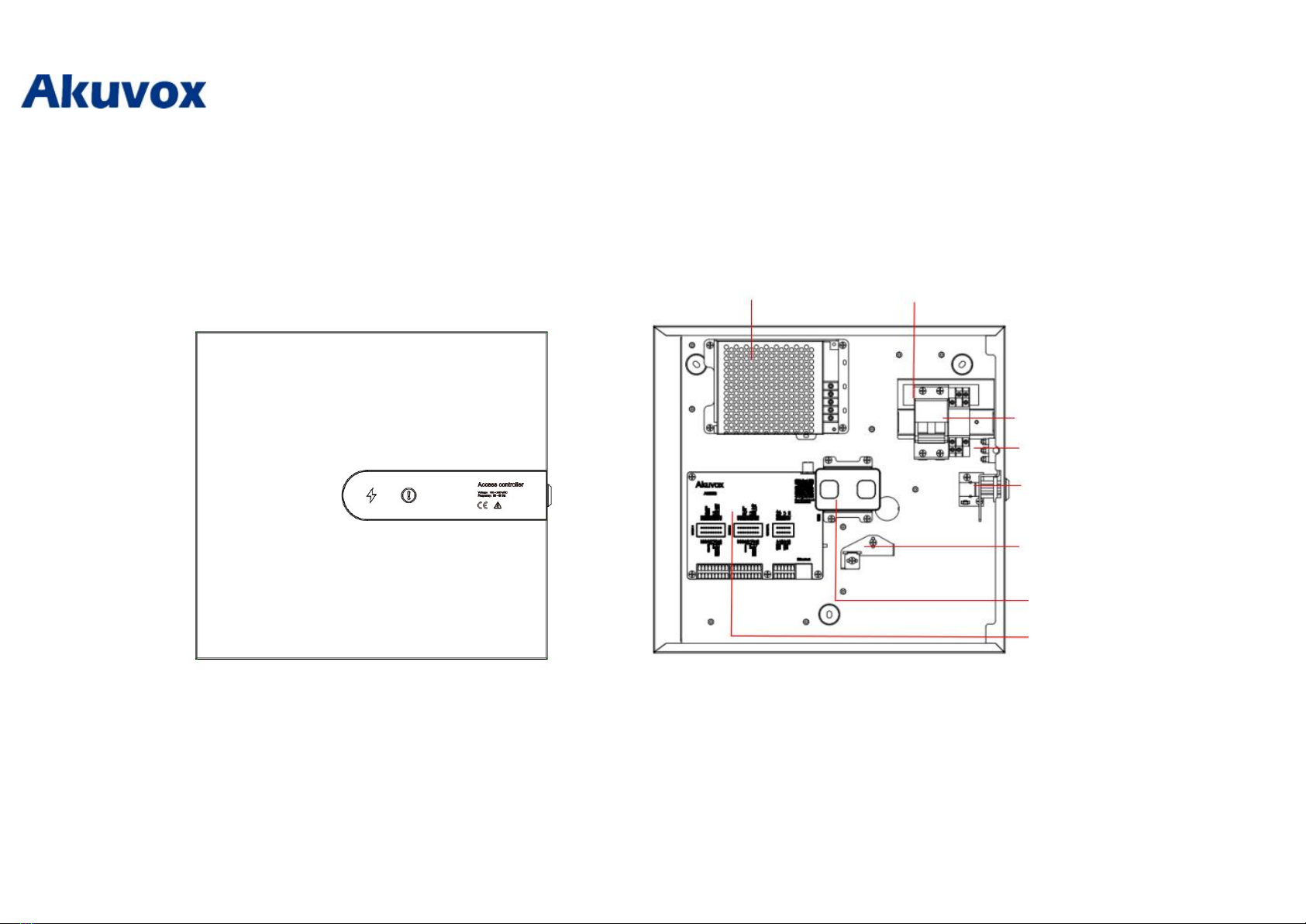

Product Overview

SNMPS

Aircircuit-Breaker

Independent Relay

Temper Proof Sensor

Lock

Backup Battery Bracket

Status Indicator

Main Board

A092

Installation

Stick the wall-mounting template on the

wall where the device needs to be

installed. According to the screw hole

position on the template, use an electric

drill to drill the hole with a diameter of

6mm and a depth of 25mm.

Insert plastic wall

anchors into the holes.

Knock a lead hole with the

appropriate tool according to

the desired wiring position.

Fix A092 with three ST4x20

crosshead screws on the wall.

Place silicone pad for lead

hole.

Please place cable gland or

silicone pad as the figure shown

according to your need.

A092

The installation is done,

and please lock the cover.

Then remove the

Place the battery as shown in

the figure, and use the fixing

plate and M3X5 crohsshead

screw to fix it.

Connect the provided wire as

shown in the figure, then use

M3X5 crosshead screw and

wire fastener to fix the wire on

the A092.

A092

Device Wiring

A092

Operation

A092 controller can realize the independent control of two doors; Each door can be connected with an electric lock, 2 card readers (inside and outside) 2

key input.

Unlock Door

1. After swiping the card on the card reader, A092 will unlock the electronic lock;

2. Press the door button, A092 will unlock the electric lock.

Fire Alarm

When the fire alarm is triggered, A092 will unlock the electronic lock of all doors.

Configuration

1. While A092 starts up normally, click Search key in the IP Scanner tool to search the IP address. (Please consult Akuvox Technical Team for IP Scanner

tool).
