Programming and Operating Instruction Manual

Wireless Keypad

www.WholesaleGateOpener.com

NOTE: Please read this manual carefully before install and use.

Model: LM172

“Learn” Transmitter code

Make sure the control board of the opener is power on and in standby

mode (LED flashes “ ”(“- -”)).

Use For LM/MK Series Swing Gate Opener

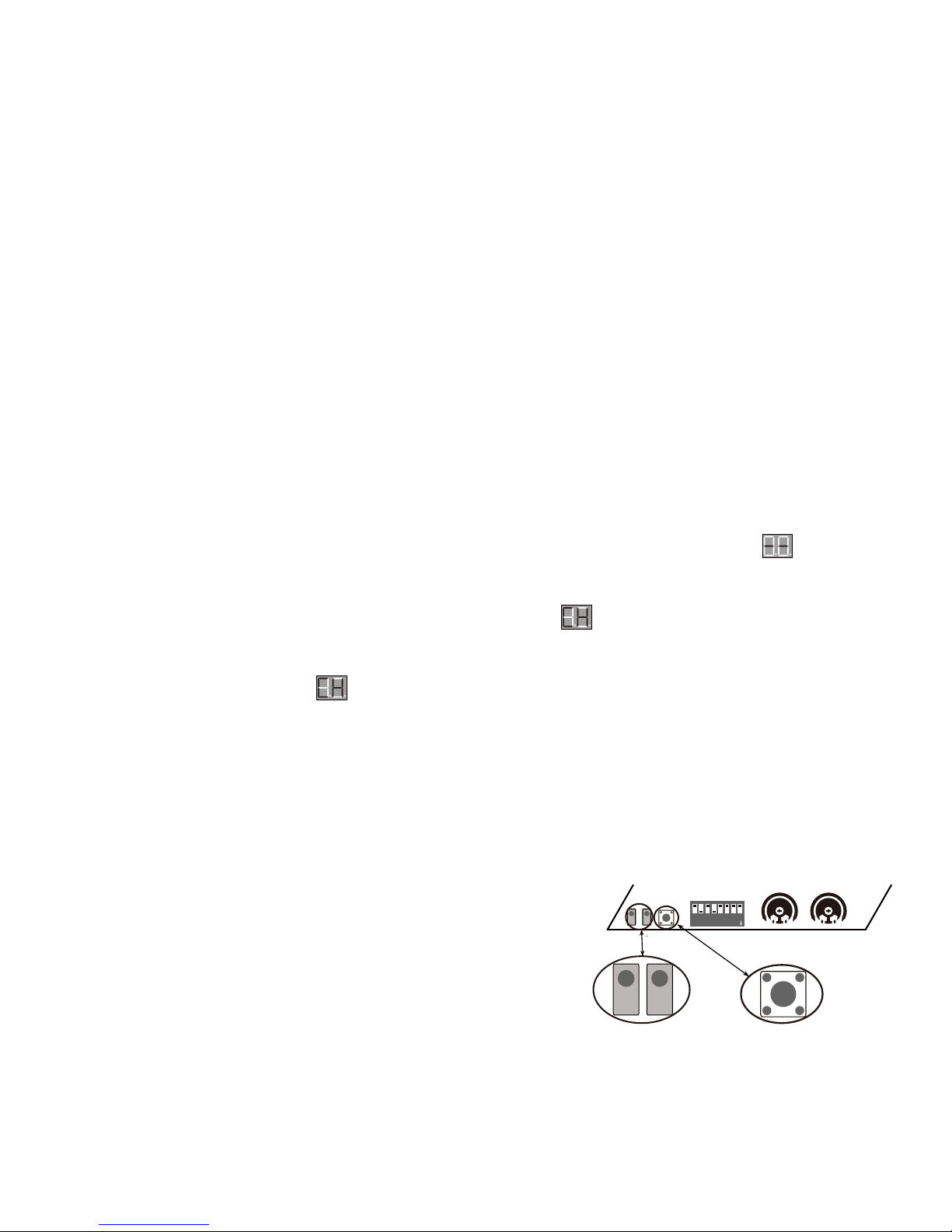

Control Board of LM/MK

Series Swing Gate Opener

Step 1. Press and release “LEARN” button and then LED will

display “ ”(“Ln”).

Step 2. Press ”OK” button on the Keypad LM172 once to learn

the keypad. Once the keypad has been learnt successfully, LED

of the control board will flashes “ ”(“Ln”) for 2 seconds and then

flashes “ ” (“- -”) again.

Now you can use the factory default password “888888” to operate the

gate opener (Refer to the chapter “HOW TO OPERATE LM/MK SERIES

SWING GATE OPENER” in manual).

NOTE: Once LED displays “ ”(“Ln”), you must press the “OK” button on the wireless keypad

within 1-2 seconds to learn the transmitter code, or you may have to start over.

Thank you for purchasing the Wireless Keypad (LM172). The keypad has been integrated a LED backlight

key feature. It will bring you great pleasure and convenience while you use it to operate LM/MK series

Swing Gate Opener and DSC/R or SFG/SCG series Sliding Gate Opener. Be sure to read the manual

carefully and completely before you permanently mounting the keypad, please program the keypad and

test its range.

NOTE:

3×AAA(1.5V) battery is required to

power the keypad

Battery Holder

Use 3×AAA(1.5V) battery

Keypad Description

Introduction

13 14 15 16 17 18

+ BAT - - SOLAR + PHOTOCELL

O/S/C

INC FUNC DEC

LEARN

LED backlight key

NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code,

each button should be pressed within 1 second. If an error has occurred, the beep will sound for

2 seconds before returning to normal operation. Please try again.

How to Operate LM/MK Series Swing Gate Opener

Once the keypad LM172 has been learnt successfully, you can use default code to operate the gate.

Step 1. Press and release “PIN” button on the keypad LM172 and then enter the 6 digits entry code.(factory

default entry code is “888888”)

Step 2. Press the ”OK” button within 1 second after step 1 to move the gate.

1. When the gate stops in some positon and the opener is in standby mode, you can make it to

move via the following steps:

2. You can press the ”OK” button at anytime to stop the moving gate.(Entry code is not needed).

NOTE: If the Keypad LM172 is installed outside of the gate to open the gate, and no Keypad is installed

inside of the gate, we strongly recommend you set the auto-close function in circuit board in control

box. Refer to Installation and Operation Manual page 22.

“Learn” Transmitter code

Use For DSR/DSC Series Sliding Gate Opener

Make sure the control board of opener is power on and in

standby mode (PWR LED is on and REM LED is off, gate is stop).

Control Board of DSR/DSC 1000/600

45 6 7 8321

MIN MAX MIN MAX

DIP

Learn ButtonREM LED PWR LED

Step 1. Press and release “Learn” button of the control board, and then

REM LED will be on.

Step 2. Press the ”OK” button once on the keypad LM172

to learn the transimitter code. If the keypad has been

learnt successfully, the REM LED will flash for 2 seconds

and then back to off. Now you can use the factory defaut code to operate the

gate (Refer to the chapter “HOW TO OPERATE DSR/DSC 1000/600 DSR400” in manual) .

NOTE: The “OK” button should be pressed within 1 second after step 1, or you may have to

start over.

Programming the new entry code

For safety reason, you may change the factory default entry code or old entry code to your new

code but the keypad must be learnt successfully with control board of swing gate opener before

you try to change the entry code.

Make sure the control board of the opener is power on and in standby mode (LED flashes “ ”“(- -)”).

Step 1. Press and release “PIN” button on the keypad LM172 and then enter the 6 digits default or old entry

code. (factory default entry code is “888888”)

Step 2. Press and release “PIN” button on the keypad LM172, “ ”(“CH”) will display on the LED of the

control board.

NOTE: Every step for pressing button during program must be finished within 1 second to ensure success-

-full program.

Step 3. Enter your 6 digits new entry code and press “PIN” button to store it. The entry code has been updat-

-ed successfully while “ ”(“CH”) flashes for 2 seconds on LED of the control board.

How to Operate DSR/DSC Series Sliding Gate Opener

Once the keypad LM172 has been learnt successfully, you can use default code to operate the gate.

Step 1. Press and release “PIN” button on the wirelesskeypad and then enter the 6 digits entry code.(factory

defaut entry code is “888888”)

Step 2. Press the “OK” button within 1 second after step 1 to move the gate.

1. When the gate stops in some positon and the operator is in standby mode, you can make it to

move via the following steps:

2. You can press the “OK” button at anytime to stop the moving gate(Entry code is not needed).

Programming the new entry code

Make sure the control board of opener is power on and in standby mode (PWR LED is on and REM LED

is off, gate is stop).

Step 1. Press and release “PIN” button on the keypad LM172 and then enter the 6 digits default or old entry

code. (factory default entry code is “888888”)

Step 2. Press and release “PIN” button on the keypad LM172, REM LED of the control board is ON waiting

for user to input the new entry code.

Step 3. Enter your 6 digits new entry code and press “PIN” button to store it. The entry code has been updat-

-ed successfullu while REM LED flashed for 2 seconds on control board.

For safety reason, you may change the factory default entry code or old entry code to your new

code but the keypad must be learnt successfully with control board of sliding gate operator before

you try to change the entry code.

NOTE: Every step for pressing button during program must be finished within 1 second to ensure success-

-full program.

LNSW

LEARN

12 3 4 5 6 7 8

4 5321

MIN

MAX

MIN

MAX

N LA LB U W V

10 11 12 13 14 15 16 17

XB2 XB1 UP COM DN +12 GND PHO COM O/S/C

LNSW

PWR LEARN

OPLD CLLD PHOTO O/S/C

UP DN

OPEN CLOSE

Control Board

REM LED

Learn Button

PWR

PWR LED

“Learn” Transmitter code

Use For SCG/SFG Series Sliding Gate Opener

Make sure the control board of opener is power on and

in standby mode (PWR LED is on and REM LED

is off, gate is stop).

Step 1. Press and release “Learn” button of

the control board, and then REM LED

will be on.

Step 2. Press the ”OK” button once on the keypad LM172 to learn the transimitter code.

If the keypad has been learnt successfully, the REM LED will flash for 2 seconds and then back to

off. Now you can use the factory defaut code to operate the gate (Refer to the chapter “HOW TO

OPERATE SCG/SFG SERIES SLIDING GATE OPENER” in manual) .

NOTE: The “OK” button should be pressed within 1 second after step 1, or you may have to

start over.

NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code,

each button should be pressed within 1 second. If an error has occurred, the beep will sound for

2 seconds before returning to normal operation. Please try again.

NOTE: If the Keypad LM172 is installed outside of the gate to open the gate, and no Keypad is installed

inside of the gate, we strongly recommend you set the auto-close function in circuit board in control

box. Refer to Installation and Operation Manual page 15.

Fig.1

How to change the battery of Keypad (LM172)

Step 1: Remove the black cover with slotted screwdriver then you will find 2 screws.

Step 2: Remove the front panel with screwdriver, uncover the battery holder and replace the battery.

Step 3: Restore the back cover and front cover with cross screwdriver.

Ref to the Figure 1~6.

Fig.2

How to Operate SCG/SFG Sliding Gate Opener

Once the keypad LM172 has been learnt successfully, you can use default code to operate the gate.

Step 1. Press and release “PIN” button on the wirelesskeypad and then enter the 6 digits entry code.(factory

defaut entry code is “888888”)

Fig.2

Step 2. Press the “ OK ” button within 1 second after step 1 to move the gate.

1. When the gate stops in some positon and the operator is in standby mode, you can make it to

move via the following steps:

2. You can press the “ OK ” button at anytime to stop the moving gate(Entry code is not needed).

Programming the new entry code

Make sure the control board of the opener is power on and in standby mode (PWR LED is on and

REM LED is off, gate is stop).

Step 1. Press and release “PIN” button on the keypad LM172 and then enter the 6 digits default or old entry

code.(factory default entry code is “888888” )

Step 2. Press and release “PIN” button on the keypad LM172, REM LED of the control board is ON waiting

for user to input the new entry code.

Step 3. Enter your 6 digits new entry code and press “PIN” button to store it. The entry code has been updat-

-ed successfully while REM LED flashes for 2 seconds on control board.

For safety reason, you may change the factory default entry code or old entry code to your new

code but the keypad must be learnt successfully with control board of sliding gate operator before

you try to change the entry code.

NOTE: Every step for pressing button during program must be finished within 1 second to ensure success-

-full program.

NOTE: The beeper of the keypad LM172 will beep at the press of any key. When you enter the entry code,

each button should be pressed within 1 second. If an error has occurred, the beep will sound for

2 seconds before returning to normal operation. Please try again.

NOTE: If the Keypad LM172 is installed outside of the gate to open the gate, and no Keypad is installed

inside of the gate, we strongly recommend you set the auto-close function in circuit board in control

box. Refer to Installation and Operation Manual page 14.

Fig.3

Wall

The wireless keypad LM172 should be installed outside of the property (Pull to Open) and on the same

side of the driveway where the control box is installed. The distance between the keypad and control

box should not exceed 5 meters.

Mounting position suggested

If the keypad is installed on the opposite side of the driveway, the keypad operation maybe interfered by

the electromagnetic waves from a passing vehicle.

Refer to the Fig.7.

Installation of the keypad

NOTE: We suggest you use the wired keypad (LM106/LM106M) take place of the wireless keypad for

installation in the locations where the frequency interference is restricted, nearby airport for ex-

-ample or the control box is installed far way from the gate operator (father than 30’ or 10 meter).

Fig.4 Fig.6

Fig.5

Driveway

Inside Property

Photocell Beam System

Keypad

LM172

Control Box

Driveway

Inside Property

Photocell Beam System

Keypad

LM172

Control Box

Fig.7

123

Note: The mounting holes of the keypad has not been penetrated, you should use one tool with

sharp head to penetrate them. Install the keypad by the following figure.

penetrate the mounting holes before you install the keypad

Step 1: Open the control box, the black color antenna can be found in the side of PCB.

Step 2: Draw the antenna straight and pull it through the cable hole in the bottom of the control box.

Ref to the figure 8, 9 and 10.

Fig.8

Antenna

Fig.9 Fig.10

Trouble Shooting

1. Fail to learn the transimitter code.

a. Check if the battery is exhausted.

b. Re-learn the keypad anear the control board.

c. Once the control board is ready to learn the keypad, press the “OK” button within 1 second.

2. Fail to operate the gate with keypad.

a. Check if the battery is exhausted.

b. The distance is too far to use the keypad (Refer to the chapter ”How to increase the control distance

of keypad”).

3. Forget your own entry code.

Re-learn the keypad according to the manual. The entry code would be “888888” if the keypad has been

learnt successfully.

The designed remote range of the Keypad is 5~10 meters. If you find that the Keypad is not sensitive

enough in on-site installation, we suggest you enhance the remote range by the following method.

How to increase the control distance of keypad

sales@WholesaleGateOpener.com

www.WholesaleGateOpener.com

Inhaltsverzeichnis

Andere Aleko Tastenfeld Handbücher

Aleko

Aleko LM106 Bedienungsanleitung

Beliebte Tastenfeld Handbücher anderer Marken

BFT

BFT SELETTO Bedienungsanleitung

Micro Id

Micro Id MP7G3BL Gebrauchsanweisung

WindowMaster

WindowMaster WLI 130 Bedienungsanleitung

ACT

ACT ACT PRO 1030 Bedienungsanleitung

Cardin

Cardin SSB Series Bedienungsanleitung

Harman Kardon

Harman Kardon KP 1 Bedienungsanleitung

Chamberlain

Chamberlain KPR2000 Benutzerhandbuch

CYP

CYP CR-KP1 Bedienungsanleitung

Aeware

Aeware k-35 Series Referenzhandbuch

Aritech

Aritech CS-175 Series Bedienungsanleitung

GE NetworX NX-1600E Series Bedienungsanleitung

Lenze AC Tech

Lenze AC Tech MC SERIES Bedienungsanleitung

Burg Wächter

Burg Wächter secuENTRY 7711 Bedienungsanleitung

Aeware

Aeware in.k450 Bedienungsanleitung

Lenze

Lenze EPM-H410 Bedienungsanleitung

Toshiba

Toshiba RKP007Z Bedienungsanleitung

Gemini

Gemini GEM-DXK1 KEYPAD Bedienungsanleitung

Russound

Russound MDK-C5 Betriebsanleitung
