Aleratec LightScribe Duplicator SA 260201 Bedienungsanleitung
®
USER GUIDE
Aleratec 1:3 Blu-ray/DVD/CD
LightScribe Duplicator SA™
Part No. 260201
www.aleratec.com
Copyright/Model Identification
The content of this manual is for informational purposes only and is subject to
change without notice.
This manual is copyright with all rights reserved. Under copyright laws, this manual
and the software described within may not be copied, except in the normal use of the
product(s) described within or to make a backup copy.
Copyright© 2011
Aleratec, Inc.
9851 Owensmouth Avenue
Chatsworth, CA 91311 U.S.A.
Aleratec® is a registered trademark, and 1:3 Blu-ray/DVD/CD LightScribe
Duplicator SA™ is a trademark of Aleratec, Inc
Check out Aleratec Online!
• aleratec.com
• facebook.com/Aleratec
• twitter.com/Aleratec
• youtube.com/Aleratec
Please record the following information to help expedite any warranty claim:
Model No. _________________________ Serial No.________________________
Date Purchased _______________________________________________________
Place of Purchase _____________________________________________________
www.aleratec.com
Radio/TV Interference Statement
The equipment described in this guide emits radio frequency energy. If it is
not installed in accordance with the manufacturer’s instructions, it may cause
interference with radio or television reception.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation.
This equipment generates, uses, and can radiate radio frequency energy. If not
installed and used in accordance with the instruction manual, this equipment may
cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be veried
by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an electrical outlet on a circuit that is different from
the circuit to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
This equipment has been certied to comply with the limits for a Class B computing
device, pursuant to FCC Rules. In order to maintain compliance with FCC
regulations, shielded cables must be used with this equipment. Operation with non-
approved equipment or unshielded cables is likely to result in interference to radio
and TV reception. The user is cautioned that changes and/or modications made to
this equipment, without the approval of manufacturer, could void the user’s authority
to operate this equipment.
www.aleratec.com
Safety Regulations
WARNING
To prevent re or shock hazard, do not expose the unit
to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to authorized personnel only.
CAUTION
As the laser beam in these 1:3 Blu-ray/DVD/CD
LightScribe Duplicator SA is harmful to the eyes, do
not attempt to disassemble the cabinet. Refer servicing
to authorized personnel only.
The use of optical instruments with this product will
increase eye hazard.
This BD/DVD/CD Duplicator is classied as a CLASS
1 LASER PRODUCT.
The CLASS 1 LASER PRODUCT label is located on
top of the internal drive enclosure.
CLASS 1
LASER PRODUCT
LASER KLASSE 1
PRODUKT
www.aleratec.com
Table of Contents
Introduction ...................................................................................................1
Product Features ...................................................................................................1
Key Items – 1:3 Blu-ray/DVD/CD LightScribe Duplicator SA ..........................2
1:3 Blu-ray/DVD/CD LightScribe Duplicator SA: LCD Front Panel .................3
1:3 Blu-ray/DVD/CD LightScribe Duplicator SA: Removable Hard Disk Drive ....4
Precautions ...................................................................................................5
Before you start: ...................................................................................................5
Overview ........................................................................................................7
Unpacking the Unit ..............................................................................................7
Connect the Cables and Apply Power ..................................................................7
LightScribe Software Installation ........................................................................8
Using the LightScribe Labeling Software ..........................................................13
Other Label Printing Related Options ................................................................15
Control Functions...............................................................................................16
Stand-Alone Duplicator SA: Tutorials ......................................................17
Making Disc-to-Disc Copies ..............................................................................17
Load Source Files onto the Hard Drive .............................................................22
Load Master Disc onto the Hard Drive ..............................................................24
Rename Existing Hard Drive Partition Name ....................................................28
Delete Existing Hard Drive Partition Permanently ............................................30
How to Make Copies from the Hard Drive ........................................................32
Select Burn Speed ..............................................................................................37
Select the Source drive .......................................................................................39
Change the SETUP Settings ..............................................................................41
Audio CD Editing ..............................................................................................42
Introduction to Manage Accounts .....................................................................50
Manage Accounts: Overview .............................................................................51
Introduction to Duplication Mode .....................................................................54
Using AUTOCOPY ............................................................................................57
Menu Overview ...........................................................................................59
Troubleshooting .........................................................................................66
Recommended Media ................................................................................70
Technical Support ......................................................................................71
Service and Support ...................................................................................73
Technical Support FAX Back Form ...........................................................75
www.aleratec.com
®
www.aleratec.com 1
Introduction
Thank you for purchasing the 1:3 Blu-ray/DVD/CD LightScribe Duplicator SA.
Please read this User Guide thoroughly before using this product.
Product Features
The Aleratec 1:3 Blu-ray/DVD/CD LightScribe Duplicator SA is a stand alone
LightScribe disc publishing system with the capability of simultaneously producing
up to 3 BD/DVD/CD copies or 3 clearly labeled DVD/CD discs, and no computer is
required.
• Removable Hard Disk Drive to store disc images and label les.*
• Aleratec only USB fast key instantly connects Hard Drive to a PC.
• BD/DVD/CD source drive for fast on the y copies.
• Laser burns disc labels.*
• Powerful Aleratec Disc Publishing Suite and LightScribe Labeling Software
included.
*Note: There is currently no LightScribe Blu-ray media available.
www.aleratec.com
2
Introduction
Key Items – 1:3 Blu-ray/DVD/CD LightScribe Duplicator SA
*Note: There is currently no LightScribe Blu-ray media available.

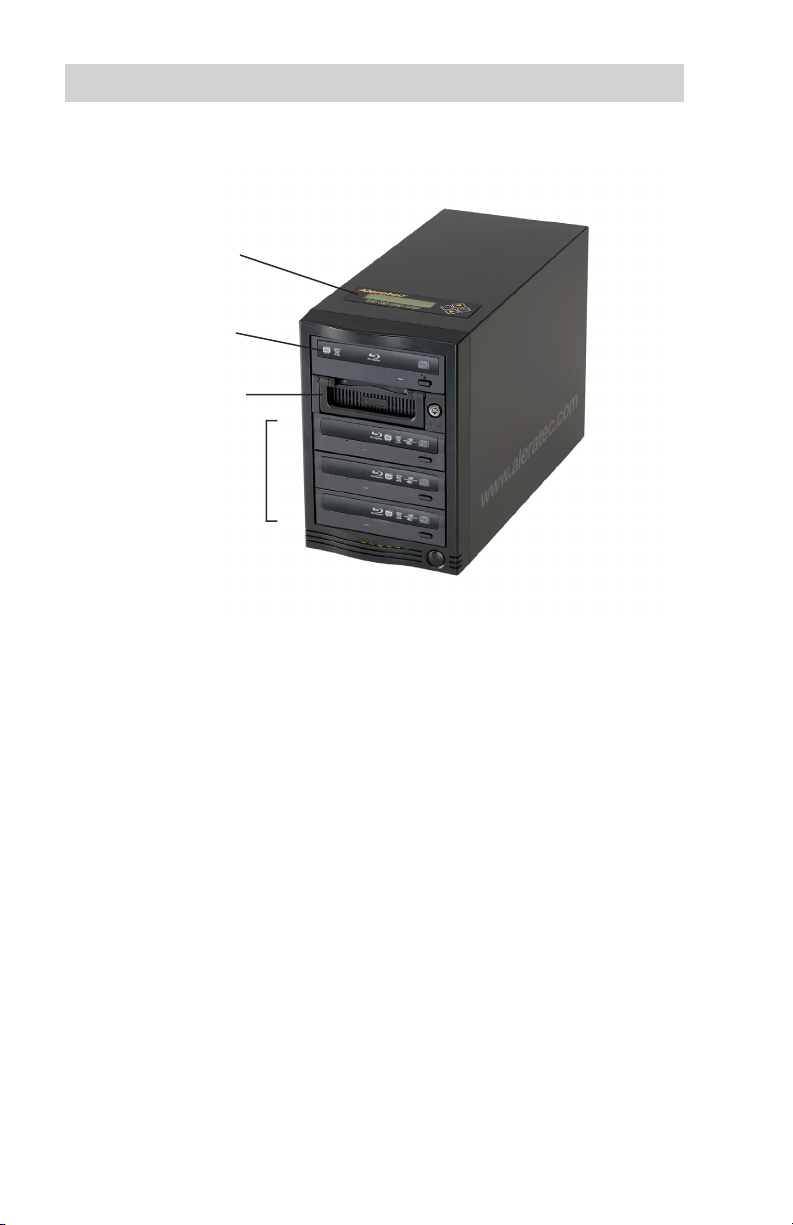

Control Panel
Removable
Hard Disc Drive
(see page 4)
BD/DVD/CD
Source Drive
BD/DVD/CD RW
LightScribe Drives*
www.aleratec.com 3
Introduction
1:3 Blu-ray/DVD/CD LightScribe Duplicator SA: LCD Front Panel
(View may vary from picture)

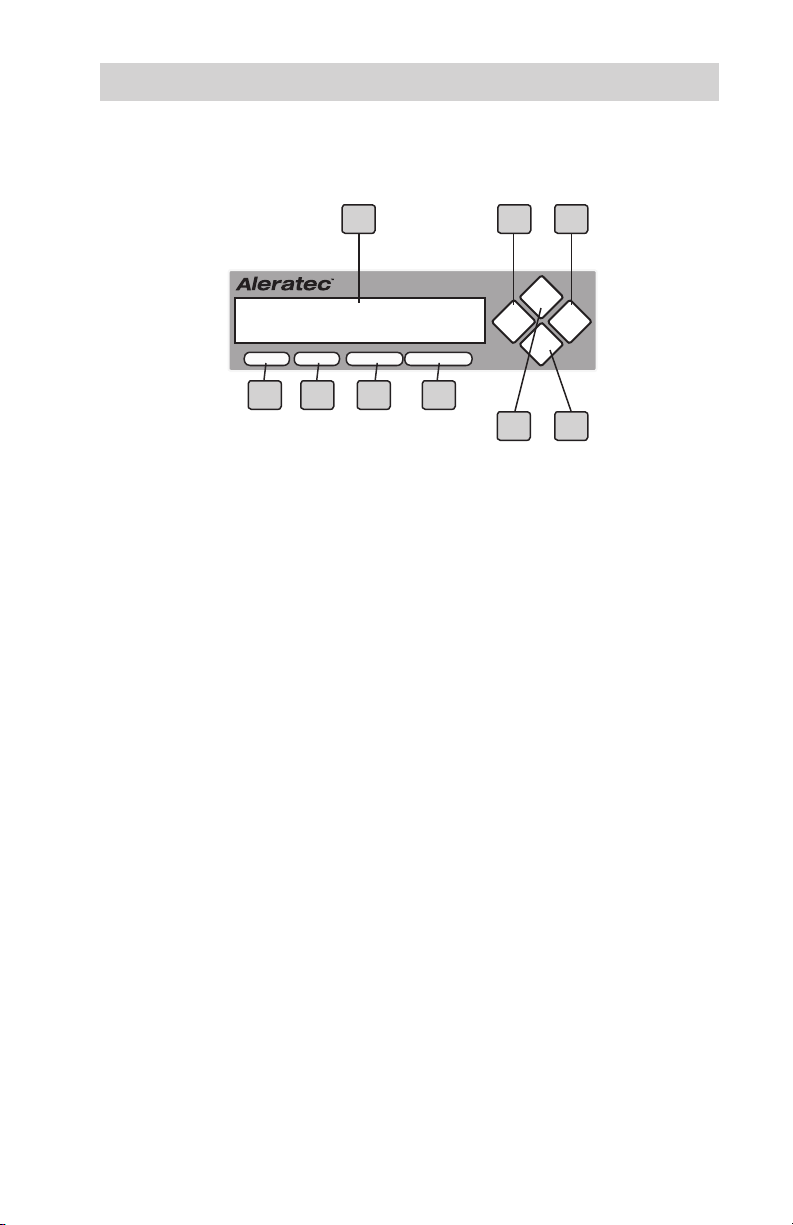

1. Display shows all functions and messages
2. ESC button is used to cancel a selected function
3. ENT button is used to execute a selected function
4. COPYbutton will start the “Autocopy” menu function. (See page 59 for more
information)
5. USB button will take you directly to the USB On/Off mode option. (See page
65 for more information)
6. PRINTbutton will take you directly to the print menu.
7. SOURCE button will allow you to change the Source drive that the duplicator
uses for loading Master Discs. The default for this option is the BD/DVD/CD
source drive. (See page 33 for more information)
8. UP arrow is used to scroll up through functions or menus
9. DOWN arrow is used to scroll down through functions or menus
ESC
Initialize Duplicator
1-3 ver: X.XX
8
13
9
2
ENT
COPY USB SOURCEPRINT
4 5 6 7
www.aleratec.com
4
Introduction
1:3 Blu-ray/DVD/CD LightScribe Duplicator SA: Removable Hard
Disk Drive
Your Duplicator SA is equipped with a removable hard disk drive (HDD) for storing
images of frequently copied discs. Storing an image of a disc you want to copy on
an HDD improves duplication speed, and adds the convenience of not having to look
around for the actual source disc you want to copy.
Your removable HDD provides extra security, in that you can remove the drive
containing the disc images and put it in a safe place where no un-authorized users can
copy or view the data.
The removable HDD includes a keyed lock to protect the data on the drive from being
misused or stolen. The HDD is used in the copy process as described in the following
pages of this user guide.
Note: You can use the duplicator to copy directly from BD, DVDs or CDs with
or without the HDD. Just place your source disc in the BD/DVD/CD source
drive or any of the BD/DVDRW writers.
To remove the HDD:
1. Unlock the HDD by inserting the key and turning it left (counterclockwise) 1/4
turn. The drive is now in the unlocked position.
2. Lift the HDD carriage lever upward and pull out. The HDD carriage will come
out of the tower and a protective drive bay door will close.
To replace the HDD:
1. Align the HDD carriage with the door opening and push the drive carriage
through the protective drive bay door until you feel the drive seat in its connector.
2. Push the HDD carriage lever down, then insert your key and turn it 1/4 turn to
the right (clockwise). The HDD is now in its locked position. You can remove
the key.
Note: The HDD will not work unless it is secured in position with the carriage
lever and locked with the key. Do not unlock the HDD during operation, as you
will destroy any copies you are making.

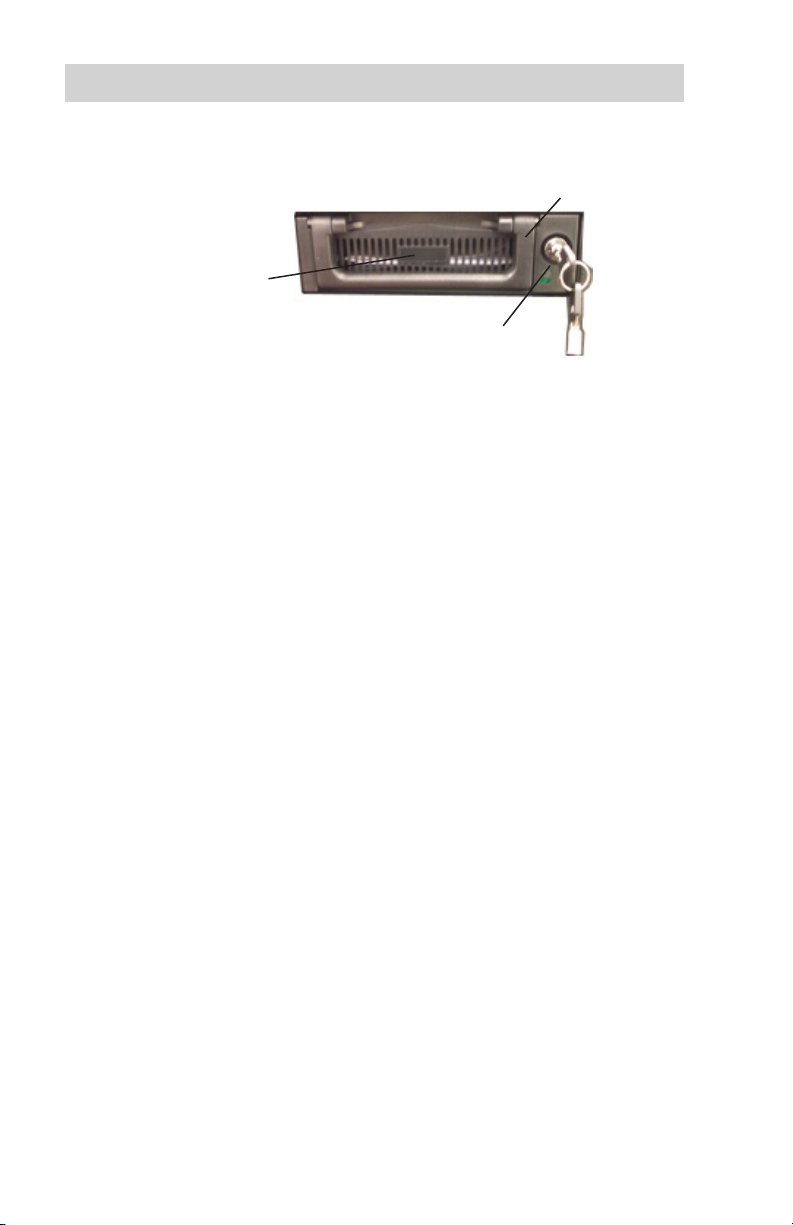

Removable Hard Disk
Drive
Key in Lock
Carriage Lever
