Installation Guide

This document contains an abbreviated version of the installation instructions for the

MWS Series Access Points Installation Guide. For the complete installation instructions

including the installation safety statements, see the product documentation on the Allied

Telesis web site at www.alliedtelesis.com.

Safety and Electromagnetic Emissions Certificates

For Safety and Electromagnetic Emissions certificates, refer to MWS Series Access

Point Installation Guide.

European Union Restriction of the Use of Certain Hazardous

Substances (RoHS) in Electrical and Electronic Equipment

This Allied Telesis RoHS-compliant product conforms to the European Union Restriction

of the Use of Certain Hazardous Substances (RoHS) in Electrical and Electronic

Equipment. Allied Telesis ensures RoHS conformance by requiring supplier Declarations

of Conformity, monitoring incoming materials, and maintaining manufacturing process

controls.

Europe - EU Declaration of Conformity

This device complies with Directive 2014/53/EU issued by the Commission of the

European Community. For more information, refer to MWS Series Access Point

Installation Guide.

NoteNote

Contact Allied Telesis for the EU conformity statement. To contact Allied Telesis,

visit our web site at www.alliedtelesis.com.

Redundancy Power Supply

The access point is equipped with one PoE+ capable LAN port and a DC power supply

jack. If the power supply unit on the access point fails or is not connected, the access

point draws its power through the PoE+ LAN port.

NoteNote

The AC adapter is not included in the shipping box. You must purchase the

AT-MWS0091 AC adapter separately.

permission from Allied Telesis, Inc.

Installation Orientations

The access point can be installed on a table, ceiling, or wall.

The access point must be installed on the wall in the following orientations. In other

orientations, the access point cannot have a proper airflow.

LEDs

Components in the Shipping Box

Quick Installation Guide

AT-MWS600AP

Simultaneous Dual Band Access Point

613-002488 Rev. A

*613-002488 Rev A*

LED State Description

Power Orange The access point is powered ON and operating

normally.

Off The access point is not receiving power.

LAN Blue A valid link is established on the port.

Blinking Blue Data is being transmitted/received.

Off No link is established.

2.4GHz Wi-Fi

Blue The 2.4GHz WiFi interface is enabled.

Blinking Blue Data is being transmitted/received at the 2.4GHz

frequency band.

Off The 2.4GHz Wi-Fi interface is disabled.

5GHz Wi-Fi

Green The 5GHz WiFi interface is enabled.

Blinking

Green

Data is being transmitted/received at the 5 GHz

frequency band.

Off The 5GHz Wi-Fi interface is disabled.

Nor supported.

Correct Table Installation Correct Ceiling Installation

4351

4352

Name and Description Component

Mounting

Base Kit

1 x Mounting Base

2 x Screw for the mounting base

(M2.6 9.8mm)

Rail Clip Kit

2 x Narrow rail clip

2 x Wide rail clip

2 x Spacer

2 x Short screw to attch a rail clip

without the spacer or attach to

the access point directly

2 x Long screw to attach a rail

clip with the spacer

4350

1 2 3

Hard-Surface Ceiling and Wall Installation

What to Prepare

AT-MWS600AP access point

Two screws to attach the access point directly

Mounting base

Two screws for the mounting base

Phillips-head screwdriver

Pencil

NoteNote

A Phillips-head screw driver and pencil are not included in the shipping box.

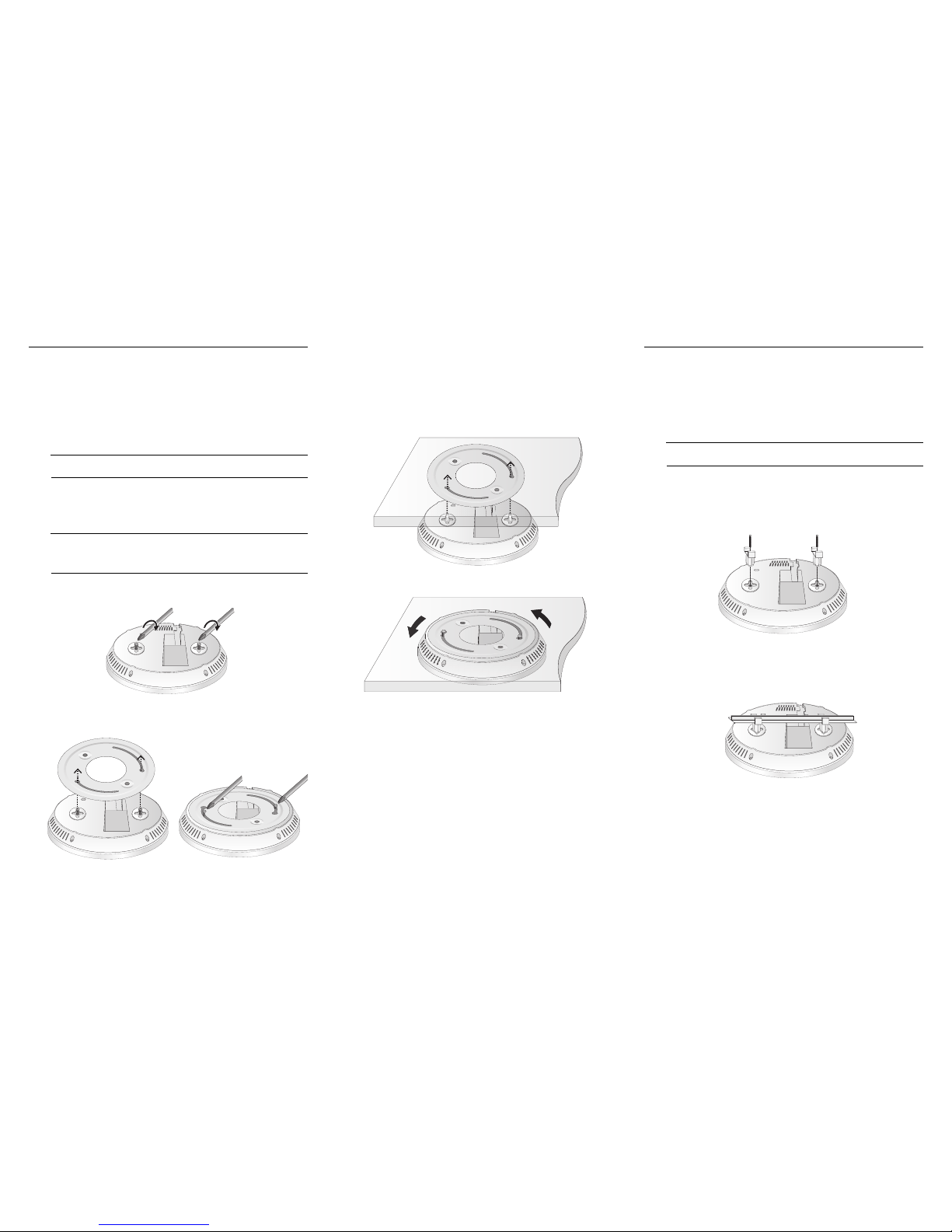

Installing the Access Point on a Hard-Surface Ceiling and Wall

To install the access point on the hard-surface celling or wall, perform the following

procedure:

NoteNote

Attaching the access point to the mounting base plate may not be easy once the

mounting base plate is installed on a ceiling or wall. Practice Step 11 to Step 12

before installing the mounting base plate on a ceiling or wall.

1. Review the safety precautions.

2. Attach the two screws to the access point.

3. Apply the mounting base to the access point and adjust the height of the screws

where the access point can be turned to be secured to the mounting base.

4. Remove the mounting base from the access point.

5. Connect an Ethernet cable.

6. If you plan to use the AC adapter, connect it to the DC jack.

7. If you are installing the access point on the wall, ensure that the orientation of the

mounting base is correct.

8. Using the mounting base as a template, mark the two holes with a pencil where you

want to install the access point.

9. Pre-drill the marked location on the hard-surface ceiling or wall.

10. Install the mounting base on the hard-surface ceiling or wall.

11. Insert the two screws on the access point to the holes on the mounting base.

12. Turn the access point until it is securely seated.

Ceiling T-Rail Installation

What to Prepare

AT-MWS600AP access point

Two rail clips, either narrow rail clips or wide rail clips

Two spacers

Two long screws for the rail clip with the spacer

Phillips-head screwdriver

NoteNote

A Phillips-head screw driver is not included in the shipping box.

Installing the Access Point on a Ceiling T-Rail

1. Review the safety precautions.

2. Attach two rail clips and the spacers to the access point using the long screws.

3. Connect an Ethernet cable.

4. If you plan to use the AC adapter, connect it to the DC jack before going to Step 5.

5. Align the rail clips on the access point to the ceiling T-rail and apply force to attach

the access point to the rail.

4353

4354

4367

4354

4355

4358

4361

4 5 6
