Alvin WRF34 Bedienungsanleitung
Wire Bin Roll File

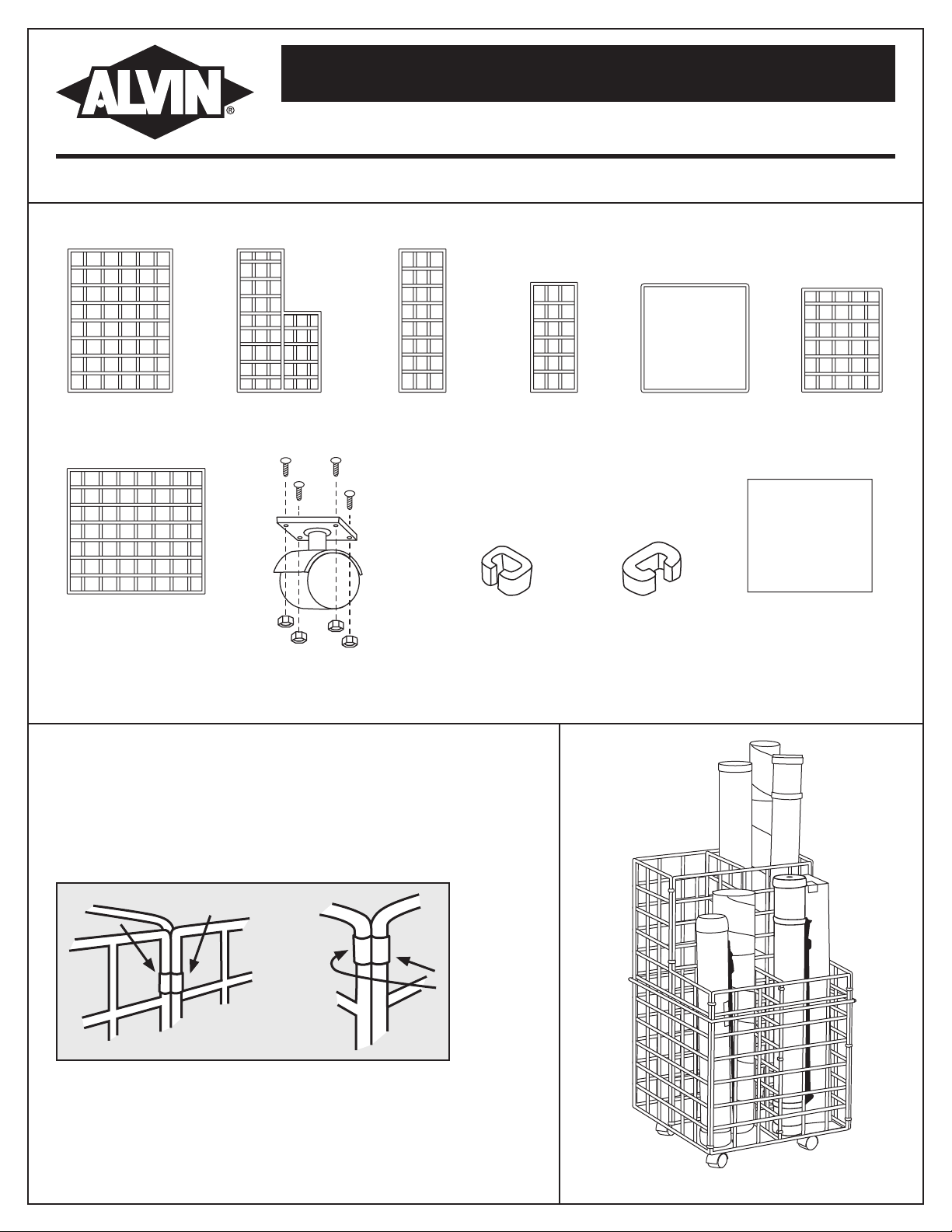

Assembly Instructions For model WRF34
Tools Required: Screwdriver, plyers, or small wrench.
Parts Included:
Note:
Plastic clips can be snapped on easily by hand but
pliers may be necessary for removal. Most grid sections
require only 2 clips per side for support. For safety, clips
attached on exterior of cart should be positioned with
flanges facing inward.
Clip Attachment
A2pcs Large Grids E1pc Outer
Support Frame
F1pc Face Grid
G1pc Base Grid L1pc Dust Protector
Bottom Cover
B2pcs L-Shaped
Side Grids
C1pc Large
Grid Divider
D1pc Small
Grid Divider
H4pcs Caster Assemblies
(16 Screws, Nuts)
J45pcs Small
Plastic Clips
K3pcs Large
Plastic Clips
See reverse side for assembly Assembled Rack

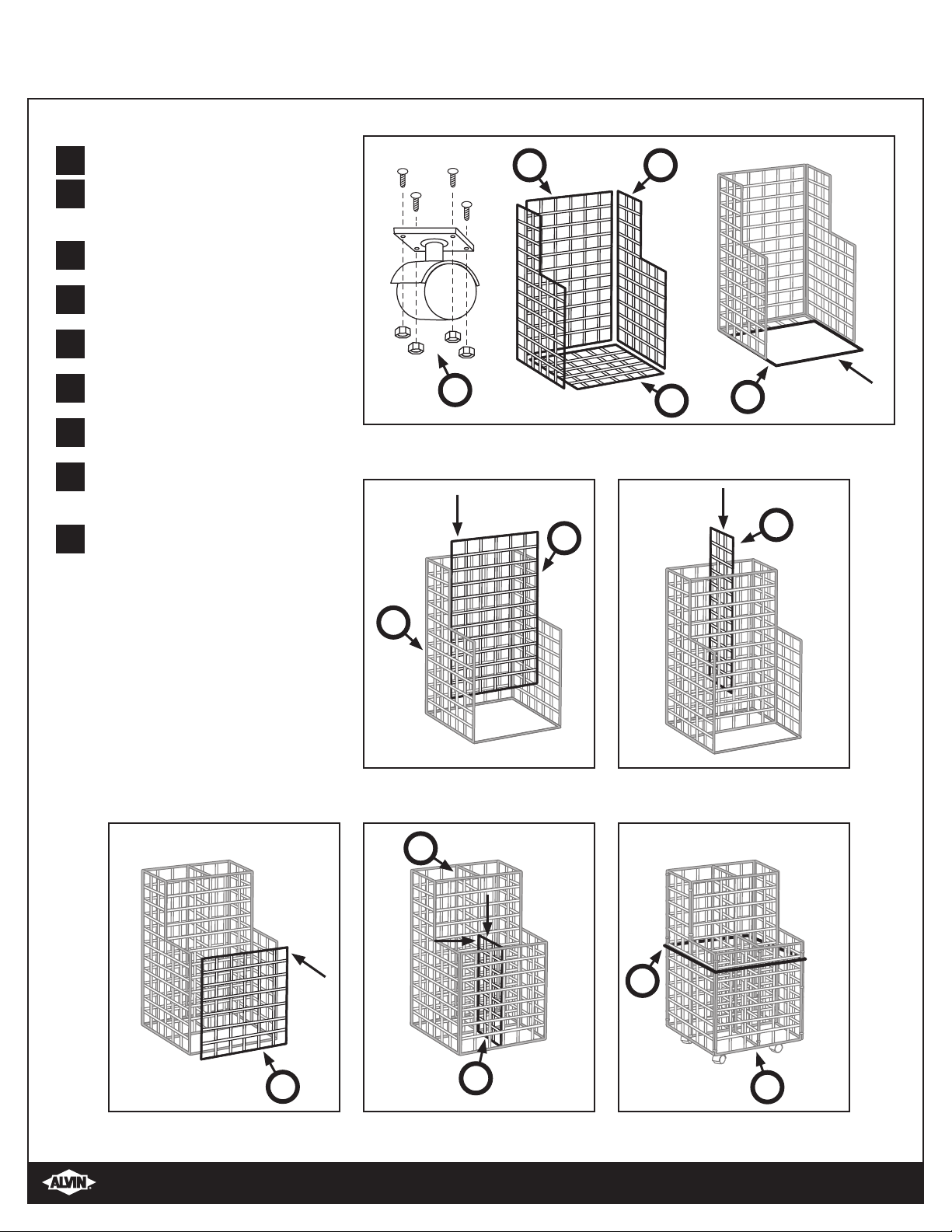

WRF34 Assembly Instructions
To Assemble:
1
2
3
4
5
6
7
8
9
Attach casters (H) to base grid (G).
Using small plastic clips (J), attach one
large grid (A) to back of base grid as in
Figure 1.
Attach two L-shaped side grids (B)
to base and back as in Figure 1.
Place dust protector bottom cover (L)
on base grid as in Figure 1.
Attach second large grid
to side grids as in Figure 2.
Insert and attach large divider grid (C)
as in Figure 3.
Attach face grid (F) to base grid
and side grids as in Figure 4.
Attach small grid divider (D)
as in Figure 5. Use large clips
to attach (D) to (C).
Attach outer support frame (E) and
extra clips where needed as in Figure 6.
(Be sure to position support bar below
the top of the face grid as shown
for greater stability.)
Figure 1
x2
B
A
GL
H
Figure 2 Figure 3
C
Figure 4
F
Figure 5
D
Figure 6
www.alvinco.com • [email protected]
LIT-A11157_WRF34 10/11
©2011 ALVIN & COMPANY, INC. • P.O. Box 188, Windsor, CT 06095-0722
Phone: 860-243-8991 • Toll-Free: 800-444-2584 • Fax: 860-242-8037 • Toll-Free Fax: 800-777-2896
B
A
F
E
C
