AMANA

WINDOW TYPE

AIR CONDITIONER

Service Manual

Part # AC-8888-115

Domestic Air Conditioner

SERVICE MANUAL

Models

ACB065R & ACB055E

lFeatures

lTop-Discharge Air Flow

lUltra Quiet Operation

lSafty Power Cord

lEnvicoCleanTMCoil

lEasy-Access Washable Filter

lDigital Display&Timer

lEnergy Star(ACB055E)

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Content

1、Product Code IlluminationAnd Series introduction ---------------------------- 2

2、Features -----------------------------------------------------------------------------------------3

3、Specifications -------------------------------------------------------------------------------- 4

4、Safety and Precaution -----------------------------------------------------------------------5

5、Warning and Cautions ----------------------------------------------------------------------6

6、Net Dimention ---------------------------------------------------------------------------------7

7、Installation and Accessory Parts -------------------------------------------------------8

8、Parts and Functions -----------------------------------------------------------------------10

9、Abnormity Diagnose -------- ---------------------------------------------------------------13

10、System Flow Chart -----------------------------------------------------------------------14

11、Circuit Diagram ----------------------------------------------------------------------------15

12、Maintenance Service and Trouble Shooting -----------------------------------16

13、Wiring Diagram --------------------------------------------------------------------------18

14、Exploded View and Parts Lists -----------------------------------------------------19

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Product Code Illumination And Series Introduction

1.Model identification:

A B CDE FG

A: Abbreviation of Haier

B: Abbreviation of Window

C: R-Remote Control

F-Mechanical Control

D: Nominal cooling capacity(BTU/h) with the first two numbers based on one

thousand unit

E: The type of power supply

X:115V/50HZ

V:208/220V/50HZ

F:Function code

C-Cooling only

H-Heating pump

E-Electric aided heating

G: Design code

ESA

A B CD

A: Abbreviation of Energy Star

B: The type of power supply

3:115V/50HZ

C: Nominal cooling capacity(BTU/h) with the first two numbers based on one

thousand unit

D: Design code

Examples:

ACB065R

It represents remote contrl window air conditioner.Cooling capacity is 6000BTU/h and

the power supply is 115V/60Hz.

ESA3055

It represents remote contrl window air conditioner.Cooling capacity is 6000BTU/h and

the power supply is 115V/60Hz.

2.Standard situation/conditions

Indoor air state outdoor air state

No.

Operating condition

D.B.℃W.B.℃D.B.℃W.B.℃

1Nominal cooling 27 19 35 24

2Nominal heating ////

3Nominal electrical

heating ////

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Specifications:

Item UNIT ACB055E ACB065R

Cooling capacity BTU/h

5000 6000

Heating capacity BTU/h

Power supply

1PH/115V/60Hz1PH/115V/60Hz

Power input

W485 620

Running current

A4.5 5.4

Cooling

EER

BTU/(hW) 10.7 9.7

Power input

W//

Running current

A//

Heating

COP

BTU/(hW) //

Indoor side dB(A)

53/52/50 53/52/50

Sound Level Outdoor side dB(A)

/57/55/53

Height

315 472

Width

471 340

Case

Depth

340 326

Height

373 535

Width

535 416

Packaging dimensions

Depth

416 373

Net kg

21 21

Weight Gross kg

24 24

Type

Rotate

Model

SD074UW

ＳＤ０８６ＳＷ－Ｈ３ＢＸ

Running cap. for

comp.

35uf/200VAC

35uf/250VAC

Compressor

Starting method

PSC PSC

Heating side MPa

380 380

Pressure Cooling side MPa

170 170

Model

R22 R22

Refrigerant Charge kg

0.32 0.36

indoor unit

Acentric fan

Type outdoorunit

Axial fan Axial fan

indoor unit r/min

1040

30/950

40/800

50 1040

30/950

40/850

Fan

Fan speed outdoorunit r/min

1040

30/950

40/800

50 1040

30/950

40/850

Air volume m

/hr

280 280

Moisture removal Pints/hr

1.8ⅹ10-32.0ⅹ10-3

Exchanging pipe type/ diameter mm

Evaporator

:ф

7condenser:ф7

Evaporator

:ф7

condenser:ф7

Fin material

Hydrophile

aluminum foil Hydrophile

aluminum foil

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Safety and Precaution

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Warning and Cautions

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Net Dimention

472 340

326

Domestic Air Conditioner Model: HWR06XC5

ESA3055

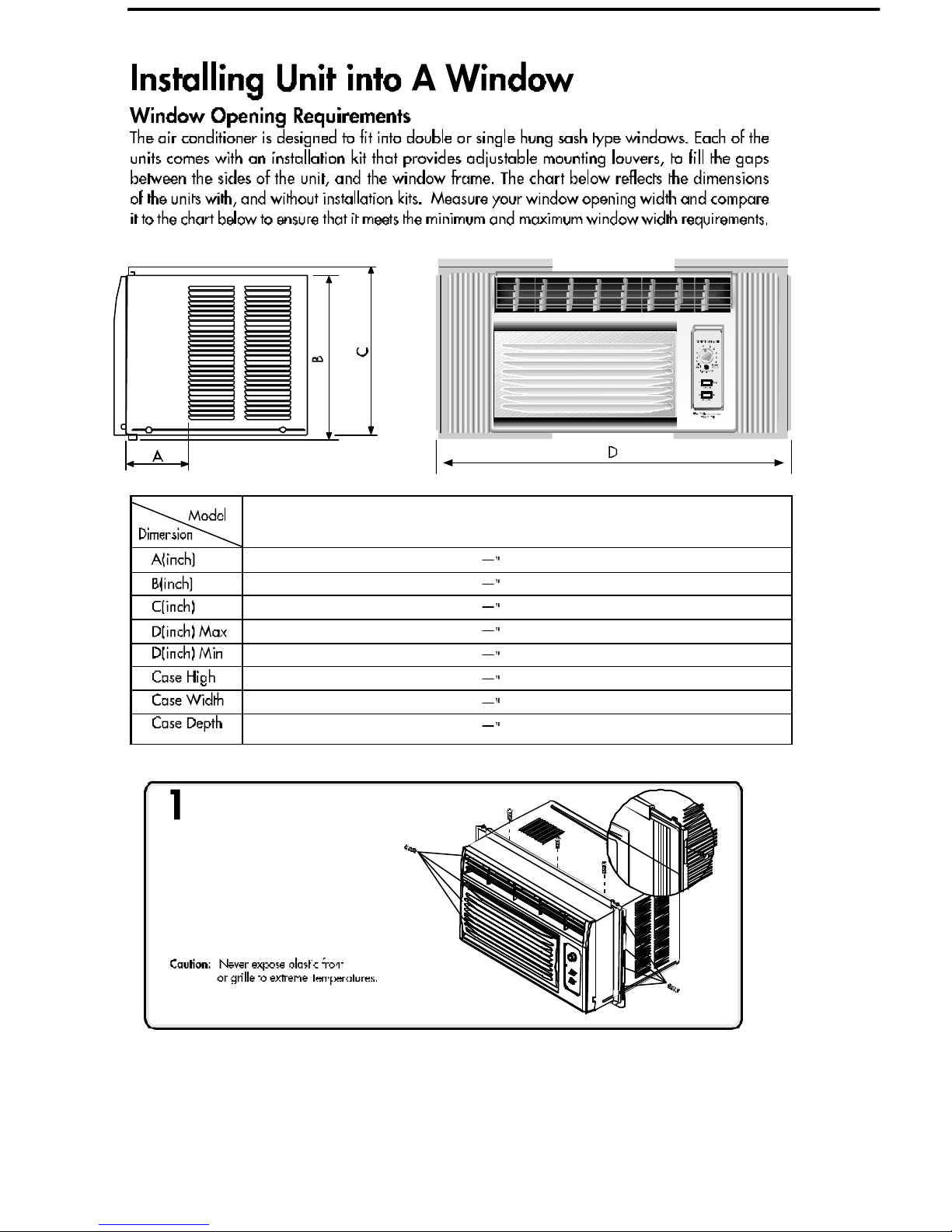

Installation and Accessory Parts

Domestic Air Conditioner Model: HWR06XC5

ESA3055

Installation and Accessory Parts

ACB065R,ACB055E

Insertthesidecurtainsintothe

topandbottomrailsoftheair

conditioner.Fastenthecurtains

totheunitwith8shortscrews

13/32".

Install toprail with3short

screws13/32".

ASSEMBLE

CURTAINS/TOPRAIL

12 3

13 2

33 1

22 1

12 7

18 9

13 3
