ROOM AIR CONDITIONING AND DEHUMIDIFIER PRODUCTS

PORTABLE AIR CONDITIONER

CLIMATISEUR PORTATIF

ACONDICIONADOR DE AIRE PORTATIL

Model

Modèle

Modelo

AP125D

AP125HD

(1)

English

SAFETY PRECAUTIONS

Following these basic precautions will reduce the risk of fire, electrical shock,

injury or death when using your air conditioner.

1) Air conditioner must be connected to proper electrical outlet with the correct electrical

supply. (see table)

2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT OR

REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric receptacle

outlet in the wall, have a certified electrician install the proper receptacle. The wall receptacle

MUST be properly grounded.

3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also avoid using

it if there are cracks or abrasion damage along the length or plug connector, or if the unit

malfunctions or is damaged in any manner. Contact an authorized service location for

examination, repairs or adjustments.

4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) Do not block airflow around the air conditioner. Also the exhaust hose should be free of any

obstructions.

6) Always unplug the air conditioner before servicing it or moving it.

7) Do not install or use the air conditioner in any area where the atmosphere contains combus-

tible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals coming in

contact with your air conditioner.

8) Do not place any object on the top of the unit.

9) Never operate the air conditioner without the filters in place.

10) Do not use the air conditioners near a bathtub, shower or wash basin.

Note: This unit meets the National Electric Code (NEC), article/section 440.65, which mandates the

use of Leakage Current Detection and Interruption (LCDI).

(2)

English

A Word From Amana

Product Registration

TABLE

RECEPTACLE AND FUSE TYPES

RATED VOLTS

AMPS

WALL OUTLET

FUSE SIZE

TIME DELAY FUSE

(or circuit braker)

125/60 250/60

15 20 15 20 30

Plug Plug

Plug

Thank you for buying a dependable, energy-saving and easy-to-operate AMANA air

conditioner. This manual contains useful information for you to maintain, operate, install and

safely use your air conditioner. Your air conditioner cleans, cools and dehumidifies the air in

your room to provide you with the ultimate level of comfort.

Please read instructions carefully before using the product. Also, do not forget to fill out and

mail the Product Registration Card.

Record Your Model and Serial Number.

For all your service calls during the warranty period the following information will be needed.

Attach the sales receipt to this guide and keep for future reference. (This information can be

obtained from the serial plate, which is on your air conditioner.)

Model Number:...................................................................................................................

Serial Number:....................................................................................................................

Date of Purchase:................................................................................................................

Dealer’s Name:...................................................................................................................

Dealers Address: .................................................................................................................

Dealers Phone Number:.......................................................................................................

Table Of Contents

PAGE

Safety Precautions ..................................................................................................................... 1

A Word From Amana................................................................................................................. 2

Product Registration................................................................................................................... 2

Advantages ...............................................................................................................................4

Parts and Features..................................................................................................................... 5

Assembly and Installation..........................................................................................................6

Operation..................................................................................................................................9

Product Specification ...............................................................................................................12

Care and Cleaning..................................................................................................................12

Storage....................................................................................................................................12

Troubleshooting.......................................................................................................................13

Warranty Information .............................................................................................................. 14

(3)

English

Advantages of this Model

1. Unique dual-hose design, providing more powerful and faster cooling than the single-hose

design.

2. Adjustable airflow direction for convenient and effective cooling.

3. Heat and cool functions for Model AP125HD only.

4. This model is easy to operate. The electronic control panel has a timer, thermostat, three

cooling speeds, three fan speeds and a dehumidification function (dry).

5. This portable air conditioner does not require water to be added.

6. The unit has a unique design which evaporates the water. Therefore no condensation tank

is necessary, thus avoiding having to wake up in the middle of the night to empty the

bucket and turn on the unit.

7. An easy-to-install window kit is included which consists of the exhaust hose, 2 hose nozzle,

the window panel kit, exhaust hose connector and cover for the exhaust hose connector.

8. Full-directional casters are included to help to move the unit to be conveniently used in

almost any area.

9. The filter screen is designed to be easily accessible.

10. Portable air conditioners are easy to store when not in use.

(4)

English

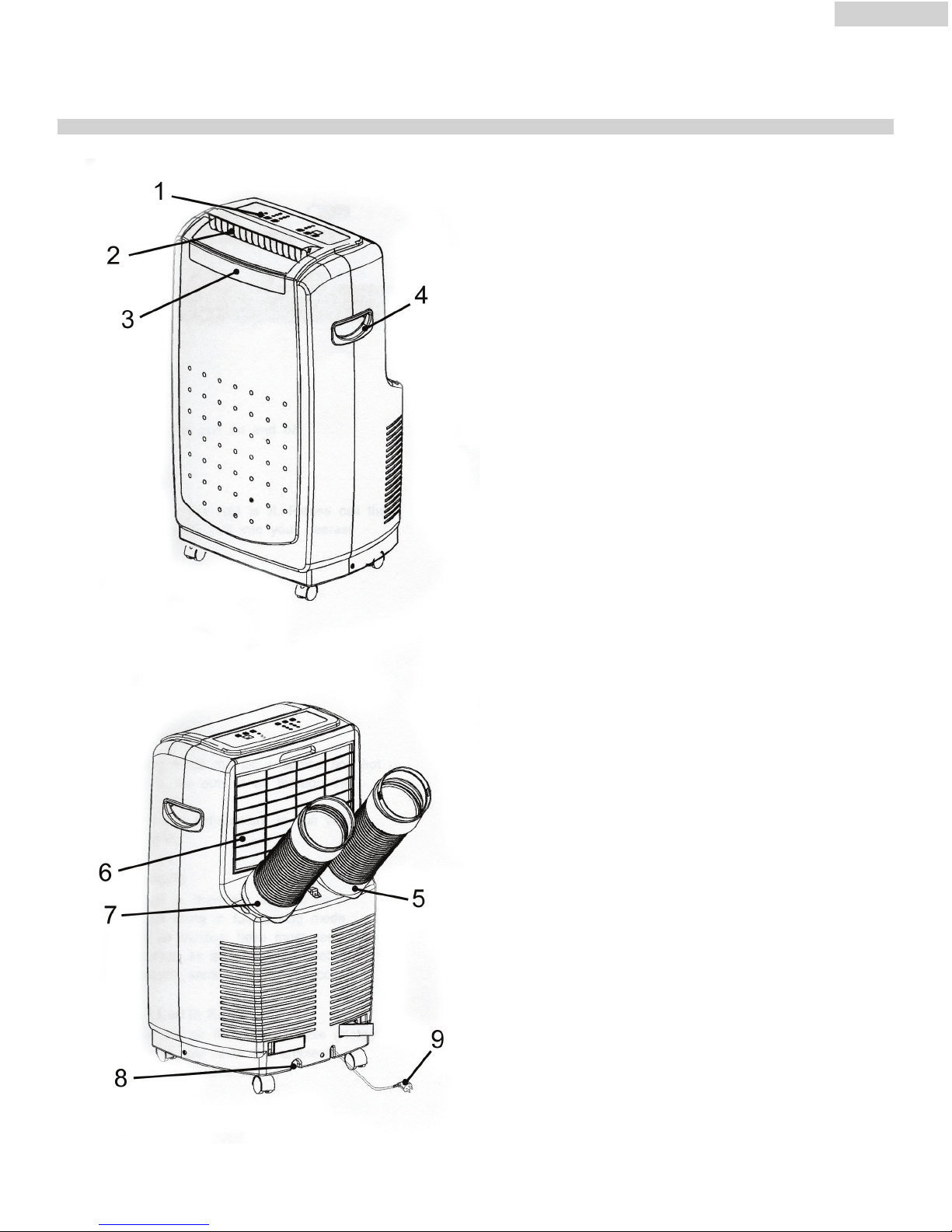

Parts and Features

(5)

English

1. Control Panel

2. Cold Air Outlet

3. Signal Receptor

4. Transport Handle

5. Air Outlet Hose

6. Evaporator Air Intake

7. Air Intake Hose

8. Drain Port

9. Power Supply

Fig. 1

(6)

English

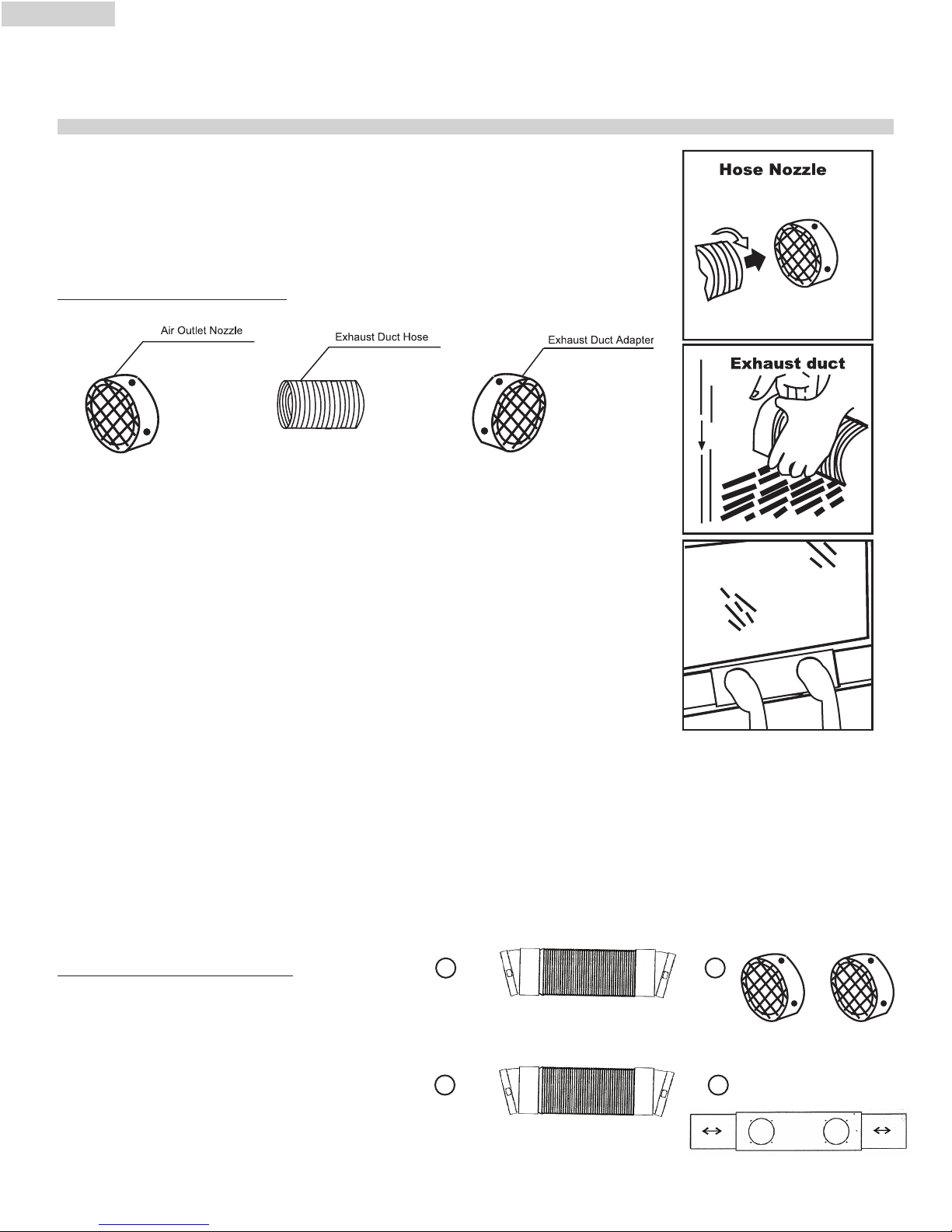

Assembly and Installation

IN DOOR

Assembly Instruction

A. Connect exhaust hose to the back of the unit. Extend hose to desired

length and connect with window kit.

USING EXHAUST DUCT SET

1. Insert ends of Exhaust hose into air outlet nozzle and Exhaust

duct “A” by twisting until it stops.

2. Fix the Exhaust duct “A” to the exhaust outlet on the rear of

the unit. This is achieved by sliding the appropriate connector

downward over the exhaust outlet, ensuring that the lugs on

the outlet are engaged with the grooves on the connector.

3. The exhaust hose is snap-fit to the unit. To take it off, turn it

clockwise and remove.

Note: Air outlet hose should be mounted at right side

(see fig. 1)

4. Extend the Exhaust hose and close the Window as far as

possible, trapping the air outlet nozzle.

B. Repeat same steps for the air intake hose.

USING WINDOW PANEL KIT

1. Air Inlet Hose - 1 set

2. Air Outlet Hose - 1 set

3. Window Exhaust Adapter - 2 pieces

4. Window/Patio Door Slider Kit - 1 set

Fig. 2

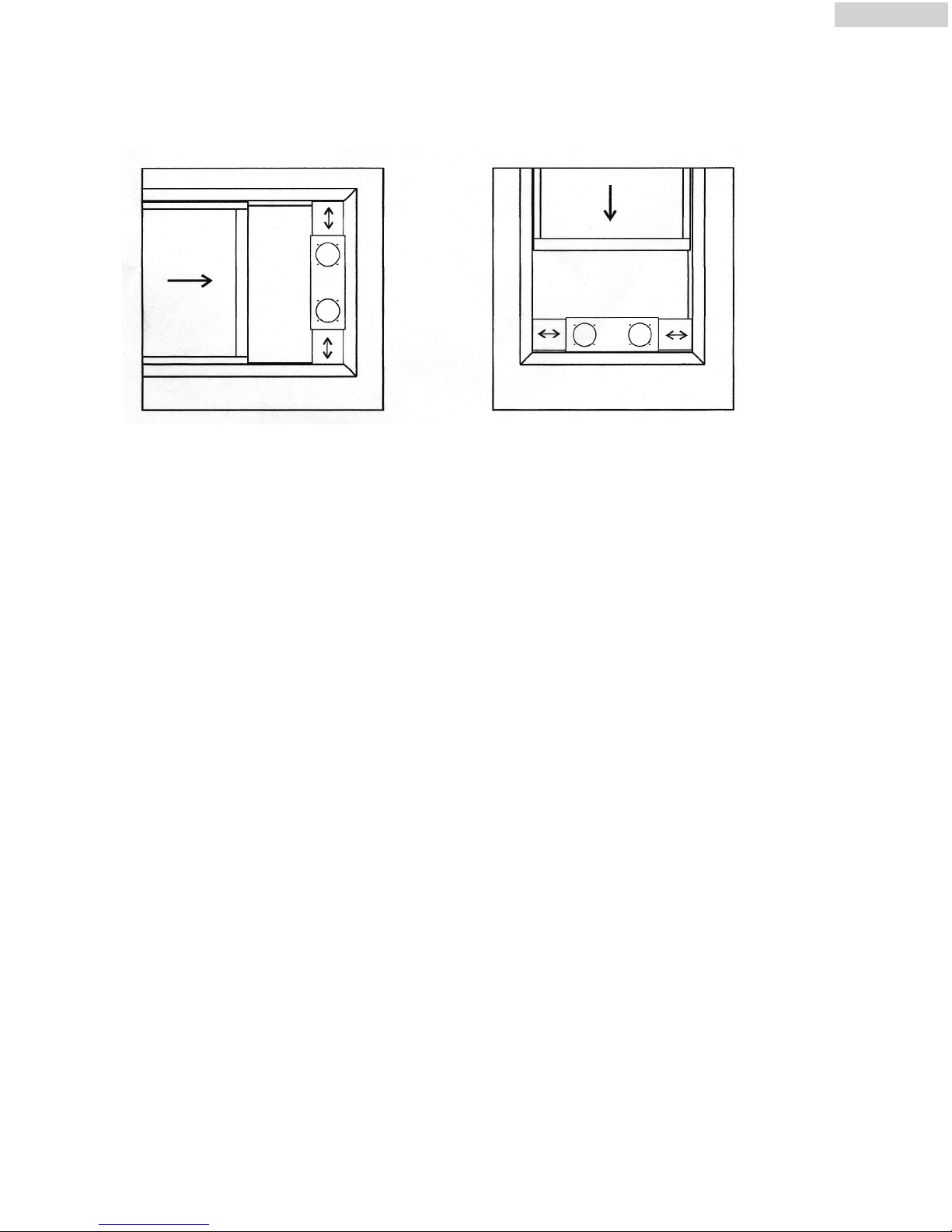

Window Kit Installation

(7)

English

Your window kit has been designed to fit most standard vertical and horizontal window applications.

However, it may be necessary for you to improvise/modify some aspects of the installation procedures

for certain type windows. Please refer to for minimum and maximum window openings.

Installation Instruction

• Air outlet intake on the indoor side should not be blocked by curtains or similar objects.

• The end of the air hose cannot be blocked by shutters or other similar objects.

• Do not bend the air hose when assembling: keep it straight.

• When appliance in cool or dry mode, condensation may concentrate in water box or chassis.

When the box is full, water full indicator lights up (red), and the LCD window shows the error

sign E. The appliance will stop running at the same time. Unplug the unit from the outlet, then pull

out the rubber plug in drain port located on the bottom of the appliance, drain the water into

a prepared container, or drain the water by moving the appliance to a suitable place.

Note: Water should be drained out when the water full light is on. Otherwise, the appliance

will not work.

• Select the best location for your air conditioner. It must be beside a window, door to the outside,

or French window.

• Keep the required distance from the return air outlet to the wall or other obstacles at least 20”.

• Attach one end of each hose to the unit. They will snap in. Connect the other end of each hose to

the window kit that comes with the unit.

• Air outlet or intake cannot be blocked by protective grid or similar object.

• The distance between two ends of the air hose should be kept at 8” at least.

Note: It is not recommended to use only one hose. This will greatly reduce the cooling

capacity of the unit.

Fig. 3

(8)

English

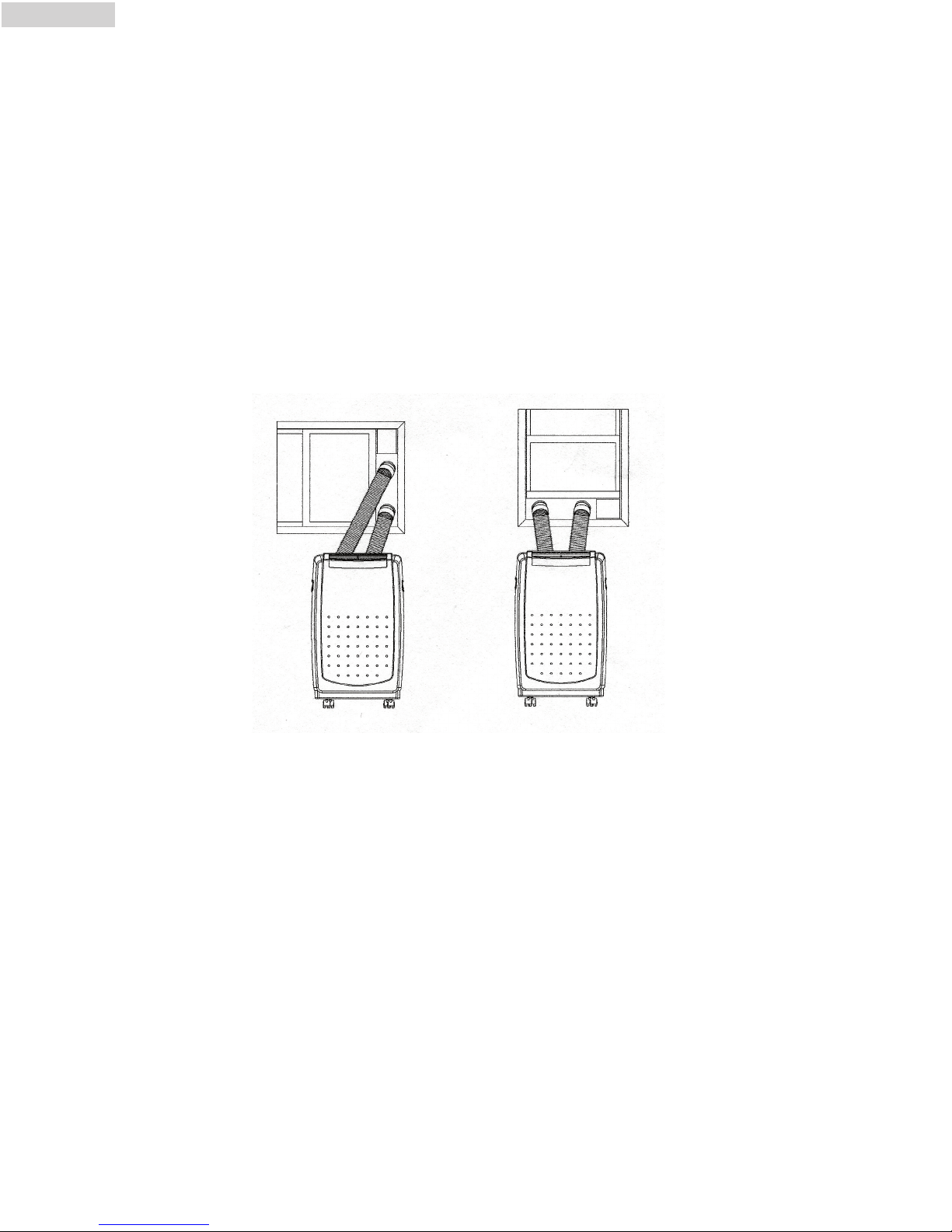

Installation Sequence

Before Starting this Unit

1. Select a suitable location, making sure you have easy access to an electrical outlet.

2. Install the flexible exhaust hose and adjustable window slider kit as depicted in Fig. 2 & 3.

Note: 1. Step 2 is required only while using cooling or dry mode. In cooling mode you can

select to install two hoses or air outlet hose only. In dry mode you may install air

outlet hose only.

2. While running or installing, the hoses should not be blocked by curtains or other

objects.

3. Plug the appliance into a grounded electrical outlet. Please select an appropriate power supply

based the nameplate information on the unit.

Note: Do not use a regular extension cord.

4. To turn the appliance on, press ON/OFF button.

(9)

English

Operation

Note: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any

reason. This is for the oils and the coolants to settle and level off.

1. Wait for 3 minutes before restarting the unit after a normal shutdown to complete the

compressor cycle.

2. Use an 115v 15 amp outlet for the air conditioner. Do not use any other electrical appliances

on this outlet or you may trip the fuse. Use a dedicated outlet for this air conditioner.

3. Do not place the air conditioner in direct sunlight or close to any heating appliances.

(ex. baseboard heaters, stoves, etc.)

4. Operate on a flat surface only.

5. Keep the unit free of any obstructions such as drapes, curtains, blinds, etc.

6. Keep unit at least 1 foot away from the wall.

7. Check and clean the filter once every week to get the highest efficiency.

Note: Do not use unit without filter.

8. If the unit is not being used for a long period of time, remove the plug from the water drain

pipe and drain out any condensed water.

When turning on the unit first time after plugging it into an electrical outlet the unit will start in a

low fan cool mode. The temperature reading on the LED will be the room temperature. When

turning on the unit in regular usage it will remember the last setting prior to shut-off.
