AMVM96 / ACVM96

Multi-Position, ModulAting

VAriAble sPeed gAs FurnACes

uP to 96% AFue

HeAting inPut: 60,000–115,000 btu/H

Product Features

• Heavy-duty Million-Air® stainless-steel dual-diameter,

tubular heat exchanger

• Stainless-steel secondary heat exchanger

• ComfortNet™ Communicating Systems compatible

• Self-calibrating modulating gas valve operates with Comfort-

Net communicating two-stage or single-stage thermostats

• Color-coded low-voltage terminals with provisions for

electronicaircleanersandhumidiers

• Efcientandquietvariable-speedairowsystemgently

ramps up or down according to heating or cooling demand

• Durable SureStart®Silicon Nitride igniter

• Self-diagnostic control board with constant memory fault

code history output to a dual 7-segment display

• Multiplecontinuousfanspeedoptionsofferquietaircirculation

• Auto-Comfortandenhanceddehumidicationmodesavailable

• Variable-speed induced draft blower

• All models comply with California NOx emissions standards

Cabinet Features

• Fully insulated heavy-gauge steel cabinet with durable baked-

enamelnish

• Foil-faced insulation lines the heat exchanger section

• Designed for multi-position installation —

AMVM96:upow,horizontalleftorright

ACVM96:downow,horizontalleftorright

• Easy-to-installtopventingisstandard;alternateue/vent

locations available

• Airtight solid bottom for side-return applications and easy-cut

tabs for effortless removal in bottom air-inlet applications

• Convenient left or right connection for gas and electric service Contents

Nomenclature.........................................................................2

ProductSpecications ........................................................... 3

Dimensions .............................................................................4

AirowSpecications............................................................. 6

Wiring Diagram.....................................................................11

Accessories ............................................................................12

Thermostats ..........................................................................12

* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the

Lifetime Unit Replacement Limited Warranty (good for as long as you own your home) and the 10-Year Parts

Limited Warranty, online registration must be completed within 60 days of installation. Online registration is

notrequiredinCaliforniaorQuébec.

SS-AMVM96 www.amana-hac.com 3

2 www.amana-hac.com SS-AMVM96

roduCt

PeCiFiCAtions

roduCt

PeCiFiCAtions

noMenClAture

     

 

 



  

 

 









   

   

 

  



 

  

  

 

  



 

  

  



 

  





    

































SS-AMVM96 www.amana-hac.com 3

2 www.amana-hac.com SS-AMVM96

roduCt

PeCiFiCAtions

roduCt

PeCiFiCAtions

sPeCiFiCAtions

AMVM96

0603BX

AMVM96

0805CX

AMVM96

1005DX

AMVM96

1155DX

ACVM96

0604CX

ACVM96

0805DX



High Fire Input (BTU/h)¹ 60,000 80,000 100,000 115,000 60,000 80,000

High Fire Output (BTU/h)¹ 57,600 76,800 96,000 109,250 57,600 76,800

Low-Fire Steady-State Input¹ 30,000 40,000 50,000 57,500 30,000 40,000

Low-Fire Steady-State Output¹ 28,800 38,400 48,000 54,625 28,800 38,400

AFUE² 96 96 96 95 96 96

Available AC @ 0.5” ESP 1.5-3.0 2.0-5.0 2.0-5.0 2.0-5.0 1.5-4.0 2.0-5.0

Temperature Rise Range (° F) 20-50 35-65 35-65 35-65 20-50 20-50



Size (D x W) 10" X 8" 11" X 10" 11" X 10" 11" X 10" 10"X 10" 11" X 10"

Horsepower @ 1050 RPM 3/4 1 1 1 3/4 1

Speed Variable Variable Variable

Vent Diameter³ 2" 3" 3" 3" 2" 2"

No. of Burners 3 4 5 5 3 4

Disposable Filter (in2) 576 960 960 972 641 854



 6.0 14.2 14.2 14.2 6.0 14.2

 15.0 15.0 15.0 15.0 15.0 15.0

 135 145 170 170 139 165

¹ Natural Gas BTU/h

 

 





 



 





 All furnaces are manufactured for use on 115 VAC, 60 Hz, single-phase electrical supply.

 

 

SS-AMVM96 www.amana-hac.com 5

4 www.amana-hac.com SS-AMVM96

roduCt

PeCiFiCAtions

roduCt

PeCiFiCAtions

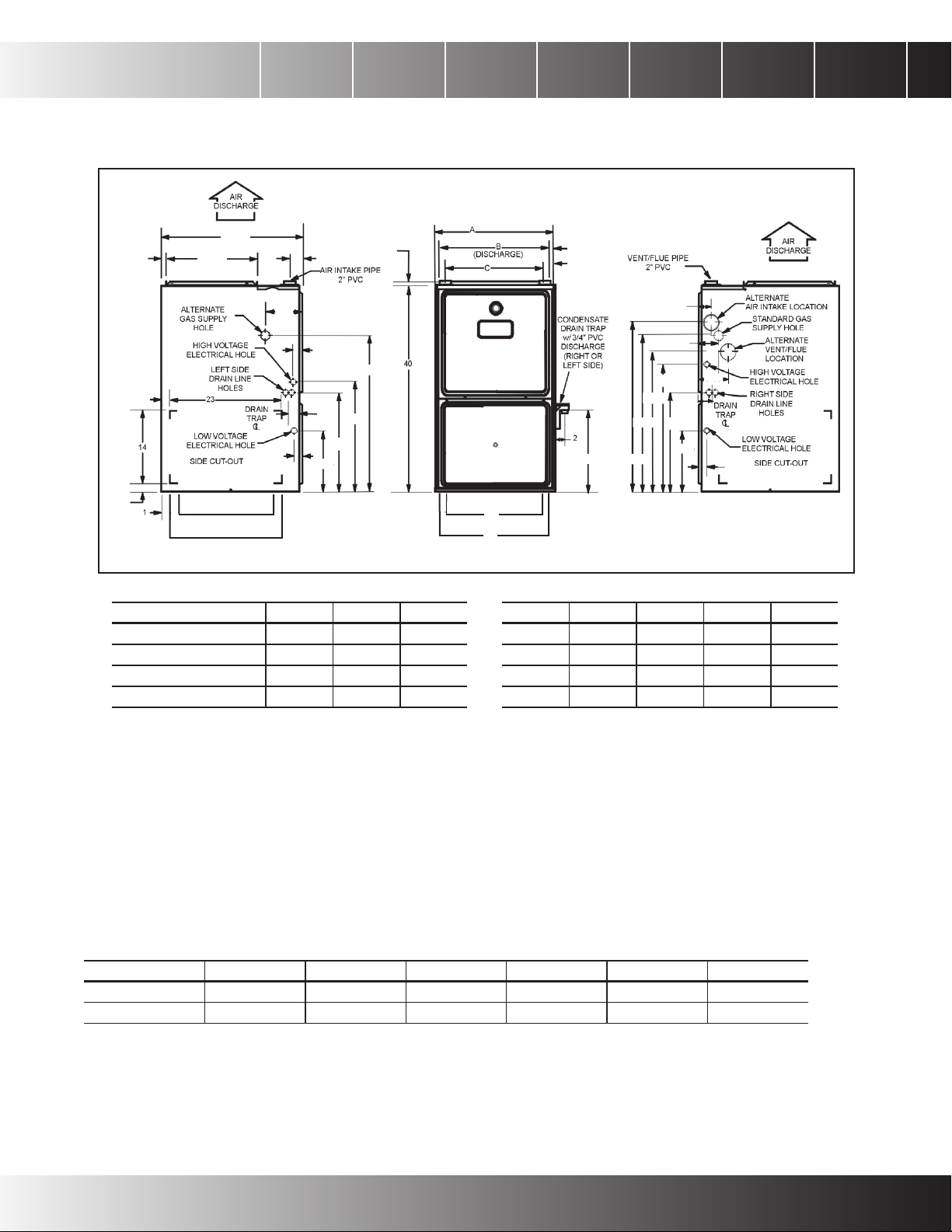

AMVM96 diMensions

MiniMuM CleArAnCes to CoMbustible MAteriAls

      

 0” 0” 3” C 0” 1”

Horizontal 6” 0” 3” C 0” 6”





 

 

 

28¾



RIGHT SIDE VIEW

LEFT SIDE VIEW



FOLDED FLANGES



UNFOLDED FLANGES

FRONT VIEW

FOLDED FLANGES

UNFOLDED FLANGES

1¾

11¾

30¼

1¾

11¾

1¾ 













21¼



















  D H A B C D E

AMVM960603BX  28¾" 40¾"  16"   

AMVM960805CX 21" 28¾" 40¾" 21"   16" 

AMVM961005DX  28¾" 40¾"  23"   

AMVM961155DX  28¾" 40¾"  23"   



 





 

 

 

—Two 90º elbows, one close nipple, straight pipe

—Straight pipe to reach gas valve

 

SS-AMVM96 www.amana-hac.com 5

4 www.amana-hac.com SS-AMVM96

roduCt

PeCiFiCAtions

roduCt

PeCiFiCAtions

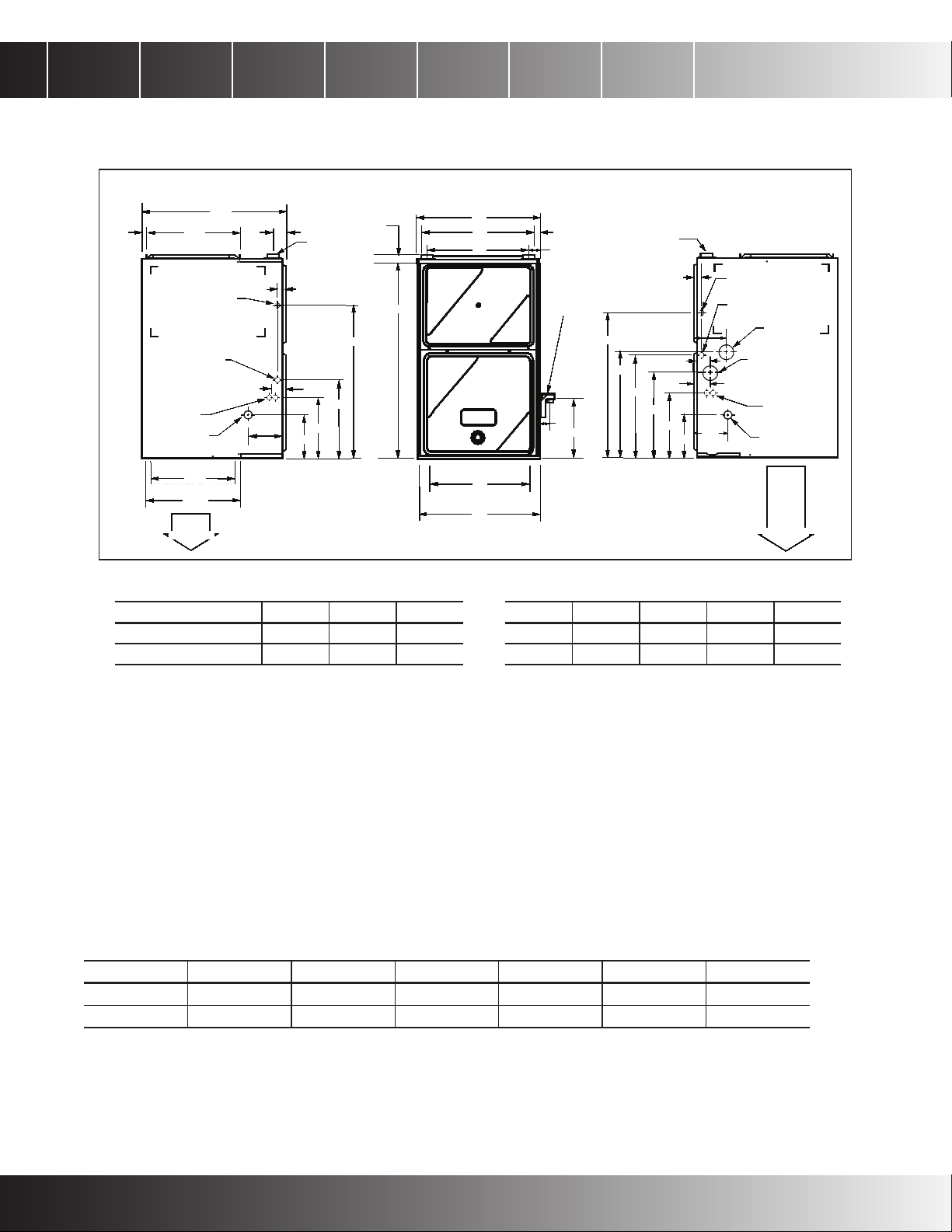

ACVM96 diMensions
