Amana 59668142891 Bedienungsanleitung

IC7 Bottom

Freezer

Refrigerator Ice

Maker Kit

Installation and

Operating

Instructions

Contents Safety Instructions

Introduction ............................................................... 3

Safety Instructions .................................................... 3

Materials Required .................................................. 3

Parts ....................................................................... 4

Procedure ............................................................... 6

Operating Instructions ............................................... 9

Before Calling for Service ......................................... 9

Warranty ................................................................. 10

Introduction

Recognize this symbol as a safety

precaution

Caution

To avoid personal injury or property damage,

observe all safety instructions.

WARNING

To avoid electrical shock which can cause

severe personal injury or death, disconnect

power to refrigerator before installing kit.

After installing kit, connect power.

Caution

To avoid property damage, observe the

following:

•Confirm water pressure to water valve is

at least 20 pounds per square inch.

• Start nuts by hand to avoid cross

threading. Finish tightening nuts using an

adjustable wrench. Do not overtighten.

• Check carefully for water leaks prior to

returning refrigerator to normal location

and 24 hours after connection.

Read entire manual before installing kit. All necessary

tools and materials must be available prior to

installation. Verify all listed parts are included in kit. If

parts are missing, contact source from whom kit was

purchased.

Mechanical experience is required to install kit.

Depending on installer's knowledge and skill,

installation can take from 3 to 6 hours.

If unable to solve a problem during installation,

contact an authorized Amana ®technician. Locate a

Factory Service Center or independent authorized

Amana ®technician by calling 1-800-628-5782 inside

U.S.A. and 1-319-622-5511 outside U.S.A. Service

is at owner's expense.

Materials Required

Important

• Before connecting ice maker, contact a plumber to

connect copper tubing to household plumbing in

compliance with local codes and ordinances.

• Amana Refrigeration, Inc. recommends using a

saddle valve. Do not use self-piercing valve. Amana

Refrigeration, Inc. is not responsible for property

damage due to improper installation or water

connection.

1/4" (6 mm) flexible copper tubing*.

*Length of copper tubing must reach from water supply

connection plus an additional 8' (2 m) for service loop

behind refrigerator. Tubing should be soft instead of

rigid and ends should be free of burrs.

Parts

Use listed part numbers only when ordering replacement parts. Part numbers are not used in installation

instructions.

Item Description Part Number Quantity

1 Ice maker D7824702 1

2 Ice maker cover 10519801 1

N/S Warning label A3036901 1

N/S Diagnostic label 10834701 1

N/S Label 10549601 2

3 Ice maker arm 10884401 1

4 Lower mounting bracket B8391802 1

5 1/2" sheet metal screw M0211017 1

6 Stainless steel clip B5720301 1

7 Water fill tube elbow 10463201 1

8 Ice maker wire harness D7813004 1

9 Ice maker wire harness clamp 10526701 1

N/S Thermal fuse clip 10319801 1

10 5/8" sheet metal screw M0211018 3

N/S Button plug M0311301 2

N/S Oblong plug A3124301 1

11 Water valve 10524606 1

12 Nut and sleeve M0753001 1

13 1/4" plastic tubing B5705325 1

14 Anti-kink spring A1055101 1

N/S Stainless steel insert A3223101 1

N/S Hose clamp M0114003 1

N/S Compression nut and sleeve 10244904 1

N/S "P" clamp M0102301 1

15 Plastic clip M0104101 1

16 Installation and operating instructions 10527010 1

6!11

_12

Procedure

1. Turn off water supply to refrigerator.

Caution

To avoid property damage, protect soft vinyl

or other flooring with cardboard, rugs, or other

protective material when moving refrigerator.

2. Move refrigerator away from wall.

3. Seal open end of copper tubing with masking tape

to keep inside of tubing clean. Route copper tubing

up to refrigerator through floor or interior wall behind

refrigerator providing 3/8" (10 mm) holes as

required. Copper tubing route must be above 35°F

(1°C) to prevent water line from freezing.

4. Remove a section of the fiberboard back cover by

removing screws with a 1/4" hex nut driver. Fold

cover back to expose water valve mounting bracket

and cover plate.

•9 ¸ :_ _ jz ....

S,J'"

1/4" (6 mm) scr )ws

5. Remove water valve cover plate by removing 2

screws with a 1/4" hex nut driver. Discard water

valve cover plate. Save screws. Use screws to

install water valve.

6. Remove wires by pushing wire tie through hole in

water valve cover plate with pliers. Do not cut wire

tie near wires.

Wire tie

7. Connect wires to water valve. Place water valve on

mounting bracket. Insert screws into top 2 holes in

water valve cover plate and lower 2 holes in

mounting bracket. Tighten screws with a 1/4" hex

nut driver.

8. Replace fiberboard back cover by placing cover on

refrigerator cabinet. Insert and tighten screws with a

1/4" hex nut driver. Confirm elbow on water valve

protrudes through hole in back cover. Confirm

plastic tubing is routed through cutout section on top

of back cover.

Plastic tubing

.......::::::::......

Water valve elbow

9. Remove tape from end of copper tubing. Put end of

copper tubing into sink or bucket. Slightly turn on

water supply to refrigerator. Water will be under

considerable pressure. Allow water to run through

copper tubing for 1 minute to flush out copper

tubing. Turn off water supply to refrigerator when

flushing is complete.

10. Remove plastic cap from water valve. Place brass

nut and brass sleeve on copper tubing. Insert

copper tubing into water valve inlet port. Connect

brass nut on copper tubing to water valve inlet port

with an adjustable wrench. Confirm copper tubing is

secure by pulling on copper tubing.

11. Turn on water supply to refrigerator and check for

leaks. Turn off water supply to refrigerator and

correct any leaks. Repeat this process until no leaks

are found, then completely turn on water supply to

refrigerator.

12.Removeiceservicerackbyliftingrackoffplastic

washersthenpullingout.Removescrewswitha

1/4"hexnutdriver.Insertplugsintoscrewholes.

Washer

1/4" (6 mm)

17. Remove water tube inlet hole plug on rear of

refrigerator cabinet with a screwdriver covered with

masking tape.

}

Water tube inlet hole plug ............................

13. Locate electrical and water connection cover plate

on upper left rear wall of freezer. Remove electrical

and water connection cover plate by removing

screw with a 1/4" hex nut driver. Discard electrical

and water connection cover plate and screw.

14. Insert oblong plug into cover mounting slot.

15. Remove freezer shelf by pulling out. A sharp tug

may be necessary. Remove basket by lifting and

pulling out.

16. Cut out sealing tape from water inlet tube hole,

located on back wall, with a knife covered with

masking tape.

Water inlet tube hole---

18. Cover end of water fill tube elbow with masking tape

to prevent insulation beads from entering water fill

tube elbow. Push water fill tube elbow through "U"

shaped hole on back of refrigerator cabinet. Pull

water fill tube elbow through hole in freezer.

Remove masking tape from end of water fill tube

elbow.

19. Push gently on water fill tube elbow while twisting

elbow slightly until elbow is firmly seated inside "U"

shaped hole.

Water fill tube elbow ...............

20. Remove ice maker from shipping carton. Ice maker

is shipped with arm down. This is correct for ice

production. Do not force arm down or up, past stop

positions.

21.Slidestainlesssteelclipoverwalloficemaker

watercup.

Stainless steel clip

22. Remove 3 button plugs from left freezer wall with a

knife covered with masking tape. Discard plugs.

23. Start 5/8" (15 mm) sheet metal screw in top front

hole on left wall with a 1/4" hex nut driver. Leave

head out approximately 3/8" (9 mm).

24. Hold ice maker in position. Ice maker can only be

installed one way. Do not drill additional holes.Insert

wire harness plug into receptacle on rear wall until

locking fingers on top and bottom of plug snaps into

place. Slide ice maker hanger over sheet metal

screw. Ease ice maker water cup toward end of

water fill tube elbow. Water fill tube elbow fits under

stainless steel clip. Water fill tube elbow must not

be kinked. Water fill tube elbow should extend

approximately 3/8" (9 mm) into ice maker water cup

and must be secured under stainless steel clip.

25. Insert and tighten remaining 5/8" (15 mm) sheet

metal screws with a 1/4" hex nut driver.

26. Replace freezer shelf by sliding in until back locks in

place. Replace wire basket by sliding in. Position ice

storage bucket on wire section of freezer shelf under

ice maker. Confirm bucket is in the proper position.

27. Check for leaks at household water connection and

water valve. Correct any leaks.

28. Create service loop using extreme care to avoid

kinks. Secure copper tubing to refrigerator

cabinet using "P" clamp.

29. Move refrigerator in place and level if necessary.

Operating Instructions Before Calling For Service

Confirm ice bucket is in place and ice maker arm is

down.

..... === . :............................

I' '

"- ..... Lo

Ii X,IX

',' Down

;ked position

Up position

osition

• After freezer section reaches normal temperature,

ice maker fills with water and begins operating.

Allow 24-48 hours after installation before first

harvest of ice. Ice maker produces 7 to 9 harvests

of ice in a 24-hour period under ideal conditions.

• After ice is formed, ice maker drops ice cubes into

ice storage bucket. During ice production, ice maker

arm raises and lowers. When ice storage bucket is

full, ice maker arm turns ice maker off. Discard first

3 harvests of ice after initially connecting

refrigerator to household water supply and after

extended periods of non-use.

• Stop ice production by lifting ice maker arm. A

definite click is heard when proper position is

reached. Ice maker arm will remain in that position

until pushed down.

Give ice maker 1 overnight period to make ice before

assuming a difficulty exists.

If ice maker is not producing ice

• Confirm ice maker arm is down. Ice bucket and

slide out shelf must be in proper position for ice

maker to produce ice.

• Confirm household water supply is reaching water

valve.

• Confirm ice maker wiring harness is completely

inserted into proper holes.

• Check for kinks in copper or plastic tubing. Remove

kinks or replace tubing.

• Check electrical connections to water valve coil and

connector block on refrigerator cabinet.

• Confirm freezer is operating at proper temperature.

If ice maker is not producing enough ice

• Ice maker produces 7 to 9 harvests of ice in a

24-hour period under ideal conditions.

• See above section.

If ice maker makes unfamiliar sounds.

• These may be normal. Refer to "Normal Operating

Sounds" section in Owner's Manual.

Caution

To avoid damage to ice maker, observe the

following:

• Do not force ice maker arm down or up,

past stop position.

• Do not place or store anything in ice

storage bucket.

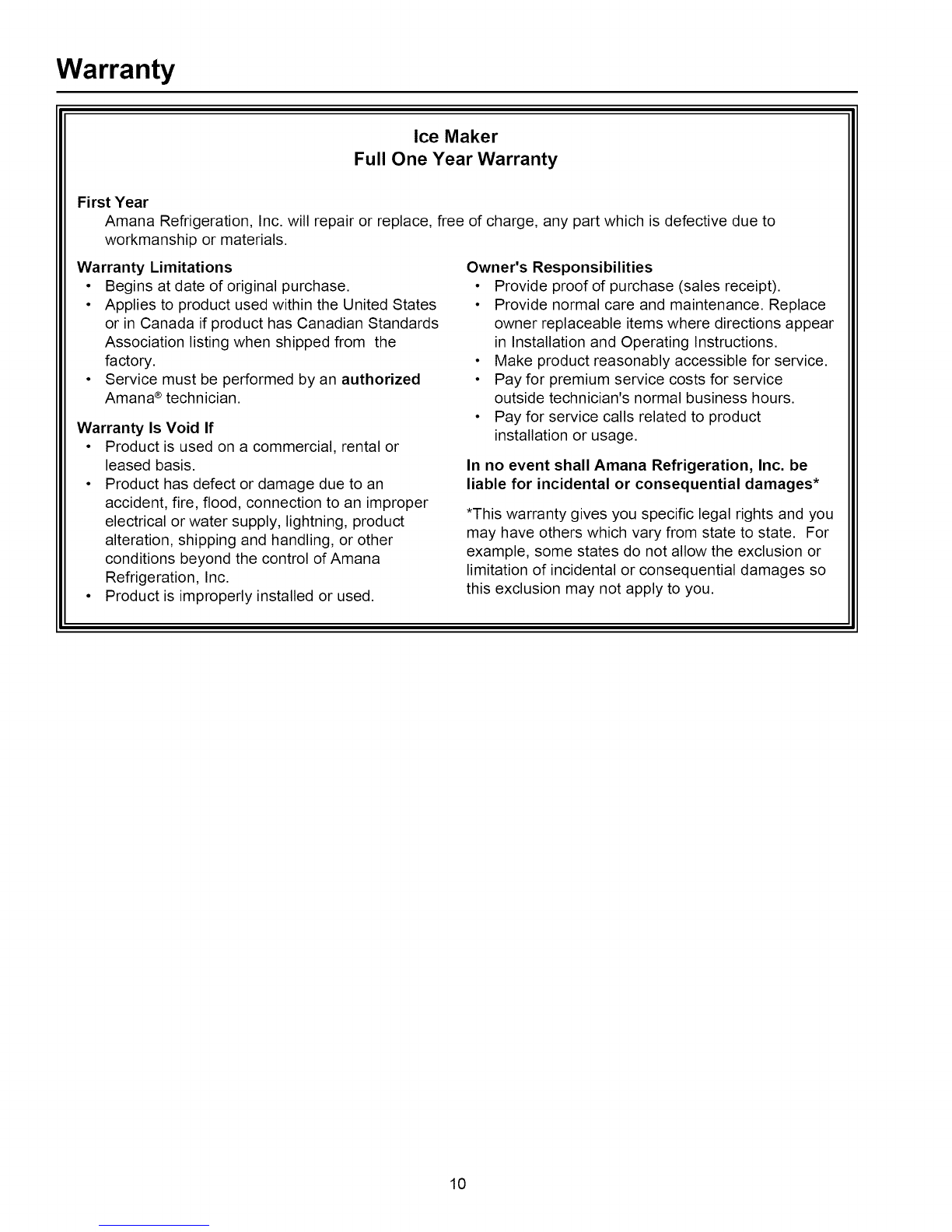

Warranty

Ice Maker

Full One Year Warranty

First Year

Amana Refrigeration, Inc. will repair or replace, free of charge, any part which is defective due to

workmanship or materials.

Warranty Limitations

• Begins at date of original purchase.

• Applies to product used within the United States

or in Canada if product has Canadian Standards

Association listing when shipped from the

factory.

• Service must be performed by an authorized

Amana ®technician.

Warranty Is Void If

• Product is used on a commercial, rental or

leased basis.

• Product has defect or damage due to an

accident, fire, flood, connection to an improper

electrical or water supply, lightning, product

alteration, shipping and handling, or other

conditions beyond the control of Amana

Refrigeration, Inc.

• Product is improperly installed or used.

Owner's Responsibilities

• Provide proof of purchase (sales receipt).

• Provide normal care and maintenance. Replace

owner replaceable items where directions appear

in Installation and Operating Instructions.

• Make product reasonably accessible for service.

• Pay for premium service costs for service

outside technician's normal business hours.

• Pay for service calls related to product

installation or usage.

In no event shall Amana Refrigeration, Inc. be

liable for incidental or consequential damages*

*This warranty gives you specific legal rights and you

may have others which vary from state to state. For

example, some states do not allow the exclusion or

limitation of incidental or consequential damages so

this exclusion may not apply to you.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Amana Kühlschrank Handbücher

Amana

Amana ASI2575GRB Bedienungsanleitung

Amana

Amana DB11 Bedienungsanleitung

Amana

Amana W10180386A Bedienungsanleitung

Amana

Amana FRS-4041CAL Bedienungsanleitung

Amana

Amana Bottom Freezer Refrigerator Bedienungsanleitung

Amana

Amana W10175445A Bedienungsanleitung

Amana

Amana AMAR17BKE Bedienungsanleitung

Amana

Amana ASD2627KE Stücklistenhandbuch

Amana

Amana W10154917B Bedienungsanleitung

Amana

Amana AMA31S1E Bedienungsanleitung

Amana

Amana Bottom Freezer Refrigerator Bedienungsanleitung

Amana

Amana ASD2522WR Series Stücklistenhandbuch

Amana

Amana AFI2538AEW12 Fehlerbehebungshandbuch

Amana

Amana Bottom Freezer Refrigerator Bedienungsanleitung

Amana

Amana A4TCNWFBB Montageanleitung

Amana

Amana AFB2234WES2 Bedienungsanleitung

Amana

Amana A8RXNGFB Gebrauchsanweisung

Amana

Amana ABR1922FES Stücklistenhandbuch

Amana

Amana A9RXNMFW Bedienungsanleitung

Amana

Amana AFI2538AEW00 Fehlerbehebungshandbuch

Amana

Amana ASD2524VES Bedienungsanleitung

Amana

Amana W10249209A Bedienungsanleitung

Amana

Amana Special Edition S148DA03-P1305601W Bedienungsanleitung

Amana

Amana DB10 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung

Teledyne

Teledyne 6712FR and Betriebsanleitung
