Amana ABB2222FEB11 Bedienungsanleitung

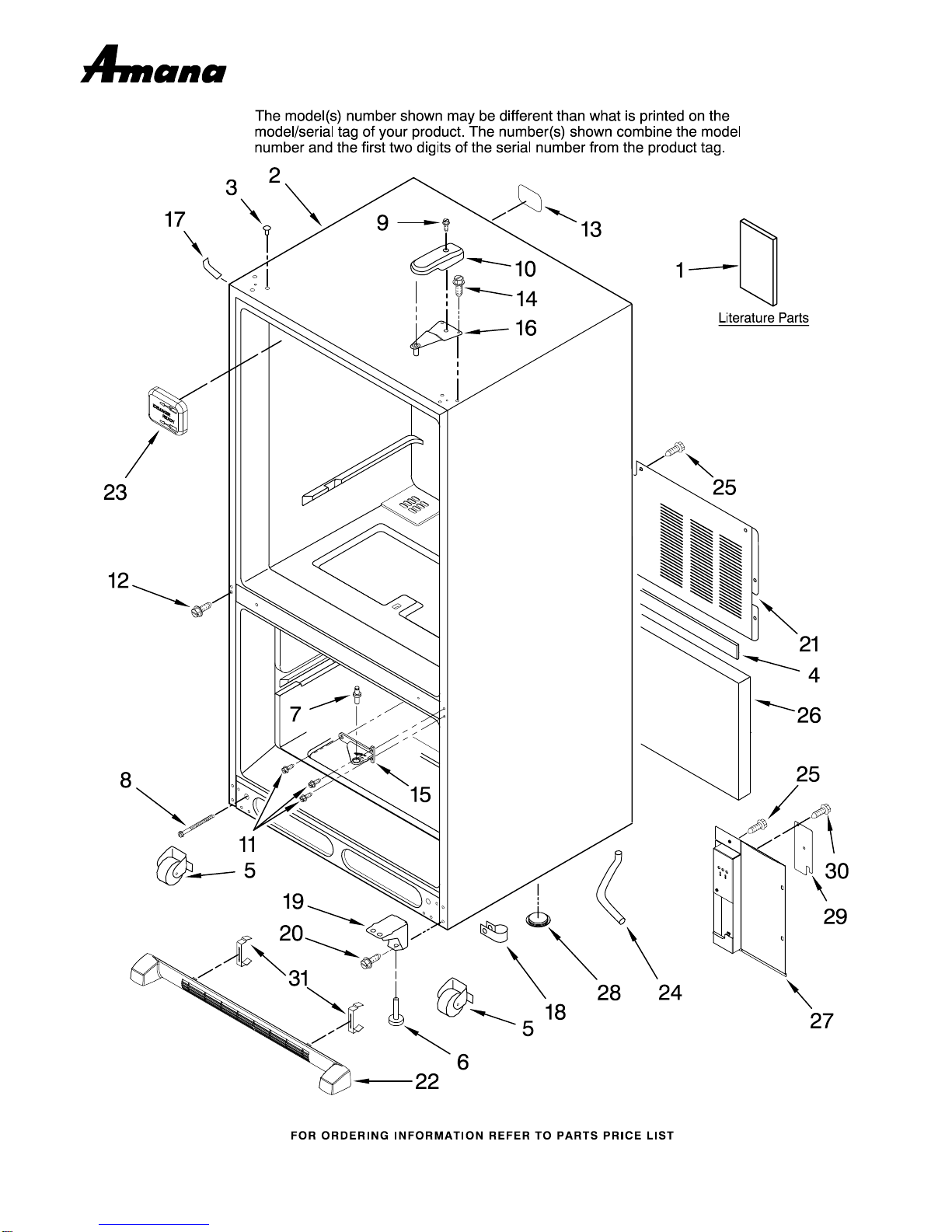

CABINET PARTS
1
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
2−08 Litho In U.S.A. (CJJ) Part No. W10192969 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10137539
Use & Care Guide
W10123458
Energy Guide
W10165418
Tech Sheet
2 Cabinet (Not a
Servicable Part)
3 Plug, Button (3)
67001130 White
67001131 Black
4 B5759649 Gasket
5 67006118 Roller Assembly
6 67003868 Foot, Brake
7 67006642 Pin, Center Hinge
8 67006611 Bolt, Adjusting
(Front Roller)
9 67006521 Screw
10 Cover, Hinge
67001014 White
67001013 Bisque
67001012 Black
11 67005822 Screw
12 67006380 Screw
13 67005064 Label, Fl Tb
Plug
14 67006303 Screw
15 Hinge, Center
67006960 White
67007043 Black
16
12566604ED
Hinge, Top
17 Cover, Corner
67003484 White
67003486 Bisque
67003485 Black
18 67001067 Clip, Drain
19 67007174 Foot, Cabinet
20 67006564 Screw
21 67006101 Cover, Unit
22 Grille Assembly
(Includes Clips)
67007004 White
67006791 Bisque
67006954 Black
23 67001098 Cover, Fl Tb
24
W10164397
Tube, Drain
25 67006425 Screw (9)
26 67003796 Fiber, Acoustic
27 67001097 Cover, Water Valve
28 A3076901 Plug Button
29 12479901 Plate, Cover
30 67006662 Screw
31 12627302 Clip, Grille
Following Parts Not Illustrated
8170942 Clamp, Tube
FREEZER LINER PARTS
3
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
FREEZER LINER PARTS
4
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
2 67001291 Gasket, Foam
3 12002497 Gear
4 67003905 Cover, Light
5 67004261 Shaft
6
Y12570701
Socket, Light
7 12002497 Gear
8 67006475 Screw
9 A0282812 Bulb, Light
10 67001035 Housing, Fz Light
11 67005872 Cover, Evaporator
12 67006425 Screw
13 Bracket, Door
W10122147
Left
W10122148
Right
14 67002906 Housing, Light
15
W10167028
Clip, Evaporator
16 67005653 Switch, Light
17 67006530 Screw
18 Bracket
W10187668
Left
W10187667
Right
19
W10120018
Slide, Drawer (2)
20 67003731 Gasket, Bottom
21 Bracket, Slide
W10128119
Right
W10128118
Left
22
W10175909
Grille, Fz
23
W10167023
Shroud
24 2169142 Blade, Fan
25
W10121308
Grommet
26 67003636 Motor, Evap
27 D7753903 Funnel, Drier
28 M0500703 Seal
29 B8381501 Gasket
30 12002355 Thermistor
31 67003924 Cover, Thermistor
Following Parts Not Illustrated
67006095 Harness, Lights
(Freezer)

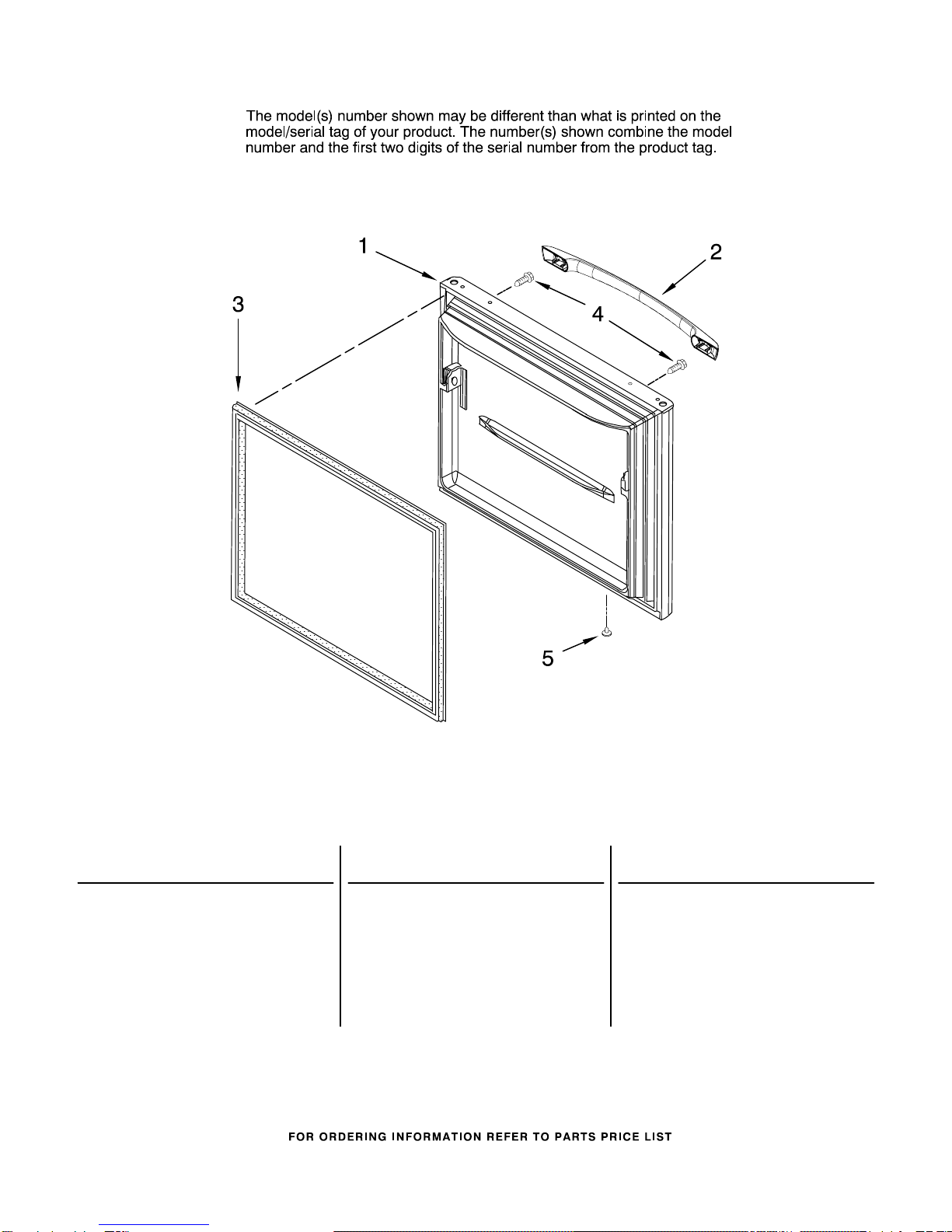

FREEZER DOOR PARTS
5
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Freezer Door
(w/ Insulation)
W10170997
White
W10170998
Black
W10170999
Bisque
2 Handle
67006458 White
W10119667
Bisque
67006463 Black
3 Door Gasket,
Magnetic
W10130894
White
W10130587
Black
4 Screw, Handle Hole
12992902 White
5 Plug, Button (2)
10712401 White
67004838 Black

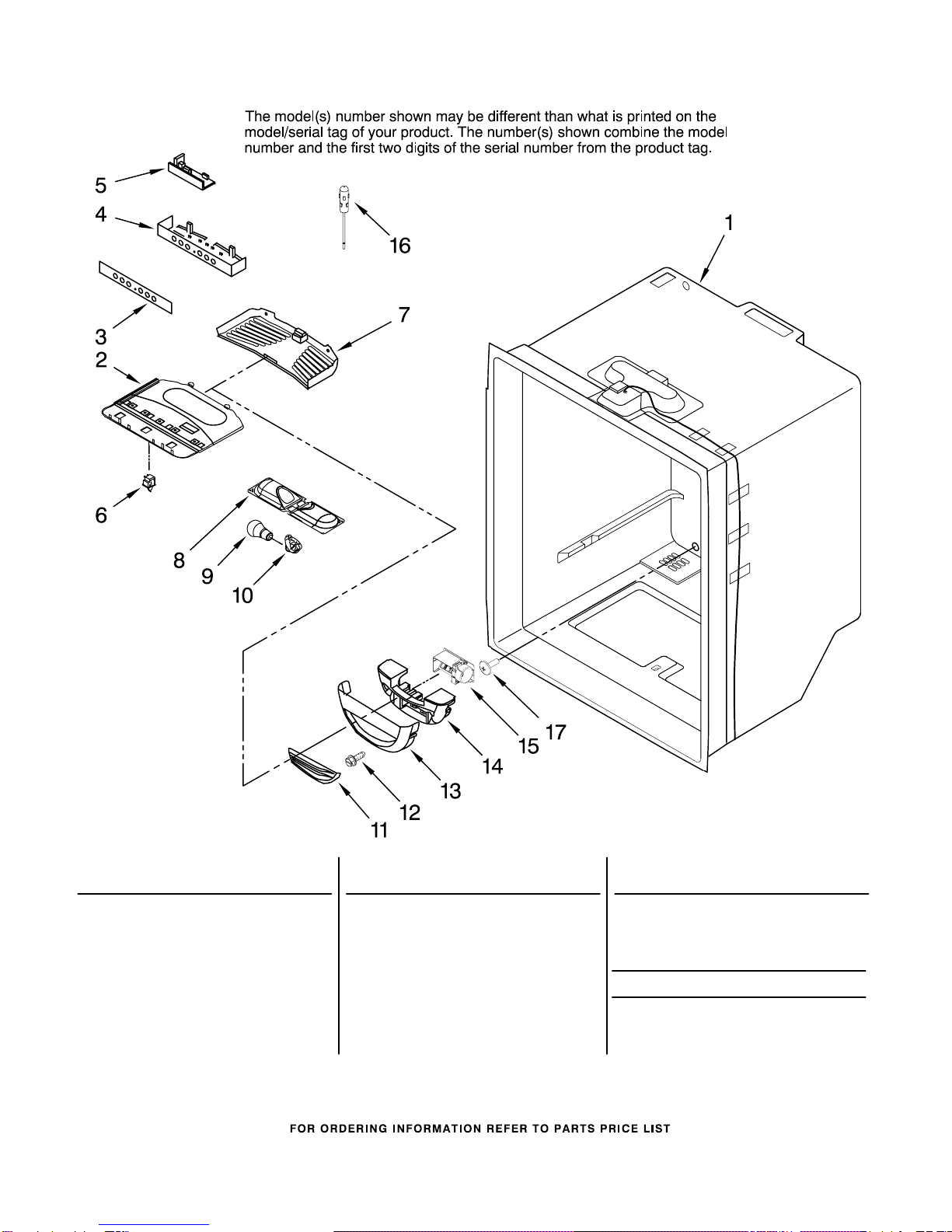

REFRIGERATOR LINER PARTS
6
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2
Y67003896
Module, Light
3 67004279 Overlay
4
W10185244
Housing
5
W10165748
Board, Control
6 C3680310 Switch, Light
7 67003897 Cover, Light
8 67003901 Housing, Light
9 A0282812 Bulb, Light (2)
10
Y12570701
Socket, Light (2)
11 67003900 Insert, Damper
Cover
12 67006602 Screw (2)
13 67003899 Cover, Damper
14 67006604 Insulation
15
W10127429
Control, Damper
16 12002355 Thermistor
17 M0310343 Plug, Button
Following Parts Not Illustrated
67004033 Harness, Controls
(Refrigerator)

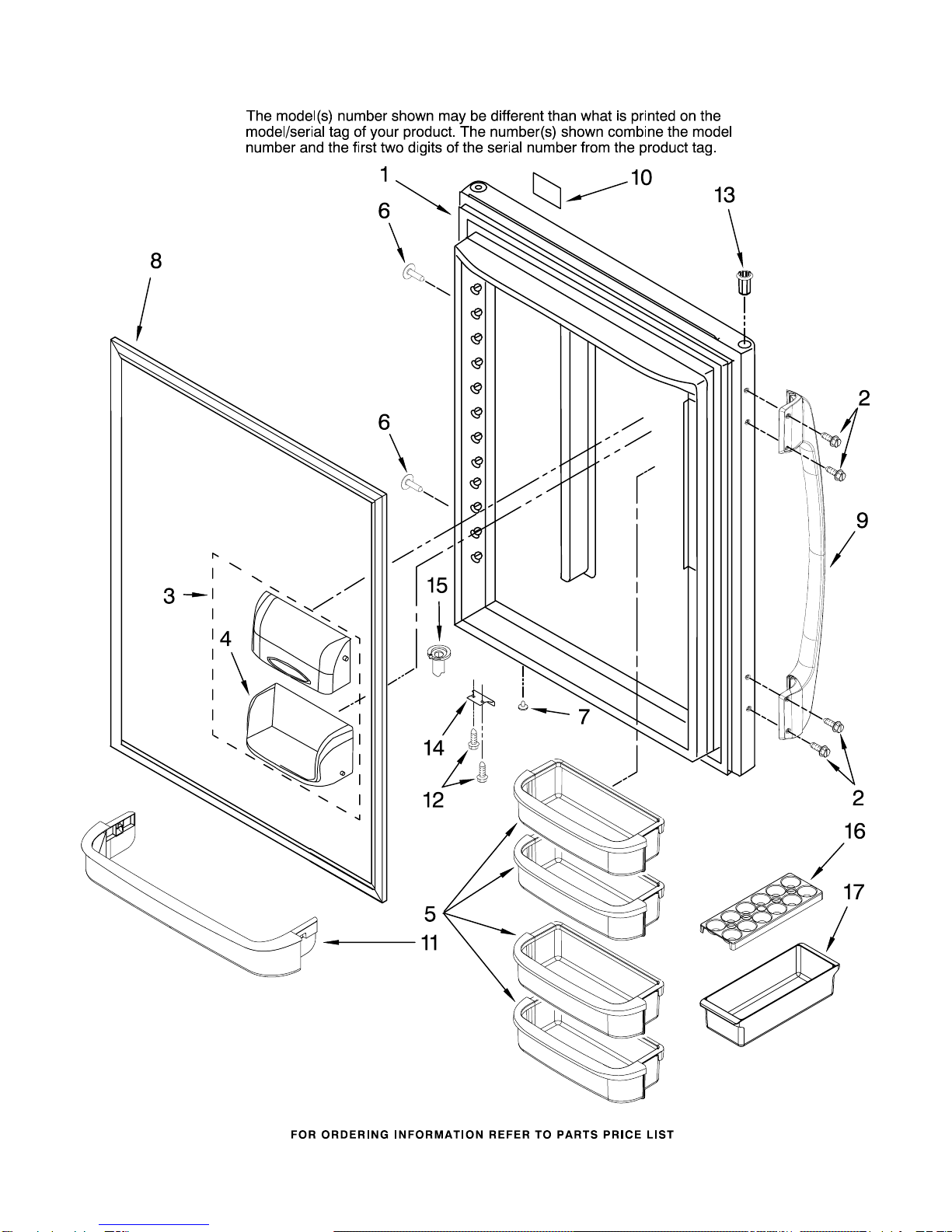

REFRIGERATOR DOOR PARTS
7
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
REFRIGERATOR DOOR PARTS
8
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
Illus. Part
No. No. DESCRIPTION
1 Refrigerator Door
(w/Liner)
67004363 White
67004329 Black
67004361 Bisque
2 67006668 Screw
3 67003819 Door, Dairy
4 67001279 Tray, Dairy
5 67001021 Bucket, Medium (4)
6 Screw, Handle Hole
12991103 White
12991104 Bisque
67007166 Black
7 Plug, Button
10712401 White
67004838 Black
8 Door Gasket,
Magnetic
W10130893
White
W10131327
Black
9 Door Handle
67006721 White
67006804 Bisque
67006805 Black
10 12528501 Nameplate
11 67001280 Retainer, Ref Door
12 67006287 Screw
13 Bushing
67004977 White
67004978 Black
14 Stop, Door
67003779 White
67003781 Bisque
67003780 Black
15 Closure, Door
67003638 White
67003639 Black
16 10436506 Tray, Egg
17 10423131 Bin, Utility

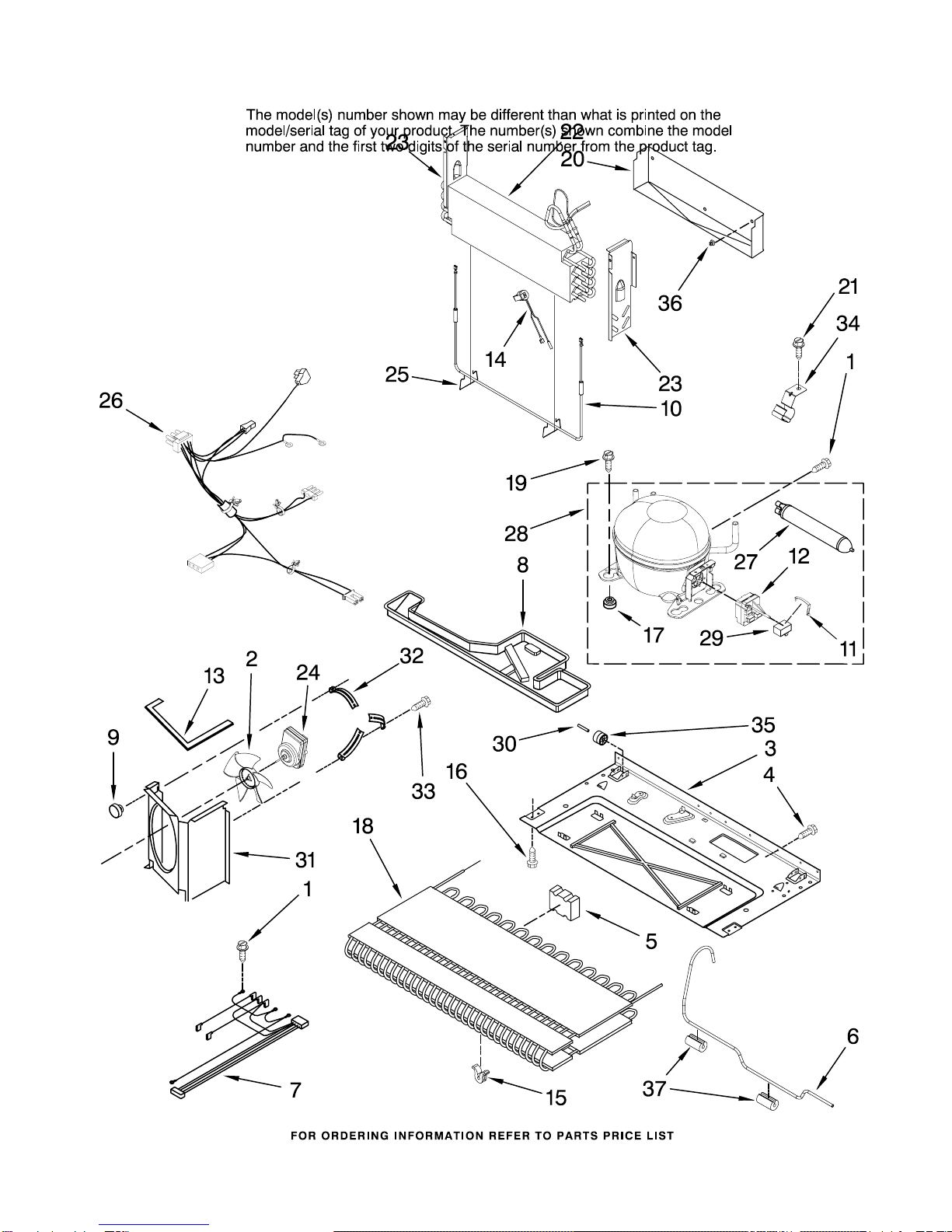

UNIT PARTS
9
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
UNIT PARTS
10
For Models: ABB2222fEW11, ABB2222FEB11, ABB2222FEQ11
(White) (Black) (Bisque)
W10192969
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 67006433 Screw
2
W10162928
Blade, Fan
3 67005744 Basepan
4 67006425 Screw
5 67005491 Block, Condenser
6
W10167036
Tube, Discharge
7
W10119856
Harness, Evap.
Heater
8 67004713 Drain Pan
9 61004743 Grommet (3)
10 67001794 Evaporator Heater
11
W10136415
Clip, Capacitor
12
W10136414
Overload
(Includes Relay)
13 61003210 Gasket
14
W10165425
Thermostat
15
W10137529
Grommet
16 67006573 Screw
17
W10169124
Grommet (4)
18 67006132 Condenser
19 67006432 Screw
20 67001080 Tray, Drip
21 67006737 Screw
22 12001919 Evaporator
23 Dam
67001084 Right Side
67001083 Left Side
24 67004432 Motor, Fan
25 10428101 Clip, Heater
26 13060301 Harness, MC
(Includes
Power Cord)
27 2317845 Drier (Service)
28
W10130129
Compressor
29 2264017 Capacitor
30 67006434 Axle, Roller
31
W10158508
Shroud
32 67004953 Bracket, Fan Motor
33 67004954 Screw
34 10547003 Clip, Drier
35 67005149 Roller
36 10623002 Clip, Evap
37 67005680 Grommet
Following Parts Not Illustrated
and Optional Parts Not Included
978025 Valve, Access
(1/4")
978026 Valve, Access
(5/16")
978027 Valve, Access
(3/8")
978028 Valve, Access
(1/2")
978029 Valve, Access
(5/8")
978030 Valve, Access
(3/4")
876764 Valve, Access
(3/16")
REFRIGERANT CHARGE
5.00 Ozs.
(R−134A)
