Amana AFI2538AEW00 Fehlerbehebungshandbuch

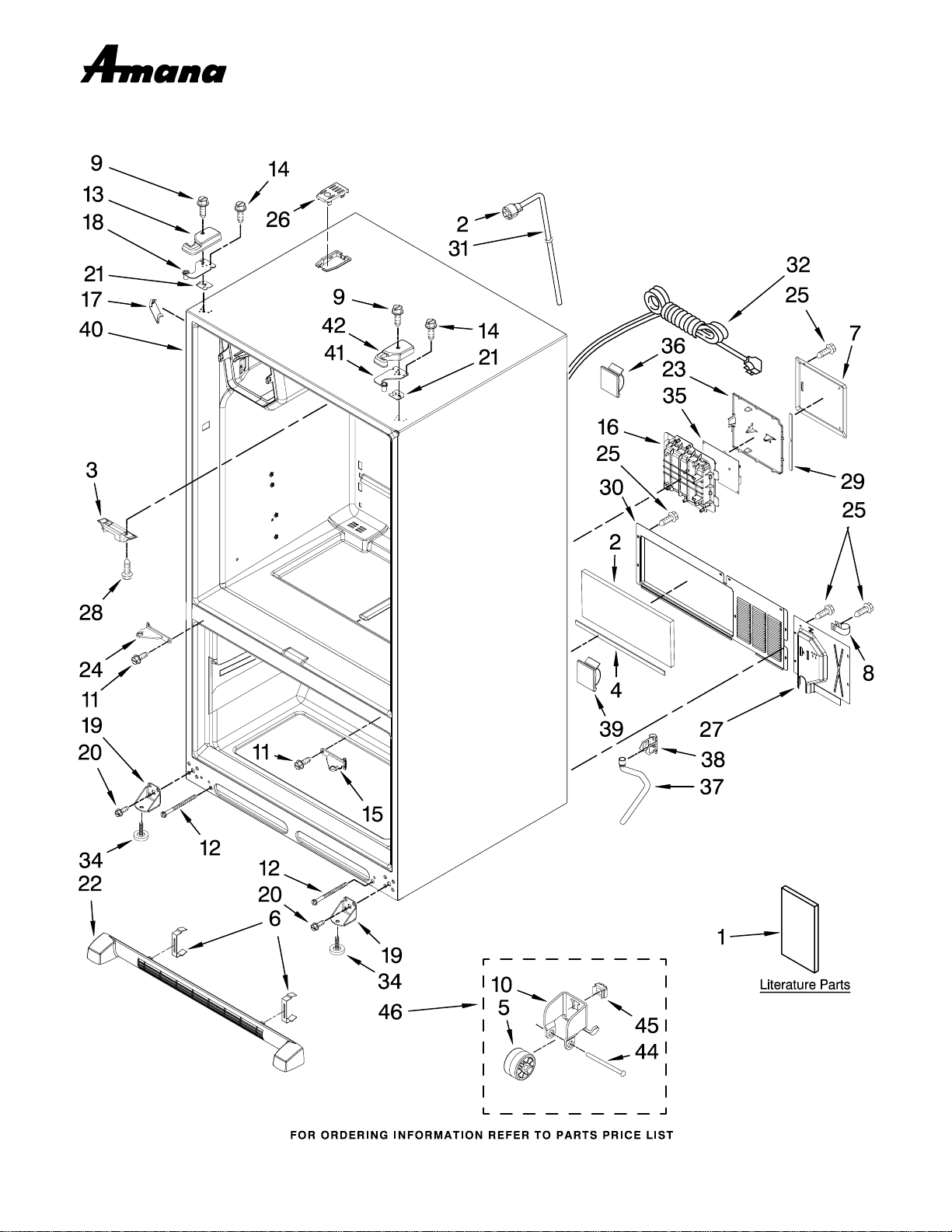

CABINET PARTS
1
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
6−07 Litho In U.S.A. (cjj) Part No. W10139016 Rev.A
REFRIGERATOR
CABINET PARTS
2
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
16026830 Tech Sheet
12828140 Use & Care Guide
67006444 Tag, Energy
16026312 Service Manual
(Bottom Mount)
2 67006332 Waterline−Cabinet
(W/Nut)
3 67003405 Block, Pivot
4 B5759649 Gasket, MC Back
5 67005127 Roller
6 12627302 Clip, Toe Grille
7 67006427 Cover, Control Box
8 M0108105 Clamp, Tube
9 67006521 Screw, Hinge Cover
10 12456801 Bracket, Roller
11 67006380 Screw, Center
Hinge
12 67006611 Bolt, Roller Adj.
13 Cover, Top Hinge
(Left)
67005951 Black
67005952 Bisque
67005953 White
14 67006303 Screw, Top Hinge
15 Hinge, Center (RT)
67006379 White
67006443 Black
16 67006390 Box, HV Control
17 Cover, Corner
67003484 White
67003485 Black
67003486 Bisque
18 67005950 Hinge, Top Left
19 67006112 Bracket, Foot
Cabinet (2)
20 67006491 Screw
21 Shim, Top Hinge
67006308 Left
67006309 Right
22 Grille, Toe
67006375 Black
67006376 Bisque
67006377 White
23 67006428 Lid, HV Control
24 Hinge, Center (LT)
67006277 White
67006442 Black
25 67006425 Screw, Cover
26 Cover, Fill Tube
67006320 Black
67006321 White
27 67005117 Cover, Water Valve
28 67006626 Screw, Block
29 67006429 Gasket, HV Control
30
12575101ED
Back, Mach Comp
31 67006317 Tube W/Waterline,
Fill−IM
32 67007121 Cord, Power
33 67003796 Fiber, Acoustic
34 67003868 Brake, Foot
35 67006389 Board, HV Control
36 M0104102 Clip, Cord
37 67001066 Tube, Drain
38 67001067 Clip, Drain Tube
39 M0104106 Clip
40 Cabinet (Not a
Servicable Part)
41 67005955 Hinge, Top Right
42 Cover, Top Hinge
(Right)
67005956 Black
67005957 Bisque
67005958 White
44 M1205302 Rivet
45 M0286708 Nut, Speed
46 67002227 Roller Bracket
Assembly

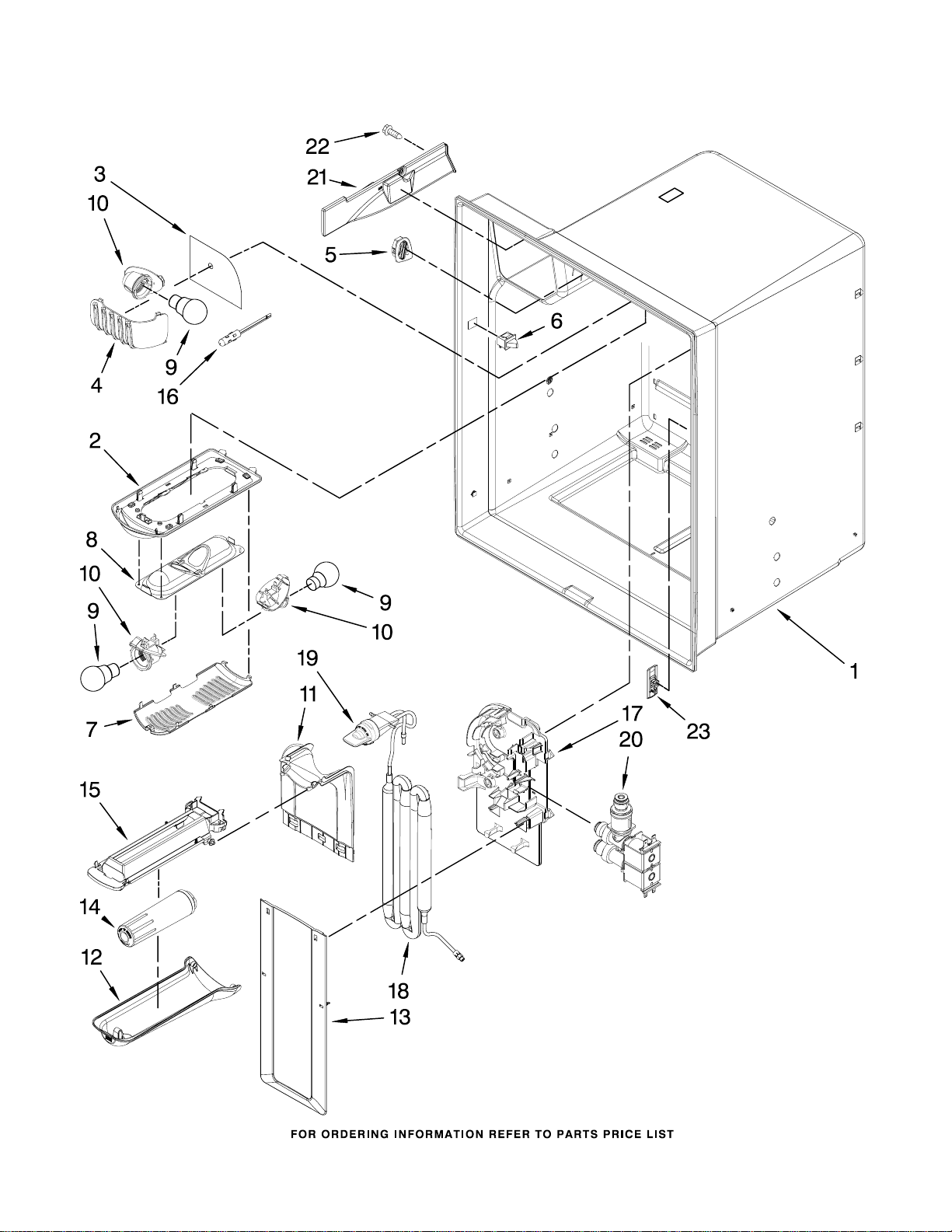

REFRIGERATOR LINER PARTS
3
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
REFRIGERATOR LINER PARTS
4
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Serviceable Part)
2 67006328 Module, Light
3 67006326 Foil, Light
4 67006327 Cover, Light
5 67006316 Grille, Air
6 12466103 Switch, Light
7 67006318 Cover, Light
8 67003901 Housing, Light
9 67003883 Bulb, Light
10
Y12570701
Socket, Light
11 67006330 Cover, Water Tank
(Upper)
12 67006331 Lid, Water Filter
13 67006329 Cover, Water Tank
(Lower)
14 67003591 Filter, Water
15 67006325 Bracket, Filter
Base
16 12002355 Thermister
17 67006324 Bracket, Water
Tank & Valve
18 67006323 Water Tank &
Head Assembly
19 12664501 Plug, Bypass
20 67006322 Valve, Water Inlet
21 67006350 Cover, Ice Box
Harness
22 M0238642 Screw
23 67006319 Cover, Chiller
Vent

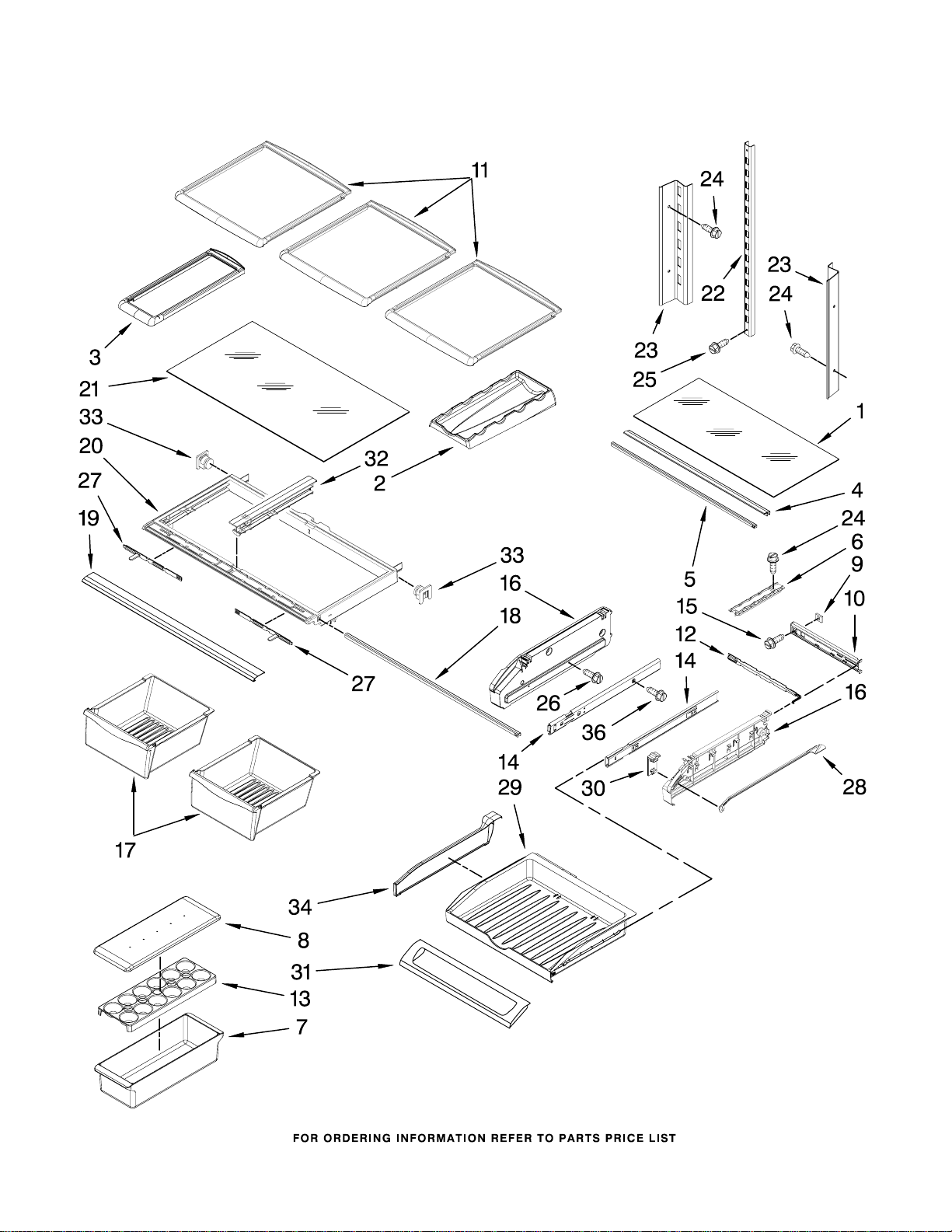

SHELF PARTS
5
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
SHELF PARTS
6
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
Illus. Part
No. No. DESCRIPTION
1 67002761 Glass, Pantry
2 67001656 Trivet, Bottle
3 67006357 Shelf, Mini
(Stationary)
4 67006010 Support, Pantry(2)
5 67002330 Brace, Pantry (2)
6 67001719 Track, Pantry
7 10423131 Bin, Utility
8 10436404 Lid, Utility
9 67002329 Gasket, Pantry
10 67005625 Housing, Control
11 67006351 Shelf, Glide (3)
12 67003793 Slide, Temperature
13 10436506 Tray, Egg
14 67006219 Glide, Drawer (2)
15 67006400 Screw
16 Track, Pantry
67005863 Left
67005858 Right
17 67004515 Pan, Crisper (2)
18 67002748 Support, Crisper
Cover
19 67004636 Trim, Crisper
20 67003854 Frame, Crisper
21 67006704 Glass, Crisper
Cover
22 67006358 Ladder, Center
23 67006354 Ladder, Side
24 67006400 Screw
25 67006360 Screw
26 67006415 Screw
27 67005864 Slide, Humidity
Control
28 67003795 Rod, Temperature
Control
29 67003531 Drawer, Pantry
30 67003791 Knob, Temperature
Control
31 67005903 Door,
Pantry Drawer
32 67004514 Support, Center
Crisper Frame
33 12603701 Stud,
Crisper Frame
34 67002759 Divider,
Pantry Drawer
36 67006287 Screw

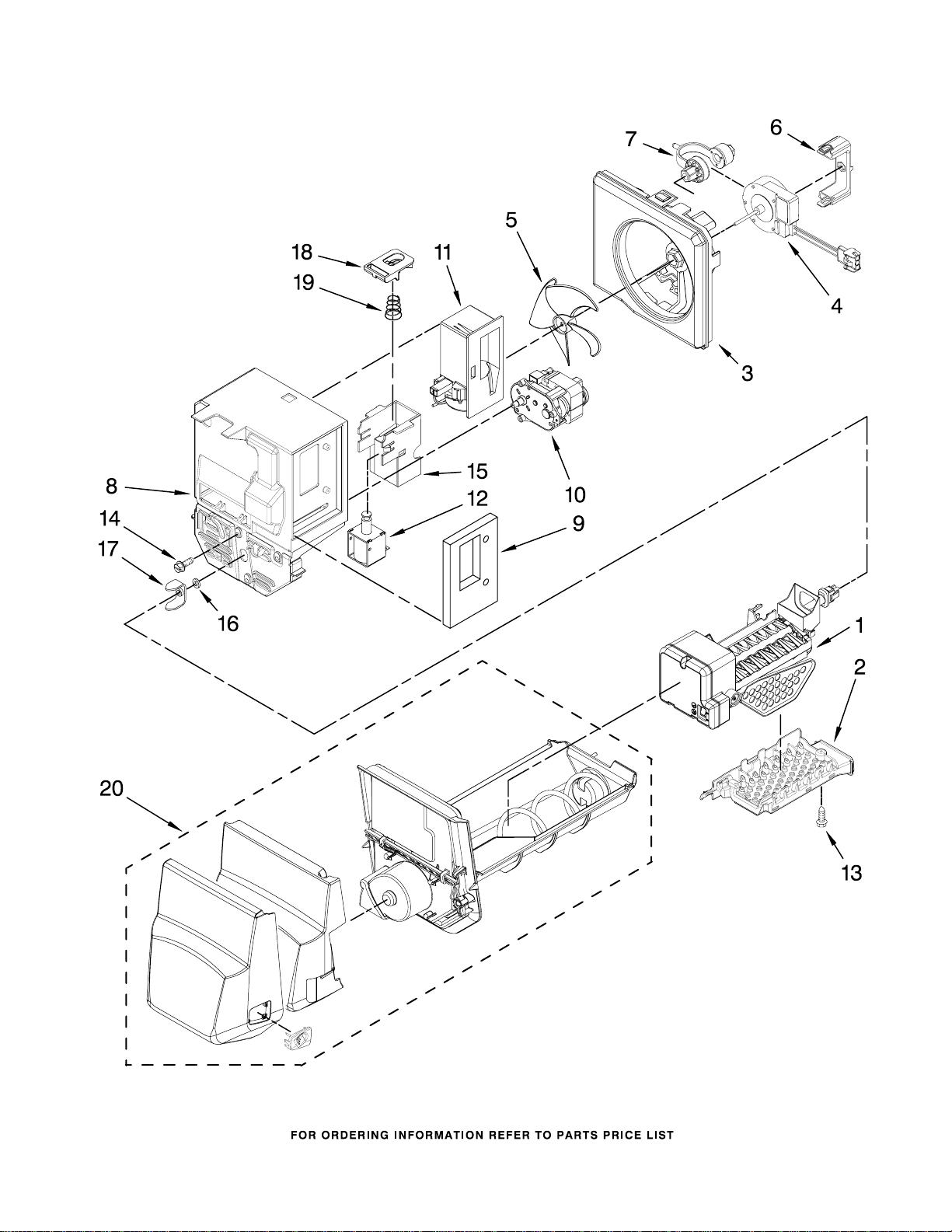

MOTOR AND ICE CONTAINER PARTS
7
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
MOTOR AND ICE CONTAINER PARTS
8
Illus. Part
No. No. DESCRIPTION
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
1 67006847 Icemaker (Includes
Fill Tube Cup,
Wire Harness &
Sensor Arm
2 67006334 Impinger Assembly
3 67006335 Shroud, Ice
Box Fan
4 67006968 Motor, Fan
5 67006337 Blade, Fan
6 67006338 Clip, Fan Motor
7 67006339 Grommet, Fan Motor
8 67006340 Divider, Ice Box
9 67006341 Gasket, Damper
10 67006342 Motor, Auger
11 67006343 Damper, Control
12 67006344 Solenoid
13 67007110 Screw, Impinger
14 67006425 Screw (3)
15 67006345 Bracket, Solenoid
16 67006346 Washer
17 63052−1 Yoke, Ice
Dispenser
18 67006347 Yoke, Solenoid
19 67006348 Spring, Solenoid
20 67006349 Ice Bin Assembly
(Includes Auger)

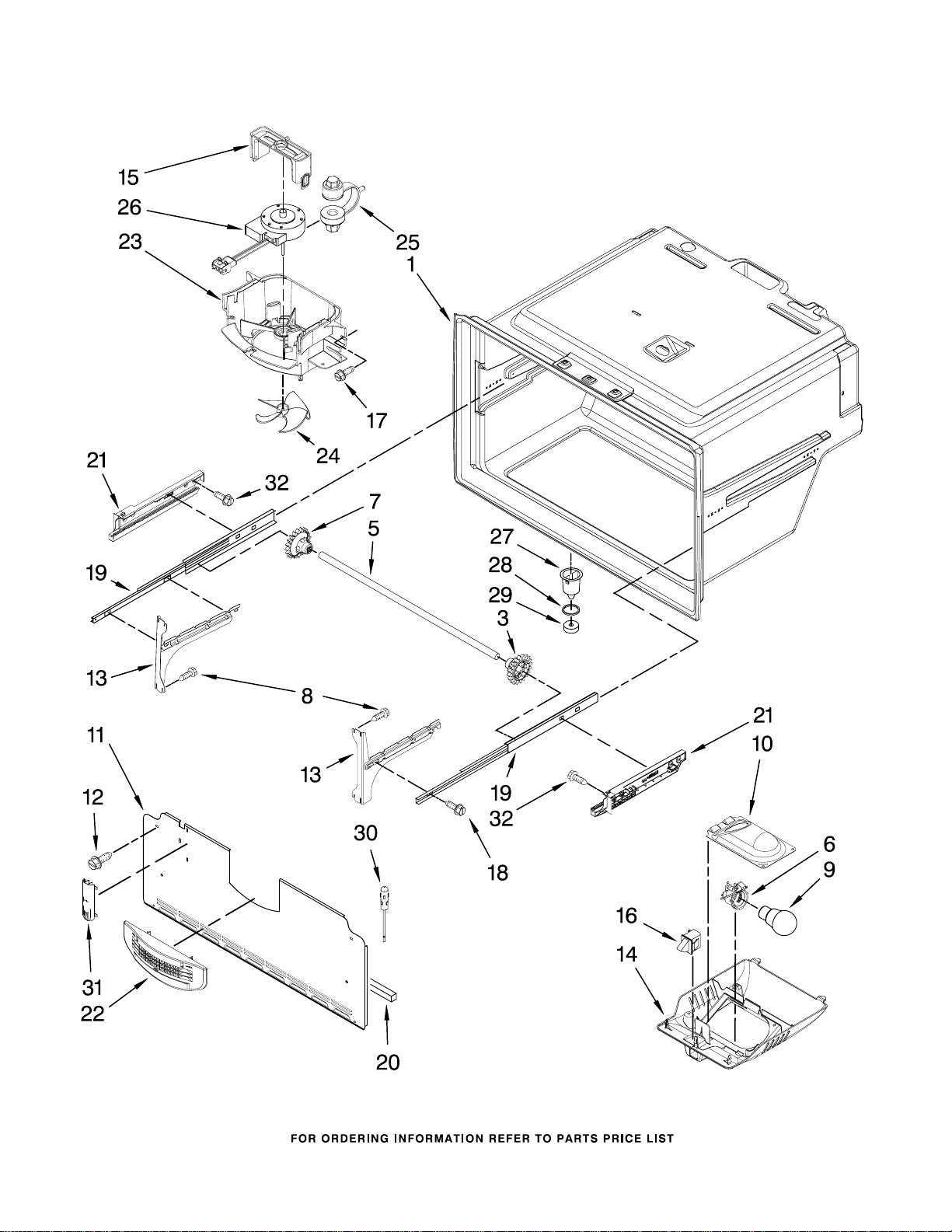

FREEZER LINER PARTS
9
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
FREEZER LINER PARTS
10
For Models: AFI2538AEW00, AFI2538AEB00, AFI2538AEQ00, AFI2538AES00
(White) (Black) (Bisque) (Stainless Steel)
W10139016
Illus. Part
No. No. DESCRIPTION
1 Liner (Not A
Seviceable Part)
3 67004429 Gear (Left)
5 67004017 Shaft, Rack
6
Y12570701
Socket, Light
7 67004430 Gear, (Right)
8 67006473 Screw, Bracket
9 67003883 Bulb, Light
10 67001035 Housing, Light
11 67006383 Cover, Evap
12 67006425 Screw
13 Bracket, Door
Slide
67004012 Left
67004013 Right
14 67006423 Module, Freezer
Light
15 67006338 Clip, Fan Motor
16 67006422 Switch, Rocker
17 67006287 Screw, Fan Shroud
18 67006769 Screw, Slide
To Basket
19 67006365 Slide, Drawer (2)
20 67003731 Gasket, Foam
21 Adapter
67006363 Left
67006364 Right
22 67006382 Grille, Air
23 67006424 Shroud, Evap Fan
24 67006337 Blade, Fan
(Evaporator)
25 67006339 Grommet, Fan
Motor (2)
26 67006968 Motor, Evaporator
Fan
27 D7753903 Funnel, Drain
28 M0500703 Seal, O Ring
29 B8381501 Gasket,
Drain Tube
30 12002356 Thermistor Kit
31 67003924 Cover, Thermistor
32 67006406 Screw, Adapter
