Amana ABB2221FEB1 Bedienungsanleitung

CABINET PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

10−07 Litho In U.S.A. (cjj) Part No. W10169670 Rev.A

REFRIGERATOR

CABINET PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10137539

Use & Care Guide

W10123457

Energy Guide

W10169671

Tech Sheet

2 Cabinet (Not a

Servicable Part)

3 Plug, Button (3)

67001130 White

67001131 Black

4 B5759649 Gasket

5 67006118 Roller Assembly

6 67003868 Foot, Brake

7 67006744 Pin, Center Hinge

8 67006611 Bolt, Adjusting

(Front Roller)

9 67006521 Screw

10 Cover, Hinge

67001014 White

67001012 Black

11 67005822 Screw

12 67006473 Screw

13 67005064 Label, Fl Tb

Plug

14 67006303 Screw

15 Hinge, Center

67006960 White

67007043 Black

12566604ED

Hinge, Top

17 Cover, Corner

67003484 White

67003485 Black

18 67001067 Clip, Drain

19 67001069 Hinge Bottom

20 67006564 Screw

21 67006101 Cover, Unit

22 Grille Assembly

(Includes Clips)

67002223 White

67002224 Black

23 67001098 Cover, Fl Tb

24 67001066 Tube, Drain

25 67006425 Screw (9)

26 67003796 Fiber, Acoustic

27 67001097 Cover, Water Valve

29 12479901 Plate, Cover

30 67006662 Screw

31 M0274057 Shim, Non Metal

32 67007018 Pin, Bottom Hinge

33 Cover, LWR Hinge

12561901W

White

12561901B

Black

34 12627302 Clip, Grille

Following Parts Not Illustrated

8170942 Clamp, Tube

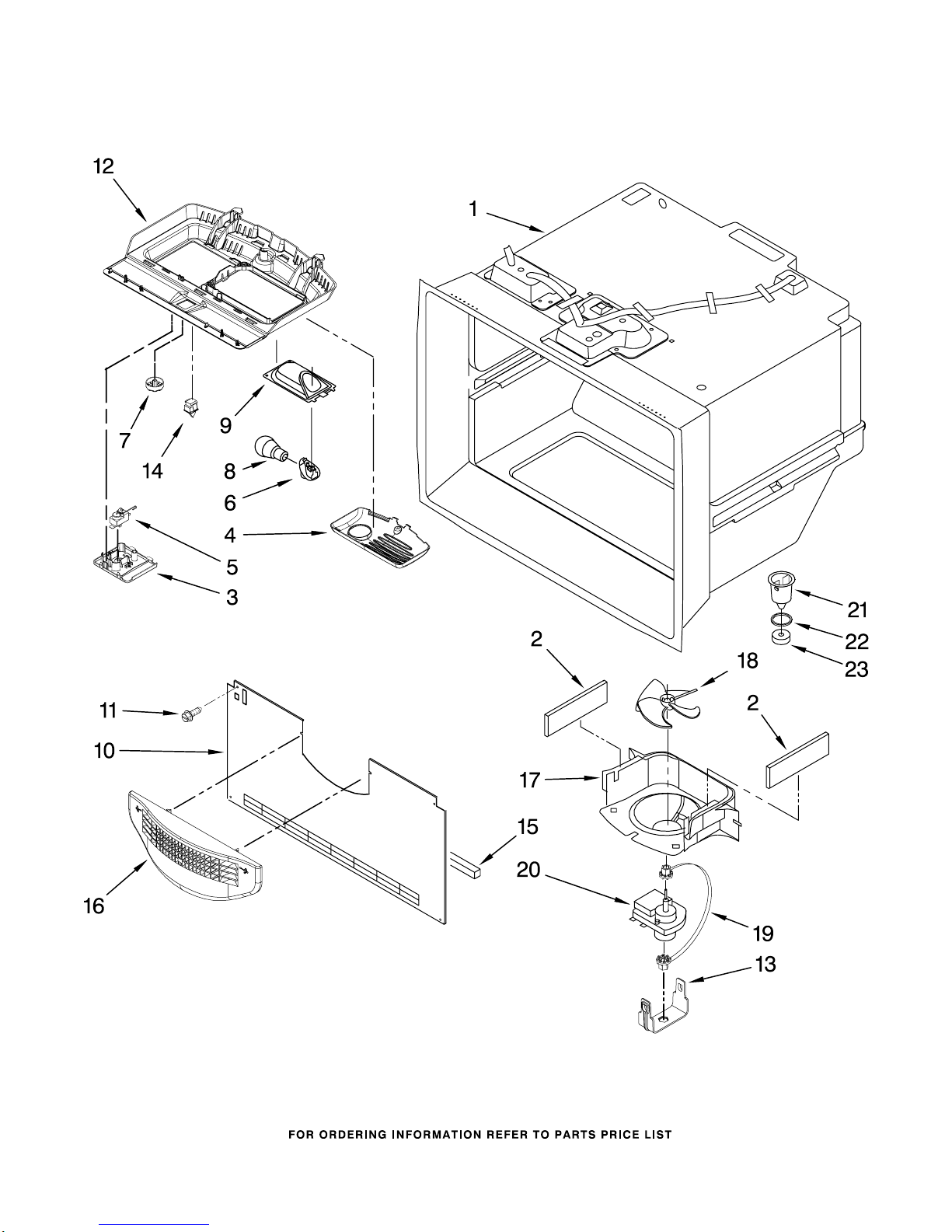

FREEZER LINER PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

FREEZER LINER PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 67001291 Gasket, Foam

3 67001045 Panel Fz

Control

4 67001285 Cover, Light

5 67001046 Control, Fz

Y12570701

Socket, Light

7 67003420 Knob, Fz

Control

8 A0282812 Bulb, Light

9 67001035 Housing, Frz. Light

10 67005869 Cover, Evaporator

11 67006425 Screw (7)

12 67001286 Module, Freezer

W10167028

Clip, Evap. Motor

14 67005653 Switch, Light

15 67001776 Gasket, Bottom

16 13024802 Cover, Fan Shroud

W10167023

Shroud, Evap.Fan

18 2169142 Blade, Fan

(Evaporator)

W10121318

Grommet

20 67003636 Motor, Evaporator

21 D7753903 Funnel, Drain

22 M0500703 Seal

23 B8381501 Gasket

Following Parts Not Illustrated

W10130480

Harness, Lights

(Freezer)

FREEZER DOOR PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Freezer Door

(w/ Insulation)

W10168717

White

W10168719

Black

2 Handle

67005140 White

67005125 Black

3 Door Gasket,

Magnetic

W10130894

White

W10130587

Black

4 Plug, Hole

67001130 White

67001131 Black

5 Stop, Door

67003779 White

67003780 Black

6 Plug, Button (2)

10712401 White

W10153326

Black

7 67003934 Retainer

8 Bushing

67004977 White

67004978 Black

9 67006831 Screw (2)

10 67006287 Screw (2)

REFRIGERATOR LINER PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

2 67003108 Module, Light

3 67001040 Belt, Damper

4 67001034 Tensioner, Belt

5 67001036 Timer, Defrost

6 C3680310 Switch, Light

7 M0310343 Plug, Button

White

8 67001035 Housing, Light

9 A0282812 Bulb, Light (2)

Y12570701

Socket, Light (2)

11 67002301 Cover

Ref Light

12 12990514 Screw

13 67002000 Cover, Damper

14 67003803 Insulation

15 67003410 Damper, Gear

Assembly

16 67001033 Knob, Gear

17 67002512 Knob, Damper

Upfront

18 67003104 Logo, Light

19 67002085 Pan, Timer

Light Housing

Following Parts Not Illustrated

67001043 Harness, Controls

(Refrigerator)

REFRIGERATOR DOOR PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

REFRIGERATOR DOOR PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(w/Liner)

67001009 White

67001008 Black

2 67006682 Screw

3 67003819 Door, Dairy

4 67001279 Tray, Dairy

5 67001021 Bucket, Medium (4)

6 Plug, Handle Hole

67001130 White

67001131 Black

7 Plug, Button

10712401 White

67004838 Black

8 Door Gasket,

Magnetic

W10130893

White

W10131327

Black

9 Door Handle

67003129 White

67003130 Black

10 12528501 Nameplate

11 67001280 Retainer, Ref Door

12 67006287 Screw

13 Bushing

67004977 White

67004978 Black

14 Stop, Door

67003779 White

67003780 Black

15 M0274057 Shim, Non Metal

16 12248201 Screw

17 Trim, Handle Btm

67005134 White

67005135 Black

18 Trim, Top Handle

67005131 White

67005132 Black

19 10423131 Bin, Utility

UNIT PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

UNIT PARTS

For Models: ABB2221FEW1, ABB2221FEB1

(White) (Black)

W10169670

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 67006433 Screw

W10162928

Blade, Fan

3 67005744 Basepan

4 67006425 Screw

5 67005491 Block, Condenser

W10167036

Tube, Discharge

W10119855

Harness, Evap.

Heater

8 67004713 Drain Pan

9 61004743 Grommet (3)

10 67001794 Evaporator Heater

W10136415

Clip, Capacitor

W10136414

Overload

(Includes Relay)

13 61003210 Gasket

14 67003426 Thermostat

W10137529

Grommet

16 67006573 Screw

17 67003493 Grommet (4)

18 67006132 Condenser

19 67006432 Screw

20 67001080 Tray, Drip

21 67006737 Screw

22 12001919 Evaporator

23 Dam

67001084 Right Side

67001083 Left Side

24 67004432 Motor, Fan

25 10428101 Clip, Heater

26 13060301 Harness, MC

(Includes

Power Cord)

27 23178454 Drier (Service)

W10130129

Compressor

29 2264017 Capacitor

30 67006434 Axle, Roller

W10153406

Shroud

32 67004953 Bracket, Fan Motor

33 67004954 Screw

34 10547003 Clip, Drier

35 67005149 Roller

36 10623002 Clip, Evap

37 67005680 Grommet

Following Parts Not Illustrated

and Optional Parts Not Included

978025 Valve, Access

(1/4")

978026 Valve, Access

(5/16")

978027 Valve, Access

(3/8")

978028 Valve, Access

(1/2")

978029 Valve, Access

(5/8")

978030 Valve, Access

(3/4")

876764 Valve, Access

(3/16")

REFRIGERANT CHARGE

5.00 Ozs.

(R−134A)
