Amano PIX-25 Bedienungsanleitung

PIX-25

Atomic Time Clock

Operation Manual

PIX-25 www.amano.com 1-800-253-9836 pg. 2

Proprietary Notice

This document contains proprietary information and such information may not

be reproduced in whole or part without the written permission from Amano

Cincinnati, Inc. 140 Harrison Ave., Roseland, New Jersey 07068.

Amano Cincinnati, Inc. reserves the right to make equipment changes and

improvements, which may not be reflected in this document. Portions of this

document may have been updated to include the latest hardware or firmware

version, if applicable. We recommend that this document be read in its entirety

before any attempt is made to operate the equipment.

Thank You….

For purchasing another fine product from

Amano Cincinnati, Inc.

Important! Do not return this clock to the retailer. If you have any

questions or need assistance, please call us toll free at 1-800-253-9836

8:15 am –5pm EST

e-mail: [email protected]

Find Answers to frequently asked questions, and general product

information such as a more detailed owner’s manual for this product at

www.amano.com/tkb and search for PIX-25

Need Ribbons, Keys and Accessories?

Visit

www.amano.com/time

Or call 1-800-253-9836

Ribbon # CE-315151

Key # AJR-201150

Note: This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This

equipment generates uses and can radiate radio frequency

energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential

area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own

expense.

PIX-25 www.amano.com 1-800-253-9836 pg. 3

External View

Internal View

The PROGRAM button is used to enter and exit the Program Mode.

The CHANGE button is used to change the information on the display.

The ENTER button is used to accept the information shown on the display

and save it in memory.

The HOUR button advances the hour in the display by increments of 1.

The MINUTE button advances the minutes in the display by increments of 1.

The LCD Display contains an Ink Capacity gauge. This gauge indicates the

amount of ink remaining in the ribbon cartridge using four bar segments, from E

(Empty) to F (Full).

The PIX-25 calculates the ink capacity of the ribbon cartridge from the number

of imprints made. As the ink capacity decreases, the bars in the gauge will

disappear.

PIX-25 www.amano.com 1-800-253-9836 pg. 4

Removing the Cover and Packing Material

1.Plug the clock in (power up).

2.Insert the key provided and make a quarter turn clockwise to unlock the cover.

3.Lift the cover to remove.

4.Remove the cardboard spacer located above the ribbon cartridge by pulling

straight out.

5.Remove the spacer between the Ribbon Cartridge and the Printer Carriage.

Making a Test Print

1. Make sure the PIX-25 is plugged in.

2. Insert a piece of paper or time card into the PIX-25. The clock will

automatically print YEAR, MONTH, DATE and TIME with AM or PM.

3. If the imprint is satisfactory, the PIX-25 is ready for use.

Setting the Time (If Displayed Time is Incorrect)

1. Unlock and remove the cover.

2. Press the HOUR button until the correct hour appears.

3. Press the MINUTE button until the correct minute appears.

Setting the Year, Month and Date (If Incorrect)

1.Press and hold the PROGRAM button until appears, then press

the CHANGE button to select , then press the ENTER button.

2.Press the CHANGE button to select correct YEAR, then press the ENTER

button.

3.Press the CHANGE button to select correct MONTH, then press the ENTER

button.

4.Press the CHANGE button to select correct DATE, then press the ENTER

button twice.

5.Press the PROGRAM button to exit

Note: Your clock is preset with the correct year, month and

date. The hour may need to be set to your location.

PIX-25 www.amano.com 1-800-253-9836 pg. 5

Changing the Print Style

1.Press and hold the PROGRAM button until appears

2.Press the CHANGE button until appears, then press the

ENTER button.

3.The display will flash the current setting. Press the CHANGE button until the

desired print style code appears (see diagram).

4.When the display flashes the correct setting, press the ENTER button and

press the PROGRAM button to exit.

Changing the Print Direction

1.Press and hold the PROGRAM button until appears.

2.Press the CHANGE button until appears. Press the ENTER

button.

3.Press the CHANGE button until flashes in the display. Press the

ENTER button.

4.Press the CHANGE button until the correct print direction (Right Side)

or (Left Side) flashes in the display, then press the ENTER button.

5.Press the PROGRAM button to exit.

2 digit year, month, date 12hr, 60th/hr ‘15JAN27 2:25PM

2 digit year, month, date 24hr, 60th/hr

2 digit year, month, date 24hr, 100th/hr

2 digit year, month, date 24hr, 10th/hr

2 digit year, month, date 24hr, 60th/hr,Sec

4 digit year, month, date 12hr, 60th/hr

4 digit year, month, date 24hr, 60th/hr

4 digit year, month, date 24hr, 100th/hr

2 digit year, month, date 6 digit counter

month, date 24hr, 60th/hr 6 digit counter

‘15JAN27 14:25

‘15JAN27 14.42

‘15JAN27 14.4

‘15JAN27 14:25 36s

‘2015JAN27 2:25PM

‘2015JAN27 14:25

‘2015JAN27 14.42

‘15JAN27 012345

JAN27 14:25 012345

LANGUAGE

PRINT DIR

PAPER DET

LEAD ZERO

NUMBERING

DST BEGIN

DST END

DISP HOUR

PIX-25 www.amano.com 1-800-253-9836 pg. 6

Disabling or Enabling Daylight Saving Time

Note: Your clock is preset (Enabled) at the factory to change automatically for

daylight savings. To disable daylight savings follow the steps below:

1. Press and hold the PROGRAM button until appears then

press the CHANGE button until appears.

2. Press the ENTER button.

3. Press the CHANGE button to alternate between and .

4. When the display flashes the correct setting, press the ENTER button.

5. The display will show , press the PROGRAM button to exit the

Program Mode.

Changing the Begin / End Date for DST

Note that the government standard for DST is subject to change. Your clock is

factory-set for correct DST based upon when it was manufactured, but any

revision to DST begin or end dates may require updating the system-set DST

calendar.

The steps below change the begin and end date for DST. Updating the begin

date for DST needs to be done just one time, since the clock’s rolling calendar

function will auto-calculate the begin date for each year thereafter. To change

the end date for DST, refer to the next section.

1. Press and hold the PROGRAM button until appears, then

press the CHANGE button until appears and then press the

ENTER button.

2. Press the CHANGE button until ( flashes in the

display.

3. Press the ENTER button and the year will start to flash. Press CHANGE

button until correct year is displayed and then press ENTER.

4. The month will start to flash. Press CHANGE button until correct month is

displayed and then press ENTER.

5. The date will start to flash. Press the CHANGE button until correct date is

displayed and then press ENTER button twice to accept changes.

6. Press the CHANGE button until flashes in the display.

7. Press the ENTER button and the year will start to flash. Press CHANGE

button until correct year is displayed and then press ENTER.

8. The month will start to flash. Press the CHANGE button until correct

month is displayed and then press ENTER.

ENABLED

DISABLED

PIX-25 www.amano.com 1-800-253-9836 pg. 7

9. The date will start to flash. Press the CHANGE button until correct date is

displayed and then press the ENTER button twice to accept changes.

10. Press the PROGRAM button to exit the Program Mode.

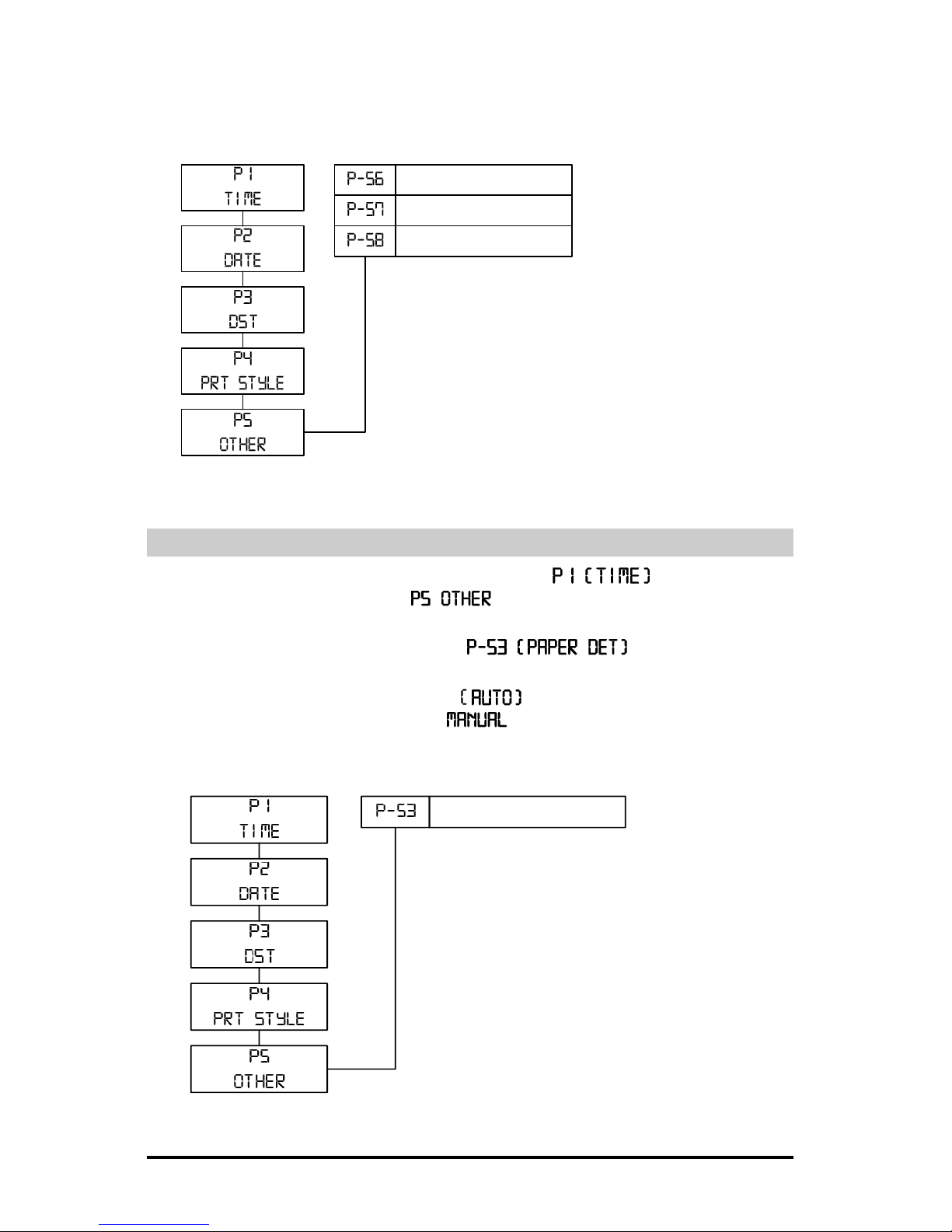

Enabling or Disabling Auto Print

1. Press and hold the PROGRAM button until appears, then

the CHANGE button until appears and then press the ENTER

button.

2. Press the CHANGE button until flashes in the

display.

3. Press the ENTER and the word will start to flash. Press the

CHANGE button to change to and then ENTER.

4. Press the PROGRAM button to exit the Program Mode

DST BEGIN

DST END

DISP HOUR

PAPER DET

PIX-25 www.amano.com 1-800-253-9836 pg. 8

Wall Mounting

Placement considerations:

1. Insert the key provided and make a quarter

turn clockwise to unlock the cover.

2. Remove the Cover and then remove the

Back Plate by pressing the tab on the

bottom of the clock as shown in the right-

hand figure.

3. Using the Back Plate as a template, mark

the lower mounting hole on the wall.

4. Mount the plate using a #10 wood screw

(or equivalent) in the center mounting hole.

5. Level the Back Plate and mark the location

of the two upper mounting holes. Secure to

the wall using #10 wood screws (or

equivalent).

6. Feed the AC Power Adapter cable through

one of the holes in the Back Plate.

PIX-25 www.amano.com 1-800-253-9836 pg. 9

Searching

for signal

Found

signal

7. Align the clock with the two upper tabs on

the back plate. Tilt the back of the clock

upwards to fully insert the back plate tabs

into the clock. Be careful not to pinch the

power cord with the bracket.

8. Once the tabs are inserted, tilt the clock

back down and push it against the wall.

The tabs will snap into place.

9. Remove key and snap the cover back in

place.

Atomic Clock Feature

NOTE: Only minutes and seconds are updated by the atomic clock. The

hour must be set according to the time zone the clock is in.

The Amano atomic clock receives time signals on long wave radio (60 kHz) from

the National Institute of Standards and Technology (NIST) radio station WWVB,

located in Fort Collins, Colorado, which is coupled with the

atomic cesium clock in Boulder. The PIX-25 receives the

WWVB time signal via its built-in antenna system. Your clock

will try to find the signal on a daily basis.

The Atomic Time Synchronization Indicator in the LCD Display

indicates the status of the signal. When you first receive the

clock, it may be necessary to adjust the hour and minute. If

your PIX-25 is located in an area that cannot receive the

Atomic time signal, DO NOT be concerned, since the PIX-25 is able to accurately

keep the time using its quartz mechanism (plus or minus three seconds per

week).

For more information about how radio-controlled clocks work, please visit:

http://www.nist.gov/pml/div688/grp40/radioclocks.cfm

PIX-25 www.amano.com 1-800-253-9836 pg. 10

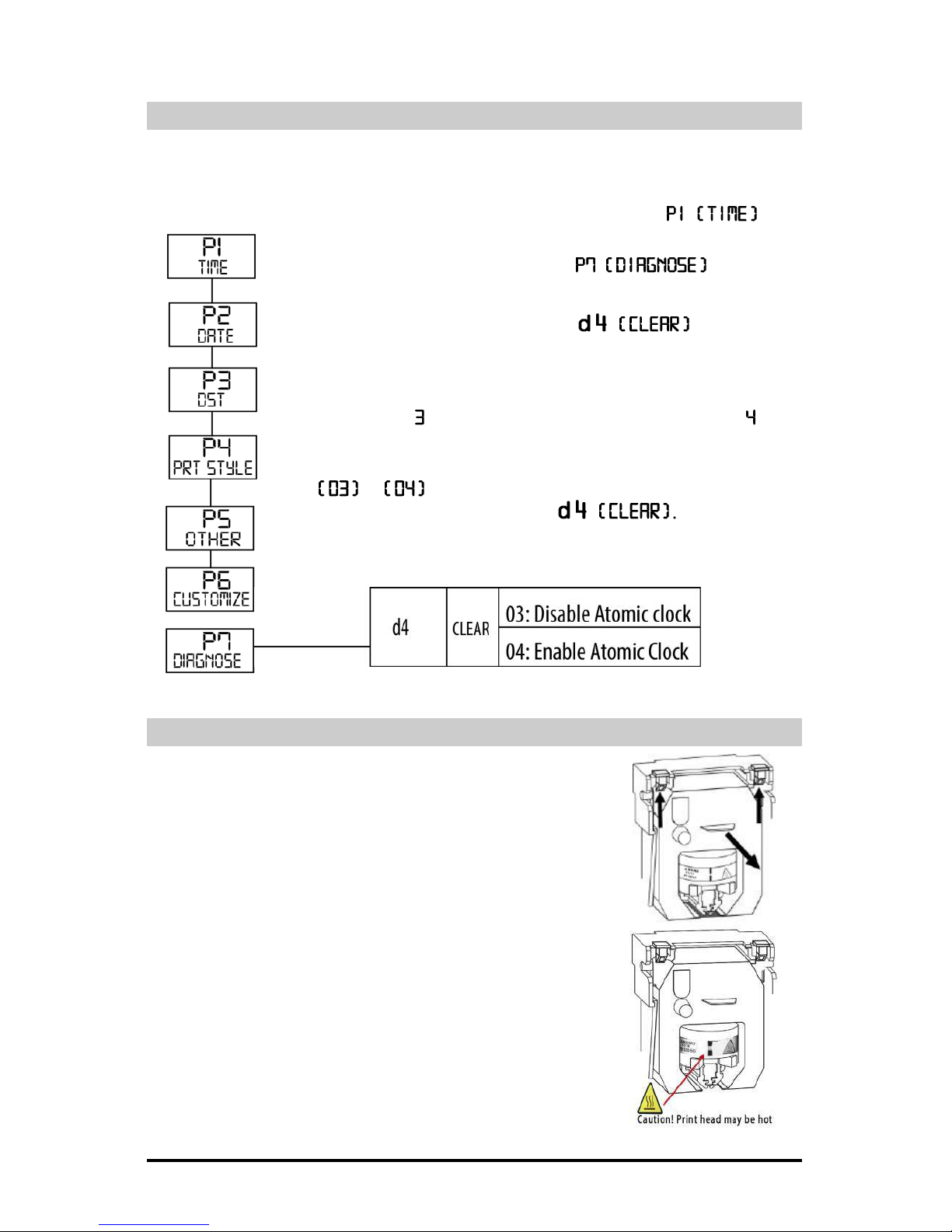

Disabling or Enabling the Atomic Clock

By default, the Atomic Clock function is enabled. If you wish to disable the atomic

clock synchronization, or if you wish to re-enable synchronization, please do the

following: 1. Press and hold the PROGRAM button until

appears.

2. Press the CHANGE button until appears.

3. Press the ENTER button.

4. Press the CHANGE button until flashes in

the display. Press the ENTER button.

5. Press the ENTER button to move to the second digit and

press the CHANGE button until the last digit of the code is

the number (to disable atomic clock) or the number (to

enable atomic clock).

6. Press ENTER to accept. The display will flash and code

or will show on the display, press ENTER to

accept. The display will show

7. Press the PROGRAM button to exit.

Ribbon Cartridge Replacement

1. Remove the cover.

2. Pull the two ribbon release tabs upward.

3. While holding the release tabs in an upward

position, pull the ribbon cassette out of the cradle.

4. If the print mechanism is down and a piece of

paper cannot be inserted, unplug the clock, then

plug it back in to move the carriage up. This will

make the ribbon installation easier.

5. Insert a new ribbon underneath the printer head

as shown.

6. Turn the knob on the cassette clockwise one turn

to take up any slack in the ribbon.

7. Check the printing quality to confirm that you have

installed the ribbon properly.

8. Reset the INK capacity gauge by pressing the

CHANGE and ENTER buttons at the same time

9. Replace the cover.

Andere Handbücher für PIX-25

Inhaltsverzeichnis

Andere Amano Uhr Handbücher

Amano

Amano NS 5000 Series Bedienungsanleitung

Amano

Amano CP-5000 Bedienungsanleitung

Amano

Amano MJR-8000 Series Montageanleitung

Amano

Amano EX3500N Bedienungsanleitung

Amano

Amano PIX-15 Bedienungsanleitung

Amano

Amano EX3000N Bedienungsanleitung

Amano

Amano TCX-22 Bedienungsanleitung

Amano

Amano PIX-3000x Series Bedienungsanleitung

Amano

Amano PIX-28 Bedienungsanleitung

Amano

Amano MRX-35 Bedienungsanleitung

Amano

Amano PIX-10 Bedienungsanleitung

Amano

Amano PIX-10 Bedienungsanleitung

Amano

Amano TCX-22 Bedienungsanleitung

Amano

Amano EX-6200 Bedienungsanleitung

Amano

Amano PIX-15 Bedienungsanleitung

Amano

Amano Time Partner TCX-11 Bedienungsanleitung

Amano

Amano MICRODER MR-7000 Series Bedienungsanleitung

Amano

Amano 4700 Series Bedienungsanleitung

Amano

Amano EX9000 series Bedienungsanleitung

Amano

Amano PIX-55 Bedienungsanleitung

Amano

Amano TCX-85 Bedienungsanleitung

Amano

Amano PIX-21 Bedienungsanleitung

Amano

Amano PIX-21 Bedienungsanleitung

Amano

Amano TS-3000i Bedienungsanleitung

Beliebte Uhr Handbücher anderer Marken

Silicon Laboratories

Silicon Laboratories SI5324 Bedienungsanleitung

Heathkit

Heathkit GC-1005 Bedienungsanleitung

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Bedienungsanleitung

Andrew O'Malley

Andrew O'Malley DOTKLOK Bedienungsanleitung

ALGE-Timing

ALGE-Timing ASC3 Bedienungsanleitung

Bodet

Bodet Profil 960 Bedienungsanleitung

Nixie Clock

Nixie Clock Divergence Meter Bedienungsanleitung

La Crosse Technology

La Crosse Technology WS-8256-AL Bedienungsanleitung

Mini Gadgets

Mini Gadgets MCPro Bedienungsanleitung

Casio

Casio TMR-200 Bedienungsanleitung

Progetti

Progetti ILTEMPOSTRINGE Handbuch

BVItech

BVItech BV-101 Bedienungsanleitung

Progetti

Progetti KALIMERO Handbuch

La Crosse Technology

La Crosse Technology WT-3141b Handbuch

La Crosse Technology

La Crosse Technology W86531 Bedienungsanleitung

Sharp

Sharp SPC900 Bedienungsanleitung

La Crosse Technology

La Crosse Technology 404-50447 Bedienungsanleitung

Datexx

Datexx DF0063 Bedienungsanleitung
