Amer WAP123N Bedienungsanleitung
300Mbps Wireless Access Point
WAP123N
300Mbps Wireless Access Point
User Guide
300Mbps Wireless Access Point
Copyright State ent
Amer Networks is the registered trademark of Amer.com. All the
products and product names mentioned herein are the trademarks or
registered trademarks of their respective holders. Copyright of the whole
product as integration, including its accessories and software, belongs
to Amer.com. Any usage without the permission of Amer.com, or by any
individual or party is not allowed.
All the photos and product specifications mentioned in this manual are
for references only. As software update may change the images and the
appearance of the web gui, Amer.com is not responsible for informing in
advance, of theses changes. If you want to know more about our
product information, please visit our website at www.amer.com
300Mbps Wireless Access Point
Contents
Chapter 1 Product Overview...............................................................1
1.1 Product Features.................................................... 2
1.2 Package Contents .................................................. 2
Chapter 2 Product Installation............................................................4
Chapter 3 Configuration Guide...........................................................5
3.1 Web Login............................................................... 5
3.2 Setup Wizard .......................................................... 6
3.3
Wireless Access Point (AP) Mode........................ 7
3.4
Bridge (WDS) Mode ............................................... 9
3.5 Running Status..................................................... 11
3.6 LAN Settings ........................................................ 13
Chapter 4 Wireless Settings .............................................................14
4.1 Basic Settings ...................................................... 14
4.1.1 Access Point (AP) Mode......................... 14
4.1.2 Bridge (WDS) Mode................................. 18
4.2 Security Settings .................................................... 24
4.2.1 AP Security Setting ................................. 24
4.2.2 WDS Security Setting ............................. 31
4.3 Advanced Settings ................................................. 34
4.4 Access Control ....................................................... 36
4.5 Connection Status .................................................. 37
Chapter 5 SNMP Setting....................................................................38
5.1 SNMP Introduction............................................... 38
5.2 SNMP Setting........................................................ 38
300Mbps Wireless Access Point
Chapter 6 Syste Tools ....................................................................40
6.1 Password Change................................................ 40
6.2 Restore to Factory ............................................... 41
6.3 Backup/Restore.................................................... 42
6.4 Ti e Settings........................................................ 42
6.5 Reboot Syste ..................................................... 44
6.6 Fir ware Upgrade................................................44
6.7 Syslog ................................................................... 45
Appendix I: Glossary.........................................................................47
Appendix II: TCP/IP Address Setting ...............................................49
Appendix
Ⅲ
ⅢⅢ
Ⅲ: WDS Application Instances.......................................52
300Mbps Wireless Access Point
1
Chapter 1 Product Overview
WAP 23N is a wireless Access Point based on the latest IEEE802. n
standard while at the same time being backwards compatible with
IEEE802. b/g devices. Adopting the advanced “Multiple in and Multiple
out” (MIMO) technology, it can provide a maximum of 300Mbps stable
transmitting rate for wireless users. With appropriate Power over
Ethernet (POE) support, you only need to run one cable to the AP to
deliver both data and power. Ceiling mounted design and POE
technology make it couldn't be easier for family, enterprise, and hotel
users to extend wireless networks indoors.
Wireless AP and WDS working modes support wireless AP, wireless
Repeater, wireless Point-to-Point (P2P) Bridge, and wireless
Point-to-Multipoint (P2MP) Bridge functions. Firstly, it can be used as a
wireless Hot Spot to enable the accesses of wireless users when in AP
mode. Secondly, it can be used as a Bridge to connect two or more
wired networks when it is in P2P or P2MP mode. Thirdly, it can also be
used as a wireless Repeater to expand your wireless network coverage
area.
Furthermore, 64/ 28-bit Wired Equivalent Privacy (WEP), WPA-PSK,
WPA2-PSK, WPA&WPA2, 802. X Authentication, and MAC Address
filter are all supported to protect your data and privacy. Gigabit LAN port
provides you higher LAN transmission rate. SNMP and Web-based
management interface make configuration easier than ever.
300Mbps Wireless Access Point
2
1.1 Product Features
Complies with the latest 802. n and 802. b/g standards
Supports AP and WDS working modes
Provides 300Mbps receiving and transmitting rate
MIMO technology uses signal reflections to increase 8 times
transmission distance of 802. g standard and efficiently reduce
“dead spots”
One Gigabit Auto-negotiation LAN port supported for LAN
connection
POE and external power supported
SNMP and Web-based management interface
64/ 28-bit WEP encryption
WPA-PSK, WPA2-PSK, WPA&WPA2 encryption methods
Auto MDI/ MDIX
Wireless VLAN divisible for managing clients conveniently
Client's access limited
Watchdog designed to make device run stably
Supports auto wireless channel selection
Software controls the wireless signal on/ off and remotely controls
the wireless coverage area.
1.2 Package Contents
Please unpack the package and find the following items:
One WAP 23N Wireless AP
One Power Adapter
300Mbps Wireless Access Point
3
Eight Screws
One User Guide
One Network Cable
Four plastic covers
If any of listed items are missing or damaged, please contact your local
amer.com reseller.
300Mbps Wireless Access Point
4
Chapter 2 Product Installation
You are recommended to install the product after configuring the
settings of WAP 23N according to the guide in chapter 3. The following
steps take AP mode for example.
. Use the included power adapter to power on the AP. You can also
use POE power supply or POE switch to power on the AP.
2. Connect one end of the network cable to the LAN port of WAP 23N,
and another end to your Ethernet broadband, switch or PC.
3. Connect wireless adapter to WAP 23N.

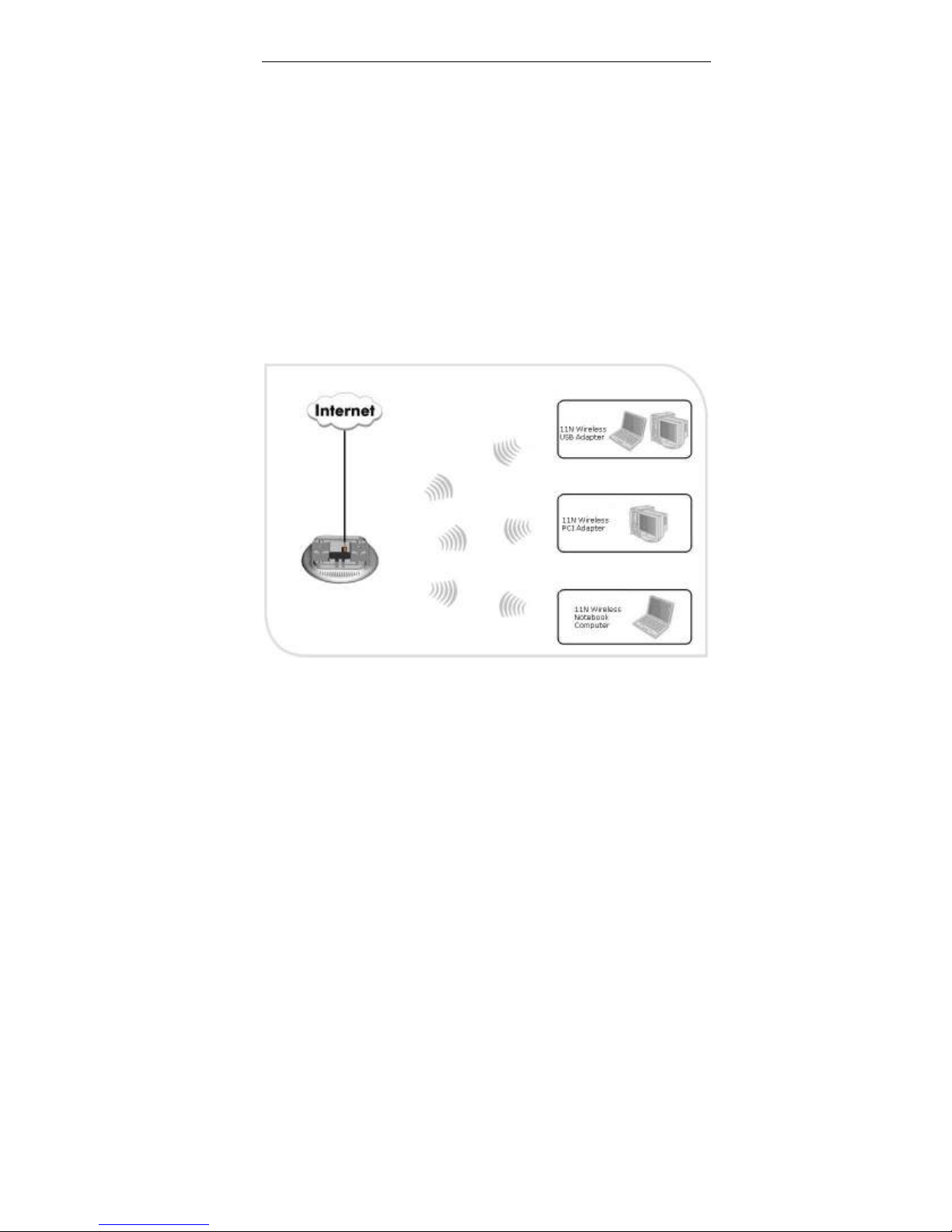

Please refer to the topology below:
300Mbps Wireless Access Point
5
Chapter 3 Configuration Guide
3.1 Web Login
Connect to WAP 23N via wired cable and configure 92. 68.0.x(x
ranges 2-254) as your PC’s IP address, and 255.255.255.0 as subnet
mask. (Please refer to the Appendix II for details on TCP/IP setting)

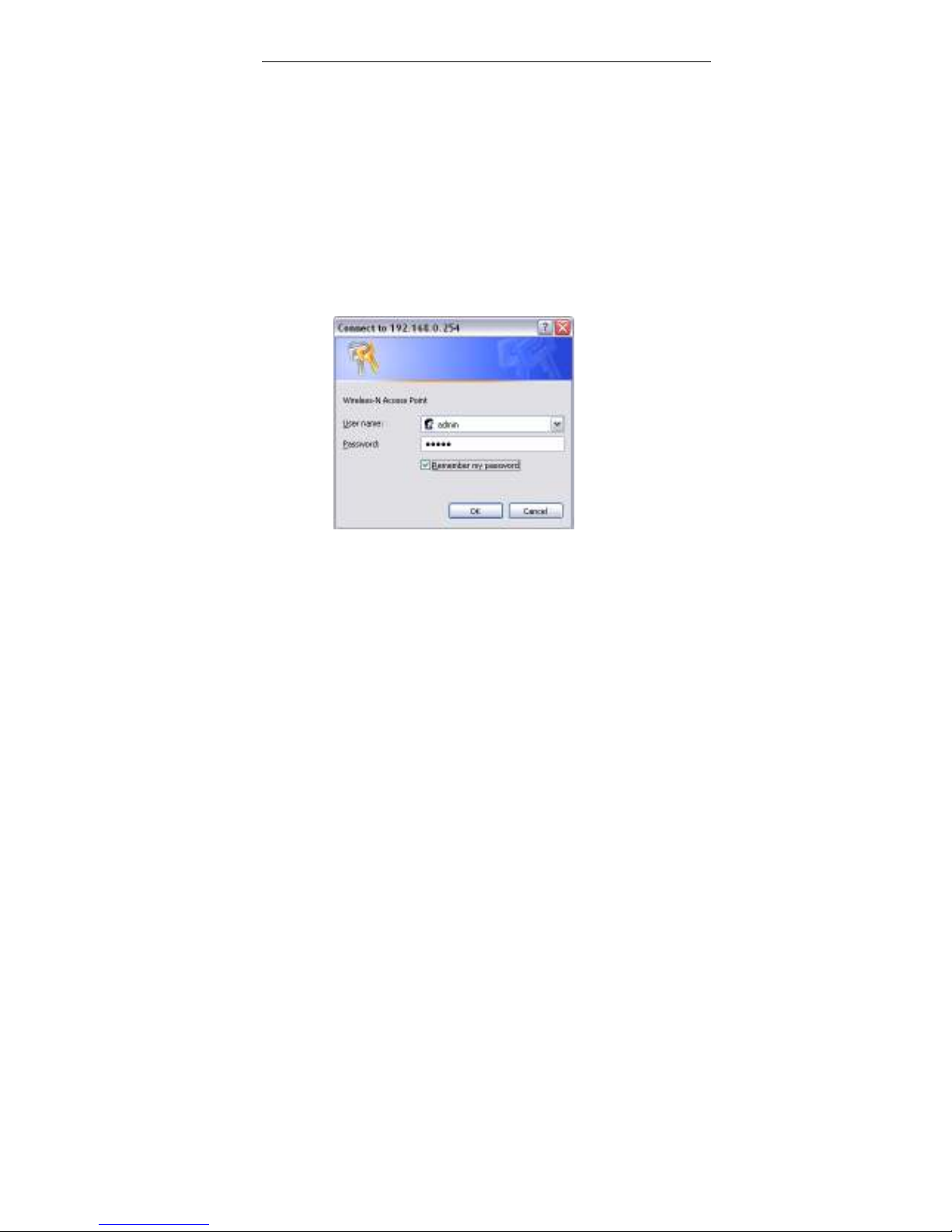

Launch Internet Explorer. In the address bar, enter the AP’s default IP
address, 92. 68.0.254. Press the Enter key and the login screen will
appear. Enter ad in for both the user name and the password.
Click OK to enter the welcome page of the device.
300Mbps Wireless Access Point
6
You can select “Running Status”, ”LAN Settings”, “Wireless Settings”,
“SNMP Settings” and “System Tools” on the left menu. Click “Next” to
enter the wireless working mode setup page. WAP 23N supports two
working modes: wireless AP (AP), Bridge (WDS). Select a working
mode to configure the settings. For more details please refer to the
following chapters.
3.2 Setup Wizard
Click “Next” in the first page and the next page appears.
