American Dynamics SpeedDome Ultra III Montage- und Wartungsanleitung

Installation and Service Guide

8000-2573-01, Rev. B (34 pages) SpeedDome Ultra III Camera Dome 1

Installing and Servicing

the SpeedDome Ultra®III

Camera Dome

RAS515 and RAS516 Series with

On-Screen Menu Programming

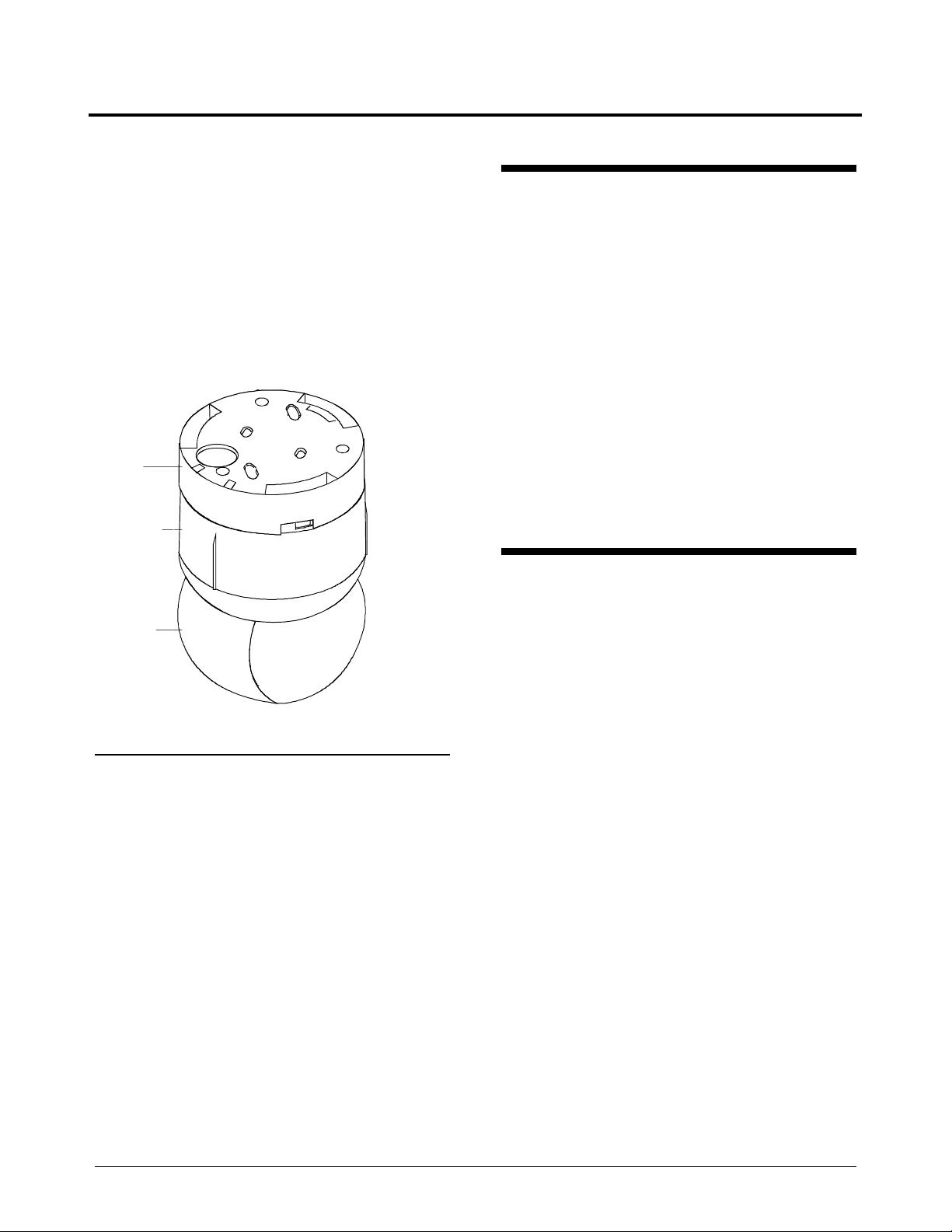

Figure 1. SpeedDome Ultra III camera dome

SpeedDome, Sensormatic, and the Sensormatic logo are

registered trademarks of Sensormatic Electronics Corporation.

Other product names (if any) mentioned herein may be

trademarks or registered trademarks of other companies.

No part of this guide may be reproduced in any form without

written permission from Sensormatic Electronics Corporation.

MDR 7/98

Contents

About this Guide....................................................1

About the Camera Dome ......................................2

Warnings and Cautions.........................................9

Connecting the Dome to a

Base Mounted Indoors ........................................11

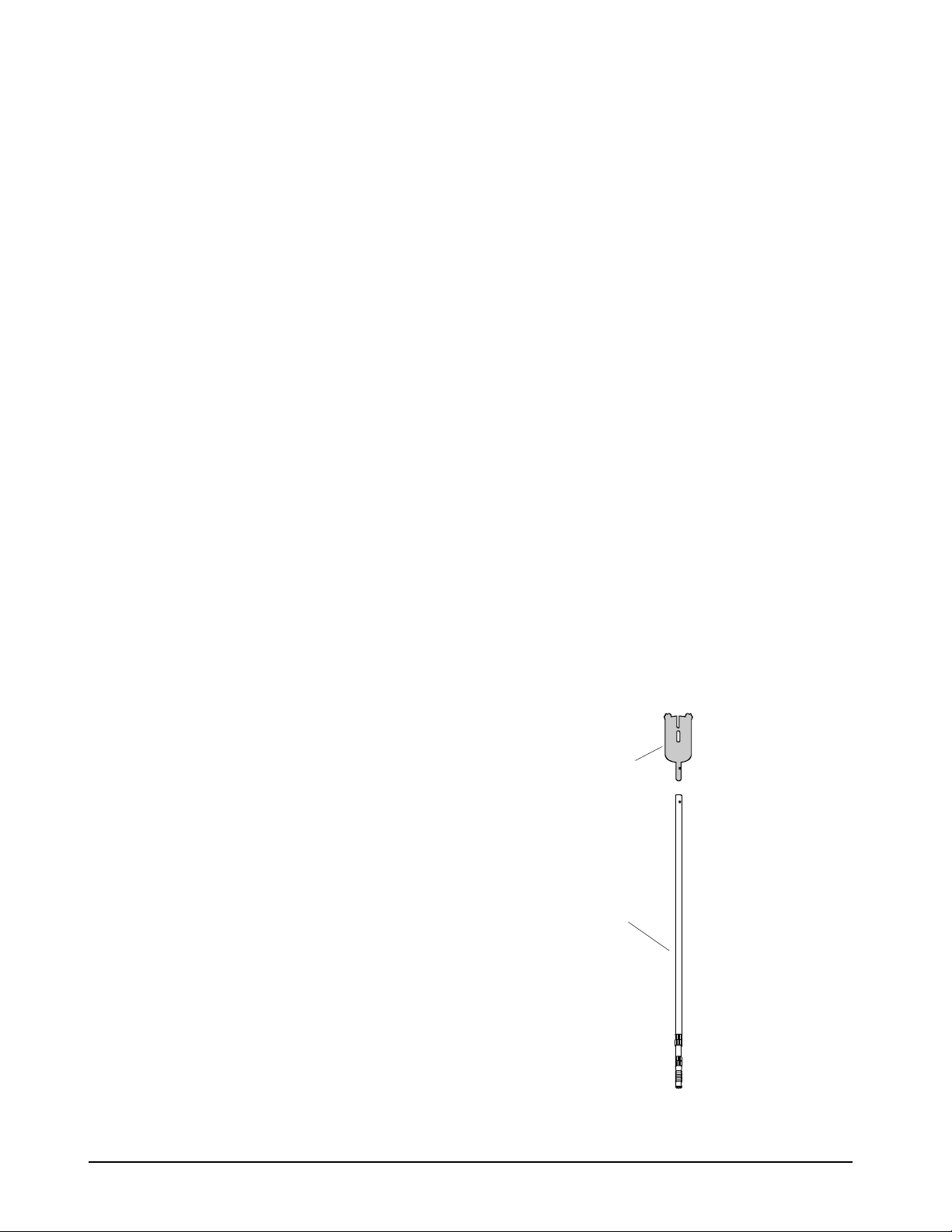

Using the Install/Removal Tool............................16

Troubleshooting Indoor Domes...........................18

Ordering Parts.....................................................28

Specifications—Indoor Dome..............................30

Specifications—Outdoor Housing .......................31

Specifications—Camera......................................32

Declarations ........................................................33

About this Guide

This guide explains how to:

•Install the camera dome

•Service the camera dome.

This guide does not explain how to:

•Determine the best location for the camera

dome. Because the best location is determined

by customer requirements, you will be supplied

this information separately.

•Attach the mounting base. See information

shipped with the base.

•Assemble indoor housings used with this dome.

See information shipped with the housing.

•Install and service the dome outdoors. See

information shipped with the outdoor housing.

•Assemble mounting structures used with this

dome. See information shipped with the

structure.

•Program the dome. See operator’s guide

shipped with the dome.

Eyeball

Mounting

Base

Housing

2 INSTALLATION AND SERVICE GUIDE SpeedDome Ultra III Camera Dom

8000-2573-01, REV.

About the Camera Dome

The SpeedDome Ultra®camera dome (Figure 1)

mounts indoors or outdoors, and can communicate

with the video controller over SensorNet or RS422

communication lines. The dome consists of a

mounting base, and a housing and rotating eyeball

assembly.

Note: Outdoor installation and service instructions

are not included in this document. For these

instructions, see Installing the RHODUL Outdoor

Housing, 8000-2573-04.

Mounting Base

The mounting base attaches directly to a hard or

tile ceiling, or indirectly to walls or ceilings using

one of many optional housings and mounting

structures. As shown in Figure 2, two base types

are offered: a RUPTB standard base and a

RUIOB base with I/O board.

•RUPTB Standard Base. With this base,

composite and video cables are inserted

through the base and attached to the top of the

housing and eyeball assembly, then the

assembly is connected to the base. A coiled

safety lanyard connects between the base and

the housing and eyeball assembly to prevent

the acceidental pulling of cables during

disassembly.

•RUIOB Base with I/O Board. With this base,

composite and video cables are pre-connected

to the I/O PC board. A round spring-finger

connector on the board makes electrical

contact with the housing and eyeball assembly

as it is connected.

Housing and Eyeball Assembly

The housing and eyeball assembly (Figure 2) con-

nects to the base using a twist and lock action.

•Housing. The housing contains the dome’s

power supply, pan motor, and electronics used

to operate the eyeball. The housing provides

one alarm input and one alarm output using the

standard base, or four alarm inputs and four

alarm outputs using the base with I/O board.

•Eyeball. Gloss black and 120mm (4.75") in

diameter, the eyeball contains the camera, a tilt

motor, and associated electronics. The eyeball

can pan and tilt to track a target moving in any

direction even as it moves under the dome.

Two slot covers are part of the eyeball. These

covers facilitate access to the camera and

incorporate a camouflaged lens. Discard these

covers to improve ventilation when the dome is

to be used outdoors.

As shown in Table 1, the housing and eyeball

assembly can be ordered:

•With no base for existing indoor installations or

for mounting outdoors

•With a standard base or base with I/O board for

new indoor installations

•With one of four CCD cameras

−Color NTSC

−Color PAL

−Black & White EIA

−Black & White CCIR.

Each camera provides 12X optical zoom with

continuous auto focus and backlight compen-

sation. An electronic zoom provides selectable

magnification up to 96X.

Table 1. Product codes for housing and eyeball assembly configurations

Color NTSC Color PAL Black & White EIA Blk & White CCIR

No Base RAS516LS RAS516LS-1 RAS515LS RAS515LS-1

Standard Base RAS516LSP RAS516LSP-1 RAS515LSP RAS515LSP-1

Base with I/O Bd. RAS516LSI RAS516LSI-1 RAS515LSI RAS515LSI-1

SpeedDome Ultra III Camera Dome

8000-2573-01, Rev. B INSTALLATION AND SERVICE GUIDE 3

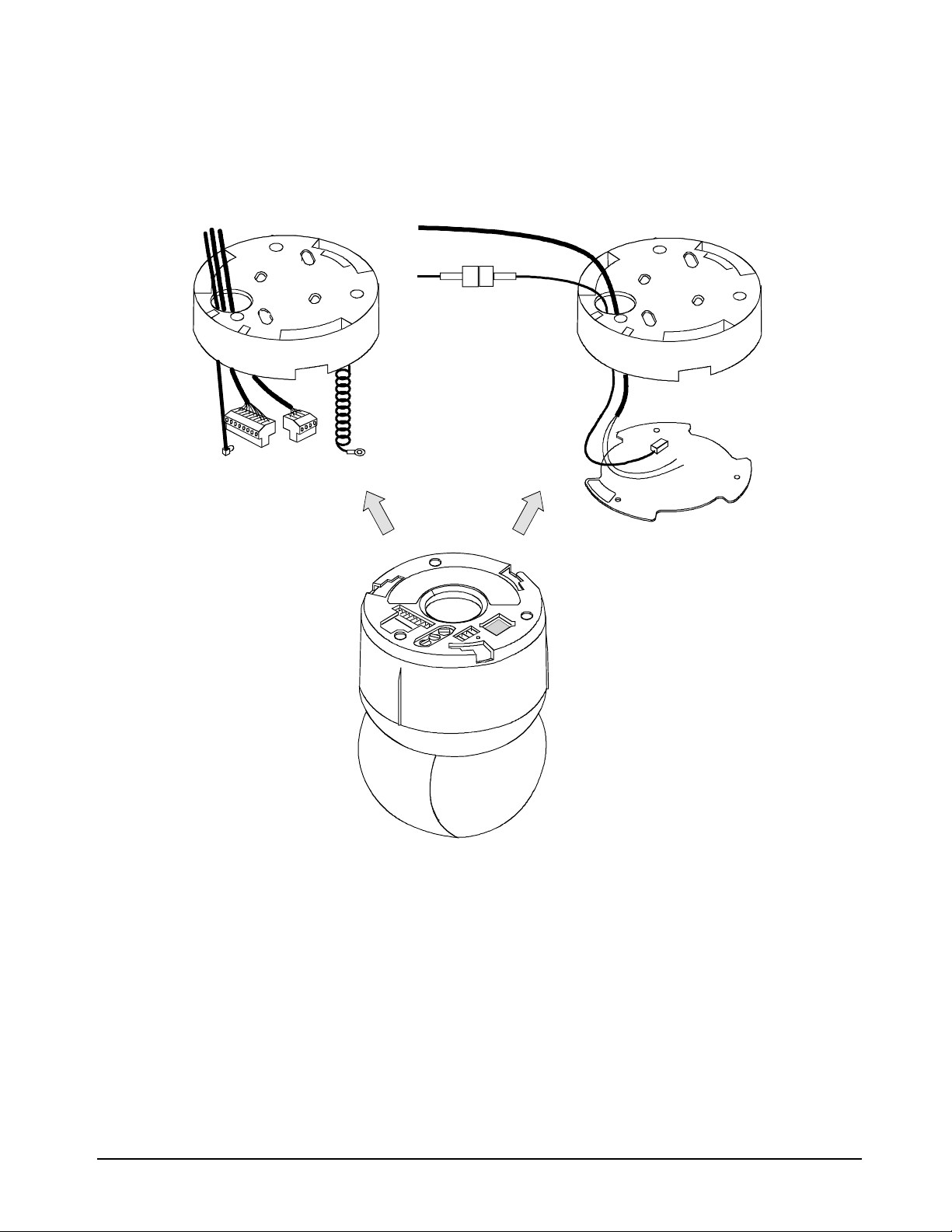

Figure 2. Mounting base and housing and eyeball assembly

Housing and

Eyeball

Assembly

RUIOB Mounting Base

with I/O Board

RUPTB Standard

Mounting Base

4 INSTALLATION AND SERVICE GUIDE SpeedDome Ultra III Camera Dom

8000-2573-01, REV.

Indoor Mounting

The camera dome attaches to indoor ceilings and

walls in a variety of ways. The dome can attach:

•To a hard or tile ceiling

•To a variety of optional mounting structures that

mount to a ceiling or wall

•Inside an RHIUTH top hat housing that

attaches directly to a ceiling or to most

mounting structures. A bubble and trim ring,

or a trim ring alone provide concealment.

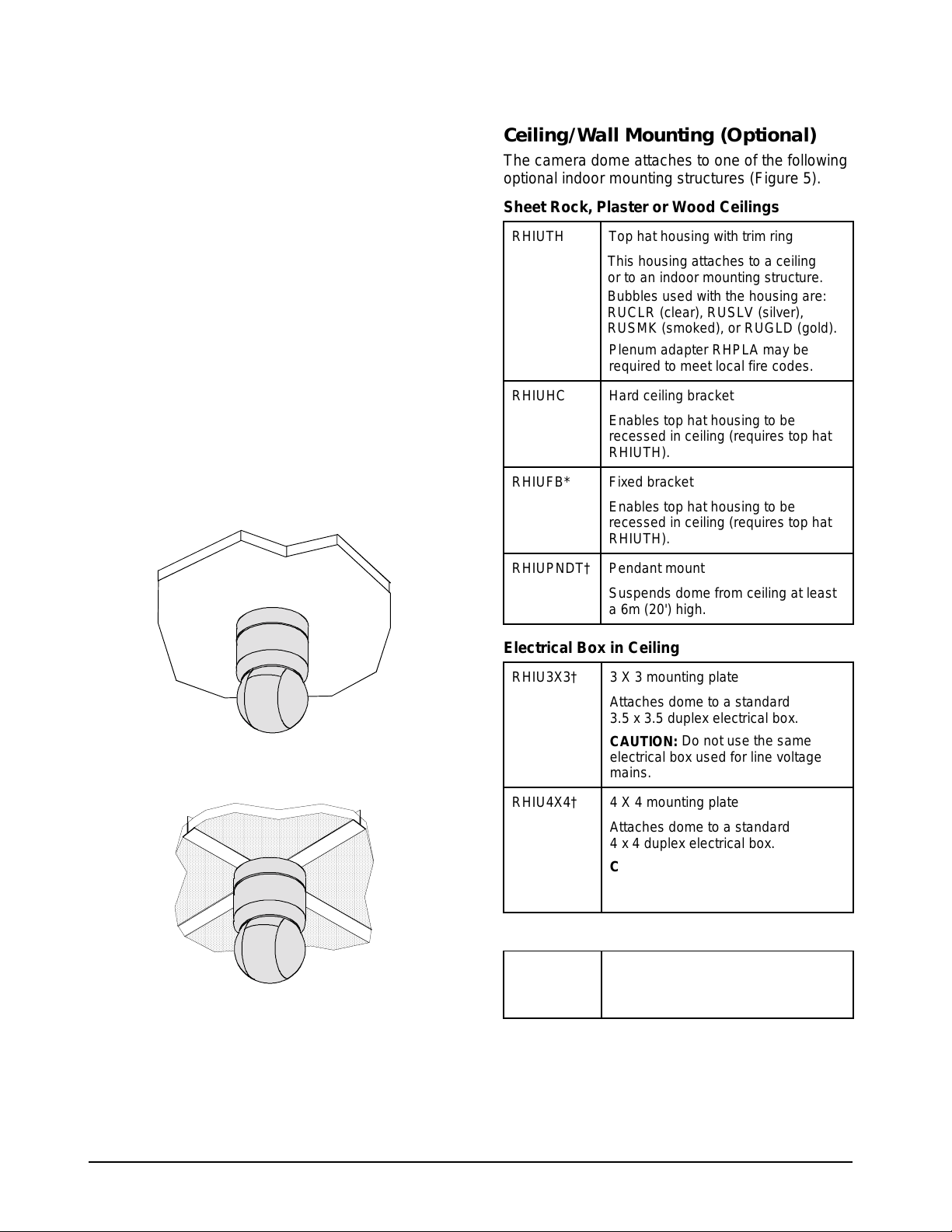

Ceiling Mounting

Using hardware shipped with the base, the dome

attaches directly to indoor ceilings made of sheet

rock, wood, metal, or concrete (Figure 3), or to tile

ceiling T-bars where they intersect (Figure 4).

Figure 3. Surface mounting to hard ceilings

Figure 4. Surface mounting to tile ceilings









Ceiling/Wall Mounting (Optional)

The camera dome attaches to one of the following

optional indoor mounting structures (Figure 5).

Sheet Rock, Plaster or Wood Ceilings

RHIUTH Top hat housing with trim ring

This housing attaches to a ceiling

or to an indoor mounting structure.

Bubbles used with the housing are:

RUCLR (clear), RUSLV (silver),

RUSMK (smoked), or RUGLD (gold).

Plenum adapter RHPLA may be

required to meet local fire codes.

RHIUHC Hard ceiling bracket

Enables top hat housing to be

recessed in ceiling (requires top hat

RHIUTH).

RHIUFB* Fixed bracket

Enables top hat housing to be

recessed in ceiling (requires top hat

RHIUTH).

RHIUPNDT† Pendant mount

Suspends dome from ceiling at least

a 6m (20') high.

Electrical Box in Ceiling

RHIU3X3† 3 X 3 mounting plate

Attaches dome to a standard

3.5 x 3.5 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage

mains.

RHIU4X4† 4 X 4 mounting plate

Attaches dome to a standard

4 x 4 duplex electrical box.

CAUTION: Do not use the same

electrical box used for line voltage

mains.

Structural I-Beams

RHIUIB† I-beam mount

Enables dome to suspend from

I-beam at least 6m (20') high.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

(continued on page 6)

SpeedDome Ultra III Camera Dome

8000-2573-01, Rev. B INSTALLATION AND SERVICE GUIDE 5

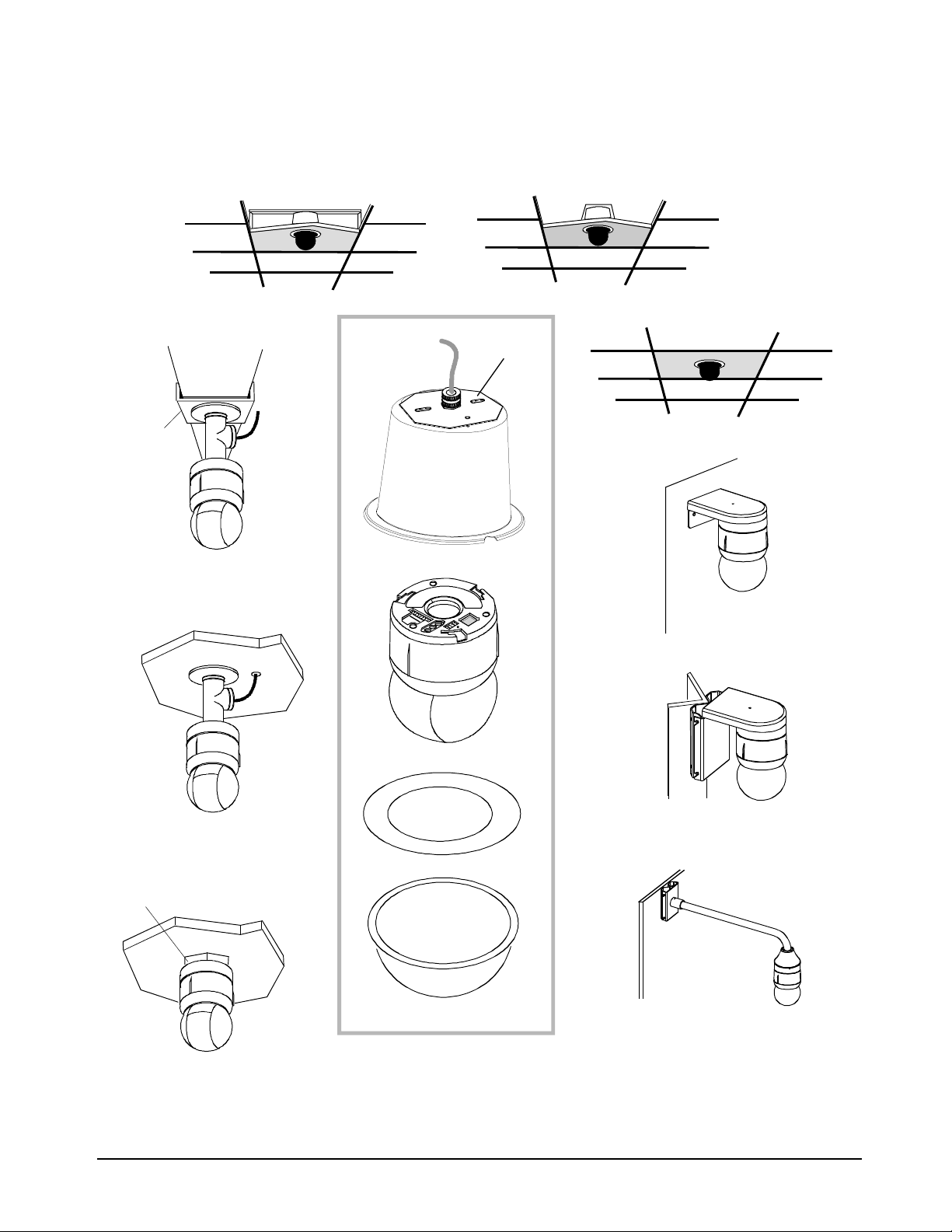

Figure 5. Indoor mounting structures (optional)

RHIUFB

RHIUAB RHIUHC

RHIU2X2

RHIUTH

RHIUTR

RUCLR

RUSLV

RUSMK

RUGLD

RHIULWM

RHIUCM

RHIUWM

RHPLA

RHIU3X3

RHIU4X4

RHIUPNDT

RHIUIB

Only I-Beam

Clamp Supplied

Only Plate

Supplied

6 INSTALLATION AND SERVICE GUIDE SpeedDome Ultra III Camera Dom

8000-2573-01, REV.

Drop Tile Ceilings

RHIUFB* Fixed bracket

Enables top hat housing to be

recessed in a 2x2 tile (requires top

hat RHIUTH).

RHIUAB* Adjustable bracket

Enables top hat housing to be

recessed in a 2x4 tile (requires top

hat RHIUTH).

RHIU2X2 2 X 2 tile mount

Enables top hat housing to be

recessed in 2x2 openings

(incorporates top hat housing).

Wall Mounting

RHIUWM* Wall mount

Attaches dome to a flat vertical

surface.

RHIUCM* Wall mount with corner feature

Attaches dome to attach to a wall,

inside corner, or outside corner.

RHIULWM*† Long .6m (24") wall mount

Positions dome away from wall to

enable it to see over furniture,

shelving, and displays. This mounting

structure attaches to the wall, inside

corner, or outside corner.

* Option in white, but can be painted to match decor.

† Top hat housing/dome assembly also mounts to structure.

SpeedDome Housing (Optional)

An RHSDA adapter bracket (Figure 6) enables the

camera dome to fit into an existing SpeedDome

housing. Locking pins in the bracket enable the

dome to swing out for servicing or removal.

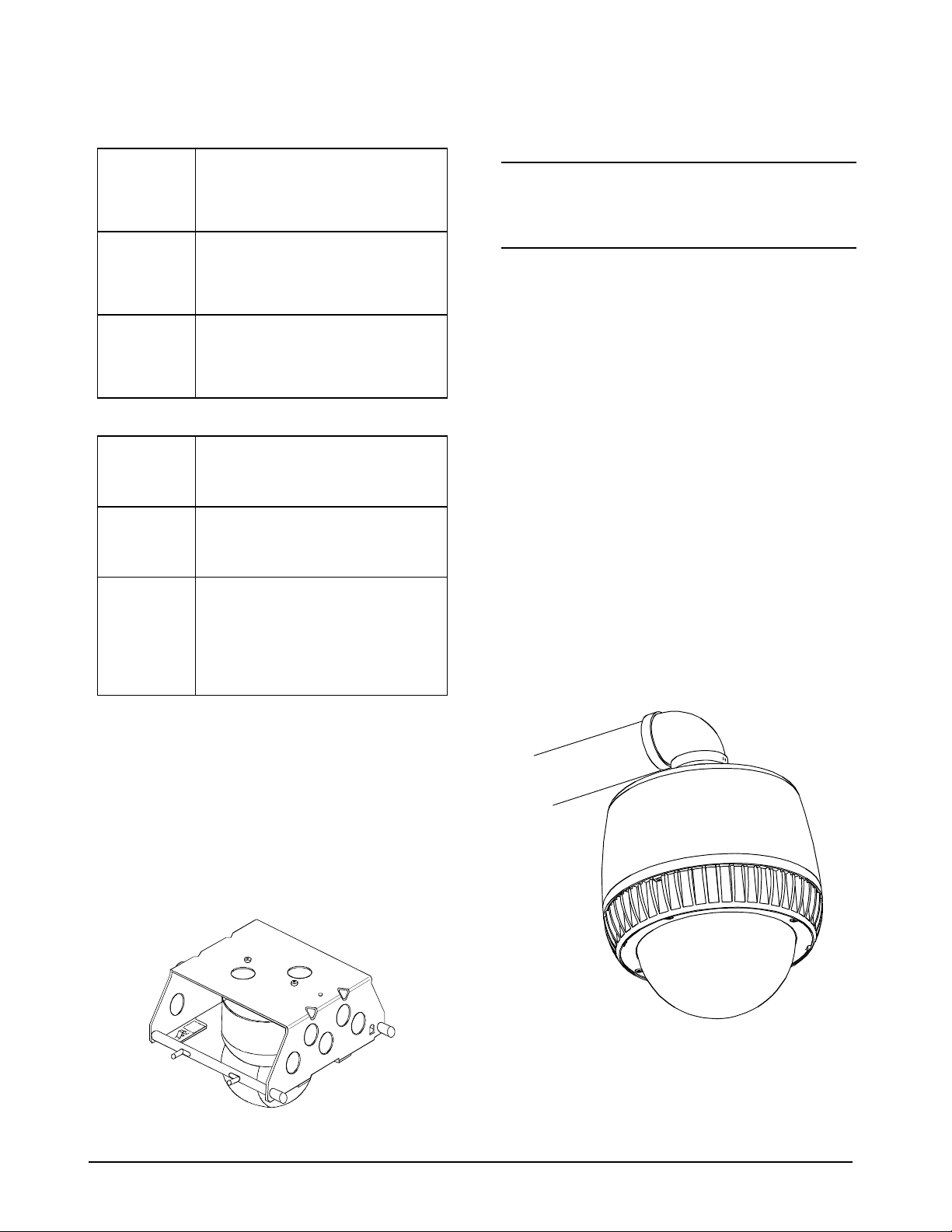

Figure 6. RHSDA adapter bracket (optional)

Outdoor Mounting (Optional)

Note: Outdoor installation and service instructions

are not included in this document. For these

instructions, see Installing the RHODUL Outdoor

Housing, 8000-2573-04.

The camera dome attaches to outdoor walls and

ceilings using an RHODUL outdoor housing

(Figure 7) and one of the following optional

mounting structures (Figure 8):

•RHORM Over Roof Mount

•RHOCM Ceiling Mount

•RHOPM Pole Mount

•RHOWM Wall Mount

•RH170 Corner Bracket.

The outdoor housing contains a fan to cool the

camera dome in hot weather, a heater to warm the

dome and prevent icing in cold weather, and surge

protection circuitry to protect the dome from

lightning strikes.

An environmental PC board is used to pre-wire

cables. A round spring-finger connector on the

board makes electrical contact with the housing

and eyeball assembly as it is connected.

Figure 7. RHODUL outdoor housing (optional)

SpeedDome Ultra III Camera Dome

8000-2573-01, Rev. B INSTALLATION AND SERVICE GUIDE 7

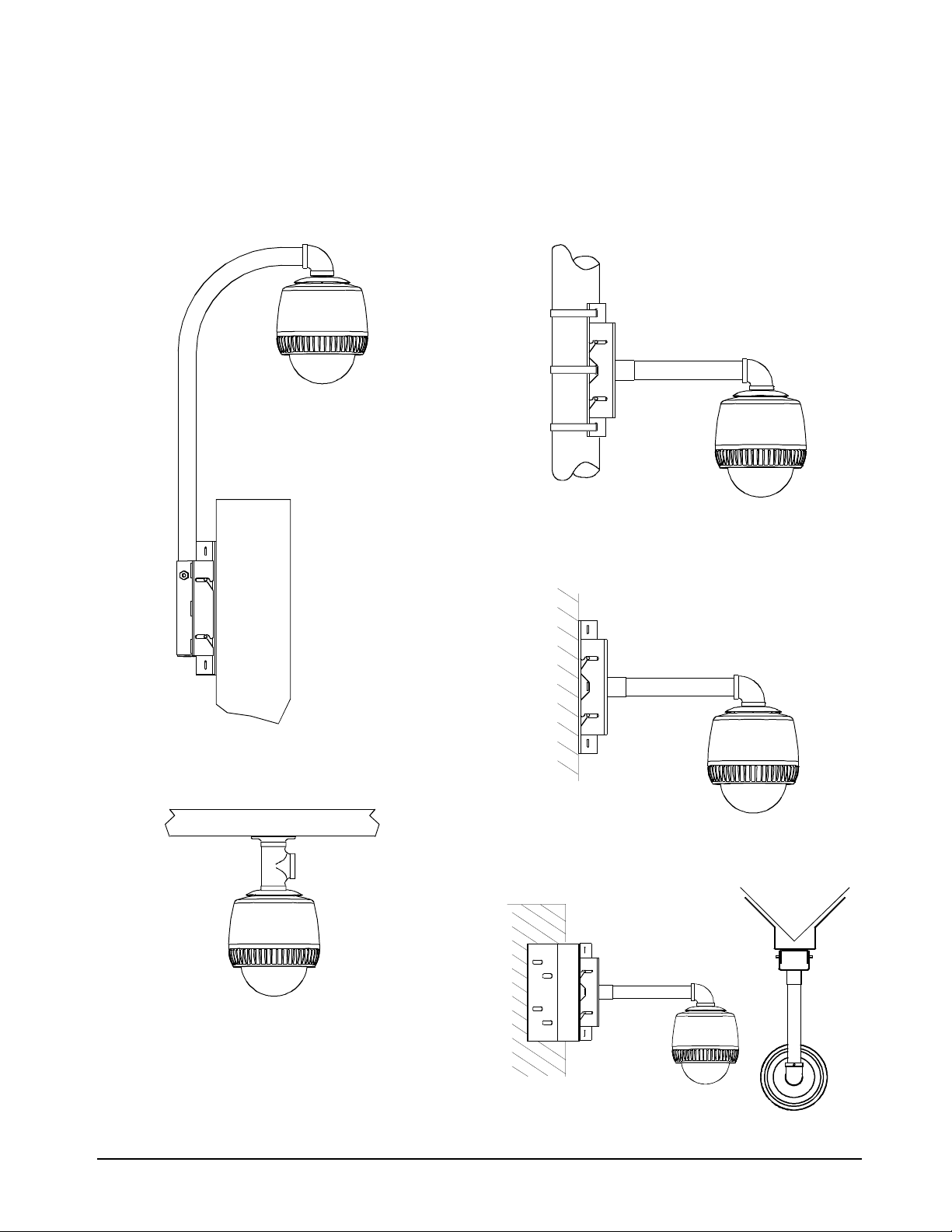

Figure 8. Outdoor mounting structures

(optional)

RHORM over roof mount

RHOCM ceiling mount

RHOPM pole mount

RHOWM wall mount

RH170 corner bracket (shown with RHOWM mount)

Top View

8 INSTALLATION AND SERVICE GUIDE SpeedDome Ultra III Camera Dom

8000-2573-01, REV.

Installation & Service Features

In alphabetical order:

•Daisy-chaining. If using the SensorNet

communications protocol, unshielded cable

canbe used to daisy chain up to 32 devices. If

using RS422, shielded cable can be used to

daisy chain up to 10 devices.

•Dome synchronization. All domes along the

daisy chain can be synchronized to a 50Hz or

60Hz ac source to prevent picture rolling when

switching from camera to camera.

•Easy Installation. The housing and eyeball

easily connects to the mounting base using a

twist and lock action.

•Interchangeability. The dome can be easily

moved from one location to another.

•Internationally-recognized connectors.

Composite and video cables from the controller

connect to internationally-recognized

connectors in the dome.

•Remote manual dome reset. The dome can

be manually reset using keyboard commands

from the console.

•RHIRT indoor install/removal tool. When

using a base with an I/O board, this optional

tool (Figure 9) enables you to to connect or

disconnect the housing and eyeball assembly,

and to attach/detach skirts and bubbles without

the need for a ladder. The tool attaches to a

telescopic pole (purchased separately). See

page 16.

•Communication and power verification.

−If a standard base is used, LEDs in the

housing and eyeball assembly enable the

installer to check for power and data.

−If a base with I/O board is used, LEDs on

the underside of the mounting base enable

the installer to check for power and data. If

RS422 communication line is used, other

LEDs on the board indicate that wiring is

correct, reversed, open, or grounded.

•Safety. The camera dome meets all

international standards. Electrically, the dome

uses low-voltage Class 2 circuitry. Cable

connectors are keyed to prevent electrical

damage.

•V-Phase Adjustment. A V-phase adjustment

at the control console enables the dome to

synchronize to any line phase.

Figure 9. RHIRT indoor install/removal tool

Telescopic Pole 08140

by Recreational Water

Products. See page 16

to order.

RHIRT Removal Tool

SpeedDome Ultra III Camera Dome

8000-2573-01, Rev. B INSTALLATION AND SERVICE GUIDE 9

Warnings and Cautions

Please review the following warnings and cautions

before you begin installation or service.

WARNINGS

!WARNING!

ALWAYS USE:

•Proper safety equipment for the

location and type of installation.

•Proper lift equipment to reach the

installation.

•Safety features of the lift equipment.

BE SURE:

•Electrical power is not connected to the

dome when connecting wires. Dome

will move when power is applied.

•Electrical power is not connected to

nearby fixtures that you might touch

during installation.

!WARNING!

DO NOT install this camera dome in

hazardous areas where highly combustible

or explosive products are stored or used.

!WARNING!

This dome runs on 24Vac. DO NOT

connect line voltage to this dome.

North America power requirements: In

North America, this device is intended to

be supplied from a Class 2 power supply.

For outdoor installations, use Class 3

wiring techniques, liquid-tight conduit, or

liquid-tight pipe.

This installation should be made by a

qualified service person and should

conform to all local codes.

!WARNING!

EU power requirements: This product

runs on 24Vac. In the EU, it is intended to

be powered from a Limited Power Source.

A limited power source is a certified source

of SELV, and if inherently limited, with 8

amps maximum output current, and a

maximum of 100VA available; or if not

inherently limited, fused with a maximum

value of 3.3 Amps, meeting section 2.11 of

IEC950, and a maximum of 250VA

available. The power supply can be

obtained through Sensormatic or through

another source where the provider can

furnish the verification. This is required to

assure electrical safety in the product.

Stromanforderungen in der EU: Dieses

Produkt wird mit 24 V Wechselstrom

betrieben. In der EU ist es für den Betrieb

durch eine begrenzte Stromquelle

vorgesehen. Eine begrenzte Stromquelle

ist eine zertifizierte SELV-Quelle

(Schutzkleinspannung), bei inhärenter

Begrenzung mit einem maximalen

Ausgangsstrom von 8 A und 100 VA

maximaler Verfügbarkeit, bei nicht

inhärenter Begrenzung mit einer

maximalen Sicherung von 3,3 A gemäß

Abschnitt 2.11 der IEC950 und 250 VA

maximaler Verfügbarkeit. Das Netzteil

kann über Sensormatic oder eine andere

Quelle bezogen werden, wobei der

Anbieter den Nachweis der Konformität

bereitstellen sollte. Dies ist zur

Gewährleistung der elektrischen Sicherheit

des Produktes erforderlich.

10 INSTALLATION AND SERVICE GUIDE SpeedDome Ultra III Camera Dom

8000-2573-01, REV.

CAUTIONS

❏If using an RS422 communication line, use

shielded cable and do not exceed 10 devices

per daisy chain.

❏If using a SensorNet communication line, use

unshielded cable and do not exceed 32 devices

per daisy chain.

❏The maximum length of power cable allowed

between the Class 2 LPS (low voltage) ac

source, such as a J-box, and the dome is

250m (820').

❏Do not run the composite cable, or camera

power cable (if used), adjacent to or in the

same conduit as line voltage mains power.

❏When wiring cables directly to the dome,

ALWAYS connect the video cable to the dome

before you connect the 9-pin cable (which

contains power). If you connect the 9-pin cable

first, you risk shorting delicate electronics near

the connector.

❏I/O PC board (when used).

−If a cable clamp is on this board, remove it,

as it could damage cable connectors in the

housing during assembly.

−Use a jeweler’s 2.5mm (0.1") slotted

screwdriver to tighten connector screws. Do

not overtighten these screws.

−Use the dust cover when shipping the I/O

board back to the manufacturer. It will

protect the spring-finger connector.

❏When connecting the housing and eyeball

assembly to an outdoor housing:

−Remove both slot covers to keep the

camera from overheating.

−Keep the composite cable away from the

heater assembly.

−Place tubing around the BNC connectors to

avoid shorting their metal surface to the

outdoor housing.

−Check heater fans. Both fans must be on to

prevent overheating.

Note: For further information, see installation

instructions shipped with the outdoor housing.

❏If disassembling the dome:

−Dome contains electrostatic-sensitive

devices! Use a ground strap when handling

PC boards.

−Once disassembled, parts of housing and

eyeball assembly are “extremely fragile” and

may break. Proceed using extreme care!

Andere Handbücher für SpeedDome Ultra III

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere American Dynamics Sicherheitskamera Handbücher

American Dynamics

American Dynamics IP speedDome Ultra 8 Montage- und Wartungsanleitung

American Dynamics

American Dynamics SensorRail AD2079 Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra Drone II Bedienungsanleitung

American Dynamics

American Dynamics ADC522WP Bedienungsanleitung

American Dynamics

American Dynamics Illustra 1MP Bedienungsanleitung

American Dynamics

American Dynamics RT3300MC Bedienungsanleitung

American Dynamics

American Dynamics ADC720D Bedienungsanleitung

American Dynamics

American Dynamics IP speedDome Ultra 8 Montage- und Wartungsanleitung

American Dynamics

American Dynamics RASOPPC-1 Bedienungsanleitung

American Dynamics

American Dynamics ADC710 Bedienungsanleitung

American Dynamics

American Dynamics ADCSHR2412N Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome RHODULP-01 Montage- und Wartungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra VII Bedienungsanleitung

American Dynamics

American Dynamics ADC860 Bedienungsanleitung

American Dynamics

American Dynamics Illustra 625 PTZ Bedienungsanleitung

American Dynamics

American Dynamics Illustra Flex Series Bedienungsanleitung

American Dynamics

American Dynamics ADCTDN0230P Bedienungsanleitung

American Dynamics

American Dynamics ADCA330 Bedienungsanleitung

American Dynamics

American Dynamics Tyco Discover Series Bedienungsanleitung

American Dynamics

American Dynamics Camera Accessories Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra VII Bedienungsanleitung

American Dynamics

American Dynamics illustra 600 Bedienungsanleitung

American Dynamics

American Dynamics SpeedDome Ultra VII RAS917LS Kurzanleitung

American Dynamics

American Dynamics Illustra Flex Series Bedienungsanleitung

Beliebte Sicherheitskamera Handbücher anderer Marken

Okina USA

Okina USA SIR36-870VF650LP Bedienungsanleitung

Divio

Divio NDR155PA Bedienungsanleitung

Canon

Canon VB-C500D Bedienungsanleitung

Easy Access

Easy Access EasyGuard Bedienungsanleitung

Vivotek

Vivotek FD9389-EHV-v2 Bedienungsanleitung

TUYA

TUYA COSMO W2 Bedienungsanleitung

Eusso

Eusso UNC7500-IR Einrichtungshandbuch

urmet domus

urmet domus 1096/204 Bedienungsanleitung

VC VC20 series Bedienungsanleitung

Axis

Axis Q1614 Bedienungsanleitung

ieGeek

ieGeek DD201 Bedienungsanleitung

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Bedienungsanleitung

Vicon

Vicon V662-D-1 Betriebsanleitung

Grundig

Grundig GCH-K0274P Bedienungsanleitung

Lorex

Lorex VANTAGE LBC7032 Bedienungsanleitung

4xem

4xem WPT Bedienungsanleitung

Samsung

Samsung SCV-3082 Bedienungsanleitung

Vitek

Vitek VTC-C544 Bedienungsanleitung
