AMI Entertainment ML-1 Betriebsanleitung

PM0802-01 Rev A

FOR TECHNICAL ASSISTANCE:

CONTACT YOUR LOCAL DISTRIBUTOR

For a list of distributors, visit us on the Web at

www.amientertainment.com

ML-1

Installation & Owner’s

Manual

Table of Contents

ML-1 and Megatouch Live are registered trademarks of AMI. Reproduction of this manual, in any form or by any means,

is strictly forbidden without the written permission of AMI.

Megatouch Live Requirements ............1

Site Preparation.....................................1

Initial Setup............................................2

Game Description..................................5

Touchscreen Calibration ...................5

Credit Card Reader.............................5

Operator Setup ......................................6

Home Page..........................................6

Quick Access Panel ..............................6

Navigating the

Quick Access Panel...........................7

Quick Access Panel

—Conﬁgure Network..........................8

Quick Access Panel

—Machine Settings............................9

Quick Access Panel

—Collection and Fees......................10

Control Panel....................................... 11

Navigating the Control Panel..........12

Control Panel

—Pricing and Costs.........................13

Quick Pricing Wizard....................14

Navigating the

Quick Pricing Wizard ...................14

Set Credit Value...........................14

Set Money-In Capacity ................15

Channels Setup...........................15

Money-In Options ........................16

Set Individual Tier Costs..............17

Set Individual Game Costs..........18

Credit Card Options......................19

Manage Free Games.....................19

Control Panel

—Collection and Fees......................20

Cash Settlement Setup.................21

Navigating

Cash Settlement Setup................21

Using Cash Settlement Setup......21

Control Panel—Games ....................22

Game Setup Wizard ......................23

Navigating

the Game Setup Wizard ..............23

Erotic Settings..............................23

Category Setup............................24

Editing a Category.......................24

Gameplay Settings ......................25

Extended Play..............................25

Control Panel—Menu.......................26

Player Settings..............................26

Leaderboard Options....................27

Control Panel

—Machine Settings..........................28

Set Machine Name ........................28

Set Machine Location...................29

Set Advanced Filters.....................29

Restore Machine

to Proﬁle Defaults .........................29

Megatouch Live Player Features........30

Moving Your Megatouch ML-1

From One Location to Another ..........31

Changing the

Machine’s Proﬁle.................................32

Swapping Hard Drives ........................32

General Care and Maintenance ........33

Monitor Adjustment .........................33

General Circuit Board

Handling Information.......................33

Cleaning the Cabinet........................34

Cleaning the Touchscreen Monitor 34

Cleaning the Fans and Vents ..........34

Watchdog Timer ...............................34

ML-1 Countertop Diagrams ................35

Replacement Parts List.......................37

Connection Diagrams .........................38

Video Machine Limited Warranty.......40

Software License Agreements ...........41

ML-1 INSTALLATION AND OWNER’S MANUAL PM0802-01 RevA

Megatouch Live Requirements

Your ML-1 requires a broadband Internet connection in order to function. Please

be sure that the location has an active broadband Internet connection available.

NOTE: Wireless connections support WEP, WPA, and WPA2 encryption.

Additionally, your Megatouch Live system will not function unless you have completed a

Megatouch Live Operator Agreement, returned this agreement to AMI, and have been

givenanAMI ID andpassword.Thisagreement onlyneedsto be completedonce, and the

AMIID and password youareissued can be usedforall of your MegatouchLivesystems.

NOTE: If you have not completed a Megatouch Live Operator Agreement, please

contact AMI Tech Support at 800-523-2760.

Site Preparation

Indetermining the location for your Megatouch video game, consideration must be given

to a suitable, grounded electrical outlet. Since the game is a computerized device, it

should have a separate circuit, if at all possible. If a separate circuit is not available, care

should be taken to provide a clean and constant voltage. As a basic guideline, never

connect the unit to a circuit that also supplies power to freezers, coolers or other high

powerconsuming andelectricalnoise generatingequipment.Place the gamein a location

where nothing will interfere with proper ventilation. The game should not be exposed to

anydripping or splashingliquids. Objects ﬁlledwith liquid shouldnotbe placed onthe unit.

Welcome to Megatouch Live

Congratulations on the purchase of your Megatouch Live cabinet. While Megatouch

Live gives you all the quality and earnings you’ve come to expect from the Megatouch

brand,it also represents the next level in casual touchscreen gaming with incredible new

graphics, a quicker and easier operator interface, local and global leaderboards, addic-

tive player challenges and upgrades, and even links to social media sites like Facebook.

Whilethere are manysimilaritieswith past Megatouch systems,there are many advance-

mentsas well. Please take thetimeto familiarize yourself with thegreatnew features that

Megatouch Live has to offer. Once you have, we’re sure that you’ll ﬁnd it the quickest,

easiest, and most customizable casual gaming system ever.

ATTENTION

Since Megatouch Live is dynamic, ever-changing software, this manual should

be used purely as a guide for your system. If an advancement is appearing on

your Megatouch Live machines that you’re not seeing in these pages, please visit

www.amientertainment.com to view an updated version of this manual.

Manage your ML-1 machines from anywhere at anytime by going to

www.amioperator.com.

PM0802-01 Rev A ML-1 INSTALLATIONAND OWNER’S MANUAL

Initial Setup

1. After removing the game from the carton, connect the power cord to the back of the

machine near the ON/OFF switch (see Figure 1). Plug the game into a standard,

grounded AC outlet. Do not turn the game on at this point.

IMPORTANT: Whenever you turn off your system, please wait 10 seconds before

turning it back on. This allows all internal components to properly shut down.

2. At this point please ensure that the router is on and connected to the Internet. If

you’re connecting your system to a wired Internet connection or you need to con-

ﬁgure a router, connect an Ethernet cable from one of the LAN ports on the router

to the coupler on the rear of the machine. Fasten this cable to the security loop to

prevent unnecessary strain on the cord (see Figure 1).

3. Turnthe power switch at the back of the game to ON (see Figure 1 for location), and

wait for it to go through its boot-up sequence. The game will display the Welcome

Screen. This screen gives an overview of the initial setup process. Touch SET UP

MACHINE.

NOTE: The initial setup process must be completed before the machine is op-

erational.

4. On the next screen, select your time zone and touch NEXT to continue.

5. If you’re using a wired connection and have connected an Ethernet cable to your

game: In most instances the machine will automatically connect to the Internet. If

this occurs, you’ll see a screen with the heading “Internet Connection Detected”.A

green dot will be seen next to the connection method. Touch USE THIS INTERNET

CONNECTION to conﬁrm and use this wired connection. Skip to step 10.

NOTE: Wireless connections may also be recognized at this point if the machine

has been set up in the past. If you wish to use a recognized wireless connection,

simply touch USE THIS INTERNET CONNECTION and skip to step 10.

FIGURE 1 – REAR VIEW OF GAME WITH REAR DOOR REMOVED

POWER

CORD

INLET

ON/OFF

SWITCH

SECURITY

LOOP

OPERATOR

SETUP

BUTTON

ETHERNET

PORT

ML-1 INSTALLATION AND OWNER’S MANUAL PM0802-01 RevA

7. SET UPWIRED NETWORK: This shouldonlybe used if your wired connection isn’t

automatically recognized by the system due to special router settings or Internet

conﬁguration. Touch this button to enter Windows setup and adjust these settings.

8. SET UP WIRELESS NETWORK: Touch this button to display a list of wireless net-

works that are recognized by the system. Touch the network you wish to connect to

in order to highlight it. Touch NEXT to continue. Enter your network’s security key

usingthe on-screen keyboard (if necessary), and then touch CONNECT. When you

obtain a successful connection, touch OK to continue. You’ll return to the Conﬁgure

Your Network screen. Conﬁrm that there is a green dot under SET UP WIRELESS

NETWORK, and then touch NEXT on the Conﬁgure Your Network screen.

9. LAUNCH BROWSER TO CONFIGURE ROUTER:Abrowserwill open andconnect

to your router. Please follow the instructions for your individual router.

NOTE: This option uses the gateway to open a browser to the router. While this

method is supported by the majority of routers, it may not be supported by yours.

6. If an Internet connection has not been detected by your system, or you need to

conﬁgure a router ﬁrst: You’ll be taken to the Conﬁgure Your Network screen (see

Figure 2). Touch the appropriate connection option.

FIGURE 2 – CONFIGURE YOUR NETWORK SCREEN

A green dot under either

WIRED or WIRELESS network

indicates that the machine

is currently connected to the

Internet via that method. A red

dot means that no connection

exists for that method.

PM0802-01 Rev A ML-1 INSTALLATIONAND OWNER’S MANUAL

10. After your Internet connection has been established, you’ll be taken to the Log In

screenwhereyou’llneedtoenteryourAMI ID and password.AMI will provide these

toyou upon receipt ofyourMegatouch Live OperatorAgreement.After entering your

AMI ID and password, touch GO to continue.

11. If you’re setting up a machine that has been registered before:Ascreen will appear

listingall of the machine’sregistration information.Ifthis information is correct,touch

USE EXISTING REGISTRATION INFORMATION and skip to step 17. Touch RE-

12. You’ll then be asked to select a location where the machine will be installed. This

screen will provide a list of locations that have already been registered by you, but

you can also create a new location (if necessary) by touching CREATE A NEW

LOCATION. After selecting or setting up a new location, simply touch NEXT to

continue.

13. Thenext screen will askyouto choose which businessmodelthe machine is operat-

ing under. Select a business model option from the drop-down list, and then touch

NEXT to continue.

14. The Select a Machine Proﬁle screen is next.Aproﬁle is essentially a list of settings

for a particular machine. Some proﬁles are standard based on where your game is

located, as different regions have different laws. You can also choose an alternate

proﬁle to use for your machine from the on-screen list. Touch NEXT to continue.

IMPORTANT: For legal reasons it is very important that you select the appropri-

ate proﬁle for your geographic location. You and you alone are responsible for

selecting the proper proﬁle for your system.

15. On the next screen, you’ll be asked if you want to create a name for the machine.

The game’s serial number will be used by AMI for identiﬁcation purposes, but this

screenallows youtoenter a secondaryidentiﬁer ifyouhave yourownway of tracking

your machines. Whether you’ve entered a name or not, touch NEXT to continue.

NOTE: This step is optional and the name you enter will be used solely by you.

16. The next screen will display a Machine Registration Summary. If any information is

incorrect,touch START OVER to edit it.TouchREGISTER YOUR MACHINE ONLY

if you wish to register the machine with the settings listed on screen.

IMPORTANT: Once you register your machine, its business model can only be

changed by calling Technical Support at 1-800-523-2760.Please ensure that you’ve

selected the correct business model before registering.

17. When your registration is complete you’ll see a CONGRATULATIONS note on

screen. Touch OK to continue. You MUST register successfully in order for your

system to work properly. If you receive an error when trying to register, follow the

on-screen instructions to address the issue.

18. Thereare many other custom settings available for this game system.To customize

the settings, follow the software instructions in this manual.

ML-1 INSTALLATION AND OWNER’S MANUAL PM0802-01 RevA

Game Description

The ML-1 Countertop has one lock located on the back of the unit. To open the cabinet,

unlock this lock and remove the rear door.

Allof the machine’smajor componentsarelocated inside the cabinet.These components

includethe motherboard,I/O board,powersupply,harddrive, coinmech, and billacceptor.

Pressing the red operator setup button inside the rear of the cabinet will take you to the

Operator Setup Home Screen (see Figure 1 for button location). Using this screen as a

jumpingoffpoint, you can then navigate through all the options on thesystemandadjust

these options to best suit your particular needs. For more information see the “Operator

Setup” section of this manual.

Touchscreen Calibration

The ML-1 features touchscreen technology that completely eliminates the need for any

kind of manual touchscreen calibration.

Credit Card Reader

The game also features a built-in credit card reader. This card reader is not only used

for credit card purchases, but players can also use the card reader as a quick way to

the “Megatouch Live Player Features” section of this manual.

Credit card purchases can be disabled on your ML-1 system if desired. Even if credit

purchasesare disabled,playerscan stillusethe cardreaderto login to theiraccounts. For

detailson how to do so, please see thesection“Credit Card Options” later in this manual.

PM0802-01 Rev A ML-1 INSTALLATIONAND OWNER’S MANUAL

Operator Setup

To enter Operator Setup, unlock and remove the rear door and press the operator setup

button (see Figure 1 for the location of the red operator setup button). When you enter

Operator Setup, you’ll see the Home Page.

Home Page

The Home Page is the starting navigation point for your system. The most commonly

used features and settings can be reached easily through the Quick Access Panel. All

other features and settings can be accessed by entering the Control Panel.

Quick Access Panel

NOTE: The machine does not need an active Internet connection to access Quick

Access Panel features and settings.

The options in the Quick Access Panel are shown in the chart below.

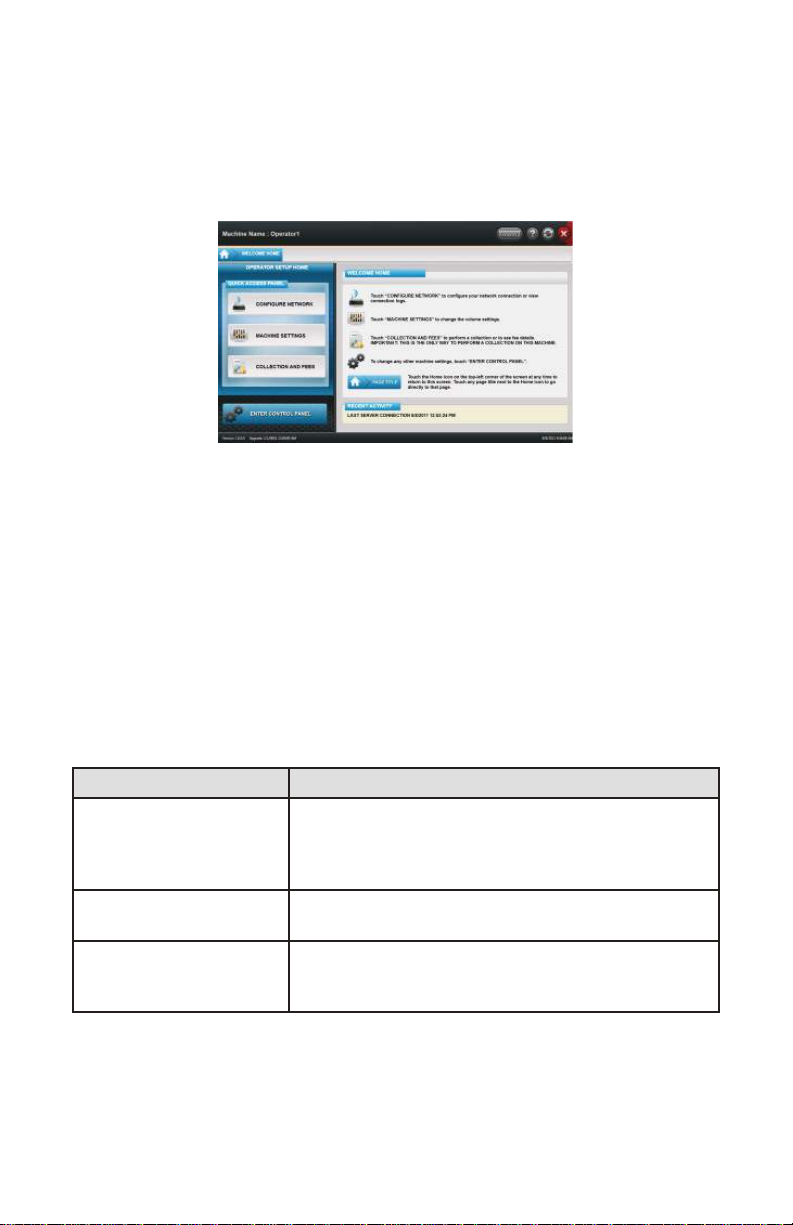

FIGURE 3 – OPERATOR SETUP HOME PAGE

OPTION DESCRIPTION

CONFIGURE NETWORK • Conﬁgure the network connection.

• View the Connection Log. This log displays a line item

for every change in connection status (i.e. online to

ofﬂine or vice versa).

MACHINE SETTINGS Adjust the volume settings, clear local leaderboards,

and view the machine log.

COLLECTION AND

FEES View Total Cash Revenue, Total Credit Card Revenue,

Fees, Balance to Split, Fee Details, and also allows

you to Clear a Collection.

ML-1 INSTALLATION AND OWNER’S MANUAL PM0802-01 RevA

Navigating the Quick Access Panel

When you enter any section of the Quick Access Panel, you can still easily navigate to

other sections by using the buttons on the left side of the screen.

Touchthisbutton atanytime toenter theConﬁgure Networkscreens.

Touchthis button at any time to enter the Machine Settings screens.

Touch this button at any time to enter the Collection and Fees

screens.

Touch this button at any time to enter the Control Panel.

NOTE: The Control Panel can only be accessed on systems with

an active Internet connection.

Touch this button at any time to return to the Operator Setup Home

Page.

Touch this button to toggle the keyboard on or off (if needed).

Touch this button to open the Quick Access Panel help screens.

Touch this button to force a sync of your system with the settings

stored on the server. This is only necessary if moving the machine

to a different location, changing its proﬁle, or swapping its hard drive.

Touch this button to exit Operator Setup.

Inhaltsverzeichnis

Andere AMI Entertainment Arcade-Spielautomat Handbücher

AMI Entertainment

AMI Entertainment Ion Fusion Bedienungsanleitung

Beliebte Arcade-Spielautomat Handbücher anderer Marken

Universal Space

Universal Space COCONUT BASH Bedienungsanleitung

Bay-Tek

Bay-Tek EVOLVE Bedienungsanleitung

Global VR

Global VR America's Army Montage- und Bedienungsanleitung

Atronic

Atronic Cashline Bedienungsanleitung

Universal Space

Universal Space Checky Monkey Bedienungsanleitung

Bay-Tek

Bay-Tek Skee Ball 1908 Alley Bedienungsanleitung

Aristocrat Technologies

Aristocrat Technologies Mars X Upright Bedienungsanleitung

Family Fun Companies

Family Fun Companies Reactor Kurzanleitung

Universal Space

Universal Space FRUIT MANIA Extreme Bedienungsanleitung

falgas

falgas CARRUSEL FIESTA Bedienungsanleitung

Konami

Konami DanceDanceRevolution Bedienungsanleitung

Bay-Tek

Bay-Tek quik drop Bedienungsanleitung

Bandai Namco

Bandai Namco PAC-MAN BATTLE ROYALE CHOMPIONSHIP DELUXE Bedienungsanleitung

Adrenaline

Adrenaline Flying Tickets Montage- und Bedienungsanleitung

Swinks

Swinks Stern Pinball Ghostbusters Bedienungsanleitung

Innovative Concepts in Entertainment

Innovative Concepts in Entertainment MONOPOLY ROLL-N-GO Bedienungsanleitung

jakar

jakar SPEED CARS Bedienungsanleitung

Carmelli

Carmelli HAT TRICK NG1015H Bedienungsanleitung
