EVAL-ADGS1412SDZ User Guide

UG-1067

One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Evaluation Board for ADGS1412 Serially Controlled, 1.5 Ω On Resistance, High

Voltage, Quad SPST Switch

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS.Rev. 0 | Page 1 of 12

FEATURES

SPI interface with error detection

Includes CRC, invalid read/write address, and SCLK count

error detection

Analog supply voltages

Dual-supply: ±4.5 V to ±16.5 V

Single-supply: 5 V to 20 V

PC control in conjunction with the evaluation software

EVAL-SDP-CB1Z system demonstration platform (SDP)

PACKAGE CONTENTS

EVAL-ADGS1412SDZ

DOCUMENTS NEEDED

ADGS1412 data sheet

EQUIPMENT NEEDED

EVAL-SDP-CB1Z controller board

ACE software with EVAL-ADGS1412SDZ plug-in

DC voltage source

±16.5 V for dual-supply

20 V for single-supply

Optional digital logic supply: 3.3 V

Analog signal source

Method to measure voltage, such as a digital multimeter (DMM)

GENERAL DESCRIPTION

The E VA L -ADGS1412SDZ is the evaluation board for the

ADGS1412. The ADGS1412 is an iCMOS, quad single-pole,

single-throw (SPST) switch controlled by a serial peripheral

interface (SPI). The SPI has robust error detection features. These

are cyclic redundancy check (CRC) error detection, invalid

read/write address detection, and serial clock (SCLK) count

error detection. It is possible to daisy-chain multiple ADGS1412

devices together. This enables the configuration of multiple devices

with a minimal amount of digital lines. The ADGS1412 also

supports burst mode that decreases the time between SPI

commands.

Figure 1 shows the E VA L -ADGS1412SDZ in a typical evaluation

setup. The E VA L -ADGS1412SDZ is controlled by the SDP which

connects to a PC via a USB port. The ADGS1412 is on the center of

the evaluation board and wire screw terminals are provided to

connect to each of the source and drain pins. Three screw terminals

power the device and a fourth terminal provides users with a

defined digital logic supply voltage, if required. Alternatively, the

digital logic supply voltage can be supplied from the SDP.

Full specifications on the ADGS1412 are available in the

ADGS1412 data sheet available from Analog Devices, Inc., and

should be consulted in conjunction with this user guide when

using the evaluation board.

The evaluation board interfaces to the USB port of a PC via the

SDP board. The E VA L-SDP-CB1Z board (SDP-B controller

board) is available to order on the Analog Devices website at

www.analog.com.

UG-1067 EVAL-ADGS1412SDZ User Guide

Rev. 0 | Page 2 of 12

TABLE OF CONTENTS

Features .............................................................................................. 1

Package Contents.............................................................................. 1

Documents Needed.......................................................................... 1

Equipment Needed........................................................................... 1

General Description ......................................................................... 1

Revision History ............................................................................... 2

ADGS1412 Evaluation Board Layout ............................................ 3

Evaluation Board Hardware ............................................................ 4

Power Supplies .............................................................................. 4

Input Signals.................................................................................. 4

Link Options ..................................................................................4

Evaluation Board Software...............................................................5

Installing the Software ..................................................................5

Initial Set Up ..................................................................................5

Block Diagram And Description.....................................................6

Memory Map .................................................................................7

Evaluation Board Schematics and Artwork...................................8

Ordering Information.................................................................... 12

Bill of Materials........................................................................... 12

REVISION HISTORY

10/2016—Revision 0: Initial Version

EVAL-ADGS1412SDZ User Guide UG-1067

Rev. 0 | Page 3 of 12

ADGS1412 EVALUATION BOARD LAYOUT

15129-001

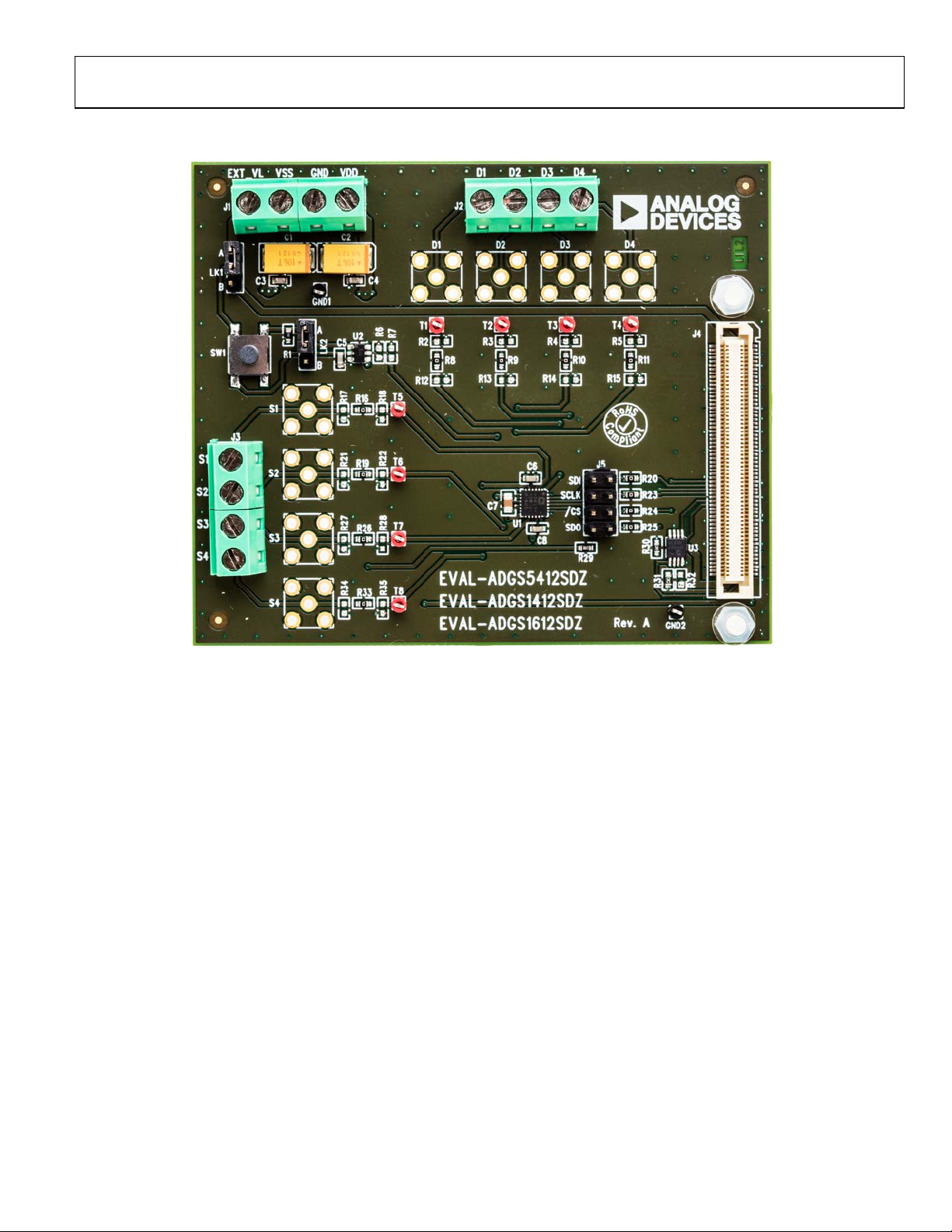

Figure 1.

UG-1067 EVAL-ADGS1412SDZ User Guide

Rev. 0 | Page 4 of 12

EVALUATION BOARD HARDWARE

POWER SUPPLIES

Connector J1 provides access to the supply pins of the ADGS1412.

VDD, GND, and VSS on J1 link to the appropriate pins on the

ADGS1412. For dual-supply voltages, the evaluation board can

be powered from ±4.5 V to ±16.5 V. For single-supply voltages,

the GND and VSS terminals must connect together and power the

evaluation board with 5 V to 20 V. Additionally, 3.3 V is supplied to

the VL pin of the ADGS1412 by the SDP when Link LK1 is in

Position B. When controlling the ADGS1412 by another method

other than the SDP, supply between 2.7 V and 5.5 V to the VL pin

of the ADGS1412 via the EXT_VL screw terminal input on J1.

LK1 should be in Position A.

INPUT SIGNALS

Two screw connectors, J2 and J3, are provided to connect to

both the source and drain pins of the ADGS1412. Additional

subminiature Version B (SMB) connector pads are available if

extra connections are required.

Each trace on the source and drain side includes two sets of

0603 pads, which can place a load on the signal path to ground.

A 0 Ω resistor is placed in the signal path and can be replaced

with a user defined value. The resistor combined with the 0603

pads can create a simple resistor-capacitor (RC) filter.

LINK OPTIONS

A number of link options are provided on the EVAL-

ADGS1412SDZ board that must be set for the required operating

conditions before using. Table 1 describes the positions of the

links to control the evaluation board via the SDP board using a

PC and external power supplies. The functions of these link

options are described in detail in Table 2.

When using the SDP in conjunction with the EVAL-

ADGS1412SDZ, LK1 must be in Position B to avoid damage to

the SDP.

Table 1. Link Options for SDP Control (Default)

Link Number Option

LK1 B

LK2 B

Table 2. Link Functions

Link Number Function

LK1 This link selects the source of the VL voltage supplied to the ADGS1412.

Position A selects EXT_VL from J1.

Position B selects the 3.3 V from the SDP.

LK2 This link selects how a hardware reset is performed.

Position A indicates the SW1 push button performs a hardware reset.

Position B indicates the SDP can perform a hardware reset.

EVAL-ADGS1412SDZ User Guide UG-1067

Rev. 0 | Page 5 of 12

EVALUATION BOARD SOFTWARE

INSTALLING THE SOFTWARE

The E VA L -ADGS1412SDZ evaluation board uses the Analog

Devices Analysis Control Evaluation (ACE)software. ACE is a

desktop software application that allows the evaluation and

control of multiple evaluation systems.

The ACE installer installs the necessary SDP drivers and .NET

Framework 4 by default. Install ACE before connecting the SDP.

The ACE software and access to full instructions on how to

install and use ACE can be found on the Analog Devices

website.

After the installation is finished, the E VA L -ADGS1412SDZ

evaluation board plug-ins appear when opening ACE.

INITIAL SET UP

To set up the evaluation board, complete the following steps:

1. Connect the evaluation board to the SDP board and

connect the SDP board to the computer via a USB cable.

2. Power the evaluation board as described in the Power

Supplies section.

3. Run the ACE application. The E VA L -ADGS1412SDZ

board plug-ins appear in the attached hardware section of

the Start tab.

4. Double-click on the evaluation board plug-in to open the

evaluation board view seen in Figure 2.

5. The chip block diagram can be accessed by double-clicking

on the ADGS1412 chip (see Figure 2). This view provides a

basic representation of functionality of the board. The main

functions are labeled in Figure 3.

15129-002

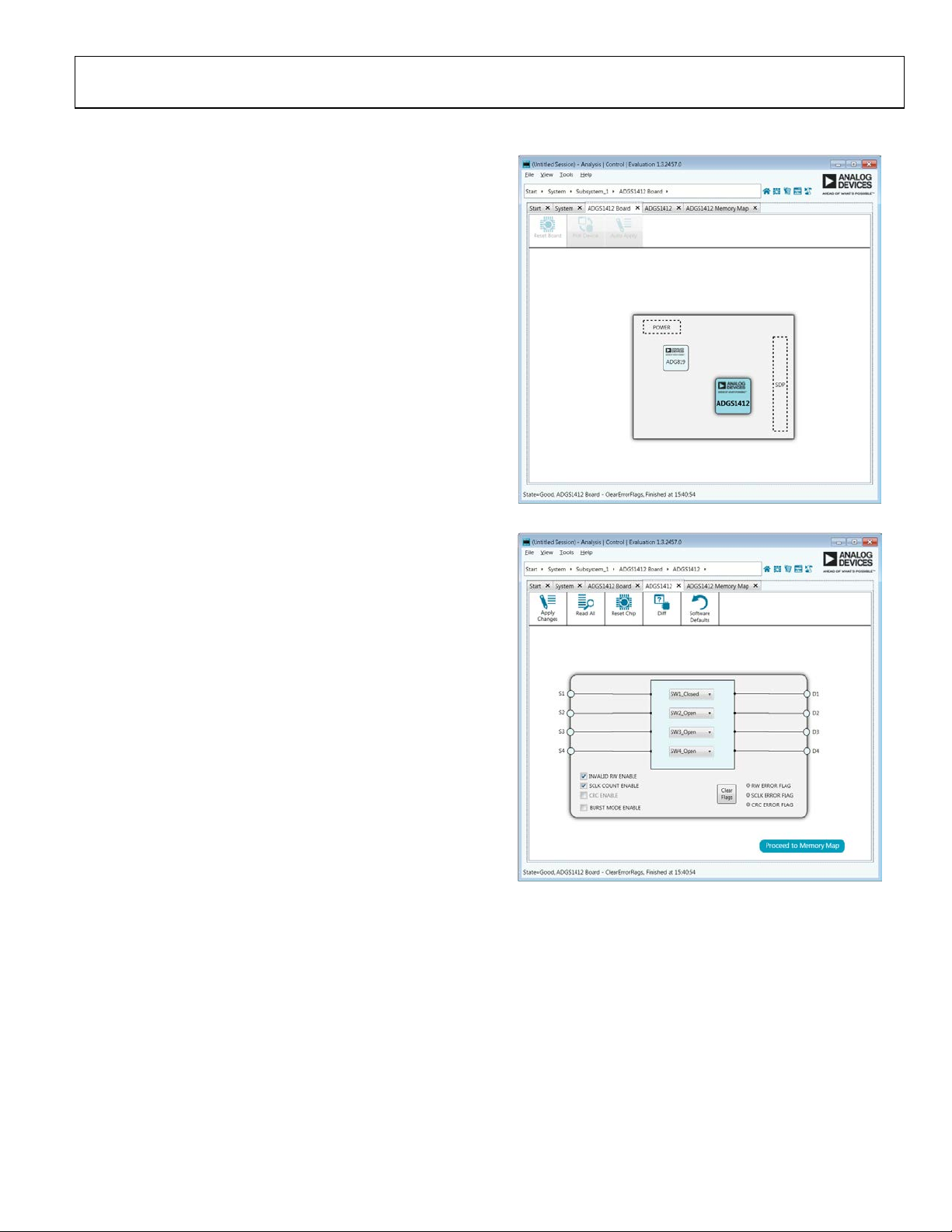

Figure 2. Evaluation Board View of the EVAL-ADG1412SDZ

15129-003

Figure 3. Chip Block Diagram View for the ADG1412

UG-1067 EVAL-ADGS1412SDZ User Guide

Rev. 0 | Page 6 of 12

BLOCK DIAGRAM AND DESCRIPTION

The E VA L -ADGS1412SDZ software is organized so that it

appears similar to the functional block diagram shown in the

data sheet. In this way, it is easy to correlate the functions on the

E VA L-ADGS1412SDZ board with the description in the data

sheets. A full description of each block, register, and settings is

given in the ADGS1412 data sheet.

Some of the blocks and their functions are described here as

they pertain to the evaluation board. The full screen block

diagram, shown in Figure 4, describes the functionality of each

block.

15129-004

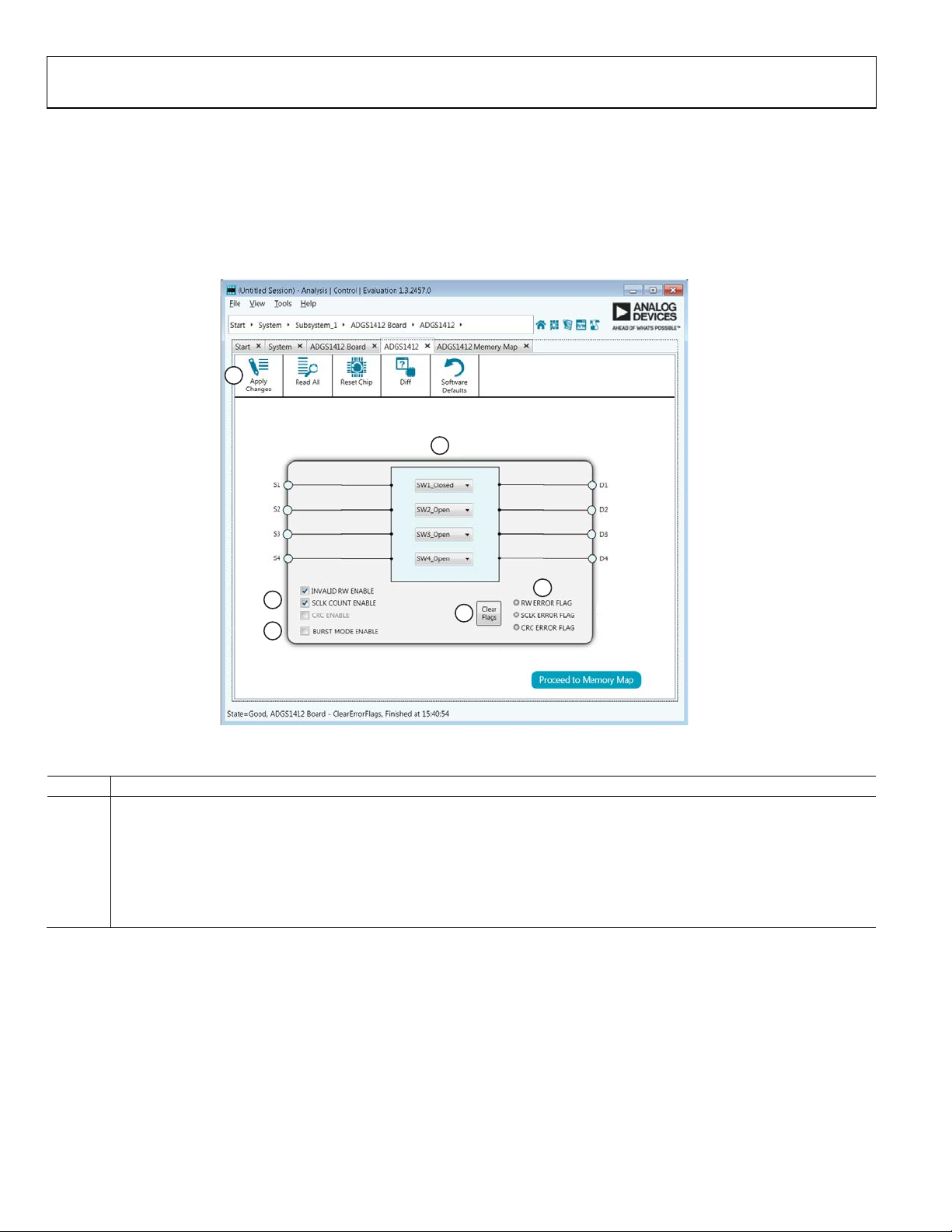

Figure 4. EVAL-ADGS1412SDZ Block Diagram with Labels

Table 3. Block Diagram Functions

Label Function

A The drop-down menus configure SW1 to SW4 as open or closed.

B The INVALID RW ENABLE, SCLK COUNT ENABLE, and CRC ENABLE checkboxes enable or disable the error detection features

on the SPI interface.

C The BURST MODE ENABLE checkbox enables or disables burst mode.

D The RW ERROR FLAG, SCLK ERROR, and CRC ERROR FLAG indicators illuminate red if flags assert in the error flags register.

E The Clear Flags button clears the error flags register.

F Apply Changes button applies all modified values to the devices.

EVAL-ADGS1412SDZ User Guide UG-1067

Rev. 0 | Page 7 of 12

MEMORY MAP

All registers are fully accessible from the memory map tab; this

allows registers to be edited at a bit level (see Figure 5 and Figure 6).

The bits shaded in dark gray are read only bits and cannot be

accessed from ACE; all other bits are toggled. The Apply Changes

button transfers data to the device.

All changes here correspond to the block diagram; for example,

if the internal register bit is enabled, it displays as enabled on

the block diagram. Any bits or registers that are bold are

modified values that have not been transferred to the evaluation

board. After clicking Apply Changes, the data is transferred to

the evaluation board.

15129-005

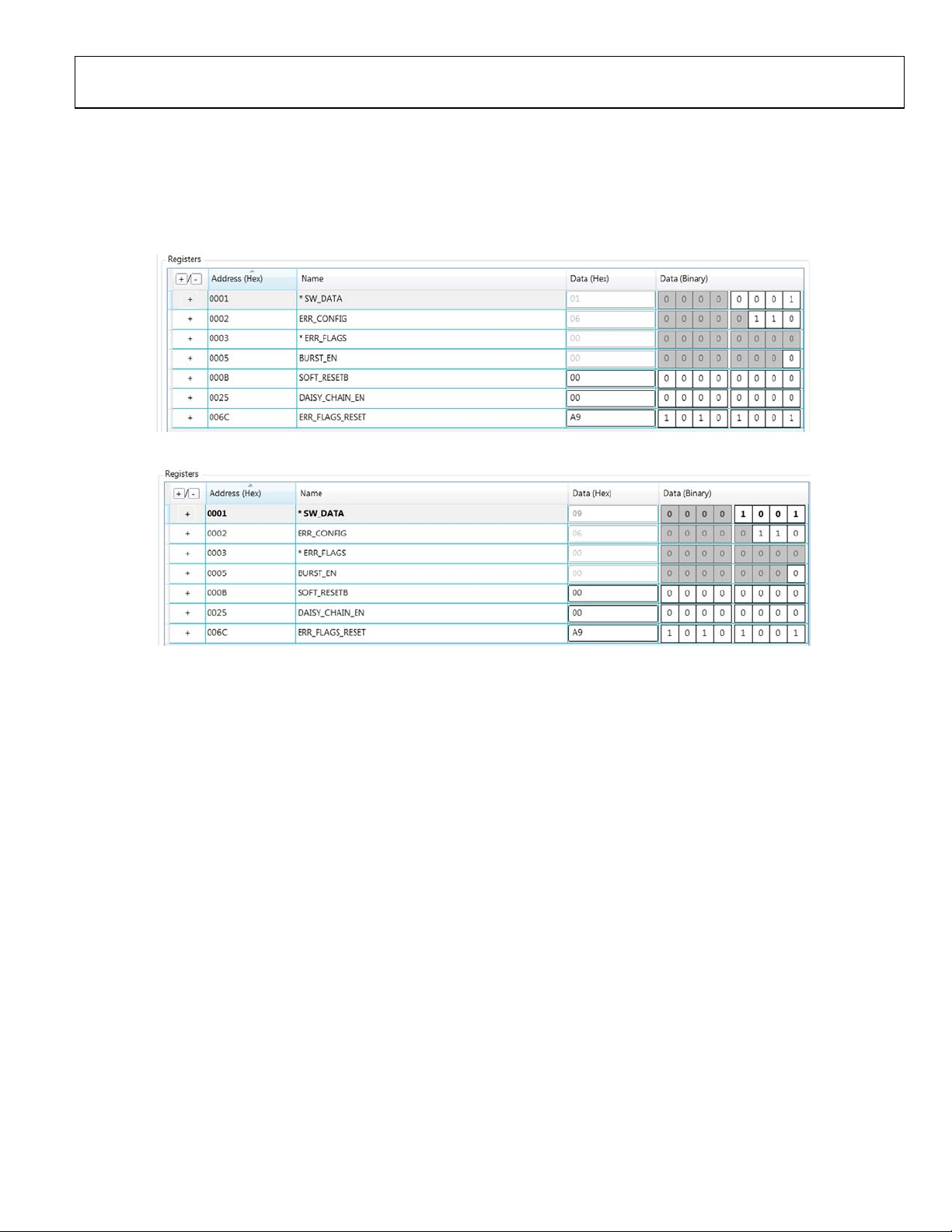

Figure 5. ADGS1412 Memory Map

15129-006

Figure 6. ADGS1412 Memory Map with Unapplied Changes in the SW_DATA Register

UG-1067 EVAL-ADGS1412SDZ User Guide

Rev. 0 | Page 8 of 12

EVALUATION BOARD SCHEMATICS AND ARTWORK

15129-007

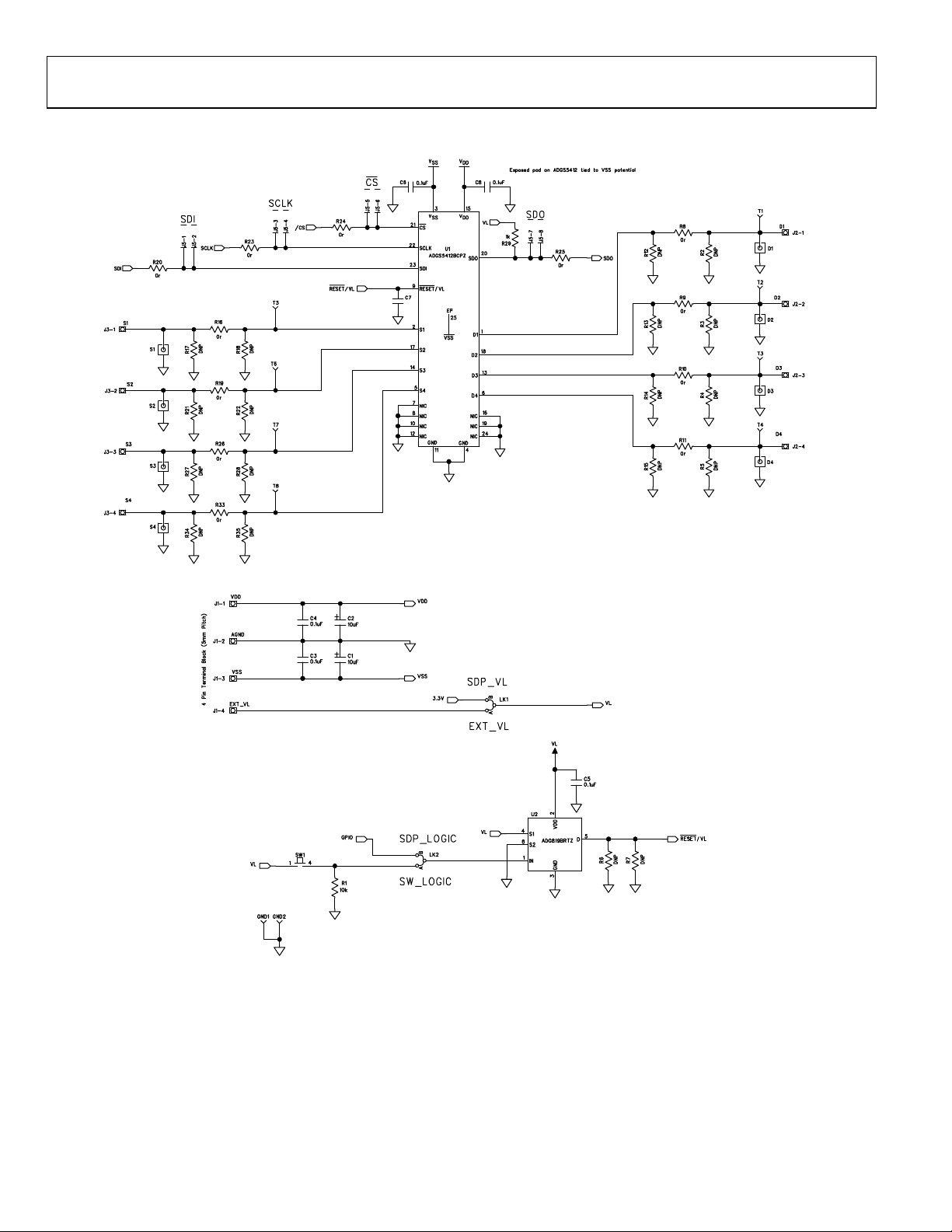

Figure 7. EVAL-ADGS1412SDZ Schematic 1

15129-008

Figure 8. EVAL-ADGS1412SDZ Schematic 2

EVAL-ADGS1412SDZ User Guide UG-1067

Rev. 0 | Page 9 of 12

15129-009

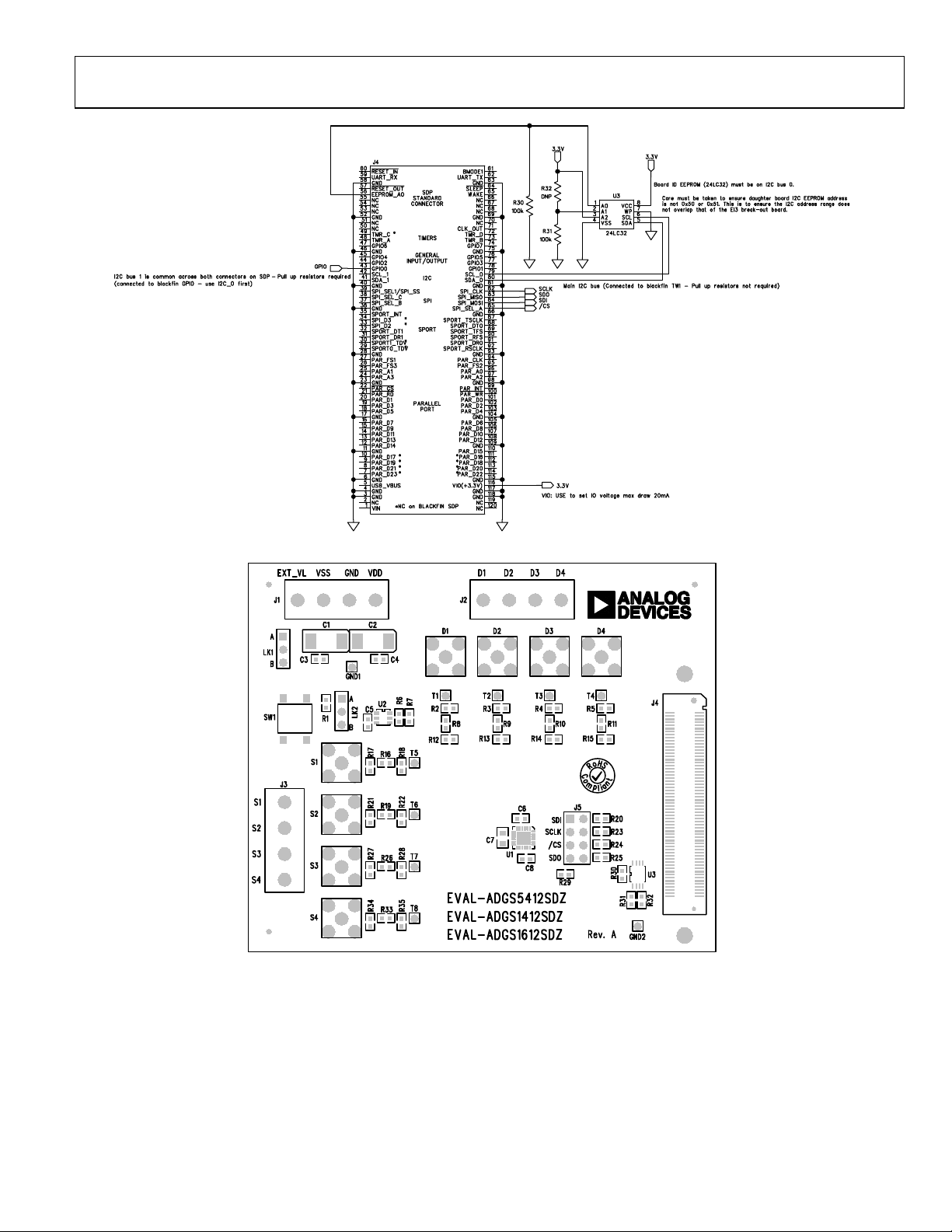

Figure 9. EVAL-ADGS1412SDZ Schematic 3

15129-010

Figure 10. EVAL-ADGS1412SDZ Silk Screen

UG-1067 EVAL-ADGS1412SDZ User Guide

Rev. 0 | Page 10 of 12

15129-011

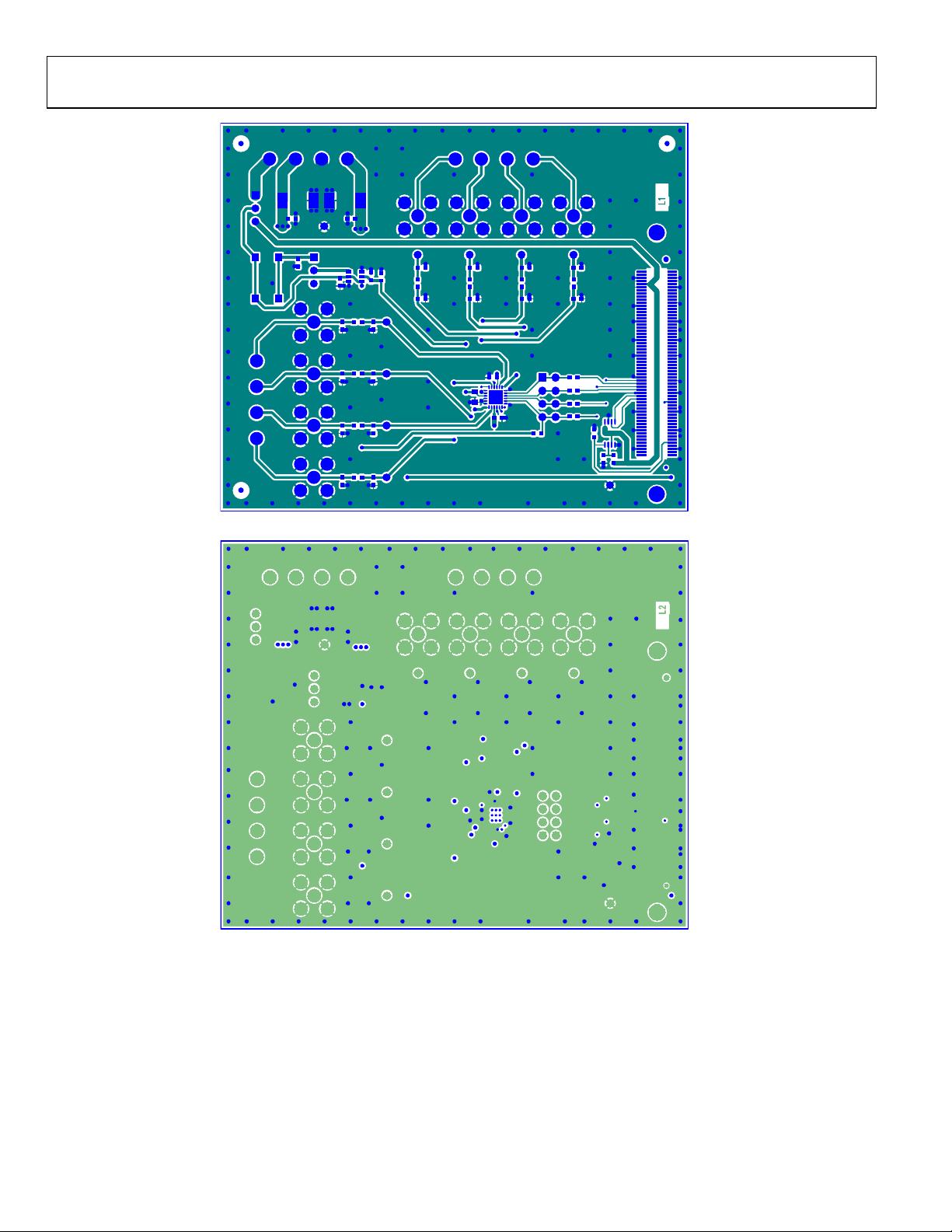

Figure 11. EVAL-ADGS1412SDZ Top Layer

15129-012

Figure 12. EVAL-ADGS1412SDZ Layer 2

Inhaltsverzeichnis

Andere Analog Devices Hauptplatine Handbücher

Analog Devices

Analog Devices AD9142A-M5372-EBZ Bedienungsanleitung

Analog Devices

Analog Devices Hittite HMC900LP5E Bedienungsanleitung

Analog Devices

Analog Devices EVAL-LT8376-AZ Kurzanleitung zur Einrichtung

Analog Devices

Analog Devices EVAL-SSM3525Z Bedienungsanleitung

Analog Devices

Analog Devices ADIS16COM1/PCBZ Bedienungsanleitung

Analog Devices

Analog Devices AD6642 Bedienungsanleitung

Analog Devices

Analog Devices ADAU1772 Bedienungsanleitung

Analog Devices

Analog Devices ADSP-21262 EZ-KIT Lite Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADUSB2EBZ Bedienungsanleitung

Analog Devices

Analog Devices ADL6316-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices Blackfin Landscape LCD EZ-Extender... Bedienungsanleitung

Analog Devices

Analog Devices UG-213 Bedienungsanleitung

Analog Devices

Analog Devices AD5758 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-AD5252SDZ Bedienungsanleitung

Analog Devices

Analog Devices ADMV8818-EVALZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADE7903EBZ Bedienungsanleitung

Analog Devices

Analog Devices EVAL-LTM4702-AZ Kurzanleitung zur Einrichtung

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF707 Bedienungsanleitung

Analog Devices

Analog Devices UG-127 Bedienungsanleitung

Analog Devices

Analog Devices SSM2317 Bedienungsanleitung

Analog Devices

Analog Devices AD9102 Bedienungsanleitung

Analog Devices

Analog Devices EVAL-ADRF5347 Bedienungsanleitung

Analog Devices

Analog Devices AD9739A-EBZ Bedienungsanleitung

Analog Devices

Analog Devices ADuCM350 Bedienungsanleitung

Beliebte Hauptplatine Handbücher anderer Marken

DFI

DFI SD170 Bedienungsanleitung

ASROCK

ASROCK ROMED8-2T Bedienungsanleitung

Asus

Asus P2L97A Bedienungsanleitung

Winmate

Winmate IC70 Bedienungsanleitung

Asus

Asus MES-B Bedienungsanleitung

Grantech

Grantech SYS8F377VGGA-3OMN Bedienungsanleitung

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Bedienungsanleitung

Gigabyte

Gigabyte GA-9IVDT Bedienungsanleitung

Texas Instruments

Texas Instruments ADS8372EVM Bedienungsanleitung

Commell

Commell MS-C73 Bedienungsanleitung

IBT Technologies

IBT Technologies MB860 Bedienungsanleitung

Nvidia

Nvidia TEGRA DG-04927-001_V01 Bedienungsanleitung

Biostar

Biostar M7VIT Bravo Bedienungs- und Montageanleitung

Intel

Intel D33217CK Bedienungsanleitung

Asus

Asus F1A55-M LX PLUS R2.0 Bedienungsanleitung

EPC

EPC EPC9147C Bedienungsanleitung

Asus

Asus EX-B760M-V5 D4 Bedienungsanleitung

EPOX

EPOX MU-8KHA0010 Bedienungsanleitung
