Anchor MiniVox Bedienungsanleitung

Owner’s Manual

MiniVox

ANCHOR Audio, Inc. (310) 784-2300

100-0074-000 / Revision A, 06/97

Having trouble with the sound system?

Condition Possible Solution

No sound (LED not lit): • turn POWER switch ON

• charge batteries

No sound (LED flashes): • turn microphone switch ON

• make sure all cables are completely plugged in

No sound when using CD input: • check for output from source

• make sure all cables are completely plugged in

Distorted sound: • lower system volume control

• replace or recharge batteries

Shortened battery life: • replace worn NiCad batteries

• ‘Cycle’ NiCad batteries (see page 6)

• reduce volume to eliminate distortion

Having trouble with the wireless system? (model PB-25W only)

Condition Possible Solution

No sound (LED solid): • turn up volume level

• plug microphone into bodypack transmitter.

No sound (LED flashes): • make sure transmitter power switch is ON

• set body pack transmitter switch to F1 or F2

• set receiver and transmitter to same channel

Frequent transmitter dropouts: • replace mic/transmitter battery

• move mic/transmitter closer to MiniVox

• make sure collar or headband mic cable is fully

plugged into transmitter.

Troubleshooting Guide

Problems?

Consult the

troubleshooting

section on the

back page of

this manual.

Blank Page

Quick Use Guide

Thank you for choosing an Anchor Audio portable sound system. Our products

incorporate state-of-the-art design and the finest quality of materials and

workmanship. We’re proud of our products and appreciate the confidence which

you have shown by selecting an Anchor system.

I hope you’ll take a few of minutes to review this manual. We’ve incorporated

several unique features into our products, and your knowledge of how to use

them will enhance the performance and your enjoyment of the system.

David Jacobs, President on behalf of all Anchor employees

MiniVox is a battery-operated handheld P.A. system that’s

easy to set-up and operate. Before using the MiniVox, you’ll

need to install the batteries as described on page 4.

If your unit is equipped with an RC-25 rechargeable battery kit,

you must charge the batteries completely before use (see page 6).

Here’s how easy it is to use:

1. Set the MiniVox in front of your audience.

2. Plug a microphone into the INPUT jack.

3. Turn the MiniVox power/volume control ON (the red

LED should begin flashing). Then turn the microphone

switch ON. Adjust the volume control until desired

volume is reached.

To operate the wireless mic system on model PB-25W see

“Wireless Operation” on pages 7 and 8. For complete usage

instructions, see the “Operation” section beginning on page 5

(see page 6 for instructions on using the signal alert option.)

To avoid

feedback, do not

position the

microphone in

front of the

speaker.

Specifications

Getting Started

Inspection and inventory of your system

Check unit carefully for damage which may have occurred

during transit. Each Anchor product is carefully inspected at

the factory and packed in a special carton for safe transport.

Inventory

• MiniVox sound system

• MIC-25 handheld microphone (not included with

models PB-25L or PB-25W)

• shoulder strap

• battery-holder tubes

• warranty and registration card

• wireless mic/transmitter (model PB-25W only)

All damage claims must be made with the freight carrier.

Notify the freight carrier immediately if you observe any

damage to the shipping carton or product. Repack the unit

in the carton and await inspection by the carrier’s claim agent.

Notify your dealer of the pending freight claim.

Returning your unit for service or repairs

Should your unit require service, contact your dealer or our

Customer Service Department at (310) 784-2300 to obtain a

Return Authorization (RA) number. All shipments to Anchor

must include an RA number and must be shipped prepaid.

C.O.D. shipments will be refused and returned at your cost.

Warranty registration

Please fill out the warranty card and return it with a copy of

your invoice to Anchor’s Customer Service Department. This

will activate your limited two year warranty.

Save the

shipping carton

and packing

materials. They

were specially

designed to

ship your unit

safely.

MiniVox

Rated power output: 15 watts

Max SPL @ rated power: 108 dB @ 1 meter

Frequency response: 100 Hz – 12 kHz

Speaker type: 5 inch cone

CD ⁄ TAPE Input: line level, 3.5mm

Mic Input (phantom powered): Lo-Z, phantom powered, 3.5mm jack

Mic Input: Lo-Z, 1/4"-phone

Wireless Receiver: FM Superheterodyne

Sensitivity: 2µV at S/N 40 dB

Frequencies: pair #1: 169.445 and 170.245 mHz

pair #2: 171.105 and 171.845 mHz

Battery type: nine C-size, alkaline

Dimensions (HWD): 8 x 6.5 x 9.5", 20 x 17.5 x 24 cm

Weight: 5.2 lbs, 2.4 Kg

RC-25 Recharge Kit (optional)

Battery type: nine C-size, 1.5AH rechargeable NiCad

Charger: AC-25

AC-25 input: 120 VAC, 60Hz, 10 watts max

AC-25/220 input

(for export):

220 VAC, 50Hz, 10 watts max

AC-25 output: DC taper charge

Shipping weight: 2.1 lbs, 1.0 Kg

Specifications subject to change without notice.

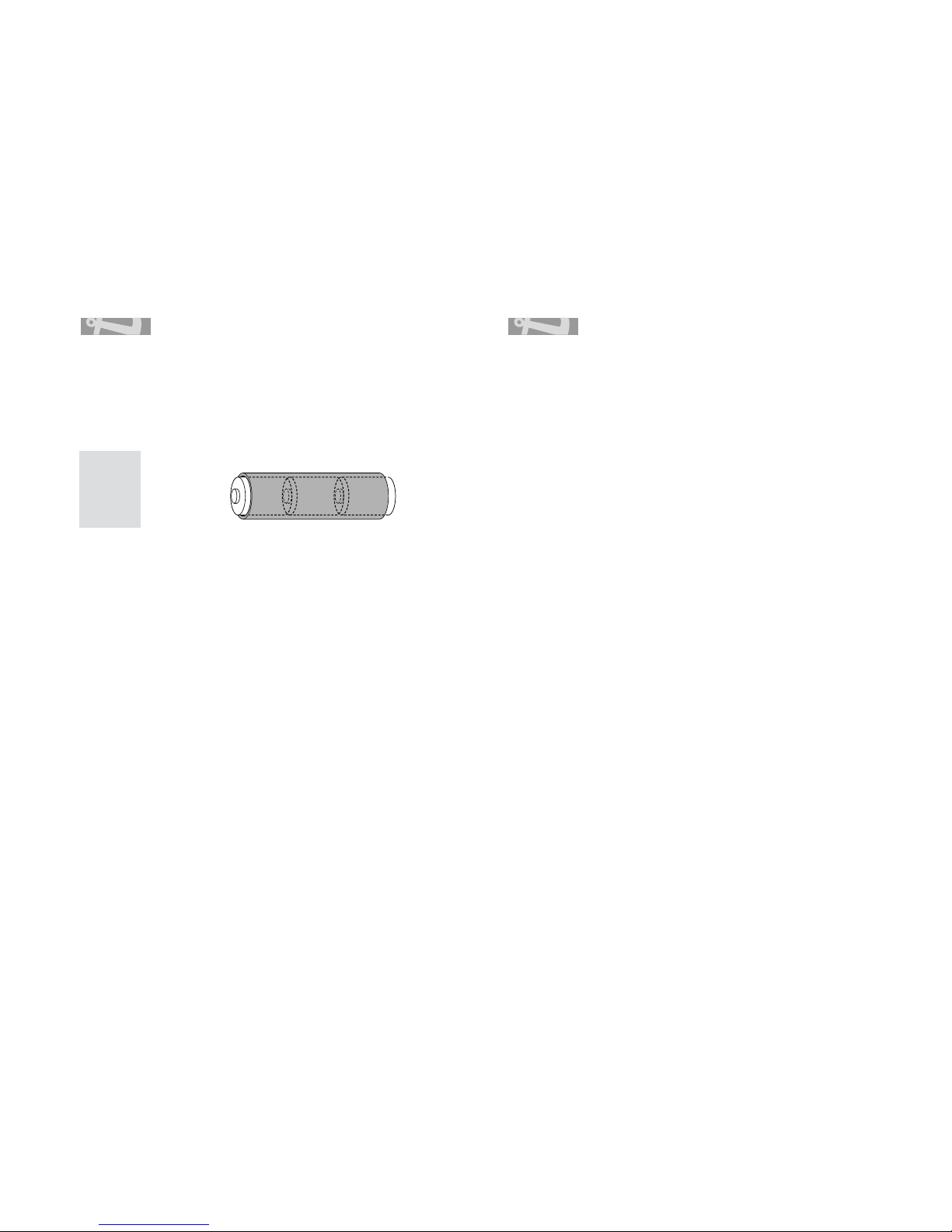

Installing the batteries

1. Turn the slotted fastener located on bottom of the

MiniVox 1/4-turn counter clockwise (use a coin or

flat screwdriver) and remove the battery cover.

2. Insert three size C batteries (alkaline-type work best)

into each cardboard battery-holder as shown.

3. Position the three battery tubes into the battery com-

partment with negative (flat) end contacting the

springs (as shown on compartment label).

4. Fit the tab of the battery cover into the slot at the back

of the battery compartment, close cover, then lock

fastener by turning 1/4-turn clockwise.

Accessories

Battery Installation

For extended

service life and

greater output,

use alkaline

batteries.

RC-25 Rechargeable Battery Kit

Includes (9) rechargeable batteries and AC adapter/charger.

CC-25 Carrying Bag

Vinyl carrying bag with storage pocket for microphone.

CM-1000 Collar Microphone

Around-the-neck collar microphone. Plugs into the phantom-

powered mic input or the WL-1000 wireless transmitter

HBM-35 Headband Microphone

Plugs into the phantom-powered mic input or the WL-1000

wireless transmitter

MIC-25 Handheld Microphone

Handheld microphone with 6' coil cord. Unidirectional

pick-up pattern.

MIC-90P Handheld Microphone

Anchor’s dynamic, balanced, low impedance microphone

with a unidirectional pick-up pattern. It has a on/off switch

and comes with a 20' cable and mic clip.

WH-1000 Wireless Handheld Microphone

Handheld microphone with built-in transmitter for use with

Wireless MiniVox. Unidirectional pick-up pattern.

OFF

Solid = Transmitter On

CHARGER

MICROPHONE

(PHANTOM POWER)

MIC

model PB-25

CD⁄TAPE

(LINE LEVEL)

Headphones

CD⁄TAPE

(LINE LEVEL)

Headphone output

jack of audio source CD ⁄ TAPE Input

jack of MiniVox

Shielded

patch

cable

model PB-25

OFF

CD⁄TAPE

(LINE LEVEL)

CHARGER

MICROPHONE

(PHANTOM POWER)

MIC

CD / TAPE Input

(mini jack, 3.5mm)

Microphone Input

with phantom power

(mini jack, 3.5mm)

AC-25 Charger Input

(sub-mini, 2.5mm)

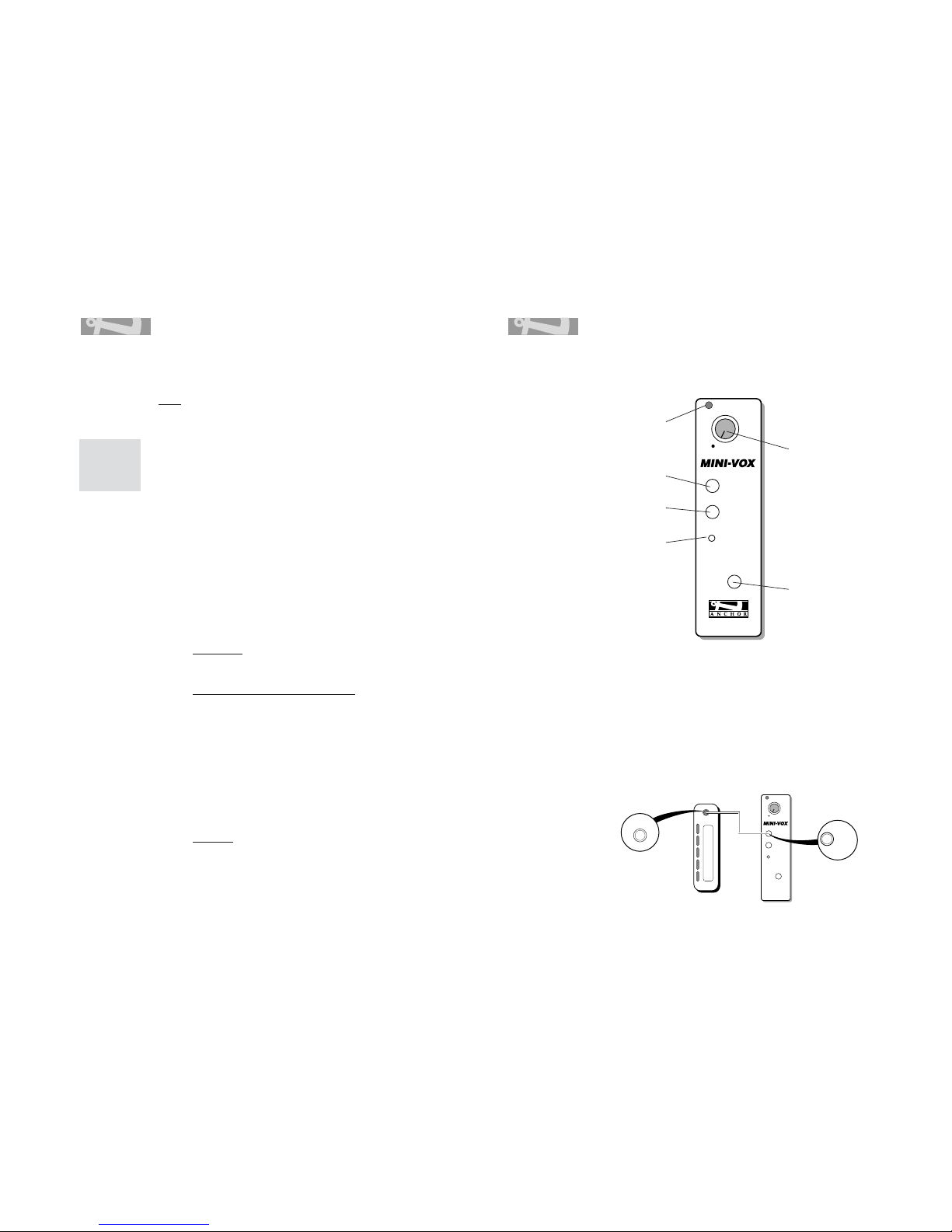

MiniVox Control Panel

Power Switch and

Volume Control

Power Indicator

Lo-Z Mic Input

(1/4" phone jack)

CD⁄TAPE Input

Use the CD⁄TAPE input to play pre-recorded material through the

MiniVox. The volume control of the MiniVox controls both the

audio source and microphone when used simultaneously.

• Connect a mini-to-mini patch cable (3.5mm plugs) to

the ‘Headphone’ or ‘Line’ output of your audio

source and the CD ⁄ TAPE jack of the MiniVox.

• Turn the MiniVox ON and set the volume control to

about the 2 o’clock position. Then adjust the volume

control of the audio source to desired level.

Wireless Operation (model PB-25W only)

Operation

Replacing the transmitter battery

Note: The transmitter power switch must be in the OFF position!

HANDHELD: Unscrew the battery compartment cover on

the lower end of microphone. Install a fresh ‘AA’ alkaline

battery and replace the cover.

BODY-PACK: Open battery cover

on the side of the transmitter box

and insert a fresh 9 Volt alkaline

battery. Close the cover.

Operating the wireless microphone system

1. Set the MiniVox down and direct toward audience.

(Position the MiniVox in front of you while using the

wireless microphone to avoid feedback.)

2. Turn the MiniVox power/volume control ON about

halfway (red LED should begin flashing).

3. Turn the wireless microphone ON as follows:

Handheld: Set the switch to the top ON position and

begin speaking. The middle STANDBY position

functions as a mute switch.

CollarMic, Headband or Lapel Mic: Plug mic cable

into transmitter. Set power/frequency switch to the

frequency of the receiver (either F1 or F2) and begin

speaking.

NOTE: When the mic/transmitter is turned ON and

the transmitter frequency matches the receiver, the RF

Signal Indicator on the MiniVox should light steadily

(indicating signal is being received). If it does not light

steadily, review the instructions above and the

troubleshooting section on the back page.

4. Adjust volume control on MiniVox.

Caution: Harmful feedback may occur when walking in

front of a sound system or speaker with a wireless

microphone. Always point mic away from speakers.

Observe proper

polarity when

installing the

battery!

Wireless Operation (model PB-25W only)

Operation

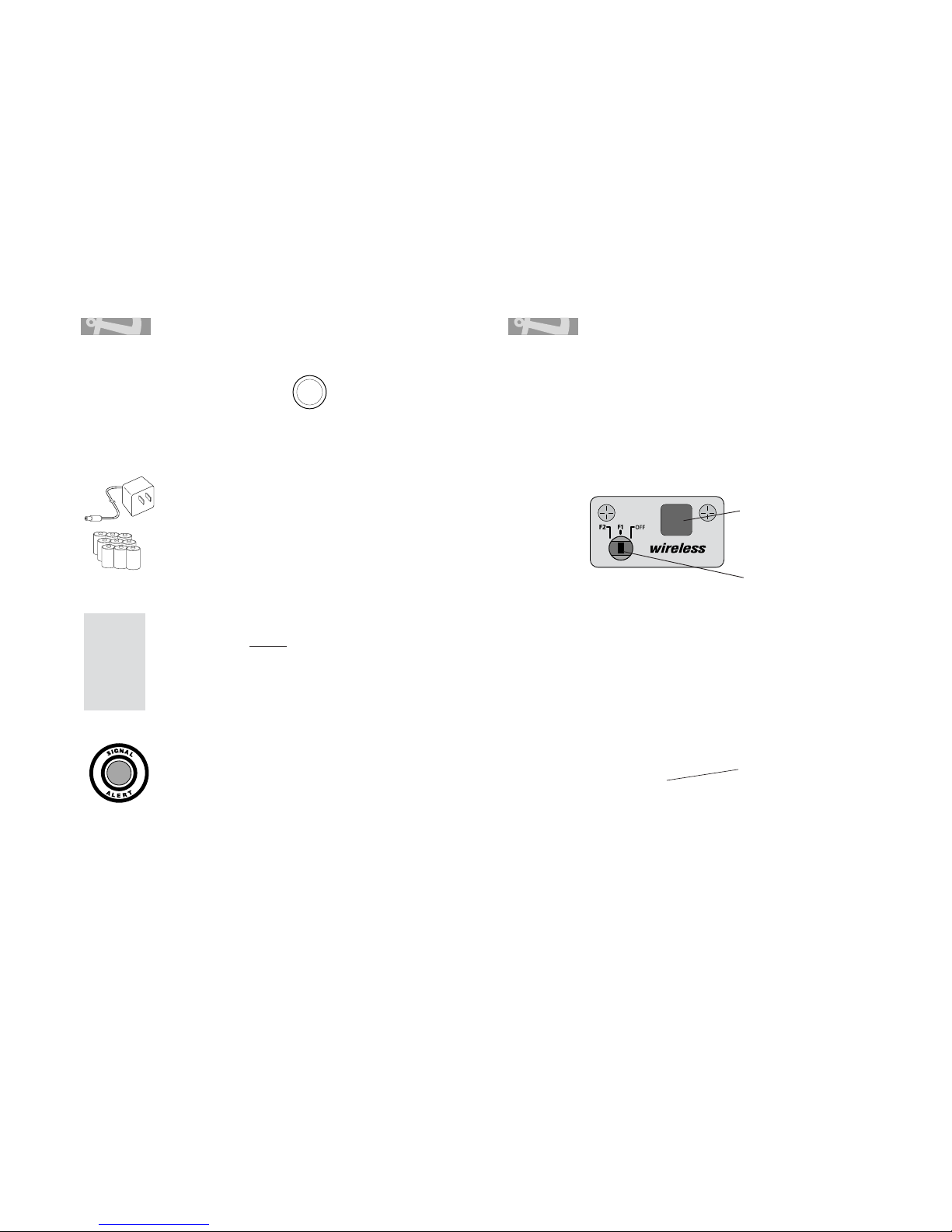

Using the RC-25 rechargeable battery kit

For applications where the MiniVox is used frequently, the

RC-25 rechargeable battery kit is available. The kit includes

rechargeable batteries and an AC charging adapter. About

8-15 hours of operation can be expected per charge.

Using the RC-25 Recharge Kit

1. Install batteries as described on page 4.

2. Insert small plug on charger into CHARGER input on

the MiniVox and plug AC adapter into an outlet.

3. Note! Charge batteries for 24 hours before using

MiniVox for the first time. Typical charging time for

full recovery is 12-18 hours.

CAUTION: NEVER recharge other types of batteries.

Doing so can result in battery explosion. Use only

rechargeable Nickel Cadmium (NiCad) batteries.

4. Cycling the batteries: To extend battery life, we

recommend you fully charge the batteries once each

month during periods of infrequent use. Always

recharge batteries before storing.

Optional Signal Alert: Model PB-25SA

The Signal Alert button enables the MiniVox to produce a

siren-like tone. The momentary pushbutton switch on the

handle actuates the alert (the volume of the alert tone is not

affected by the MiniVox volume control).

Phantom Powered

Microphone Input

Use the phantom powered mic input (3.5mm jack) with electret

condenser microphones that require phantom power; such as

Anchor’s CM-1000 and HBM-35.

MICROPHONE

(PHANTOM POWER)

Recharge

batteries before

storing.

Do not charge

batteries for

more than 24

hours!

Setting up the wireless system

Set the frequency of the receiver.

The wireless receiver is mounted inside the MiniVox. and is

available with two different frequency pairs (this allows for

operation of up to 4 units simultaneously). A label on top of

the MiniVox indicates which 2 frequencies your system is

equipped with, and the desired frequency is selected via the

frequency switch.

1. Set the frequency of the receiver to either of the two

channels, F1 or F2.

If you experience ongoing interference problems with your

wireless system, the selected frequency may be incompatible

with other RF systems in your area. Try the other channel.

Set the frequency of the transmitter.

During use, make sure the transmitter you are using is set to

the same frequency as the receiver as set above.

HANDHELD: Set the frequency switch inside the

battery compartment to match the channel of the

receiver. Replace the cover—but don’t overtighten!

BODY-PACK: The power/frequency switch on the

transmitter determines the frequency. During use, set

the switch to match the frequency of the receiver.

169.445

170.245

Frequency Switch

frequency switch

label indicates frequency pair

F1 (MHz) F2 (MHz)

PB-25W-1: 169.445 170.245

PB-25W-2: 171.105 171.845

Andere Handbücher für MiniVox

Inhaltsverzeichnis

Andere Anchor Sprecher Handbücher

Anchor

Anchor MiniVox Bedienungsanleitung

Anchor

Anchor Megavox Pro MEGA-6000U1 Bedienungsanleitung

Anchor

Anchor Beacon BEA-6000 Bedienungsanleitung

Anchor

Anchor AN-130 Bedienungsanleitung

Anchor

Anchor AN-130 Bedienungsanleitung

Anchor

Anchor ACCLAIM Bedienungsanleitung

Anchor

Anchor AL-WB Bedienungsanleitung

Anchor

Anchor TourVox Gebrauchsanweisung

Anchor

Anchor Xtreme XTR-6000 Bedienungsanleitung

Anchor

Anchor AN-1000X Bedienungsanleitung

Anchor

Anchor EXPLORER PRO EXP-7500U2 Bedienungsanleitung

Anchor

Anchor Explorer PB-2500 Bedienungsanleitung

Anchor

Anchor AN-1000X+ Gebrauchsanweisung

Anchor

Anchor AN-130+ Bedienungsanleitung

Anchor

Anchor GO GETTER Gebrauchsanweisung

Anchor

Anchor AN-1001X Bedienungsanleitung

Anchor

Anchor MegaVox PRO MEGA-6000 Bedienungsanleitung

Anchor

Anchor AN-1001X Bedienungsanleitung

Anchor

Anchor AN-1000X+ Bedienungsanleitung

Anchor

Anchor AN-30 Bedienungsanleitung

Anchor

Anchor Beacon BEA-6000 Bedienungsanleitung

Anchor

Anchor MiniVox PB-25T Bedienungsanleitung

Anchor

Anchor LIBERTY PLATINUM Bedienungsanleitung

Anchor

Anchor AN-1000X Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung
