Installation Instructions

50’ Century®Tent

Single or Double Center Pole

Non-Certiﬁed Installation

Double Center Pole Illustrated

See inside this manual for proper staking. Illustration is for concept purposes only.

7701 Highway 41 N

Evansville, IN 47725

Phone: 812-867-2421

Fax: 812-867-1429

1-800-544-4445

email: [email protected]

www.anchorinc.com

Index

Introduction..........................................................................................................3

Safety Notes................................................................................................................ 3

Manpower/Tools Required ............................................................................................4

Parts Illustrations ..........................................................................................................4

Web Guy Layout - Single Center Pole .........................................................................5

Web Guy Layout - Double Center Pole ........................................................................ 6

Web Guy Layout - Single Center Pole - (Round End) ..................................................7

Staking Guidelines ......................................................................................................7

Layout at Site ..............................................................................................................7

Lacing Instructions .....................................................................................................8

Pole Cap ......................................................................................................................8

Tie down after Lacing ...................................................................................................9

Raising Side Poles ....................................................................................................9

Raising Center Poles ................................................................................................9

Winch Tensioning........................................................................................................ 10

Final Adjustment and Take Down................................................................................ 10

Introduction

The installation of this Century Tent should be performed/supervised by knowledgeable tent installers with a clear under-

standing of safety issues as well as the methods of anchoring. The requirements as specified with blue print (supplied by

Anchor Industries Inc.) must be followed. The installer/owner must read the assembly instructions completely prior to any

installation. Particular attention must be given to anchoring! See Caution Statement on back page of this manual

Work from step to step.

Before erecting any tents or membrane structures, ﬁrst obtain permits and approvals as required from the local building and

ﬁre code ofﬁcials on the jurisdiction of your installation.

PLEASE PAY SPECIAL ATTENTION TO SAFETY WARNINGS AND CAUTIONS FOR PREVENTION OF ACCIDENTS.

Regarding the contents of this document:

The illustrations and photos are made to show clearly the construction and dismantling procedures and also for identiﬁcation

of the components. Not all illustrations/photos correspond to the actual dimensions and size. Explanations and/or notes have

been added to these illustrations/photos.

If you have questions, please call your sales representative at the phone number listed on the front of this manual.

Safety Notes

• Please read through this assembly manual completely before beginning your installation. Be sure the proper equipment

and safety precautions are in place. We hope that you enjoy the design features of the tent each time the unit is installed.

• Consult your local utility locator service or the National Utility Locating Contractors Association

(NULCA) prior to installation.

•

• Prior to actual tent assembly, be sure to look up, down, above & below for obstacles, pipes, wires,

trouble, etc.

• Be alert to avoid contact of Tent poles with any overhead power lines near the site.

• Keep site clear of debris to avoid tripping, especially while carrying tent poles or bundle of fabric.

• When moving tent sections by hand, use proper lifting techniques to protect the back.

• The installation method described here requires coordination of tasks between workers. A safe installation is dependent

on that coordination. Work cooperatively as a team.

• Replace used or damaged components with original new ones.

• To prevent injuries, wear suitable protective clothing such as hard hats, steel toed shoes, etc.

• Do not drag bundle of fabric on concrete, asphalt, or ground as this can cause damage to the fabric from abrasion through

the bag.

• This tent is manufactured for use as a temporary structure. Evacuation is recommended if threatening or windy weather

occurs. See caution on back page of this manual.

MANPOWER REQUIRED

Four experienced installers

should be able to assemble a

50’ x 60’ or 50’ x 70’ tent in approximately

five hours.

TOOLS REQUIRED

Sledge Hammers

Stake Driver

2 Measuring Tapes

IMPORTANT:

The requirements as specified with blue print (supplied by Anchor Industries Inc.) must be followed. Particular atten-

tion should be made to anchoring system.

LAYOUT & CHECK

Utilize parts list for a quick I.D. and a check list to

ensure that you have all the parts.

SINGLE CENTER

POLE TENT PARTS

QUANTITY PER SECTION

20’ END

(PAIR)

24’ 9” ROUND.

END (PAIR)

30’ END

(PAIR) 20’ MIDDLE 30’ MIDDLE

BAG WITH FABRIC SECTION 2 2 2 1 1

CENTER POLE 1 1 1 1 1

SIDE POLE 18 14 22 4 6

POLE CAP (OPTIONAL) 1 1 1 1 1

SEE WEB GUY LAYOUTS & STAKING TABLES FOR STAKING REQUIREMENTS.

Pole Cap (optional)

Bag with Fabric

Section

Center Pole

Side Pole

Stake driven through

hole in bar and winch

plate

Stake line

4’ STAKE BAR

2’ STAKE BAR

Stake driven through

hole in bar and

winch plate

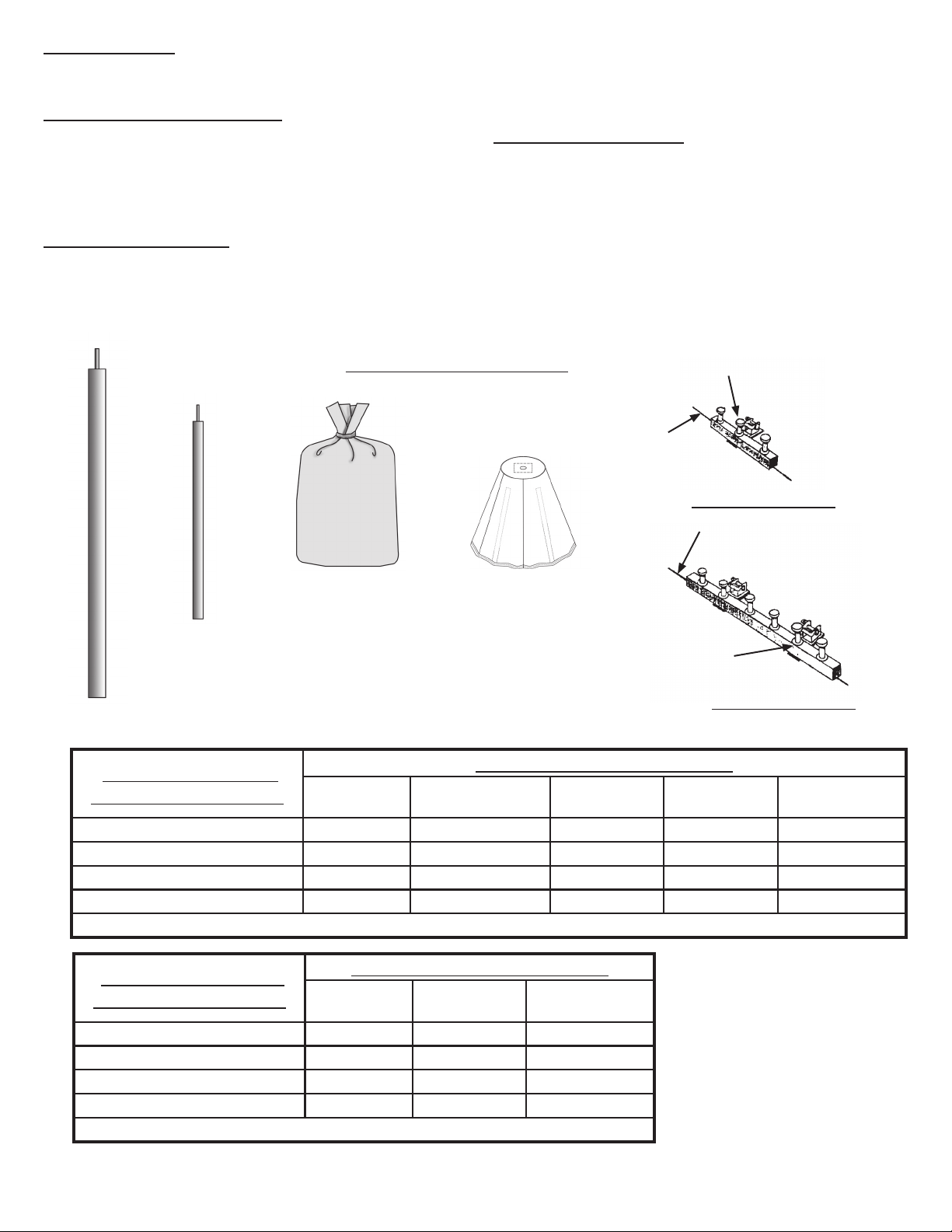

Parts Illustrations

DOUBLE CENTER

POLE TENT PARTS

QUANTITY PER SECTION

20’ END

(PAIR) 20’ MIDDLE 30’ MIDDLE

BAG WITH FABRIC SECTION 2 1 1

CENTER POLE 2 2 2

SIDE POLE 18 4 6

POLE CAP (OPTIONAL) 2 2 2

SEE WEB GUY LAYOUTS & STAKING TABLES FOR STAKING REQUIREMENTS.

WEB GUY LAYOUTS*

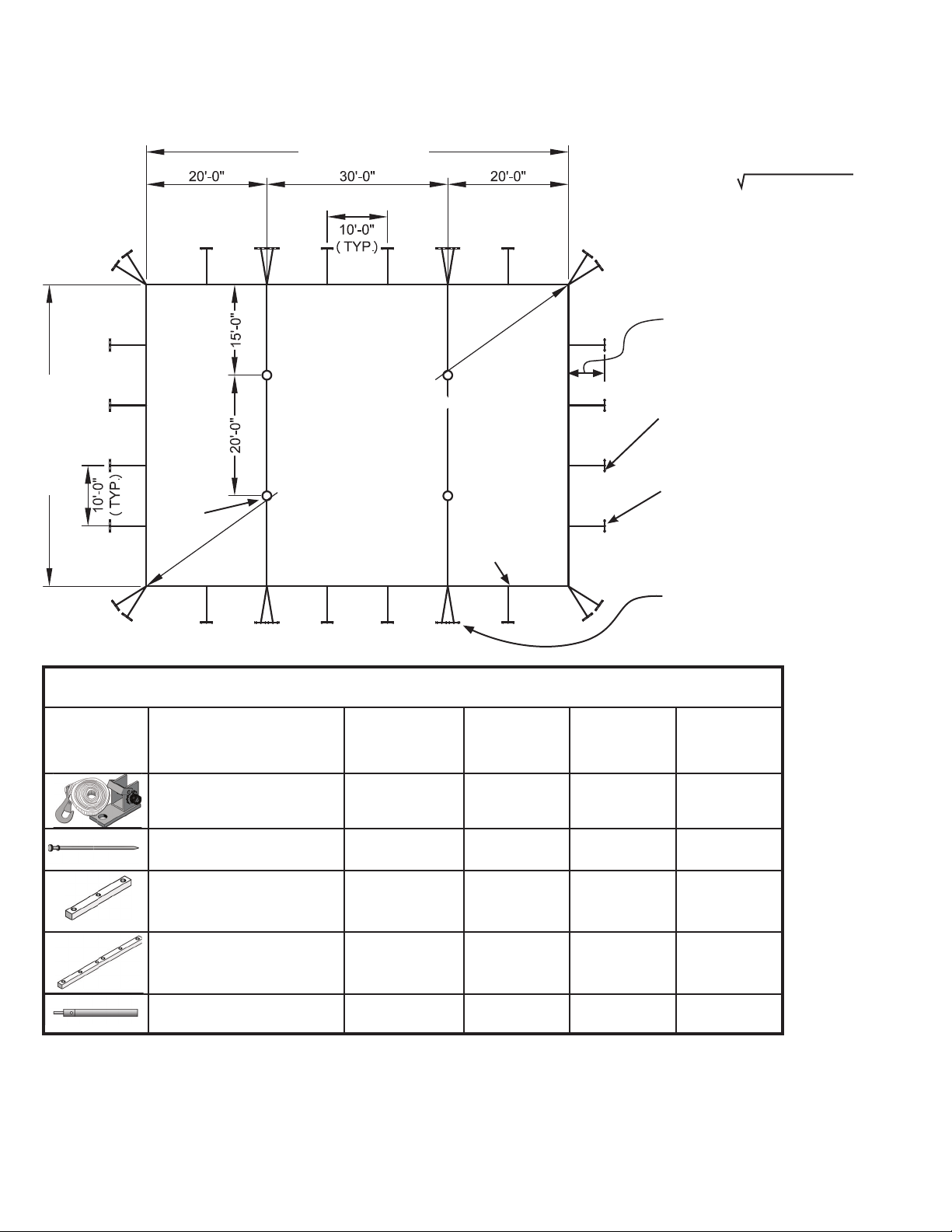

Single Center Pole Tent - Sample Layout

MARK LOCATION OF STAKES, SIDE POLES & CENTER POLES

** To find diagonal measurement:

diagonal = width² + length²

CENTER

POLE

(TYP)

LOOP SIDE

END

SECTION

SIDE POLE

(TYP)

MIDDLE

SECTION

HOLE SIDE

END

SECTION

LAYOUT SHOWS 20’ ENDS AND 30’ MID.

30’ ENDS AND 20’ MIDS USE IDENTICAL

SPACING AND STAKING. SEE TABLE

BELOW.

REQUIRED DISTANCE BETWEEN

SIDE POLES AND STAKE LINES:

7’ POLE STAKE OUT 5’-3”

8’ POLE STAKE OUT 6’-0”

10’ POLE STAKE OUT 7’-6”

Staking Table For Single Pole

Illustration Item No. Description

Qty. for

50’ x 40’

(2) 20’ Ends

Qty. for

50’ x 48’9’

(2) Rnd. Ends

Qty. for

50’ x 60’

(2) 30’ Ends

Qty. for

20’ Mid

Qty. for

30’ Mid

23000 Century Guy

w/ Winch 24 20 28 6 8

37020A

3704242 (over 25)

42” Double

Hd. Stake 72* 60* 84* 18* 24*

33000

2’-0” Stake

Bar w/ (3)

Holes

20 16 24 2 4

33100

4’-0” Stake

Bar w/ (6)

Holes

22222

23100 Winch Tool 22200

* IMPORTANT NOTE: REFER TO CAUTION STATEMENT #2 FOR IMPORTANT WARNING ABOUT NUMBER OF

STAKES SUPPLIED. (SEE BACK PAGE OF THIS MANUAL)

THE INSTALLER MUST USE THE LOCAL SOIL CONDITIONS TO CALCULATE THE ACTUAL

NUMBER OF STAKES REQUIRED AND IS RESPONSIBLE FOR THE STAKING PATTERN AND

CONFIGURATION. ANCHOR PROVIDES ANCHORING PACKAGES FOR COMMON SOIL CLASSIFICATIONS;

CONTACT YOUR TENT SALES REPRESENTATIVE FOR MORE INFORMATION.

** 86’-0 1/4”

USE DIAGONAL DIMENSION

TO SQUARE LAYOUT

50’-0” TENT LINE

70’-0’ TENT LINE

 (2) WEB GUYS WITH

4’ STAKE BAR AND (6) 42”

DBL. HEAD STAKE (TYP. AS

SHOWN)

 WEB GUY WITH 2’ STAKE

BAR AND (3) 42” STAKES (TYP.

AS SHOWN)

SEE STAKING GUIDELINES

ON PAGE 7.

 (2) WEB GUYS WITH (2)

2’ STAKE BARS AND (6) 42”

STAKES (TYP. AS SHOWN)

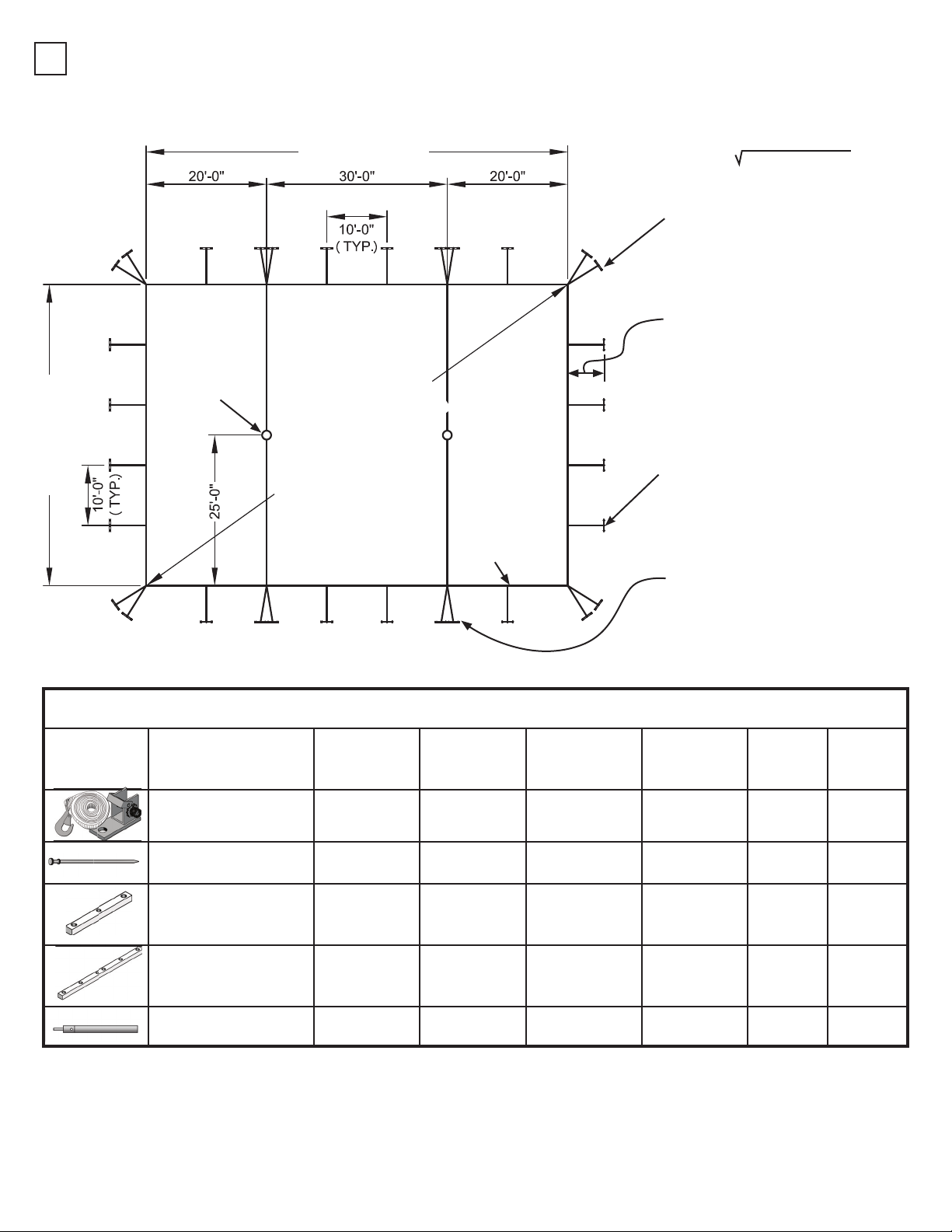

Double Center Pole Tent - Sample Layout

MARK LOCATION OF STAKES, SIDE POLES & CENTER POLES

** To find diagonal measurement:

diagonal = width² + length²

CENTER

POLE

(TYP)

LOOP SIDE

END

SECTION

SIDE POLE

(TYP)

MIDDLE

SECTION

HOLE SIDE

END

SECTION

 (2) WEB GUYS WITH

4’ STAKE BAR AND (6) 42”

DBL. HEAD STAKE (TYP. AS

SHOWN)

 WEB GUY WITH 2’ STAKE

BAR AND (3) 42” STAKES (TYP.

AS SHOWN)

 (2) WEB GUYS WITH (2)

2’ STAKE BARS AND (6) 42”

STAKES (TYP. AS SHOWN)

LAYOUT SHOWS 20’ ENDS AND 30’ MID.

20’ MIDS USE IDENTICAL SPACING AND

STAKING. SEE TABLE BELOW.

REQUIRED DISTANCE BETWEEN

SIDE POLES AND STAKE LINES:

7’ POLE STAKE OUT 5’-3”

8’ POLE STAKE OUT 6’-0”

10’ POLE STAKE OUT 7’-6”

* IMPORTANT NOTE: REFER TO CAUTION STATEMENT #2 FOR IMPORTANT WARNING ABOUT NUMBER OF

STAKES SUPPLIED. (SEE BACK PAGE OF THIS MANUAL)

THE INSTALLER MUST USE THE LOCAL SOIL CONDITIONS TO CALCULATE THE ACTUAL

NUMBER OF STAKES REQUIRED AND IS RESPONSIBLE FOR THE STAKING PATTERN AND

CONFIGURATION. ANCHOR PROVIDES ANCHORING PACKAGES FOR COMMON SOIL CLASSIFICATIONS;

CONTACT YOUR TENT SALES REPRESENTATIVE FOR MORE INFORMATION.

** 86’-0 1/4”

USE DIAGONAL DIMENSION

TO SQUARE LAYOUT

50’-0” TENT LINE

70’-0’ TENT LINE

Staking Table For Double Pole

Illustration Item No. Description

Qty. for

50’ x 40’

(2) 20’ Ends

Qty. for

20’ Mid

Qty. for

30’ Mid

23000 Century Guy w/

Winch 24 6 8

37020A

3704242 (over 25)

42” Double Hd.

Stake 72* 18* 24*

33000 2’-0” Stake Bar

w/ (3) Holes 20 2 4

33100 4’-0” Stake Bar

w/ (6) Holes 222

23100 Winch Tool 200

SEE STAKING GUIDELINES

ON PAGE 7.

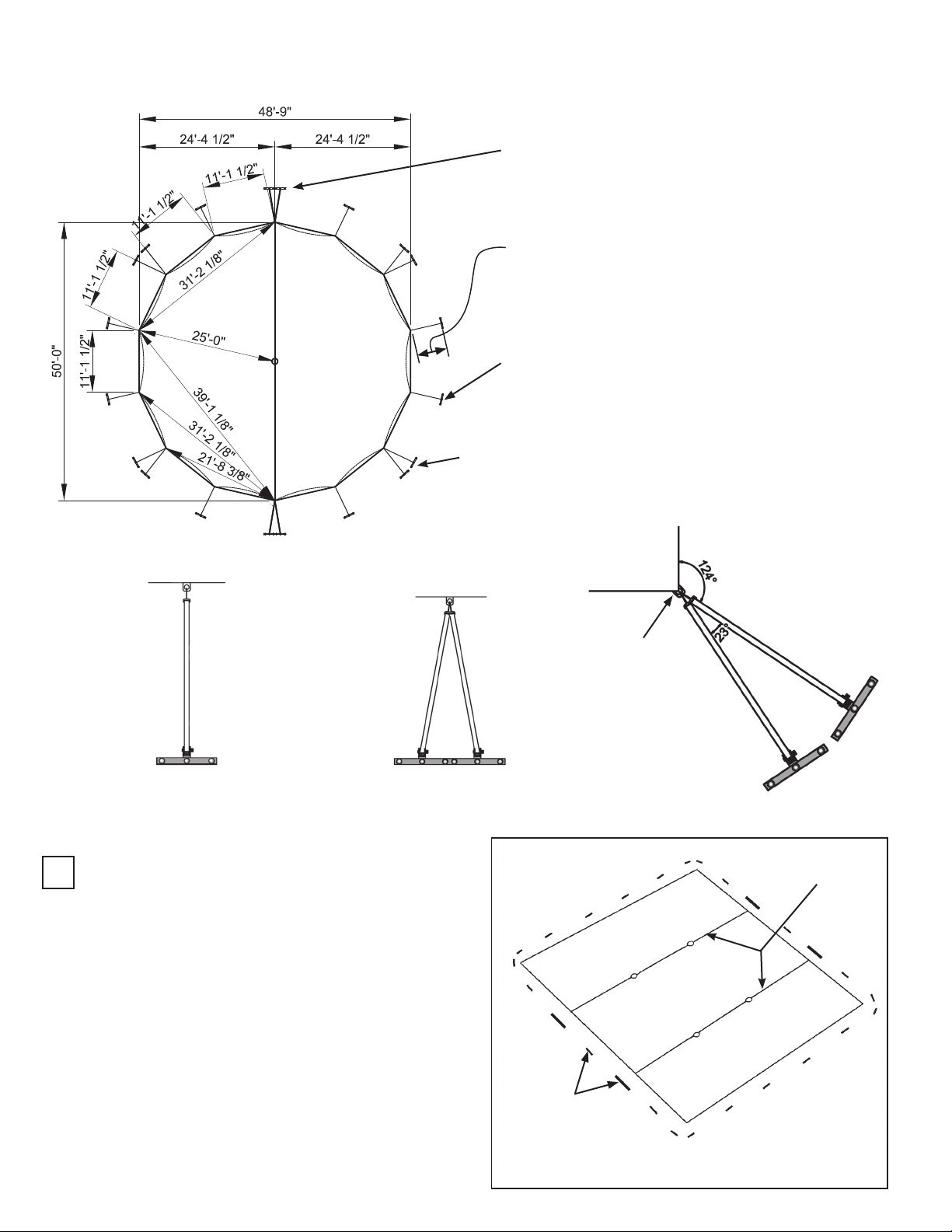

Single Center Pole, Round End Layout

MARK LOCATION OF STAKES, SIDE POLES & CENTER POLES

STAKING GUIDELINES

 (2) WEB GUYS WITH

4’ STAKE BAR AND (6) 42”

DBL. HEAD STAKE (TYP. AS

SHOWN)

 WEB GUY WITH 2’ STAKE

BAR AND (3) 42” STAKES (TYP.

AS SHOWN)

 (2) WEB GUYS WITH (2)

2’ STAKE BARS AND (6) 42”

STAKES (TYP. AS SHOWN)

REQUIRED DISTANCE BETWEEN

SIDE POLES AND STAKE LINES:

7’ POLE STAKE OUT 5’-3”

8’ POLE STAKE OUT 6’-0”

10’ POLE STAKE OUT 7’-6”

See Staking Table for Single Pole

on page 5 for Round End Staking

Quantities.

(2) WEB GUYS WITH 4’

STAKE BAR AND (6) 42” DOUBLE

HEAD STAKES

(1) WEB GUY WITH 2’ STAKE

BAR AND (3) 42” DOUBLE HEAD

STAKES

(2) WEB GUYS WITH (2) 2’ STAKE BARS

AND (6) 42” DOUBLE HEAD STAKES

CORNER WEB

GUYS

TENT

CORNER

2LAYOUT AT SITE

Drive stakes at points located. Each 2’

stake bar requires 3 stakes. A 4’ stake

bar requires 6 stakes.

Spread drop cloths and unroll tent.

Any objects with sharp projections which

must remain on site under the tent should

be padded and taped.

NOTE: Both Loop side and hole side of

sections are required for proper lace.

LACE

END

MIDDLE

END

SEE WEB GUY LAYOUTS FOR

STAKING CONFIGURATIONS.

STAKE BARS

POLE CAP (Optional)

Overlap the pole hole plates in the mid and end

fabric lace line. Push fabric and plates up into

cap and secure from underneath by threading the

female, flanged pipe coupling onto the male pipe

fitting molded to the inside top of the pole cap.

POLE CAP

MOLDED CAP W/

MALE THREADED

PIPE FITTING

MID

FABRIC

END

FABRIC

FEMALE PIPE

COUPLING (FLANGED)

POLE PLATES

(OVERLAPPED)

LACE LINE

3LACING

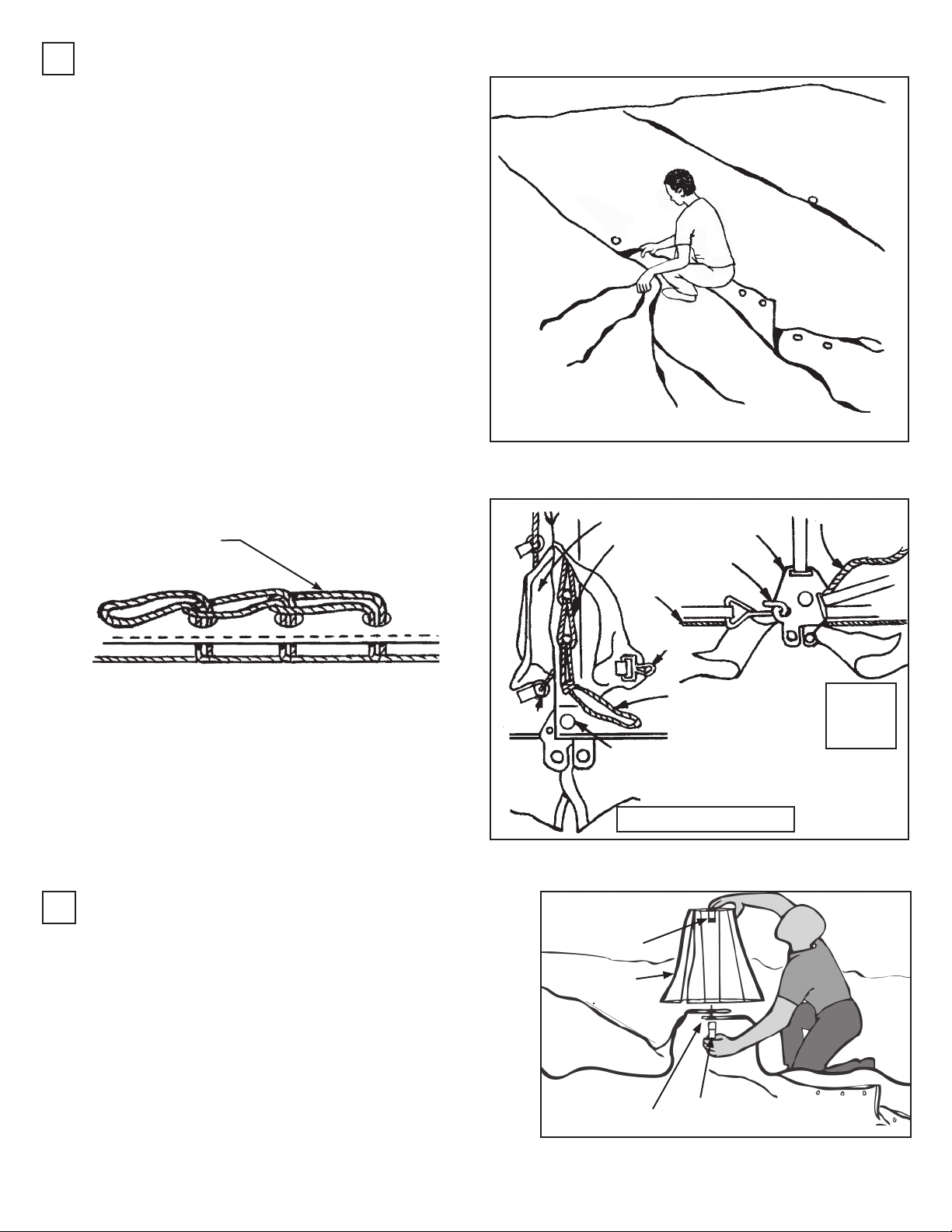

INSTRUCTIONS

With tent sections on ground, overlap cen-

ter pole holes with grommet side on top.

Lace between center pole holes first. Push

first loop up through corresponding grom-

met. Continue, passing each loop through

a grommet and the preceding loop.

Continue lacing process and cover lacing

with protective rain flaps by velcroing the

short flap first, then snapping the top flap to

the rope as you move toward other center

pole hole.

Tie off last long loop.

Then lace from center pole to eave on

both sides of tent. Tie off last long loop.

Align plates and attach hook to plates on

inside of tent, as shown.

MIDDLE

END

CENTER POLE

HOLE

END

FLAP

LACE ROPE

HOOK

PLATE JUMP ROPE

WALL ROPE

SNAP

LAST

LACING

LOOP

POLE HOLE

RING

VIEW FROM OUTSIDE

VIEW

FROM

INSIDE

LACE LOOP

TIE DOWN AFTER

LACING

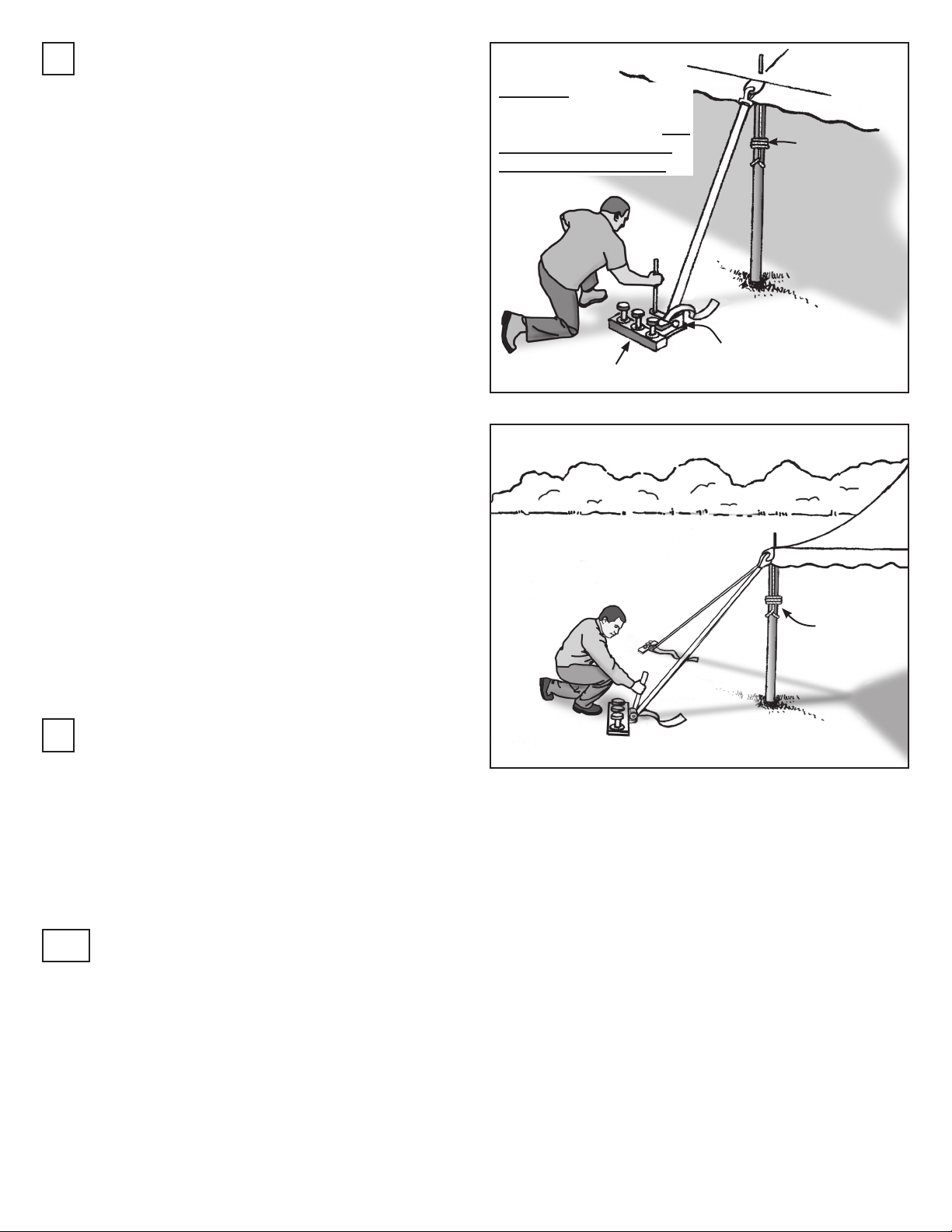

After lacing and snapping sections, attach

guys and insert loosely into tension

winches.

Insert guy web into slot in winch drum and

rotate 1 1/2 to 2 times to secure web.

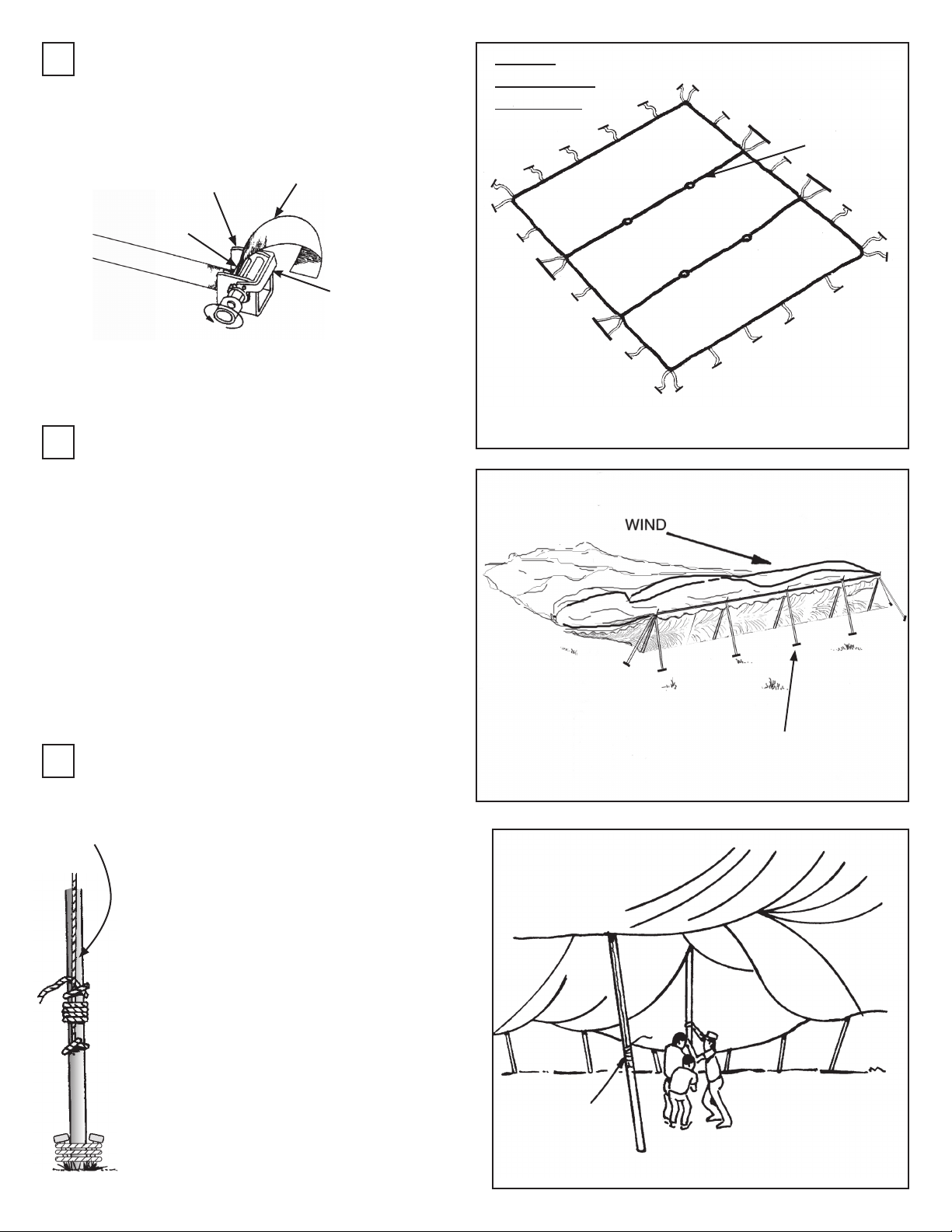

RAISE SIDE POLES

Start at downwind side. Insert each side

pole pin into side pole hole and raise slightly

less than perpendicular.

Bottom of each pole should be pointed

inward toward center of tent.

Wall ropes should run outside of corner

poles and side poles.

Tie jump rope around each side pole as it is

inserted in pole hole.

Continue around tent.

SIDE POLES INSTALLED

ON DOWNWIND SIDE

WEBS

ATTACHED

LOOSELY

LACE

Web Guy

Web

Release

(Push

Downward)

Winch

Drum

SEE WEB GUY LAYOUTS FOR

STAKING CONFIGURATIONS.

Raise center poles nearest to wind

direction to approximate position.

One installer to guide center pole pin

through hole to prevent snagging or

tearing of fabric as pole is being raised

to position.

Keep pole at a slant until other pole

at the same lace is raised. Tie jump

ropes as each center pole is placed in

approximate position. Adjust bases of

poles to exact location and align poles

vertically.

CAUTION: At this point, it is

required to properly anchor bases of

all center poles to prevent movement.

JUMP

ROPE

JUMP ROPE

RAISE CENTER POLES

FINAL SIDE POLE

ADJUSTMENT

With side poles standing vertical and bases at the marked side pole footprint locations, ratchet

webs to tension the top evenly.

Due to changes in climactic conditions, periodic inspection and adjustment should be made.

Protective covers are recommended for all stakes and stake bars.

TAKE DOWN

USE EXTREME CAUTION REMOVING

ALL POLES

1. Spread ground cover.

2. Loosen tension on all web winches.

3. Slant side poles inward.

4. Remove center and side poles.

5. Reverse installation steps.

IMPORTANT

Check guys periodically for tightness and

maintenance of good condition.

Stakes provided are for average soil conditions.

Sandy soil or asphalt may require additional

staking. Proper installation suitable to site

conditions is the responsibility of the installer.

Store tent in a cool, dry area. Never store while

wet or damp.

8WINCH FOR TENSION

If the footprint of the tent has been laid

out properly and the tent placed squarely

within that footprint, the following tension-

ing sequence is recommended for the best

overall appearance:

1. Tension webs at the lace lines first.

2. Tension webs at the corners.

3. Tension webs at the ends.

4. Tension webs at the middles last.

NOTE: If the tent is not square, or if

center poles lean when laces are tensioned,

reverse steps “1” and “2” above.

At each side pole, release winch tension

and place bottom of side pole at the marked

footprint eave line location.

Insert web guy into winch. Pull excess

through winch. Tension, using winch bar.

DO NOT USE EXTENDERS ON WINCH BAR

TOOL.

CAUTION -- DO NOT OVER TENSION

TENT BEYOND EAVE LINE. DO NOT

PULL SIDE POLES OR CENTER POLES

BEYOND VERTICAL POSITION.

CAUTION:

KEEP TO SIDE OF WINCH

WHEN TENSIONING. DO

NOT EXTEND LENGTH

OF WINCH BAR TOOL.

JUMP

ROPE

WINCH

STAKE BAR

WEB

JUMP

ROPE

Inhaltsverzeichnis

Andere Anchor Zelt Handbücher

Anchor

Anchor Fiesta Bedienungsanleitung

Anchor

Anchor Economy Tent 40 CLASSIC PLUS Bedienungsanleitung

Anchor

Anchor 57 Aurora Bedienungsanleitung

Anchor

Anchor 59 Aurora Bedienungsanleitung

Anchor

Anchor 10’ Bedienungsanleitung

Anchor

Anchor Navi-Trac Bedienungsanleitung

Anchor

Anchor Navi-Trac LT/CS Bedienungsanleitung

Anchor

Anchor NAV50-1204 Bedienungsanleitung

Anchor

Anchor Event Series Bedienungsanleitung

Anchor

Anchor Economy Tent International XP Series Bedienungsanleitung

Anchor

Anchor 32 Aurora Bedienungsanleitung

Anchor

Anchor Venue Series Bedienungsanleitung

Anchor

Anchor Venue Series Bedienungsanleitung

Anchor

Anchor 45' Aurora Tent Bedienungsanleitung

Anchor

Anchor 10’ Bedienungsanleitung

Anchor

Anchor Fiesta Bedienungsanleitung

Anchor

Anchor VMS 25x32 Bedienungsanleitung

Anchor

Anchor NAVI-TRAC NAV40GBL-1104 Bedienungsanleitung

Anchor

Anchor AA AnchorSpan Bedienungsanleitung

Anchor

Anchor Venue Series Bedienungsanleitung

Anchor

Anchor 57 Aurora Bedienungsanleitung

Anchor

Anchor ETI 30’CLASSIC FRAME TENTS Bedienungsanleitung

Anchor

Anchor 32 Aurora Bedienungsanleitung

Anchor

Anchor Fiesta Bedienungsanleitung

Beliebte Zelt Handbücher anderer Marken

OZTENT

OZTENT JV SIGNATURE EDITION Bedienungsanleitung

GigaTent

GigaTent Summer Chalet Mini Tent Bedienungsanleitung

Coleman

Coleman 2000007827 Handbuch

ShelterLogic

ShelterLogic 107153 Bedienungsanleitung

Outsunny

Outsunny 84C-230 Bedienungsanleitung

Napier

Napier SPORTZ COVE 61 Series Bedienungsanleitung

EuroTrail

EuroTrail ATLANTIS PRO Bedienungsanleitung

Reimo

Reimo Marina Bedienungsanleitung

TiiTENT

TiiTENT TB300 Bedienungsanleitung

Coleman

Coleman 2000033134 Installationsanleitung

Ozark Trail

Ozark Trail W784.1 Kurzanleitung

SlingFin

SlingFin CrossBow 2 Bedienungsanleitung

Coleman

Coleman 9600-141 Bedienungsanleitung

Palram

Palram Arizona 5000 Wave - WINGS Bedienungsanleitung

COVERPRO

COVERPRO 56184 Montageanleitung

Vango

Vango Zenith 100 Bedienungsanleitung

Costway

Costway PATIOJOY OP70818 Bedienungsanleitung

Clarke

Clarke PUC 88 Bedienungsanleitung
