Anchor VMS 25x32 Bedienungsanleitung

Assembly Instructions

Vehicle Maintenance Shelter

Sales Offices

7701 Highway 41 N

Evansville, IN 47725

Phone (812) 867-2421

Fax (812) 867-1429

(800) 544-4445

Production Facilities

Evansville, IN

VMS 0807 R4

Please read all assembly/installation instructions before the installation or removal of this product.

Assembly Instructions are also available on the web at: www.anchorinc.com

25’ x 32’ - VMS

With Extension Kits

EC 3399

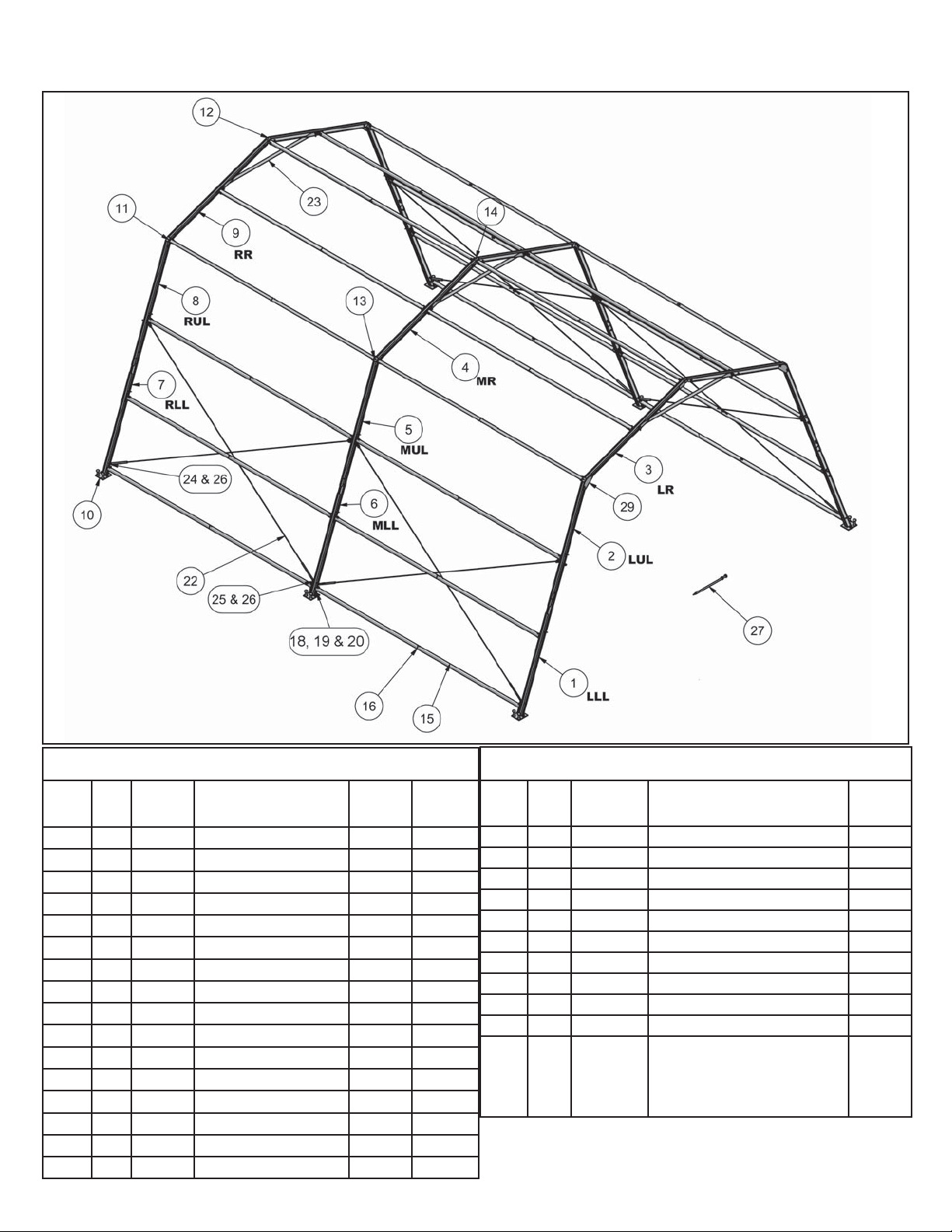

VMS (25’ x 32’) Parts List

Item

No. Qty Part No. Description Pounds

per Item Label

1 2 80810 Left Lower Leg 25.8 LLL

2 2 80813 Left Upper Leg 18.6 LUL

3 2 80816 Left Rafter 20.6 LR

4 2 80819 Mid Rafter 21.2 MR

5 2 80820 Mid Upper Leg 19.4 MUL

6 2 80821 Mid Lower Leg 28.7 MLL

7 2 80822 Right Lower Leg 25.8 RLL

8 2 80823 Right Upper Leg 18.6 RUL

9 2 80846 Right Rafter 20.6 RR

10 6 80839 Base Plate Weldment 7.6

11 4 80824 Eave End Weldment 9.9

12 2 80827 Peak End Weldment 9.8

13 2 80828 Eave Mid Weldment 9.9

14 1 80829 Peak Mid Weldment 9.8

15 44 80830 Half Purlin 7.7

16 22 80831 Purlin Splice 2.2

VMS (25’ x 32’) Parts List (cont’d)

Item

No. Qty Part No. Description Pounds

per Item

18 8 3023897 J Bolt -

19 8 3025387 Washer -

20 8 3024390 Wing Nut -

22 8 80834 Cable for 16’-0” Bay 5.0

23 3 3582260 Ridge Brace 16.4

24 4 3023260 3/8” x 3” Bolt -

25 2 3020445 Eye Bolt -

26 6 3024015 Eye Nut -

27 22** 3704230 Dbl. Hd. Stake (1” x 30”) 8.0

29 4 80847 Eave Cover -

30 1 8003720 Installation Kit:

(2) Pull ropes (30a)

(1) Zipper tool (30b)

(4) Frame lifts (30c)

25.0

VMS Standard Frame Terminology and Parts List

*No weight is listed for items under one pound.

**(10) Stakes are used for gable end fabric installation. (5)

Stakes per end.

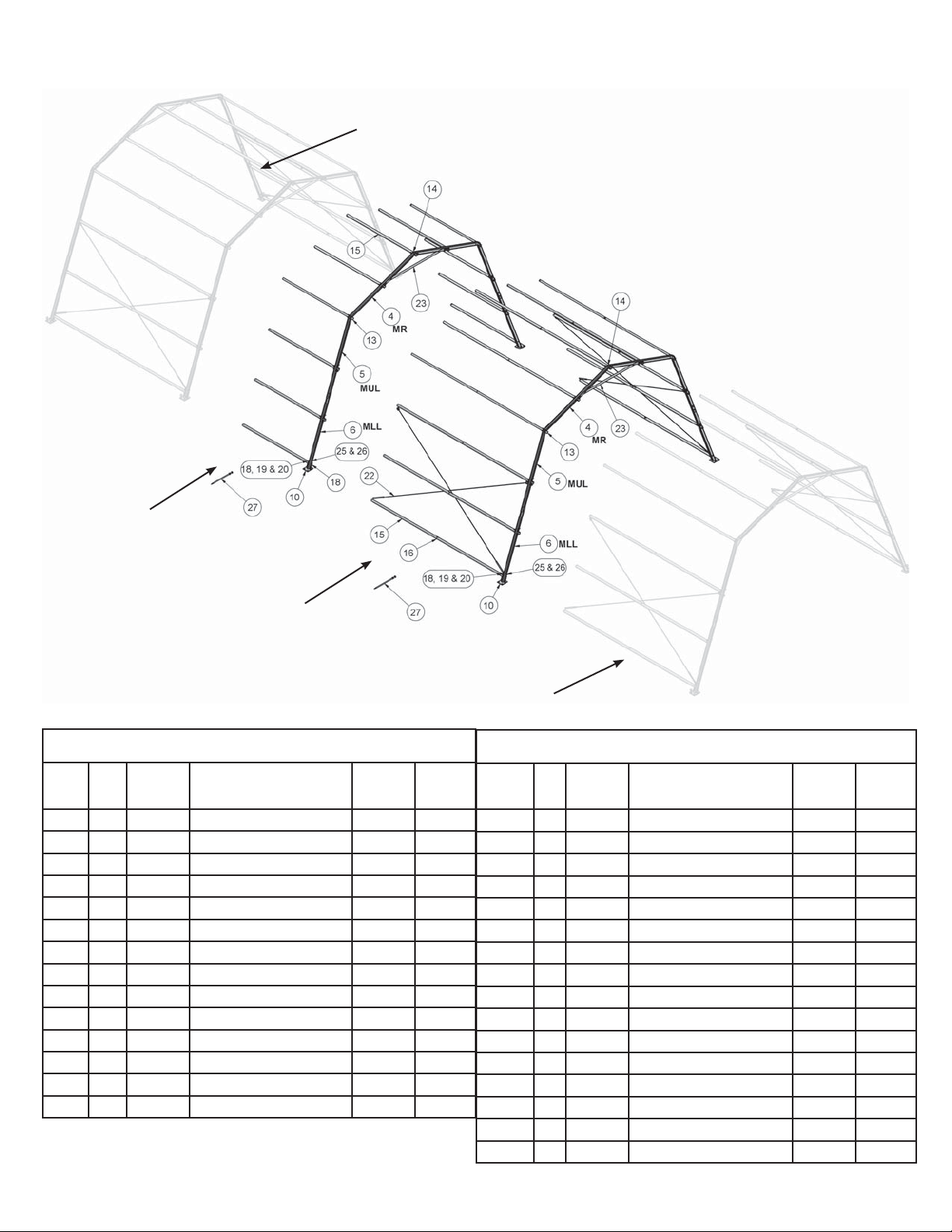

VMS Frame Extensions Terminology

8’-1 3/4”

Extension

16’

Extension

Standard frame parts

shown ghosted.

Standard frame parts

shown ghosted.

8’ Frame Extension Kit

Item

No. Qty Part No Description Pounds

per Item Label

4 2 80819 Mid Rafter 21.2 MR

5 2 80820 Mid Upper Leg 19.4 MUL

6 2 80821 Mid Lower Leg 28.7 MLL

10 2 80839 Base Plate Weldment 7.6

13 2 80828 Eave Mid Weldment 9.9

14 1 80829 Peak Mid Weldment 9.8

15 11 80830 Half Purlin 7.7

18 4 3023897J Bolt -

19 4 3025387Washer -

20 4 3024390Wing Nut -

23 1 3582260Ridge Brace 16.4

24 2 30232463/8” Bolt x 2 3/4” -

27 4 3704230Dbl Hd Stake 1” x 30” 8.0

31 2 30244453/8” Nylock Nut -

16’ Frame Extension Kit

Item # Qty Part # Description Pounds

per Item Label

4 2 80819 Mid Rafter 21.2 MR

5 2 80820 Mid Upper Leg 19.4 MUL

6 2 80821 Mid Lower Leg 28.7 MLL

10 2 80839 Base Plate Weldment 7.6

13 2 80828 Eave Mid Weldment 9.9

14 1 80829 Peak Mid Weldment 9.8

15 22 80830 Half Purlin 7.7

16 11 80831 Purlin Splice 2.2

18 4 3023897J Bolt -

19 4 3025387Washer -

20 4 3024390Wing Nut -

22 4 80834 Cable for 16’-0” Bay 5.0

23 1 3582260Ridge Brace 16.4

25 2 3020445Eye Bolt -

26 6 3024015Eye Nut -

27 12 3704230Dbl Hd Stake 1”x 30” 8.0

*No weight is listed for items under one pound.

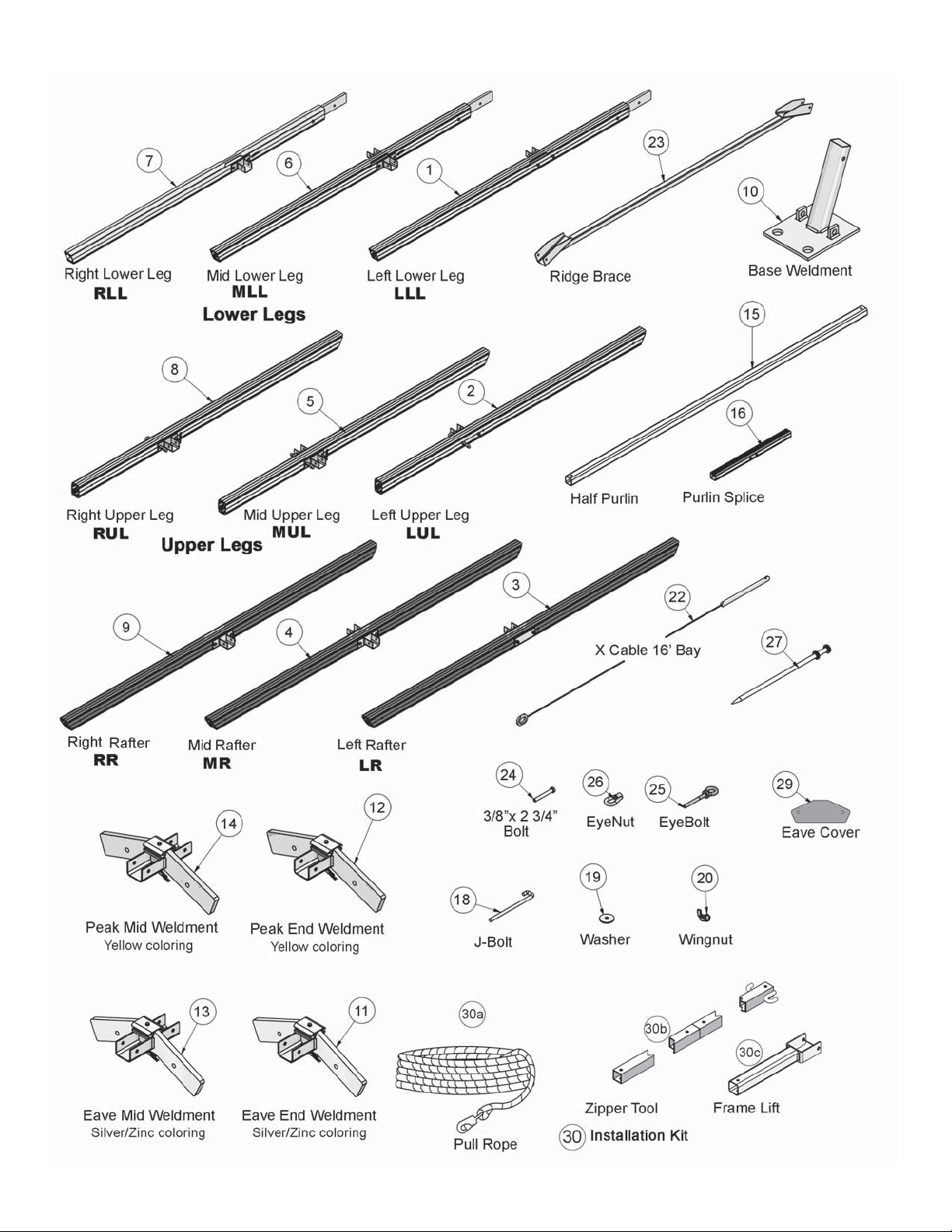

VMS Component Illustrations

VMS INSTALLATION SAFETY GUIDELINES

Please read through this assembly manual completely before beginning your installation. Be sure the proper equipment,

crew and safety precautions are in place. We hope that you enjoy the design features of the Vehicle Maintenance Shelter

each time the unit is installed.

1. Be aware to avoid contact of frame sections with any overhead power lines near the site.

2. When anchoring the structure, avoid all underground power lines and gas lines or other utility easements.

3. When moving frame sections by hand, use proper lifting techniques to protect the back, and avoid pinching

fingers while making hardware connections.

4. Be sure all workers are cautious and attentive to the falling paths of frame sections being raised or lowered.

5. Keep site clear of debris to avoid tripping, especially while carrying frame parts or bundles of fabric.

6. Do not drag bundles of fabric on concrete, asphalt, or ground as this can cause damage to the fabric from

abrasion through the bag.

7. Do not climb onto the fabric “roof” of the structure. When necessary, work safely from a ladder of

appropriate size.

8. When standing or lowering frame sections use a smooth motion.

9. Before installing fabric, be sure the frame is safely staked at baseplates and that X-cabling is in place.

10. The installation method described here requires coordination of tasks between workers. A safe installation is

dependent on that coordination. Work cooperatively as a team.

STEP 1

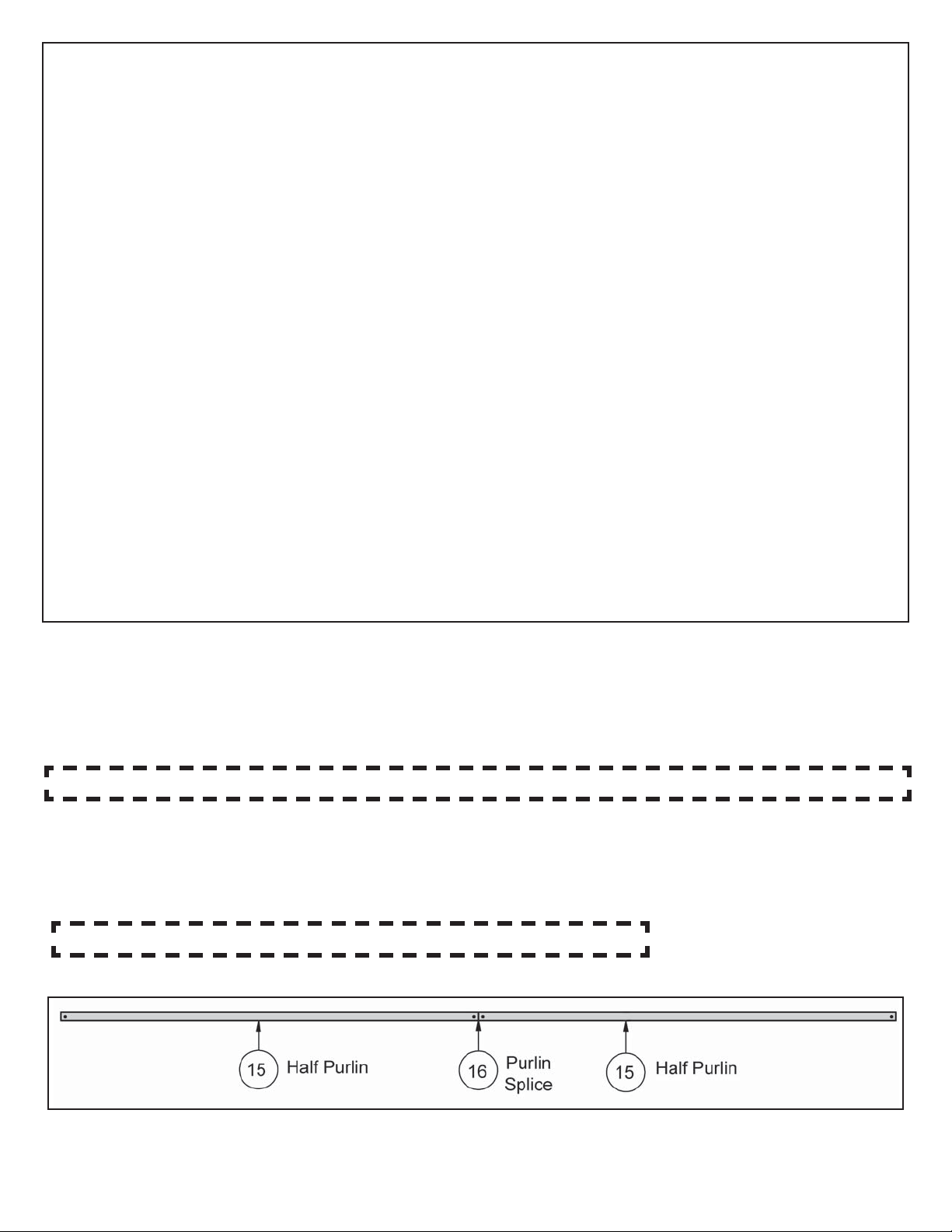

Assemble 18 purlins from two purlin halves (2”x2” aluminum tubes about 8’ long) and a purlin splice (Aluminum part 2’ long

with snap buttons in the center.) See Figure 1.

Figure 1

Note: On 8’ Extension kits - only (1) half purlin is required, and no purlin splice.

Note: This installation is for the standard 2-mid bay Base Unit unless noted otherwise.

Note: For installation of frames with extension kits, look for notes inside these outlined boxes for special instructions.

Tools Required: 12’ Step Ladder

Sledge Hammer

50’ Tape Line

STEP 2 - Top Frame Assembly

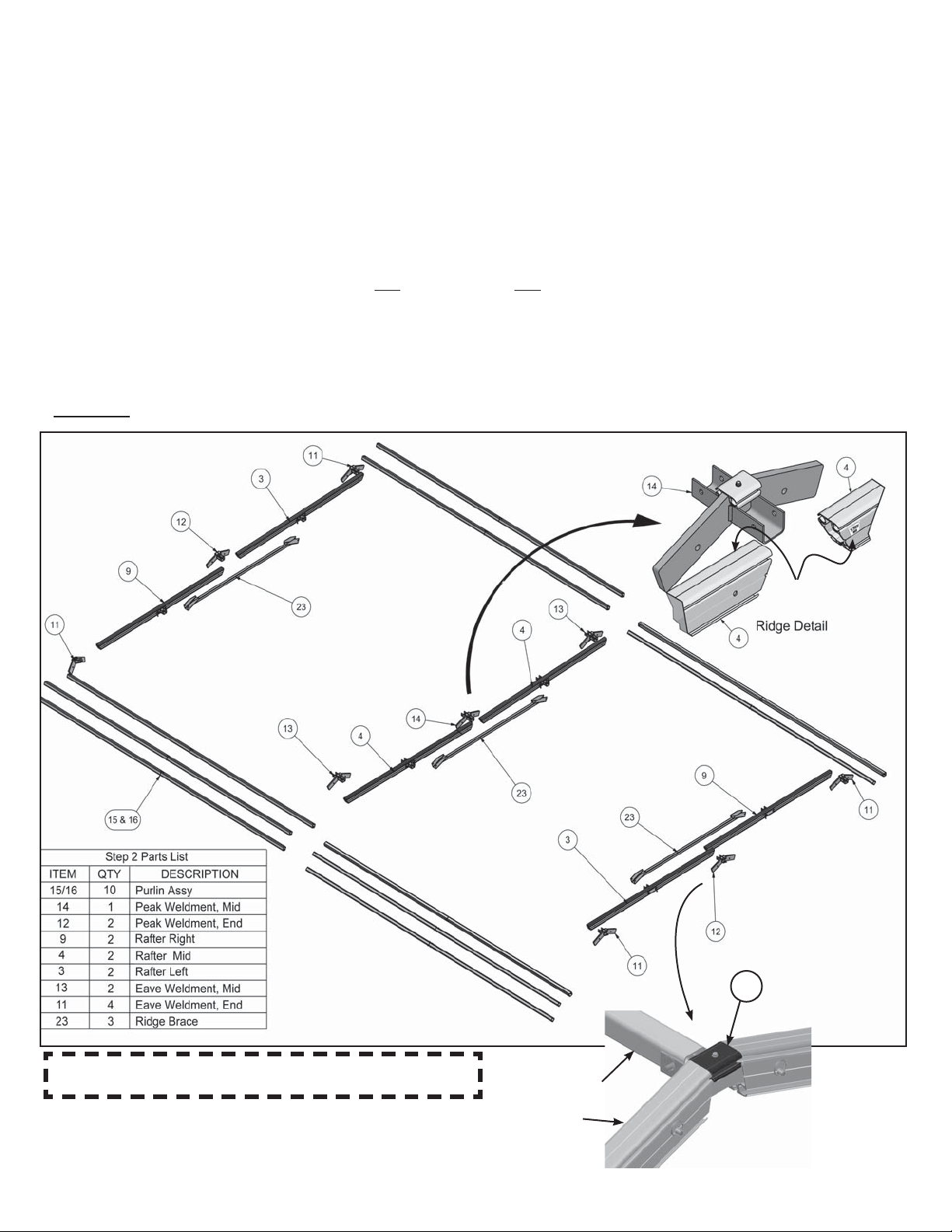

• Lay out parts as shown. See Figure 2.

• Peak weldments have yellow/orange color, eave weldments are silver/zinc colored.

• Rafters have angled cuts on both ends. The end with the label assembles to the peak. (See Ridge Detail on Figure 2).

The end with no label assembles to the eave.

• Assemble the (3) Top Arches consisting of peak weldments with the corresponding rafters, eave weldments and ridge

braces

• Ensure that the End Arches are comprised of end weldments and end rafters. (Brackets on one side only.) Use the pins to

secure the joints.

•Connect the (3) arches with 10 purlins using pins adjacent to the brackets.

Figure 2

Ridge

purlin

Peak End

Weldment

Rafter

Note: For installation of frames with extension kits, lay out

each extension’s parts as shown in these diagrams.

Label at upper

ends of rafters

Important: For ease of installation, note that labels are always located on the upper ends of frame members.

STEP 3 - Add Upper Legs to one Side. See Figure 3.

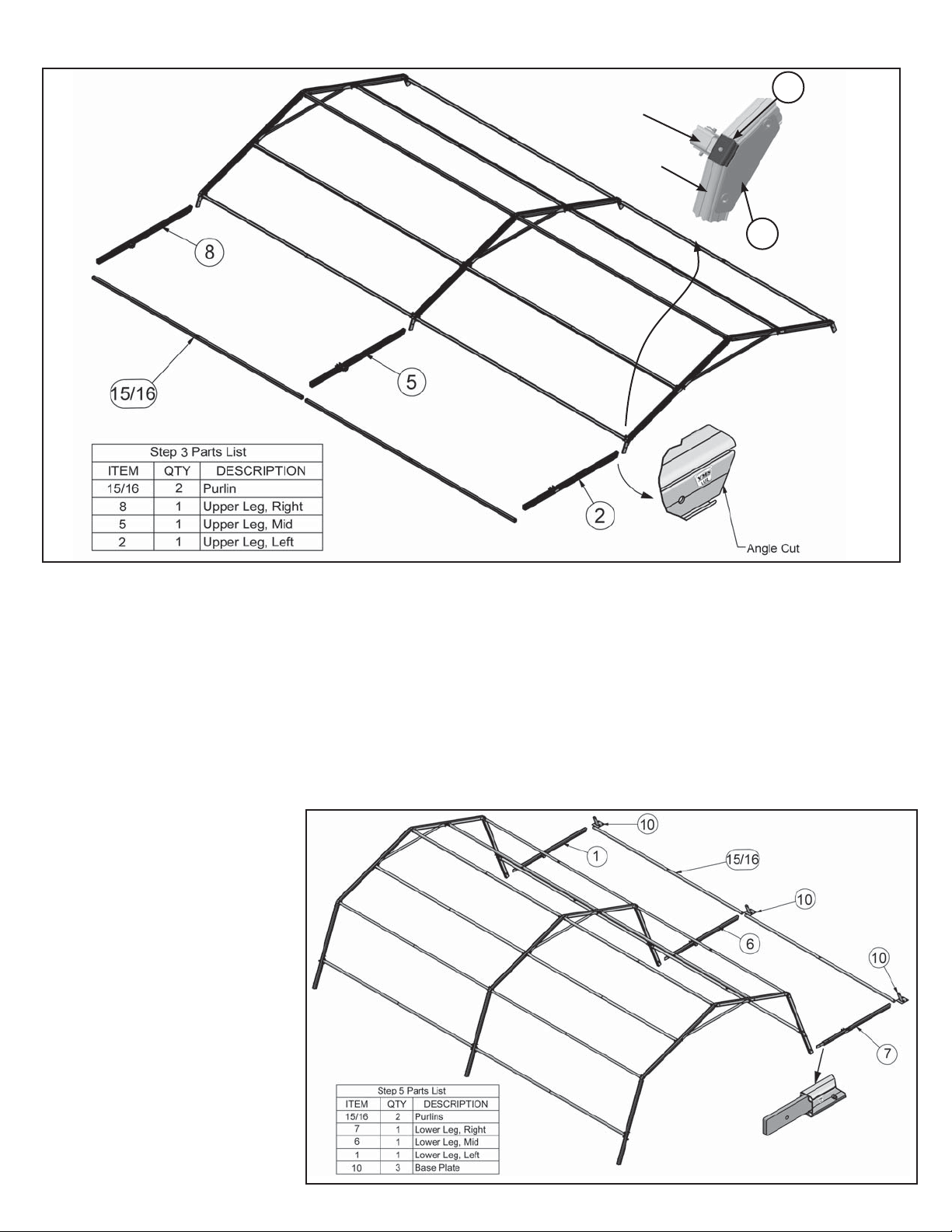

• Lay out the parts as shown. Three (3) upper legs and two (2) purlins.

• The upper leg has angled cuts on one end and square cut on the other.

• The angled/labeled end goes toward the eave weldments.

• Lift the top frame using the eave purlins and insert the upper leg onto the eave weldments. Secure with pin.

• Connect the upper legs together with 2 purlins. This is easiest if the purlin is pinned to the mid leg first before the end

leg is moved into alignment and pinned.

• Pin the four eave covers (2 per end) on each end as shown above.

Figure 3

STEP 4 - Add Upper Legs

to the other Side. See

Figure 3.

•Assemble as the previous step.

STEP 5 - Add Lower Legs to

Side.

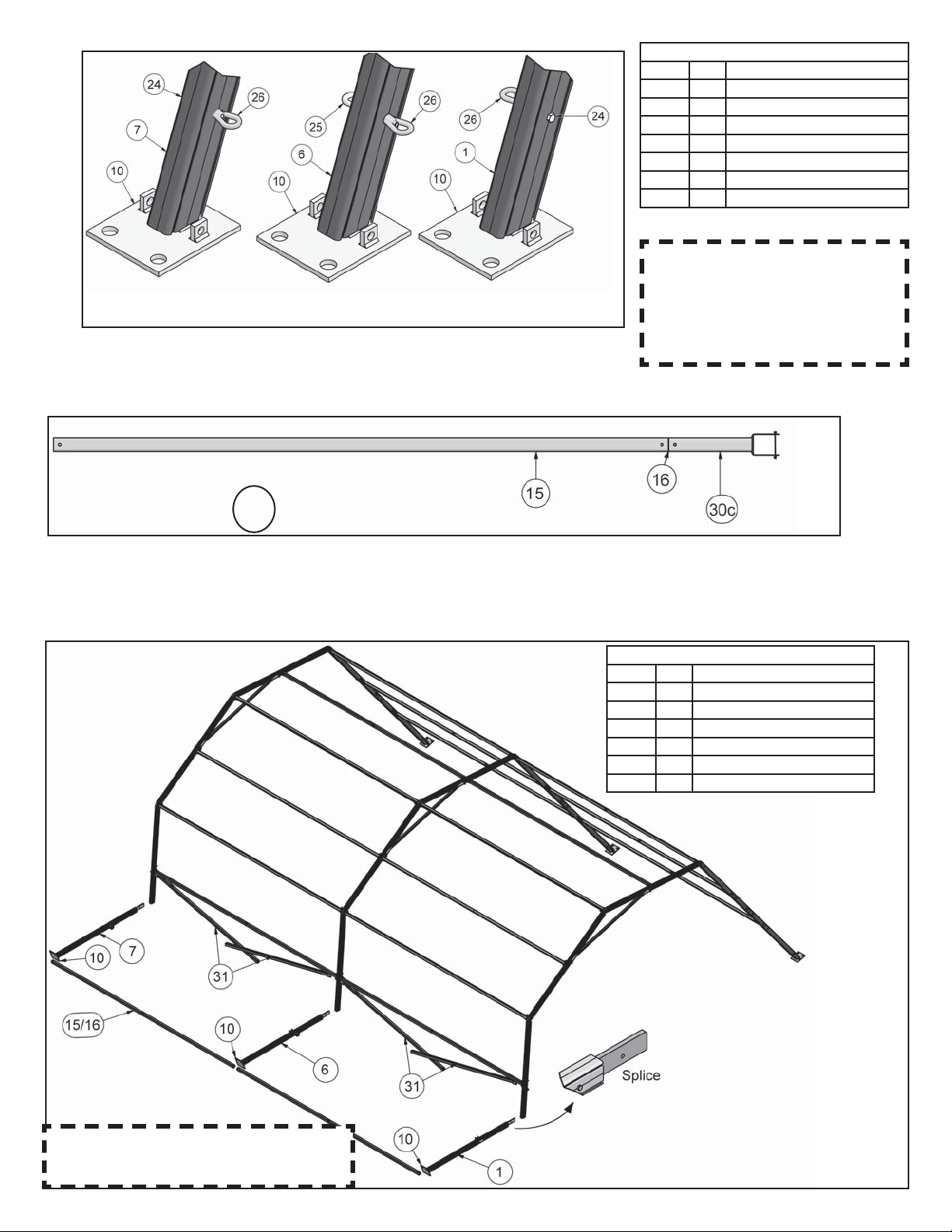

• Lay out the parts. Three (3) lower

legs, three (3) base plates and two

(2) purlins. See Figure 5a.

• The lower leg has a splice inserted

in the square cut end. The splice

goes toward the upper leg.

• The base plates should be

secured in the legs with the appro-

priate hardware. Bolt and eyenuts

on the end legs, eyebolt and eyenut

for the mid leg. See Figure 5b.Figure 5a

Splice

Eave Cover

Eave

purlin

Eave end

weldment.

Upper

Leg, left

Right Leg w/

bolt and eyenut. Figure 5b

Mid Leg w/ eye-

bolt and eyenut. Left Leg w/ bolt

and eyenut.

Figure 5b Parts List

ITEM

Qty

Description

3/8” x 2 3/4” Bolt

Eye Nut

Eye Bolt

Base Plate Weldment

Lower Leg Right

Lower Leg Mid

Lower Leg Left

STEP 6 - Add Lower Legs to the remaining side.

•Connect the four (4) frame lifts to a half purlin with a splice to form the frame lift assembly. See Figure 6a.

Frame Lift Assembly

Figure 6a

• Lay out the parts as the previous step. Secure the base plates to the legs with the appropriate hardware.

• Secure the frame lifts to the purlin on the upper leg with the shock cord. The shock cord should be next to the leg and the

half purlin lying more or less under the purlin. See Figure 6b.

Figure 6b

Note: On 8’ Extension Kits, sub-

stitute the Eye Nut and/or Eye Bolt

(Items 25 & 26) with Bolt and/or

Nylock Nut (Items 24 & 31) because

eyes will not be required on 8’ bays

where cables are not required.

Note: For installation of frames with exten-

sions, (2) additional Frame lift assemblies

will be required per extension bay.

Figure 6b Parts List

ITEM

Qty

Description

15/16

Purlin

Frame Lift Assembly

Base Plate Weldment

Lower Leg Right

Lower Leg Mid

Lower Leg Left

•Ensure sufficient personnel are

on hand to lift the side (6 mini-

mum, 5 lifting, 1 placing legs.)

•Start lifting the side using the purlins at

positions close to the legs, shifting to the

base of the upper leg to get the neces-

sary height. The purlin lifts should provide

additional vertical support at this point. See

Figure 6c.

• Insert the spliced end of the mid lower

leg into the mid upper leg. Then insert

the spliced end of the lower legs into their

respective upper legs. Pin the splices into

the upper legs.

Framelift

assemblies

Framelift

assemblies Figure 6c

STEP 7 - Position and stake the base plates of the remaining side.

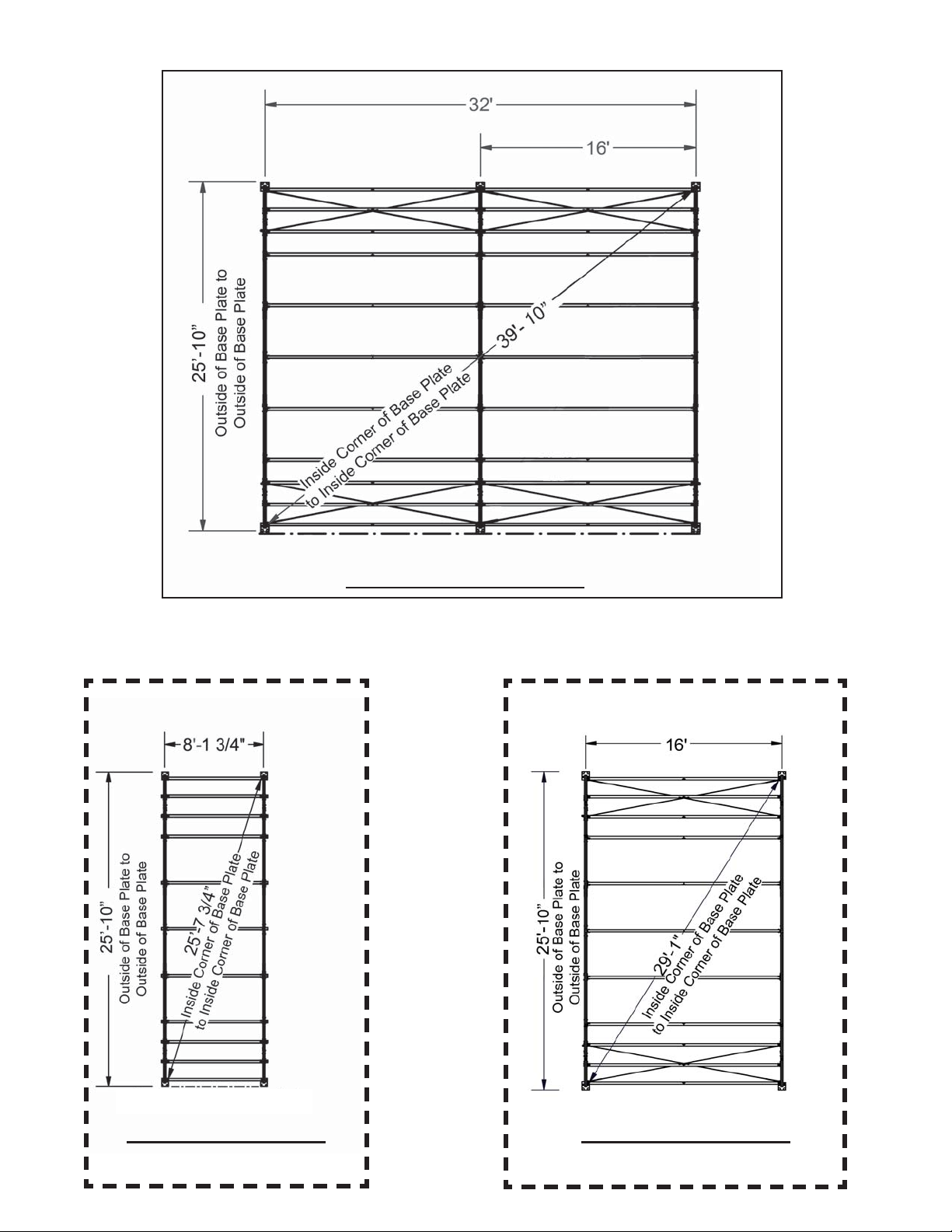

• Position one end base plate 25’-10” from the other end base plate. Measurement is from outside edge of plate to outside

edge of plate. See figure 7a.

• Then measure from this base plate diagonally to the opposite base plate. Measurement should be 39’-10” from inside cor-

ner to inside corner. See figure 7a.

• Lightly stake the plate in position.

• Position the other end base plate 25’-10” from its corresponding mate and lightly stake in place.

• Align the mid base plate between the two ends but do not stake in place. Stake only after ground bars and J bolts are

inserted into mids and base plates. (See Steps 9 to 10)

• Check and adjust until the diagonal measurements are equal.

Note: For installation of frames with

extension kits, (2) more persons and (2)

more frame lift assemblies are required

for each extension bay.

Note: For installation of frames with extension kits, use figures 7b and 7c for measurements.

Figure 7a

10 Figure 7b Figure 7c

VMS Standard Base Frame

VMS - 8’ Extension Kit VMS - 16’ Extension Kit

Aligned Base Plates
