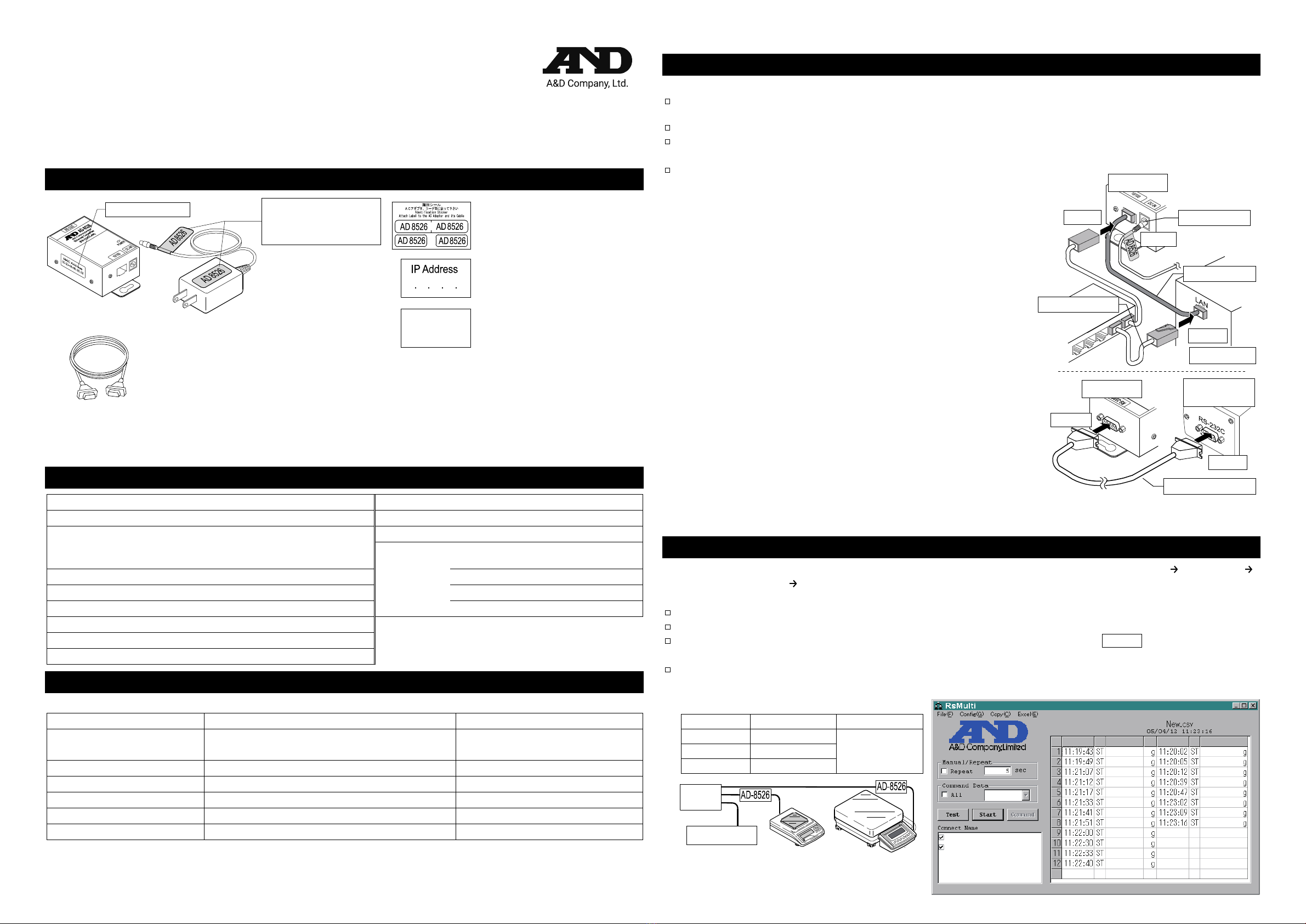

AD-8526 Ethernet Converter Instruction Manual
The AD-8526 Ethernet Converter can connect the RS-232C interface of a weighing instrument to the
Ethernet (LAN) port of a computer that is not equipped with an RS-232C interface. By using the
AD-8526, weight data from a weighing instrument can be managed with a computer connected to the
network. The weighing instrument can also be controlled by the connected computer.
Unpacking the AD-8526
Note: Only the following cable is included if specified when ordering:
DIN 7-pin to D-Sub 9-pin cable (AX-KO1786-200)
If not specified, the following two communication cables are included:
DIN 7-pin to D-Sub 9-pin cable (AX-KO1786-200), D-Sub 9-pin to D-Sub 9-pin cable (AX-KO2466-200)
Specification
3. RS-232C serial interface
Operating environment : -10°C to +40°C
Connector: D-Sub 9-pin male
AC adapter:
Confirm that the adapter type is correct for
the local voltage and power receptacle type
Transmission form: Asynchronous, bi-directional
Data format
Baud rate:
600, 1200, 2400*, 4800,
9600, 19200bps
Approx. 11VA
(
supplied to the AC adapter
)
Dimensions: 113(W) x 60(D) x 38(H) mm
Net weight: Approximately 250g
Stop bits: 1 bit*or 2 bits
Weighing Instrument Cables
Required AD-8526 Cable by Weighing Instrument
Communications cable (
Length 2 m
)
GX, GF, GX-K, GF-K, GP, GR, HR,
MC
None (D-Sub 25-pin, standard accessory) AX-KO1710-200
EK-i, EW-i, FC-i, FC-S i, GH, HR-i
None (D-Sub 9-pin, standard accessory)
None (D-Sub 9-pin, standard accessory)
AD4212C standard accessory
HV-G, HV-W P, H W-G, H W-WP
None (DIN 7-pin, standard accessory)
Please refer to our website for the latest information.
Connecting the Weighing Instrument to a Computer
Caution
Contact your network manager before connecting the AD-8526 to a network. The AD-8526 may
generate a network error. A&D assumes no responsibility for any errors that may be caused.
Affix the AC adapter labels to the AC adapter and the connector end of the cable.
Set the IP address and subnet mask to the AD-8526 one at a time.
The factory default IP address is 172.16.100.2. Do not duplicate an IP address.
The IP address cannot be returned to the factory setting.
We recommend that you write the IP address on the supplied label.
Preparation
Please download each software from A&D website
（https://www.aandd.jp/products/software/software.html）for below.
(1) Setting procedure “WinCT-Plus” instruction manual
(2) IP address setting software “Device Installer”
(3) Data acquisition software “WinCT-Plus”
Step 1 Connect the AC adapter to the AD-8526.
Step 2 Connect the AD-8526 and the computer with a cross
cable directly or connect them with a hub and straight
cables.
Step 3 Input the IP addresses and subnet masks of the AD-8526
and computer. For the setting procedure, refer to the
“WinCT-Plus” instruction manual.
Communication error may occur if set incorrectly.
Step 4 Write the IP address on the IP address label and affix it on
the AD-8526 (and the weighing instrument if necessary)
where you can see the address easily.
Step 5 Install the RsMulti data acquisition software to download the
“WinCT-Plus” instruction manual.PDF form A&D website.
（https://www.aandd.jp/products/software/software.html）
Step 6 Connect the accessory RS-232C cable between the RS-232C
interface of the weighing instrument and the AD-8526’s port.
Data Communication Software
The RSMulti data acquisition software can be launched on a Windows PC. Menu: [Start] [Program]
[A&D WinCT-Plus] [RsMulti]. Refer to the Manual PDF file in the A&D WinCT-Plus for details on the
operation.
This software can acquire data from multiple devices connected by LAN or RS-232C.
The software can control these devices with commands.
The software can acquire data transmitted from devices.
Example: When the
PRINT
key is pressed on the
balance, data is output and is acquired with the computer.
Stored data can be used with Excel. (Install Microsoft Excel before use.)
Example A sample window of RsMulti
Two balances are connected.
255.255.0.0
172.16.100.1 172.16.100.2 172.16.100.3
GX-600 GP-30K
+0182.253
+0182.955
+0182.964
+0182.965
+0186.676
+0182.251
+0182.251
+0182.965
+0182.265
+0182.252
+0182.239
18.2
Note
Please confirm that
the AC adapter type
is correct for your
local voltage and
receptacle type.
IP address label (5 labels)
Write a preset IP address and
affix it on the weighing instrument.
AC adapter labels
Affix them to the AC adapter and
the connector end of the cable.
IP address protective cover
(5 labels)
Affix it on the IP address label.
: Approx. 2m. 2 pcs)
Ethernet converter
AC adapter labels
