Anviz EasyStore Bedienungsanleitung
EasyStoreTM
Network Video Recorder
QUICK GUIDE V1.0
Notice
Warning
Please check if all the items on the package list have been included in
package.
This equipment must be installed and used in strict accordance with
the instructions given in the user documentation. This equipment
contains no user-serviceable components. Unauthorized equipment
changes or modifications will invalidate all applicable regulatory
certifications and approvals.
Video and audio surveillance can be prohibited by laws that vary
from country to country. Check the laws in your local region before
using this product for surveillance purposes.
When transporting the Anviz product，please use the original
packaging or equivalent to prevent damage to the product.
To reduce a risk of fire or electric shock，do not expose this product
to rain or moisture.
To avoid electical shock, do not open the cabinet. Refer servicing to
qualified personnel only.
1

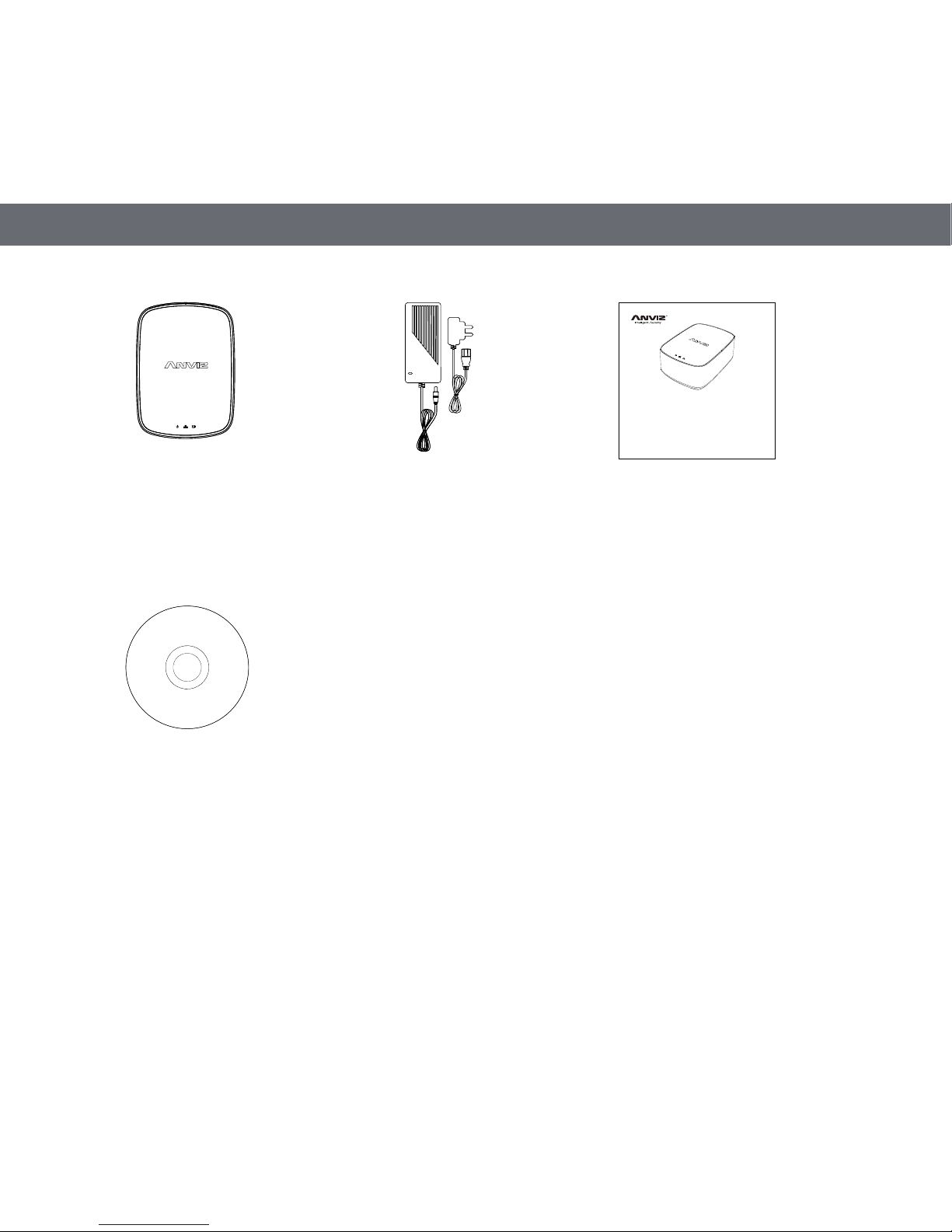

Packing List
2
②Power Adapter(48V)
and Power Cable x1
③ Quick Start Guide x1
① NVR x1
④ CD x1
EasyStoreTM
Network Video Recorder
QUICK GUIDE V1.0
Interfaces
Front
Back
3
①Power light：
Light flashes when system runs normally.
Light will be constant on when system crashes.
②Network light：
Light flashes when network connection is normal.
Light goes out when network connection is broken.
③HDD light:
Light flashes when HDD works normally.
Light goes out when HDD doesn't work properly.
23
5
6
4
①DC48V: Connect to power adapter
②VGA Port: Connect to a HDTV or Monitor
③Network Interface: Network connector port
④PoE Port: Connect to camera
⑤USB Port: Connect the USB device
⑥HDMI Port: Connect to HDTV or Monitor
12
1
3
POE
DC 48V HDMI
Installation
4
To connect your camera(s) to the EasyStore, simply connect the supplied Ethernet cable to the LAN
connection on the camera then plug the other end of the Ethernet cable into one of the camera inputs
on the back of the EasyStore. EasyStore supports PoE function.No extra power source is required for
cameras.
or
Network Cable
It’s only used when PoE is not available.
POE
DC 48V HDMI
Installation
5
POE
DC 48V
HDMI
Connect the Ethernet cable(supplied) to the LAN connection on the EasyStore, and then connect the
other end to a spare port on your router. This steps help you to see the videos on your phone. You
can skip this step if mobile monitoring is not required.
Application
6
X4or
Power
Network Cameras
HDMI
VGA
*Router
*Monitor
WAN Internet
*Not included
POE
DC 48V HDMI
Mouse
Software Guide
Live View Mode
Live View is the default display mode All connected cameras are displayed on this
screen. You can check the status or operation of your MiniStore and cameras using the
icons and Menu Bar on the Live View screen.
Right click mouse to show the setup page.
Select “Setup Wizard” , left click to enter the setup wizard window
7
Language:
Display:
Time Zone:
Date Format:
Date:
Time:
NTP:
Choose the language you would like the menu system to be displayed in.
Determine the number of pixels the MiniStore will output.
Select the time zone you are in.
Choose how you would like the date to be displayed.
Choose the date.
Choose the time.
Stands for “Network Time Protocol”. It is a way for the MiniStore to connect
to the internet and automatically updates and maintains accurate times.
Basic users only need to click the “Sync” button to synchronize the time.
Click “Next” to continue.
Display when booting up
Software Guide
General Configuration
8
Software Guide
Step 1: Connect MiniStore to the internet.
Step 2: Scan the QR code, install the CamGuardian APP and register the User.
Step 3: Press “+” to scan the UID code and add the device in CamGuardian APP.
Click “Finish” to complete the Setup Wizard.
Shortly you will see all connected cameras displayed on the Live View screen.
You can also find those QR codes on the back of MiniStore.
Setting Up on Mobile Device
Display when booting up
2016 © Anviz Global. All Rights Reserved.
brands and products are trademarked and protected under law in the United States. Unauthorized use is prohibited.
