APART CM6TSMF Bedienungsanleitung

CM6TSMF

Instruction manual

Instruction manualCM6TSMF

CM6TSMF Manual

CEILING SPEAKER

Introduction

Please read this manual carefully before using the product. This

will give you the necessary product and installation instructions to

assure a seamless installation and non-compromised overall sound

quality.

The CM6TSMF has been designed with safety in mind. The

result is a modern and very competitively priced 100 volt ceiling

mounted loudspeaker with an all metal speaker grille, back-can

and mounting dog-ears. Easy to integrate in high quality BGM and

paging systems, this speaker offers a soundstage, unheard in this

price range.

The CM6TSMF is equipped with a high quality 1.5/3/6 watt 100

volt transformer. The speaker can be used in almost any 100 volt

application requiring BGM sound levels.

CM6TSMF is the ideal speaker for background music and spoken

message distribution and has a very good speech intelligibility factor

and a surprisingly wide dispersion at the typical speech frequencies,

making it your number one choice for vocal announcements,

evacuation systems…

The 6.5 inch woofer has a moisture proof coating and a reinforced

dual paper cone for extended frequency response.

Instruction manualCM6TSMF

Safety precautions

• Keep this manual for future reference

• When making the hole in your mounting panel to mount the

Apart CM6TSMF speaker, make sure there is sufﬁcient clearance

behind the panel (no obstructions like AC power lines etc)

• Take care of your speaker wires; they should be free of damage.

Damaged speaker wires may result in poor sound quality and

can damage ampliﬁers

• Only use accessories speciﬁed by the manufacturer

• Make sure the mounting panel can support the speaker’s

weight

• Use a sufﬁcient amount of speakers to avoid dead-spots

• No mains power can be connected to the loudspeakers, doing

so will damage the speaker

• This apparatus should only be serviced by qualiﬁed personnel. If

not serviced by qualiﬁed personnel, warranty may be void

• Use cable of the right gauge, especially for long runs

• Use cables with clear color indication and maintain polarity

throughout the whole system

• Avoid loud feedback from microphones, as it can damage your

speaker

• Please check the packing for any kind of damage upon

reception of the goods. If the packing is damaged, please

contact your local dealer before opening it

• Please note that this speaker is designed for indoor use only!

CEILING SPEAKER

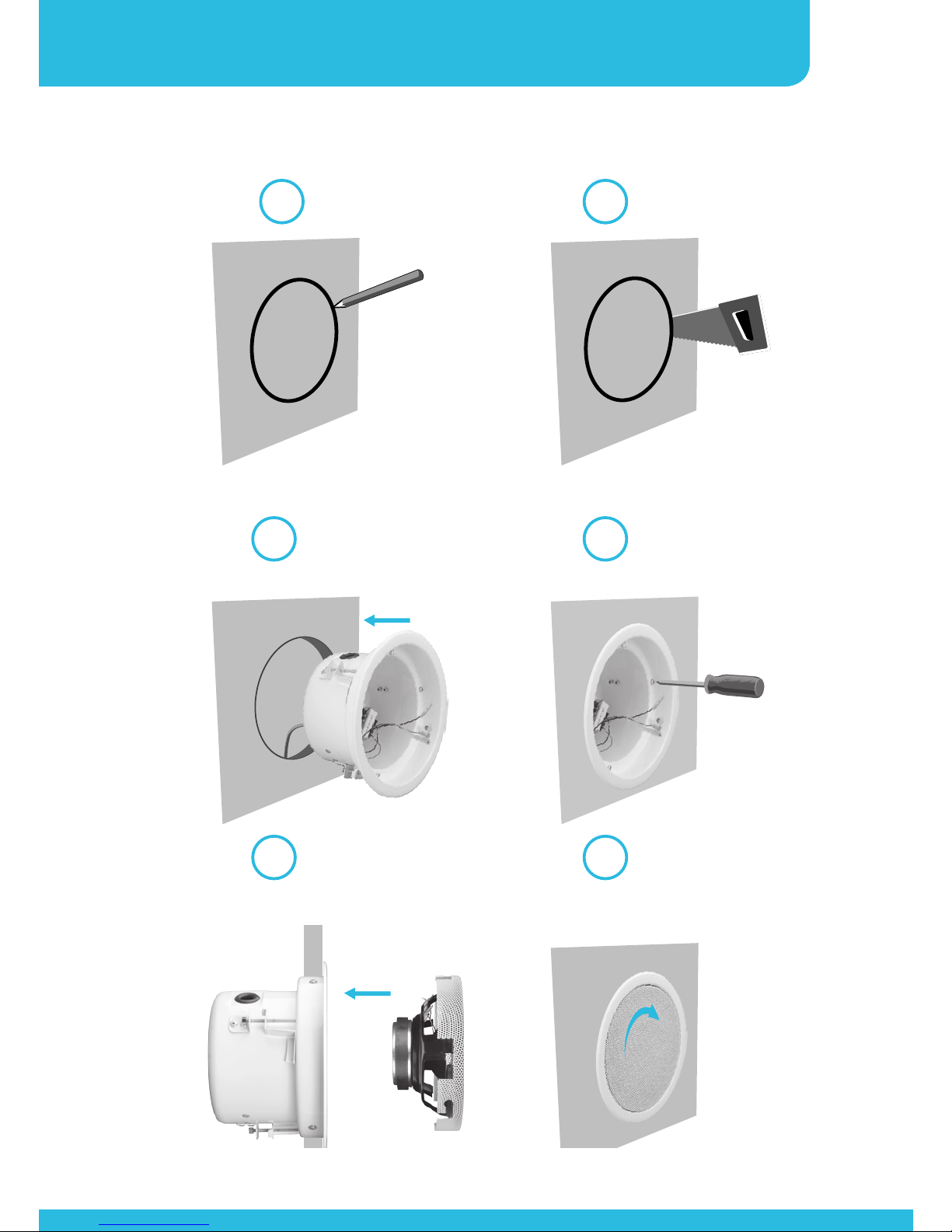

Mounting the loudspeaker

The loudspeaker is very easy to install, due to the all metal

mounting system.

Using the cutout template:

Note: when making the hole in your mounting panel, double

check if there are no cables or any other obstructions behind the

mounting panel. Cutting the mounting panel without this check

might result in damaged infrastructure or power lines.

The metal backcan has 4 predrilled holes Ø 20 mm, 3 of them

covered with removable metal plates and one 8 mm hole to mount

additional safety hardware.

Recommended applications

• Hallways

• Boutiques and shops

• Board rooms & Ofﬁces

• Emergency and evacuation systems

• ...

Instruction manualCM6TSMF

CEILING SPEAKER

Connecting the speaker to a 100 volt speaker line

The speaker can be connected to 100 volt speaker lines and

has a power of 1.5, 3 or 6 watts. Select the wattage according

to the application. Never connect the 1.5, 3 or 6 watt wires

simultaneously!

Transformer output power taps are coded with a sticker on the 100

volt transformer.

In 100 volt systems, total system power is the sum of all speakers in

the system, e.g.

33 Watt

40 Watt Ampliﬁer

The 100 volt ampliﬁer output power must be equal or higher than the total speaker power!!!

Instruction manualCM6TSMF

Technical speciﬁcations

Speaker type 6.5 inch coated dual paper cone

Rated power RMS 6W – 3W – 1.5W @ 100 volt

Nominal impedance 1666 ohms/6W/100V - 3333

ohms/3W/100V - 6666

ohms/1.5W/100V

Frequency range 90 – 19000 Hz

Sensitivity 94 dB spl 1W/1m

Max SPL 101 dB

Dispersion at 1 kHz 180°

Dispersion (-12 dB) at 4 kHz 150°

Chassis color white

Chassis type steel

Grille material steel

Removable grille yes

Fixing type metal dogears

IP classiﬁcation 60

Dimensions outside Ø 205 mm

Dimensions cutout Ø 176-186 mm

Mounting depth 118 mm

Total depth including mounting

frame

120 mm

Speaker weight 1.5 kg

CEILING SPEAKER
