APART CM20T Bedienungsanleitung

CM20T built-in loudspeaker

Safety precaution

• Keep this manual for future reference.

• When cutting the mounting hole for the speaker, make sure there is sufﬁcient clearance behind the

panel (no obstructions like A/C channels, power lines etc).

• Take care of your speaker wires, they should be free of damage. Damaged speaker wires might result in

poor sound quality and can damage ampliﬁers.

• Only use accessories speciﬁed by the manufacturer

• Make sure the mounting panel can support the speakers weight.

• Use sufﬁcient amount of speakers to avoid dead spots.

• No mains power shall be connected to the loudspeakers, doing so will damage the speaker.

• This apparatus should only be serviced by qualiﬁed personnel. If not warranty might be void.

• Use cable of the right gauge, certainly for long runs.

• Use cables with clear color indication and maintain polarity throughout the whole system.

• Avoid loud feedback from microphones, this can damage your speaker.

• Please check the units condition after unpacking. If the outside of the carton box has been damaged,

inform your shipper immediately.

Warranty info

Warranty claims and claims for hidden defects can

be considered only if the defects appear within the

warranty period of 24 months and are notiﬁed within

8 days following their appearance per registered letter.

The warranty is not valid in case of an incident, wear,

for moving parts, power surges, inadequate packing

or shipping, improper use or storage and the disregard

of recommendations of Audioprof. The warranty only

concerns the spare parts and not the involved labor,

transportation or any other costs. The product must

be returned in the original packaging with the proof

of purchase by an Audioprof authorized reseller.

CM20T

The Apart CM20T is a 2-way 100V/70V/16 ohm built-in ceiling loudspeaker. The loudspeaker has

a 6½” woofer, a 1” coaxial tweeter and a high quality 100/70 volt speaker line transformer with

multiple power taps. CM20T is the perfect choice for the distribution of microphone calls and

background music. The mounting frame is made of high quality ABS. CM20T is available in black

and white.

The general terms and conditions can be found here:

http://www.apart-audio.com/conditions/General_Terms_and_Conditions_Audioprof.pdf

WWW.APART-AUDIO.COM

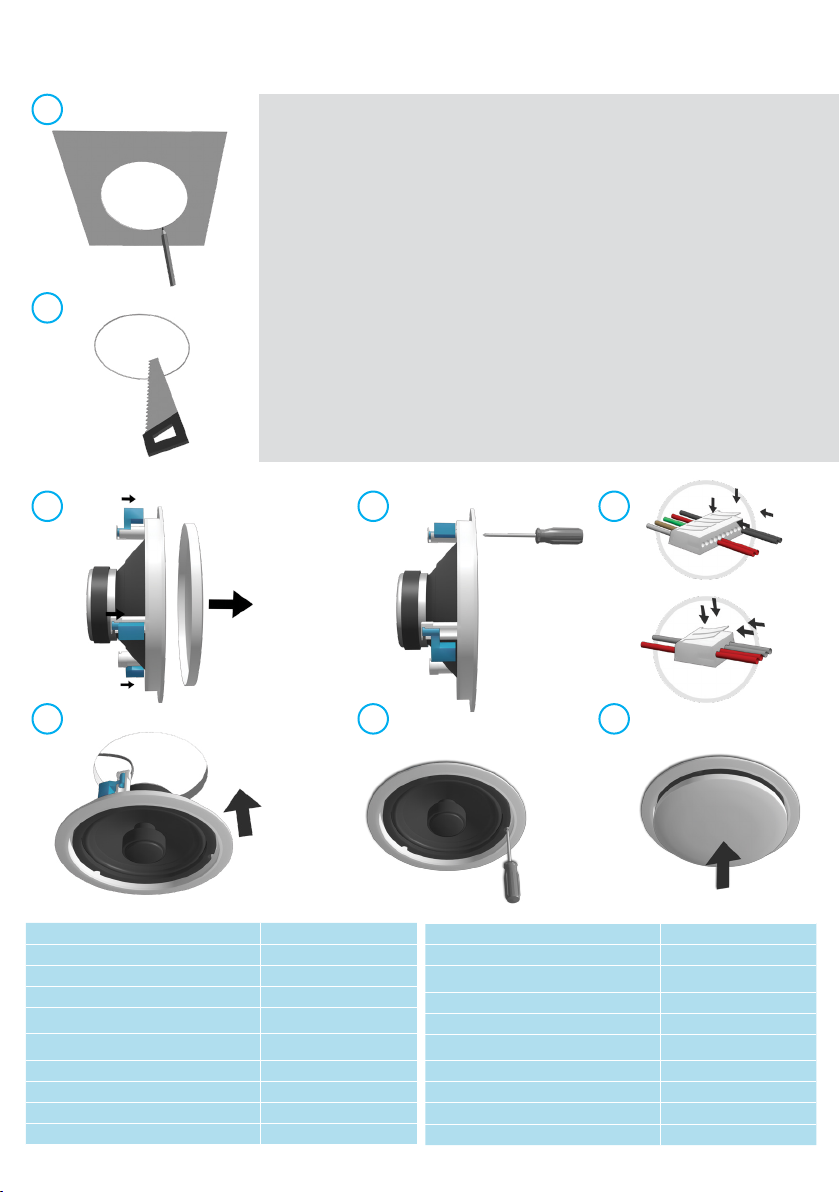

The loudspeaker is easy to install, due to its simple mounting system.

(1) Use the cutout template to mark the mounting hole.

(2) When making the hole in your mounting panel, double check if there are no cables

or any other obstructions behind the mounting panel. Cutting the mounting panel

without this check might result in damaged infrastructure or power lines. Please make

sure that the mounting structure is capable of safely supporting the speaker’s weight.

(3) Remove the speaker grille: turn the mounting clamps (dog-ears) outwards and push

them in the direction of the grille until it pops out. Remove the grille.

(4) Turn the dog-ears inwards again and tighten the dog-ear screws slightly to make them

stay in the inward position.

(5) Connect the speaker wires and (6) insert the speaker in the precut speaker opening.

(7) Fasten the dog-ear screws carefully until the speaker sits safely in place. Do not

overtighten the dog-ear screws!

(8) Carefully push the grille back in place.

NOTE: for use in low impedance systems, always disconnect the 100/70 volt

transformer and connect the low impedance speaker wires directly at the speaker.

Mounting the loudspeaker

3 4

WWW.APART-AUDIO.COM

6 7

100V / 70V

low impedance

outside diameter 205 mm

depth 80 mm

cutout 186 mm

loudspeaker system 2-way

woofer size 6.5 inch

woofer cone material polypropylene

tweeter size 1 inch

mounting system 3 screws

100/70V* power taps 20 - 10 - 5 - 2.5* watts

impedance 16 ohms

low impedance dynamic power 60 watts

SPL 1W/1m 86 dB

max SPL 1m 104 dB

frequency response 60 - 20 kHz

main construction material ABS plastic

grille main material aluminium

IP rating 54

applicable low impedance yes

applicable in 100V / 70V yes

dispersion angle 1000 Hz 180°

*2.5 W: 70 volt only
