Apollo SC2900-001 Bedienungsanleitung
Conventional Manual Call Point

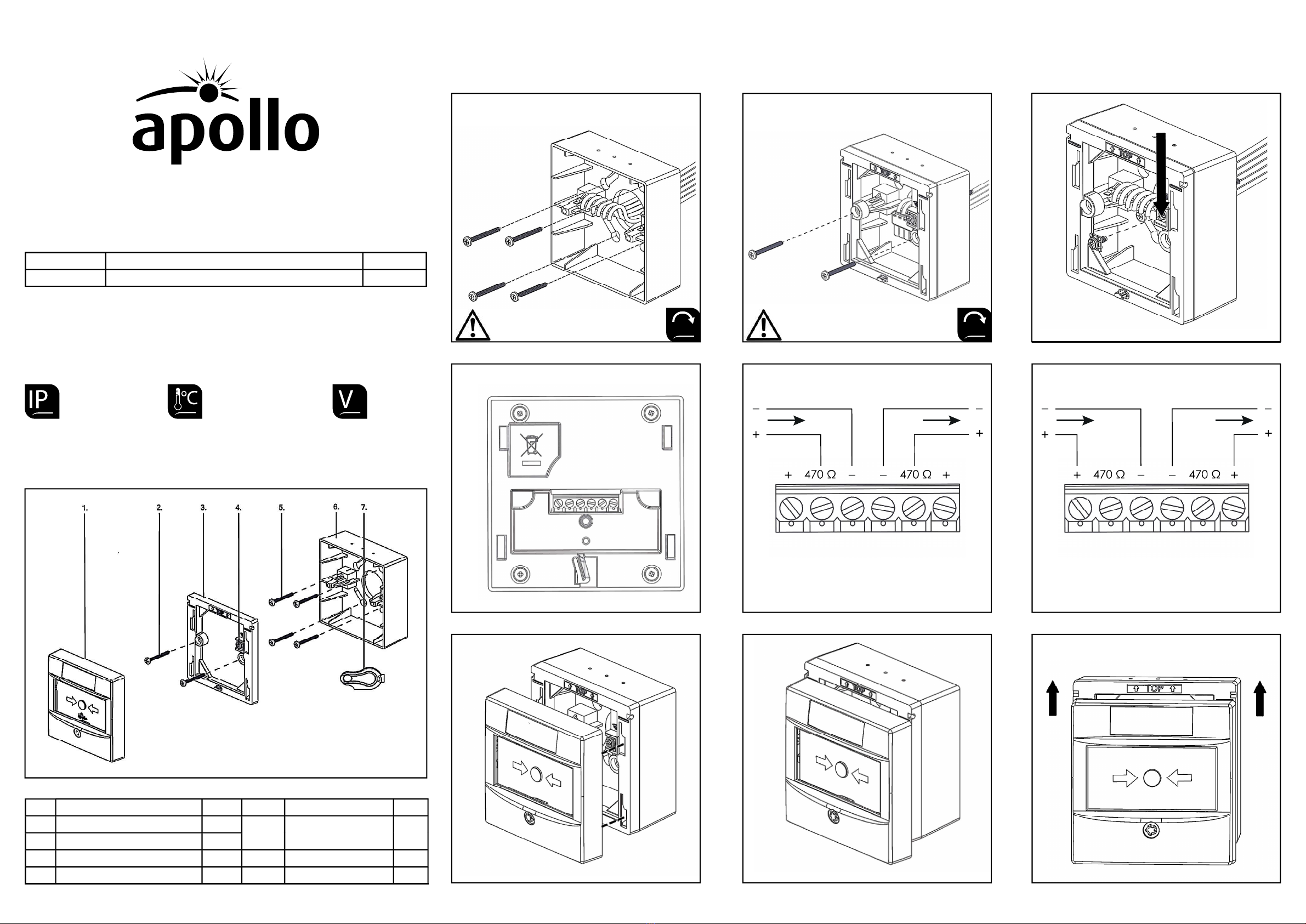

Installation Guide
Technical Information
18-30 V dc-40°C to 70°CIP44
Product Overview
Item Qty Item Qty
1. Head unit 1 5. Fixing screws
(NOT SUPPLIED) N/A
2. Fixing screws 2
3. Mounting bracket 1 6. Backbox 1
4. Earth Continuity Terminal 1 7. Reset key 1
1
4
6
0.6Nm
ABM22001-061/Issue 3
5b
3
8
Installation
0.6Nm
2
Part No Product Name Type
SC2900-001 Conventional Manual Call Point Indoor
Do not overtighten screws
Note the alignment marks
LED will NOT illuminate when call point is
activated
Functional Earth Wiring
5a
LED will illuminate when call point is activated
Do not overtighten screws
7
Testing
© Apollo(Beijing) Fire Products Co., Ltd
3rd oor, No. 5, Xinghai Road, BDA, Beijing, China
Tel: +86 (0) 010-59409000
Email: info-china@apollo- re.com
Website: www.apollo- re.co.uk
Commissioning
The installation must conform to BS5839–1 (or applicable local
codes).
LED Indicator
Illuminated red when call point is operated only in 470Ω mode.
Transparent Hinged Cover
To provide additional protection against accidental operation,
a Transparent Hinged Cover, part no 44251-189, is available or
44251-175 for multiples of 10.
A
B
Removal
A
B
C
1. HOLD
2. PUSH
C
